NUFLO 1502 WECO Union Liquid Turbine
NUFLO 1502 WECO Union Liquid Turbine Flow Meter

WECO 1502 型 Union 連接方式流量計

通常使用在高壓油井的流量測量場合上。 1” 、 1-1/2” 和 2” 流量計的 Union 連接尺寸為 2” ， 3” 流量計的 Union 連接尺寸為 3” ，所有的 1502 型流量計均有兩個電磁檢出單元的適配器。 The NUFLO 1502 WECO Union Liquid Turbine Flowmeter incorporates a tungsten-carbide shaft and bearings to withstand the rugged conditions of the oilfield environment. Over the years, this flowmeter has earned an unsurpassed reputation for with-standing sever punishment while maintaining operational and measurement integrity. WECO union turbine flowmeters indicate flowrate and measure total throughput of a liquid line.

NUFLO 1502 WECO Union Liquid Turbine Flow Meter

Call for pricing on:
- High Pressure Threaded Industrial Grade
- Modified For Nitrogen/CO2
- Ball Berring Kits
- Brazed For Corrosive Service
- Modified For Cement Slurries

Magnetic pickup sold separately.

Meter Type	Meter Part Number	Flow Size	End Connection Size	Flow Range		Rotor & Vane Kit Part Number
				GPM	BPD
High Pressure 1502 Union End	9A-101007025	1"	2" 1502 Wing-Thrd	5-50	170-1700	9A-100003527
	9A-100012087	1 1/2"	2" 1502 Wing-Thrd	15-180	515-6000	9A-100003469
	9A-100009371	2"	2" 1502 Wing-Thrd	40-400	1300-13000	9A-100003474
	2296675-01	2"	2" 1502  Thrd -Thrd	40-400	1300-13000	9A-100003474
	9A-100061103	3"	3" 1502  Thrd -Thrd	80-800	2750-27500	9A-100003470
	9A-10101177	3"	3" 1502 Wing-Thrd	80-800	2750-27500	9A-100003470
High Pressure 1502 Union End Certified Nace	9A-100061218	1"	2" 1502 Wing-Thrd	5-50	170-1700	9A-100003527
	X	1 1/2"	2" 1502 Wing-Thrd	15-180	515-6000	9A-100003469
	9A-101206984	2"	2" 1502 Wing-Thrd	40-40	1300-13000	9A-100003474
	9A-10101178	3"	3" 1502 Wing-Thrd	80-800	2750-27500	9A-100003470



WECO 1502 型 Union 連接方式

通常使用在高壓油井的流量測量場合上。 1” 、 1-1/2” 和 2” 流量計的 Union 連接尺寸為 2” ， 3” 流量計的 Union 連接尺寸為 3” ，所有的 1502 型流量計均有兩個電磁檢出單元的適配器。

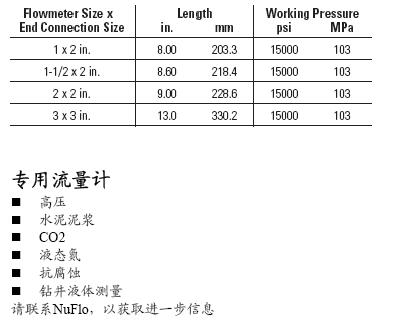

專用流量計

高壓

水泥泥漿

CO2

液態氮

抗腐蝕

鉆井液體測量

請聯系 NuFlo ，以獲取進一步信息

規格參數Specifications：

Accuracy: ± 1.0% Standard Grade
Repeatability: ± 0.05%
End Connections: 2” and 3” 1502 WECO Union
Working Pressure: 10K sour, or 15K sweet service
Magnetic Pickups: x 2 for local and remote monitoring
Temperature Range (magnetic pickup):
Standard -67° F to 250° F (-55° C to 121° C)
Medium -67° F to 450° F (-55° C to 232° C)
(requires high-temperature magnetic pickup)
Mating Output Connection: AN3106A-10SL-4S
Compliances:
CSA Certified Hazardous Locations Class I, Group A, B, C, D
CE-marked for Pressure Equipment Directive (PED)

材質Materials of Construction：

Meter Body: A286 stainless steel
Meter Vanes: 316L stainless steel
Rotor Shaft and Bearings: Tungsten carbide
Union Nut: Carbon steel
Magnetic Pickup Receptacle: 316L stainless steel

產品應用Applications：

- High-pressure water injection trials
- Scale inhibitor treatments
- Well cleanouts with coil tubing
- Tubing valve opening/closing
- Mud/cementing operations
(displacement volume monitoring)
- Flowback of treatment fluids
