NUFLO Cameron EZ-IN Turbine Flowmeters
EZ-IN Series BF ( between-flange ) Turbine Flowmeter

EZ-IN 夾裝式流量計

和法蘭式的流量計向比較， BF 系列夾裝式渦輪流量具有更好的性價比。 BF 系列的夾裝式流量計除了可提供 精準而堅固的安裝及免維護等特點外，還具有以下特點：

更低的安裝費用
比常規(guī)的法蘭連接具有更好的性價比
易于拆除和檢查
RF EZ-IN 夾裝式流量計可以和任何 ANSI 150~ANSI 1500 法蘭配對安裝， RTJ EZ-IN 夾裝式流量計可以和 ANSI 900 、 1500 或 2500 法蘭配對安裝，訂貨時須說明法蘭連接方式
CE 標志的 8x8” EZ-IN RF 要求特殊的對中工具

The Nuflo Cameron EZ-in style turbine meter is installed as a wafer between two user supplied flanges, offering economical alternatives and significant application advantages to conventional flange to flange, victaulic or threaded connections. This line offers all stainless steel precision machined components with CD4MCu and/or 416 stainless steel rotors in line sizes from 3/8" through 8.0" and the same Nuflo Cameron Measurement reliability and accuracy. Pressure ratings to 3700 PSI can be achieved with appropriate mating flanges. Note that MWP is dependant on user supplied flanges.

Installation kits and magnetic pick up sold separately.

NUFLO P/N	Rotor and Vane Kit P/N	End Connection	Bore	GPM	BPD	MWP
9A-100079842	9A-100003521	3/8" x 1"	3/8"	0.3 - 3.0	10 - 100	3,700
9A-100079724	9A-100079691	3/8" x 2"	3/8"	0.3 - 3.0	10 - 100	3,700
9A-100014142	9A-100003531	1/2" x 1"	1/2"	0.75 - 7.50	25 - 250	3,700
9A-100079661	9A-100005122	1/2" x 2"	1/2"	0.75 - 7.50	25 - 250	3,700
9A-100014143	9A-100003449	3/4" x 1"	3/4"	2.0- 15.0	68 - 514	3,700
9A-100079662	9A-100079674	3/4" x 2"	3/4"	2.0- 15.0	68 - 514	3,700
9A-100079845	9A-100005124	7/8" x 1"	7/8"	3.0- 30.0	100 - 1000	3,700
9A-100079810	9A-100079811	7/8" x 2"	7/8"	3.0- 30.0	100 - 1000	3,700
9A-100009579	9A-100003527	1" x 1"	1"	5.0 - 50.0	170 - 1,700	3,700
9A-100005115	9A-100005123	1" x 2"	1"	5.0 - 50.0	170 - 1,700	3,700
9A-100005095	9A-100005099	1-1/2" x 2"	1 1/2"	15.0 - 180.0	514 - 6,000	3,700
9A-100003551	9A-100003553	2" x 2"	1-1/2"	40.0 - 400.0	1,371 - 13,714	3,700
9A-100003539	9A-100003540	3" x 3"	3"	60.0 - 600.0	2,100 - 21,000	3,700
9A-100003552	9A-100003554	4" x 4"	4"	120.0 - 1,200.0	4,100 - 41,000	3,700
9A-100009536	9A-100012091	6" x 6"	6"	250.0 - 2,500.0	8,571 - 85,710	3,700
9A-100062998	9A-100063004	8" x 8"	8"	350.0 - 3,500.0	12,000 - 120,000	3,700

NUFLO EZ-IN Series Turbine Flowmeter Installation Manual
Part No. 9A-100062997, Rev. 03 Measurement Systems

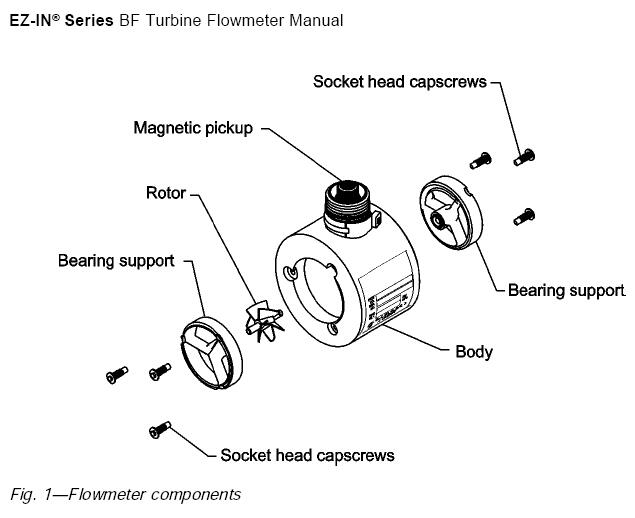

EZ-IN End Connection:

Series BF turbine flowmeters with EZ-IN connections provide a cost-effective alternative to typical flanged-meter applications. Series BF meters with EZ-IN connections offer the accuracy, rugged construction, and maintenancefree operation of conventional NUFLO flowmeters plus the following advantages: - Lower installation cost.
- Less expensive than a conventional, flanged meter.
- Spreader nuts enable easy removal and inspection.
- The raised-face EZ-IN meter will mate to any flange rated ANSI 150# to 1500#. The ring-joint (RTJ) version will mate to ANSI 900#, 1500# or 2500# RTJ flange. Specify flange type when ordering.
- CE-marked 8 x 8-in. EZ-IN RF requires special centering rings.



EZ-IN 夾裝式流量計

和法蘭式的流量計向比較， BF 系列夾裝式渦輪流量具有更好的性價比。 BF 系列的夾裝式流量計除了可提供 精準而堅固的安裝及免維護等特點外，還具有以下特點：

更低的安裝費用

比常規(guī)的法蘭連接具有更好的性價比

易于拆除和檢查

RF EZ-IN 夾裝式流量計可以和任何 ANSI 150~ANSI 1500 法蘭配對安裝， RTJ EZ-IN 夾裝式流量計可以和 ANSI 900 、 1500 或 2500 法蘭配對安裝，訂貨時須說明法蘭連接方式

CE 標志的 8x8” EZ-IN RF 要求特殊的對中工具









Field Flow Display/Accumulator and Other Electronic Flow Measurement Components:
MCII Flow Field Meter MC-II+EXP Flow Field Meter MC-II+WP Flow Field Meter
MC-II+Display Disk Installed Flow Field Meter MC-II+Portable Flow Display Meter
MC-RTU Flow Field Meter HFC-RTU Converter FLO-III Flow Computer TMP-100 Turbine
Flow Pulse divider

NUFLO Flowmeter 9A-100003522

NUFLO Flowmeter 9A-100062996

NUFLO Flowmeter 9A-100009371

NUFLO Flowmeter 9A-100012094

NUFLO Flowmeter Repair Kit 9A-100003382

NUFLO Flowmeter Repair Kit 9A-100003474

NUFLO Flowmeter Repair Kit 9A-100003382

NUFLO Flowmeter Repair Kit 9A-100003380

NUFLO Flowmeter Repair Kit 9A-100003449

NUFLO Flowmeter Repair Kit 9A-100003379

NUFLO Flowmeter Repair Kit 9A-100003531

NUFLO Flowmeter Turbine Meter GA-100003539 2

NUFLO Flowmeter Magnetic Pick up 9A-100003539

NUFLO Flowmeter MC-III EXP.9A-50179024

NUFLO Flowmeter FLOW METER3/8X 2 “3009A-100079724″

NUFLO MC-III EXP Integrator 9A-50179027

NUFLO Turbine Flowmeter 9A-100003525

BEKA Display Instrument BA337E

NUFLO Flowmeter Repair Kit 9A-100003473

NUFLO Flowmeter Repair Kit 9A-100061056

NUFLO Flowmeter Repair Kit 9A-100003470

NUFLO Flowmeter Repair Kit 9A-100003383

NUFLO Flowmeter Repair Kit 9A-100003378

NUFLO Flowmeter Repair Kit 9A-100003521

NUFLO Flowmeter Repair Kit 9A-100061058

NuFlo meter

NuFlo Liquid Turbine Meters

NUFLO MC-II Flow Analyzer

NUFLO 1502 WECO Union Liquid Turbine Flowmeter

NUFLO Gas Turbine Meters

NUFLO Scanner 2000 microEFM

NUFLO MVX-II Multi-Variable Transmitter

NUFLO Relief Valves

NuFlo Barton 7000 Series — 7110

NuFlo Barton 7000 Series — 7112

NuFlo Barton 7000 Series — 7146

NuFlo Barton 7000 Series — 718

BARTON 3940 Series Temperature Transmitter with HART Communications

NUFLO Turbine Flowmeter 9A-100003005 Hardware Components

NUFLO Turbine Flowmeter 9A-50179032mc-iii Flow Analyzer

NUFLO Turbine Flowmeter 9A-100005111 Lithium Battery

NUFLO Turbine Flowmeter 100003550 FM Components

NUFLO Turbine Flowmeter 9A-100003557 Hardware Components

NUFLO Turbine Flowmeter 9A-100002077 Magnetic Pickup

NUFLO flowmeter repair kit 9A-100003379

NUFLO flowmeter repair kit 9A-100003531

NUFLO flowmeter repair kit 9A-100061057

NUFLO flowmeter repair kit 9A-100003471

NUFLO flowmeter repair kit 9A-100003384

NUFLO turbine flowmeter 100005111 lithium battery

NUFLO turbine flowmeter 1000062996 FM components

NUFLO Turbine Flowmeter 100003005 Hardware Components

NUFLO Turbine Flowmeter 50790032mc-iii Flow Analyzer

NUFLO turbine flowmeter 9A-1000062996 FM components

NUFLO flowmeter repair kit 9A-100003473

NUFLO flowmeter repair kit 9A-100003378

NUFLO flowmeter repair kit 9A-100003521

NUFLO flowmeter repair kit 9A-100061058

NUFLO flowmeter repair kit 9A-100003449

NUFLO flowmeter repair kit 9A-100003470

NUFLO flowmeter repair kit 9A-100003383

NUFLO flowmeter repair kit 9A-100003474

NUFLO flowmeter repair kit 9A-100003382

NUFLO flowmeter repair kit 9A-100003550

NuFlo Turbine Flowmeter 9A-100009371

NuFlo turbine flow meter 9A-100003519

NuFlo Turbine Flowmeter 9A-100003532

NuFlo turbine flowmeter 9A-100003589

NuFlo turbine flowmeter 9A-100003526

NuFlo turbine flowmeter 9A-100003536

NuFlo Turbine Flowmeter 9A-10101183

NuFlo Turbine Flowmeter 9A-10101183

NuFlo Turbine Flowmeter 9A-100003535

NuFlo 9A-100003521

NuFlo 9A-100003531

NuFlo 9A-100003449

NuFlo 9A-100005124

NuFlo 9A-100003527

NuFlo 9A-100003469

NuFlo 9A-100003474

NuFlo flowmeter repair kit 100003378

NuFlo flowmeter repair kit 10000321

NuFlo flowmeter repair kit 100061058

NuFlo flowmeter repair kit 10003472

NuFlo flowmeter repair kit 100061057

NuFlo flowmeter repair kit 10004771

NuFlo flowmeter repair kit 100003384

NuFlo flowmeter repair kit 100003380

NuFlo flowmeter repair kit 100003449

NuFlo flow field table MC-II+EXP

NuFlo flow field table MC-II+WP

NuFlo display disk mounted flow field table MC-II+

NuFlo portable flow display meter MC-II+

NuFlo flow field table MC-RTU

NuFlo flowmeter repair kit 100061056

NuFlo flowmeter repair kit 100003470

NuFlo flowmeter repair kit 10083383

NuFlo flowmeter repair kit 100003474

NUFLO Flowmeter Repair Kit 9A-100003472

NUFLO Flowmeter Repair Kit 9A-100061057

NUFLO Flowmeter Repair Kit 9A-100003471

NUFLO Flowmeter 9A-100003522

NUFLO Flowmeter Repair Kit 9A-100005124

NUFLO Flowmeter Repair Kit 9A-100003384

CAMERON? EZ-In Turbine Turbine Meters. NuFlo turbine flowmeters indicate flow rate and measure total throughput of a liquid line. As liquid flows through the meter and over the rotor, the rotor turns at a speed that is directly proportional to the flow rate.



Install the NuFlo? Liquid Turbine Flowmeter as follows. The flow-meter may be installed in any orientation (vertical, horizontal, etc.). 1. Align the meter bore with the pipe, ensuring that the direction of flow corresponds with the direction of the arrow engraved on the meter body.

Cameron Turbine Meter NUFLO Flanged Connection 4” 100-1200 USGPM Stainless Steel. Cameron Turbine Meter NUFLO 9A-100003538: NUFLO turbine flow meters indicate flow rate and measure total throughput of a liquid line. As liquid flows through the meter and over the rotor, the rotor turns at a speed that is directly proportional to the flow rate.



9A- 100003521 9A- 100003378 1/2 9A- 100003531 9A- 100003379 3/4 9A- 100003449 9A- 100003380 7/8 9A- 100005124

9A- 100061059 1 9A- 100003527 9A- 100003381 1-1 /2 9A- 100003469 9A- 100003382 2 9A- 100003474 9A- 100003383 3

9A- 100003470 9A- 100061056 4 9A- 100003473 9A- 100003384 6 9A- 100003471

9A- 100061057 8 9A- 100003472 9A- 100061058



CAMERON EZ-In Turbine Turbine Meters

NuFlo turbine flowmeters indicate flow rate and measure total throughput of a liquid line. As liquid flows through the meter and over the rotor, the rotor turns at a speed that is directly proportional to the flow rate. A magnetic pickup senses the rotor blades as they pass and generates an electrical (sine wave) signal. These electrical pulses are then transmitted to the flow measurement readout equipment.
