Nuflo MC-III EXP Flow Analyzer防爆流量積算指示儀
NUFLO MC-III Flow Analyzer Series Overview
MC-III EXP Flow Analyzer
今，超過25萬套NuFo流量積算儀在各地運行。無
可否認，卡麥隆測量系統在設計和制造流量積算儀及流量類分
析儀表。 Nuflo＂MC系列的流量類電子類 產品有多功能，從MC?積算儀(提供累計流量和瞬時流量)到 MC-IEXP積算儀(通過 Modbus通訊可在一分鐘之內完成 對數據記錄文件的下載)我們?yōu)橛脩籼峁┝吮姸囝愋偷漠a(chǎn)品。 MC系列的流量電子類產品可以和 Nuflo渦輪流量計配套使 用，同時又是通用型產品，和其它品牌的渦輪流量計配套使用同樣性能表現。For state-of-the art liquid and gas measurement with data logging and Modbus? communications in an easy-to-use explosion-proof totalizer, nothing compares with the NUFLO MC-III EXP explosion-proof flow totalizer. The NUFLO MC-III EXP explosion-proof flow totalizer stores more flow logs and downloads them faster than any other flow analyzer on the market. This powerhouse records up to 384 daily flow logs, 768 hourly logs, 345 event logs and downloads them to your computer via Modbus in less than a minute.
Download Nuflo MC-III EXP Flow Analyzer Specifications (PDF)
Now available as a stand-alone totalizer or as a complete totalizer-and-flowmeter system, certified for explosion-proof (CSA) or (ATEX/IECEX) applications.
MC-III Panel Mount Flow Analyzer
The NUFLO MC-III panel mount flow totalizer offers state-of-the art liquid and gas measurement with data logging and Modbus? communications in an easy-to-use totalizer with a standard 1/4-DIN mount. With the capacity to record up to 384 daily flow logs, 768 hourly logs, and 345 event logs, the MC-III panel mount is a powerful addition to any flow measurement operation.
The NUFLO MC-III panel mount flow totalizer is easily configured with the six-button keypad on the front of the instrument. Built-in shortcuts to common functions reduce the user’s time spent on site. The NUFLO MC-III panel mount flow totalizer connects to a turbine meter or a pre-amplifier. Users can select a 4 to 20 mA output, a pulse output, or an amplified flow meter frequency output that allows remote equipment to calculate flow rates and volume.
MC-III Weatherproof Flow Analyzer
The NUFLO MC-III WP weatherproof flow totalizer offers state-of-the art liquid and gas measurement with data logging and Modbus? communications in an easy-to-use weatherproof totalizer. With the capacity to record up to 384 daily flow logs, 768 hourly logs, and 345 event logs, our NUFLO MC-III WP weatherproof flow totalizer s a powerful addition to any flow measurement operation.
The NUFLO MC-III WP weatherproof flow totalizer is easily configured with the six-button keypad on the front of the instrument. Built-in shortcuts to common functions reduce the user’s time spent onsite. In addition, our NUFLO MC-III WP weatherproof flow totalizer connects to a turbine meter or a preamplifier. Users can select a 4 to 20 mA output, a pulse output, or an amplified flow meter frequency output that allows remote equipment to calculate flow rates and volume.
- NUFLO MC-III Flow Analyzer Series Overview
 |
Cameron Turbine Meter Nuflo MC-III 6-30VDC RS485 4-20mA C1D1 Explosion Proof
Cameron Flow Analyzer Nuflo 9A-50179024: MC III EXP, totalizer
RS485 Modbus communication
Analog output 4-20mA
0.1% Accuracy
LCD Display with user selectable units of measurement
Input voltage 6-30VDC with 3.6VDC lithium backup battery included
Temperature range -40 to 158 deg F
Explosion Proof, Class 1 Div 1
Download: brochure Data Sheet | manual |
 |

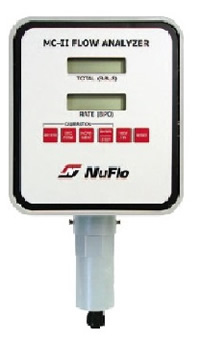

Cameron Flow Analyzer NUFLO MC-II 3.6VDC
MC-II Flow Analyzer provides separate, continuous digital displays of flow rate and accumulated flow based on input from a turbine flowmeter. The low current consumption of its liquid crystal displays and CMOS microprocessor based circuitry enable years of dependable performance from a single lithium battery. Typical battery life is 3 to 5 years. Totalizer readings can be made in any desired volumetric units, and flow rates can be measured in units per second, minute, hour, or day. Rate and total are quickly and easily calibrated using the keypad on the front of the MC-II. The instrument is suitable for outdoor installation and requires no additional protection from the weather. The unit may be mounted directly on the turbine meter or attached remotely.
Cameron Flow Analyzer NUFLO 9A-100005130
Download: brochure Data Sheet | manual |
 |
CAMERONMC-III Panel Mount Flow Analyzer
Cameron’s NUFLO MC-III Panel Mount Flow Analyzer provides state-of-the-art liquid and gas measurement with data logging and Modbus? communications in an easy-to-use totalizer with a standard 1/4-DIN mount. With capacity to record up to 384 daily flow logs, 768 hourly logs and 345 event logs, downloadable in less than a minute.
Download: brochure Data Sheet | manual |
 |
CAMERON MC-III WP Flow Analyzer
Cameron’s NUFLO MC-III Panel Mount Flow Analyzer provides state-of-the-art liquid and gas measurement with data logging and Modbus communications in an easy-to-use weather proof totalizer. Features include direct or remote mount, Easy calibration, and password-protected security.
Download: brochure Data Sheet | manual |
Nuflo MC-III EXP Flow Analyzer Product ImageFor state-of-the art liquid and gas measurement with data logging and Modbus communications in an easy to-use explosion-proof totalizer, nothing compares with the NuFlo MC-III EXP Flow Analyzer.
The MC-III EXP stores more flow logs and downloads them faster than any other flow analyzer on the market.
This powerhouse records up to 384 daily flow logs, 768 hourly logs, 345 event logs and downloads them to your computer via Modbus in less than a minute!
The MC-III EXP is designed to perform reliably in hazardous areas and in the harshest environmental conditions across the globe.
The MC-III EXP connects to a turbine meter or a pre-amplifier. Users can select a 4-20 mA output, a pulse output, or an amplified flowmeter frequency output that allows remote equipment to calculate flow rates and volume.
Features
The MC-III EXP offers:
- RS-485 Modbus communications
- Extensive log archival capacity
- High-speed data downloads
- Interactive software for quick and easy calibration and data access
- Simultaneous indication of rate and total
- Easy-to-read LCD displays
- Loop-powered analog output
- 12-point linearization
- Nonvolatile memory
- Password-protected security
- Optional hardware for daily log viewing and external laptop connection
- Intrinsically safe RS-485 output (option)
- CSA, ATEX, IECEx and CE approvals
Calibration
Calibrating the MC-III EXP is as easy as entering the calibration factor of the flowmeter and selecting the desired units of measurement. The instrument automatically calculates its own divisor.
The wide variety of unit options for total and rate gives users the freedom to customize the display, inputs, and outputs for specific needs.
With the built-in “wizard” that guides users step by step through the configuration process, even first-time users will get dependable results in just minutes.
Keypad Configuration
The MC-III EXP can be configured with either the software interface or the six-button keypad on the front of the instrument. Built-in shortcuts to common functions (see diagram below) simplify configuration, reducing the user’s time spent on-site.
MC-III EXP and Turbine Meter Packages
The MC-III EXP can be packaged with a NuFlo or Barton 7000 Series turbine meter and a suitable CSA- or ATEX-approved adapter and shipped straight from the factory, ready for installation.
