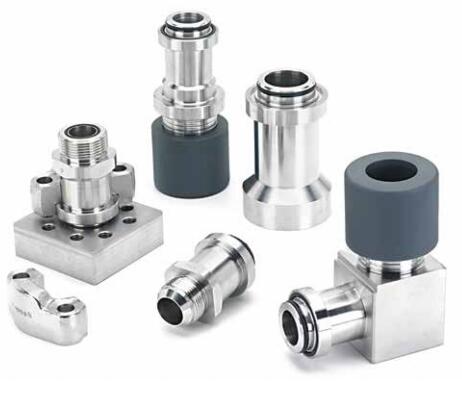

派克Phastite海底管件 Parker Phastite Tube Fittings For Subsea

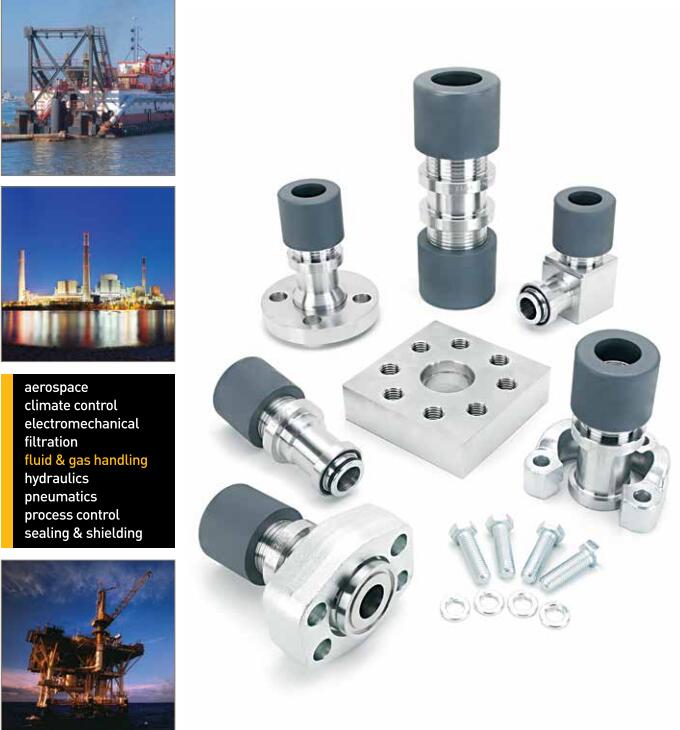

Phastite Series Permanent Ferrule Less Tube Fittings

派克Phastite海底管件 Parker Phastite Tube Fittings For Subsea。Parker派克Phastite 是管連接系統的一項突破。其創新的設計理念消除了對焊接的昂貴要求，并將快速安裝與信號組裝過程相結合，從而實現了可用于高達21,400 psi / 1,470 bar的應用中的管連接器。從北海的海底勘探到哈薩克斯坦的天然氣鉆井，開發了一系列標準和耐腐蝕合金，以應對最苛刻的環境。Phastite 符合行業標準的所有相關性能和功能要求。在Phastite 的整個開發過程中，產品性能和完整性至關重要。包括熱循環，沖擊，振動，氦氣泄漏，氣密性和靜水壓測試在內的嚴格測試程序已經完成。

派克Phastite海底管件 Parker Phastite Tube Fittings For Subsea
Permanent Ferrule Less Tube Fittings - Phastite Series

市場：
- 海上油氣
- 陸上油氣
- 石化
- 化學

特性/優點：
- 降低了安裝成本
- 簡化了組裝過程
- 無需重新制作或重新測試
- 無需焊接
- 降低了油管成本
- 減輕了重量
- 否零件松散
- 組成簡單
- 耐振動
- 無需高溫作業

應用：
- 儀表線
- 液壓動力裝置
- 化學注入橇

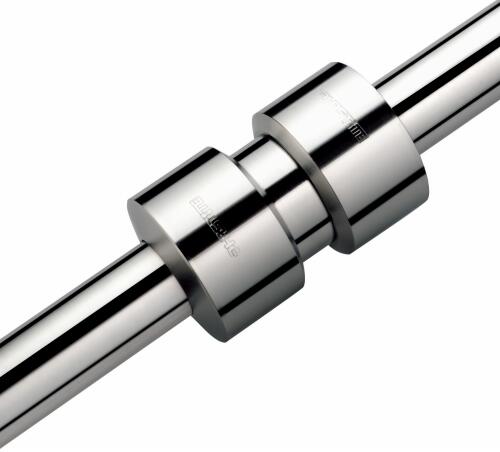

用于管道的Phastite將快速安裝與簡單組裝相結合，可快速，輕松地實現永久的非焊接連接。使用臺式安裝的Parker Phastool 100將磷灰石配件軸向鍛造到管道上。一旦將卡圈完全鎖定到配件主體上，它就不會脫離-在短短幾分鐘內提供永久的無泄漏連接解決方案！

管中的Phastite具有很高的抗振動，壓力循環和外部載荷的能力，是高壓管道的一項突破性技術。此外，它消除了無損檢查（NDE），從而減少了整體焊接后的檢查時間和成本。

非常適合液壓，水和水/乙二醇，潤滑和其他介質
兼容NPS / IPS計劃管道尺寸?“，1”，1-1 / 2“和2”
承受高達10,000 psi / 700 bar的壓力
設計用于在15,000英尺的海底深度執行
符合ASME B31.1和B31.3的要求
根據ASTM F1387測試

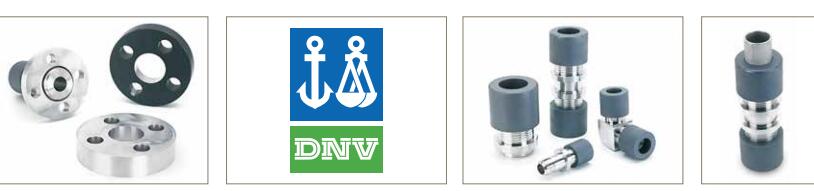

DNV RP-A203技術鑒定計劃證書

Parker's Phastite permanent compression fitting offers an extremely quick, easy and simple way of permanently connecting tube. When considering how much time it takes to weld tubing, Phastite? delivers a huge reduction in total installation cost. Phastite is a breakthrough in tube connection systems; its innovative design concept eliminates the costly requirement of welding and combines quick installation with a signal assembly process achieving a tube connector that can be used in applications up to 21,400 psi/1,470 bar. Developed in a range of standard and corrosion resistant alloys to cope with the most demanding environments, from subsea exploration in the north sea to natural gas drilling in Kazakhstan. Phastite? meets all the relevant performance and functional requirements of industry standards. Throughout the development of Phastite?, product performance and integrity were paramount. A rigorous testing program including Thermal Cycling, Shock, Vibration, Helium Leak, Gas Tight and Hydrostatic testing has been completed.

Markets:
- Oil and Gas Offshore
- Oil and Gas Onshore
- Petrochemical
- Chemical

Features/Benefits:
- Reduced Installation Costs
- Simple assembly process
- No need to re-make or re-test
- No welding required
- Reduced tubing costs
- Weight reduction
- No loose parts
- Simple make-up
- Vibration tolerant
- No need for hot work

Applications:
- Instrumentation lines
- Hydraulic power units
- Chemical injection skids

Technical Specifications

Permanent Ferrule Less Tube Fittings - Phastite Series型號
Phastite Tube Connectors Permanent Instrument Tube Connectors
Phastite for Pipe Connection System A Non-Welded System for High-Pressure Piping
