Parker Fittings接頭
Compression Fittings

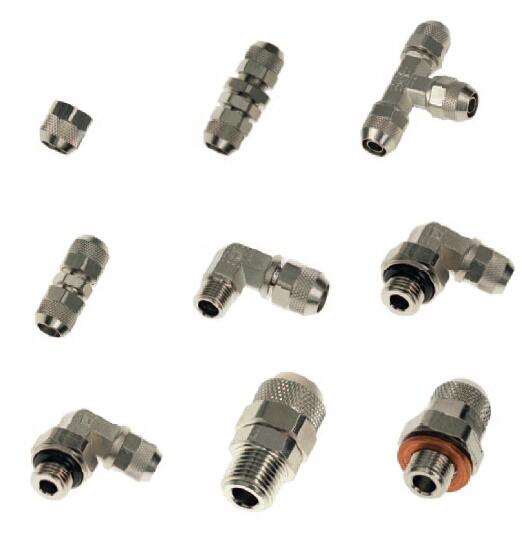

PL Nickel-Plated Brass Spigot Fittings

This range of Parker Legris has a sealing system which guarantees excellent sealing and full flow.
PL fittings for flexible tubing are fully re-usable. They provide excellent compatibility with a wide variety of fluids.

This range of Parker Legris has a sealing system which guarantees excellent sealing and full flow.

PL fittings for flexible tubing are fully re-usable. They provide excellent compatibility with a wide variety of fluids.

PL Nickel-Plated Brass Spigot Fittings

Features/Benefits:

- Rapid Assembly

- Nut design allows hand tightening with soft tubing (PU, Pe etc.)
- Quick to assemble and disassemble
- Compatible with all flexible tubes of hardness up to 90 shore A (polyurethane, polyamide, polyethylene, fluoropolymers, etc.)
- Mechanical stop on the body to prevent overtightening

- Performance

- Special spigot design ensures full flow and excellent tensile performance
- Reliable direct sealing system without the use of a seal or olive
- Low and medium pressure
- Nickel-plated for increased corrosion resistance

Markets:

- Food and Beverage
- Coating / Ink / Paint
- Miscellaneous Manufacturing
- Industrial Chemical Processing
- Lab / Diagnostic
- Rail

Applications:

- Low Pressure Pneumatic Machinery Equipment
- Suitable for Very Low and High Temperatures

Product Types:

- Stud Fitting, Male NPT Thread
- Stud Fitting, Male BSPT Thread
- Stud Fitting, Male BSPP Thread
- Stud Fitting, Male Metric Straight Thread
- Stud Elbow, Male NPT Thread
- Stud Elbow, Male BSPT Thread
- Stud Elbow, Male BSPP Thread
- Stud Elbow, Male Metric Straight Thread
- Stud Run Tee, Male NPT Thread
- Stud Run Tee, Male BSPT Thread
- Stud Branch Tee, Male NPT Thread
- Branch Tee, Male BSPT Thread
- Single Banjo, Male BSPP Thread
- Equal Tube-to-Tube Connector
- Equal Tee
- Equal Bulkhead Connector
- Nut

Technical Characteristics:

- Fluids: Compressed air, other fluids: contacts us
- Materials: nickel-plated brass, silicone free
- Pressure: Vacuum to 40 bar
- Temperature: -40°C to +100°C

Technologies:

- Compression fittings
- Connects to flexible tubing
- Pneumatic fittings
- Spigot fitting
- Stud fitting

Technical Specifications

Minimum Operating Temperature:	-40 °C, -40 °F
Maximum Operating Pressure:	4 MPa, 40 bar, 580 psi
Maximum Operating Temperature:	100 °C, 212 °F
Tube Outside Diameter:	4 to 12 mm
Tube Inside Diameter:	2,7 to 10 mm
Connection Type:	Compression
Application:	Food & Beverage, Pneumatics, Automotive Process, Chemical Transfert, Compressed Air/Inert Gas, Vaccum
Materials of Construction:	Nickel Plated Brass, Rubber
Shape:	Straight, 90°, Tee
Weight:	0,009 to 0,096 kg

PL Nickel-Plated Brass Spigot Fittings型號

Part	Shape	Connection 1 Thread Style	Connection 1 Thread Size (metric)	Connection 1 Tube O.D. (mm)
BPL10M	Brass nut	na	M13x1	7.5x10
BPL4M	Brass nut	na	M6x0.75	2.7x4
BPL6M	Brass nut	na	M9x0.75	4x6
BPL8M	Brass nut	na	M11x0.75	6x8
C3BPL10/12-3/8	Male stud elbow fixed 90° thread	BSPT	R3/8	10x12
C3BPL11/14-3/8	Male stud elbow fixed 90° thread	BSPT	R3/8	11x14
C3BPL2.7/4-1/8	Male stud elbow fixed 90° thread	BSPT	R1/8	2.7x4
C3BPL4/6-1/4	Male stud elbow fixed 90° thread	BSPT	R1/4	4x6
C3BPL4/6-1/8	Male stud elbow fixed 90° thread	BSPT	R1/8	4x6
C3BPL6/8-1/4	Male stud elbow fixed 90° thread	BSPT	R1/4	6x8
C3BPL6/8-1/8	Male stud elbow fixed 90° thread	BSPT	R1/8	6x8
C3BPL6/8-3/8	Male stud elbow fixed 90° thread	BSPT	R3/8	6x8
C3BPL7.5/10-1/4	Male stud elbow fixed 90° thread	BSPT	R1/4	7.5x10
C3BPL7.5/10-3/8	Male stud elbow fixed 90° thread	BSPT	R3/8	7.5x10
C3BPL8/10-1/4	Male stud elbow fixed 90° thread	BSPT	R1/4	8x10
C3BPL8/10-3/8	Male stud elbow fixed 90° thread	BSPT	R3/8	8x10
C4BPL6/8-1/4	Male stud elbow adjustable 90° thread	BSPP	G1/4	6x8
C8BPL6/8M10	Male stud elbow adjustable 90° thread	Metric	M10x1	6x8
C8BPL6/8M12	Male stud elbow adjustable 90° thread	Metric	M12x1	6x8
COR4BPL4/6-1/4	Male stud single banjo thread	BSPP	G1/4	4x6
COR4BPL4/6-1/8	Male stud single banjo thread	BSPP	G1/8	4x6
COR4BPL6/8-1/8	Male stud single banjo thread	BSPP	G1/8	6x8
F3BPL10/12-3/8	Male stud fitting thread	BSPT	R3/8	10x12
F3BPL11/14-3/8	Male stud fitting thread	BSPT	R3/8	11x14
F3BPL2.7/4-1/8	Male stud fitting thread	BSPT	R1/8	2.7x4
F3BPL4/6-1/4	Male stud fitting thread	BSPT	R1/4	4x6
F3BPL4/6-1/8	Male stud fitting thread	BSPT	R1/8	4x6
F3BPL6/8-1/4	Male stud fitting thread	BSPT	R1/4	6x8
F3BPL6/8-1/8	Male stud fitting thread	BSPT	R1/8	6x8
F3BPL6/8-3/8	Male stud fitting thread	BSPT	R3/8	6x8
F3BPL7.5/10-1/4	Male stud fitting thread	BSPT	R1/4	7.5x10
F3BPL7.5/10-3/8	Male stud fitting thread	BSPT	R3/8	7.5x10
F3BPL8/10-1/4	Male stud fitting thread	BSPT	R1/4	8x10
F3BPL8/10-3/8	Male stud fitting thread	BSPT	R3/8	8x10
F4BPL4/6-1/8	Male stud fitting thread	BSPP	G1/8	4x6
F4BPL6/8-1/4	Male stud fitting thread	BSPP	G1/4	6x8
F8BPL6/8M10	Male stud fitting thread	Metric	M10x1	6x8
F8BPL6/8M12	Male stud fitting thread	Metric	M12x1.25	6x8
HBPL10/12	Tube / tube connector	na	na	10x12
HBPL11/14	Tube / tube connector	na	na	11x14
HBPL2.7/4	Tube / tube connector	na	na	2.7x4
HBPL4/6	Tube / tube connector	na	na	4x6
HBPL6/8	Tube / tube connector	na	na	6x8
HBPL8/10	Tube / tube connector	na	na	8x10
JBPL4/6	Tee tube / tube	na	na	4x6
JBPL6/8	Tee tube / tube	na	na	6x8
JBPL7.5/10	Tee tube / tube	na	na	7.5x10
R3BLP6/8-1/4	Male stud run tee fixed thread	BSPT	R1/4	6x8
R3BPL4/6-1/4	Male stud run tee fixed thread	BSPT	R1/4	4x6
R3BPL4/6-1/8	Male stud run tee fixed thread	BSPT	R1/8	4x6
RBLP6/8-1/4	Male stud run tee fixed thread	NPT	NPT1/4	6x8
S3BLP6/8-1/4	Male stud branch tee fixed thread	BSPT	R1/4	6x8
S3BPL4/6-1/4	Male stud branch tee fixed thread	BSPT	R1/4	4x6
S3BPL4/6-1/8	Male stud branch tee fixed thread	BSPT	R1/8	4x6
S3BPL6/8-1/8	Male stud branch tee fixed thread	BSPT	R1/8	6x8
WBPL10/12	Bulkhead connector tube / tube	na	M15x1.25	10x12
WBPL4/6	Bulkhead connector tube / tube	na	M9x0.75	4x6
WBPL6/8	Bulkhead connector tube / tube	na	M11x0.75	6x8
WBPL8/10	Bulkhead connector tube / tube	na	M13x1	8x10
