Parker FEM / IF系列液壓快換，平齊端面形式，符合 ISO 16028 標準結構
Parker FEM / IF Series Hydraulic Flat Face Quick Coupling with ISO 16028 Profile

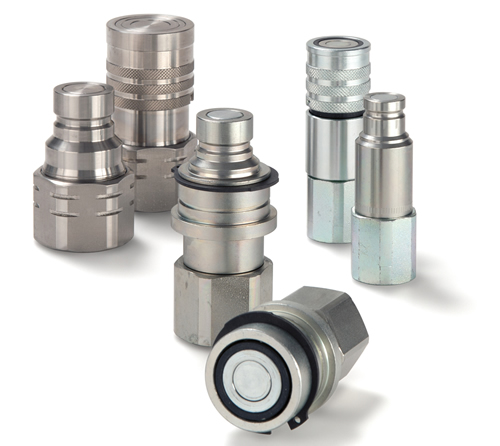

Parker's FEM / IF series Flat Face Quick Coupling

Parker FEM / IF系列液壓快換接頭本體尺寸為 1/8" 至 1"，平齊端面形式，用于中等壓力液壓應用場合，耐壓可達450 bar。符合ISO 16028 標準結構。派克 FEM / IF 系列平齊端面液壓快換，符合ISO 16028 標準結構，能與相同標準下的快換進行互換。該系列快換能夠在陰接頭與陽接頭斷開時，將液壓油的溢流損失降到最低，做到無泄漏斷開。由于其閥芯設計結構，該系列快換能夠達到最小壓降，從而達到效能最大化。FEM / IF 系列標準形式的本體材料是碳鋼或者不銹鋼。

Parker's FEM / IF series Flat Face Quick Coupling

Flat Face quick coupling system with body size 1/8" up to 1" for medium pressure applications up to 450 bar. Coupling system with ISO 16028 Profile. Parker's FEM / IF series Flat Face Quick Coupling is produced according to the ISO 16028 and is compatible with other series complying with the same standard. These couplings offer a leckage free disconnection with a minimal oil loss during uncoupling. Thanks to the valve design, the coupling has a minimum pressure drop, and thus achieves maximum cost-effectiveness. The standard version of series FEM / IF is available made of steel or stainless steel.

市場：

- 農業機械
- 汽車
- 石油以及天然氣
- 過程控制
- 發電
- 軌道交通
- 市政設施
- 安防
- 工業液壓
- 機械工具
- 物料搬運
- 建筑機械

特征/優勢：

- 標配套筒鎖，可防止意外斷開
- FEC 系列可帶背壓釋放器，能夠在靜壓（最高可達工作壓力）輕松進行連接
- FEMP 以及 FECP系列，推拉式連接形式，可以用來定制多通道形式或者是快換需要固定的應用場合

性能特點

連接類型 內螺紋
長度 (MM) 35 高達 146
外六角 (MM) 17 高達 65
外徑 (MM) 18,6 高達 60
材料 碳鋼，黃銅/碳鋼，不銹鋼
密封材料 NBR, FKM
最低工作溫度(°C) -25, -30
最高工作溫度 (C) 100, 200
連接工作壓力 (BAR) 200, 250, 315, 450

應用：
其平齊端面設計，可以在液壓系統實現清潔斷開/連接形式，同時適用于工程機械液壓系統以及工業液壓系統
- 拖拉機
- 卡車
- 裝載機
- 軍用設備
- 液壓工具
- 壓鑄機
- 注塑機

LITERATURE AND REFERENCE MATERIALS
- Catalogue Page Parker Tema FEM- / IF-Series
- Market Brochure - Transportation Railway

Parker's Flat Face Quick Coupling FEM / IF series is produced according to the ISO 16028 and is compatible with other series complying with the same standard. These couplings offer a leckage free disconnection with a minimal oil loss during uncoupling. Thanks to the valve design, the coupling has a minimum pressure drop, and thus achieves maximum cost-effectiveness. The standard version of series FEM / IF is available made of steel or stainless steel.

Markets:
- Agriculture
- Automotive
- Oil & Gas
- Process
- Power Generation
- Transportation
- Vocational & Municipal
- Defense
- Industrial
- Machine Tooling
- Material Handling
- Construction

Features/Benefits:
- Safety locking feature as standard to prevent unintentional uncoupling
- FEC with the pressure eliminator enable effortless connection under static pressure (up to rated working pressure)
- FEMP and FECP with pushpull features is suitable for multi-plates or when coupling is fixed on an application

Applications:
Easy dry break connection / disconnection in hydraulic systems, both mobile and industrial applications
- Tractors
- Trucks
- Wheel loaders
- Military vehicles
- Hydraulic tools
- Presses
- Molding machines
