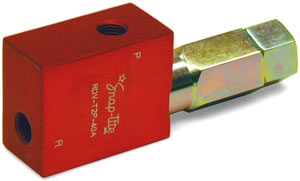

Snap-Tite RDV Series Single Differential Relief Valves

Snap-tite's RDV valve is a single differential relief cartridge in a red anodized aluminum block. The blocks can be female pipe thread or female SAE O-ring boss ported in sizes from 3/8" thru 1". The valve provides system pressure protection on fixed and variable pump systems. This valve is designed to reliably handle high flows in systems operating at pressures up to 4,000 psi (276 bar).

Item #	Connection Size	Seal Material
RDV-T12S-15	Screw Adjustable, 500-1500 psi, 3/4" SAE	Viton
RDV-T12S-25A	Screw Adjustable, 500-2500 psi, 3/4" SAE	Buna N
RDV-T12S-40	Screw Adjustable, 1000-4000 psi, 3/4" SAE	Viton
RDV-T12S-40A	Screw Adjustable, 1000-4000 psi, 3/4" SAE	Buna N
RDV-T16S-15	Screw Adjustable, 500-1500 psi, 1" SAE	Viton
RDV-T16S-25	Screw Adjustable, 500-2500 psi, 1" SAE	Viton
RDV-T16S-25A	Screw Adjustable, 500-2500 psi, 1" SAE	Buna N
RDV-T16S-40	Screw Adjustable, 1000-4000 psi, 1" SAE	Viton
RDV-T16S-40A	Screw Adjustable, 1000-4000 psi, 1" SAE	Buna N
RDV-T2P-15	Screw Adjustable, 500-1500 psi, 1/4" NPTF	Viton
RDV-T2P-15A	Screw Adjustable, 500-1500 psi, 1/4" NPTF	Buna N
RDV-T2P-25	Screw Adjustable, 500-2500 psi, 1/4" NPTF	Viton
RDV-T2P-25A	Screw Adjustable, 500-2500 psi, 1/4" NPTF	Buna N
RDV-T2P-40A	Screw Adjustable, 1000-4000 psi, 1/4" NPTF	Buna N
RDV-T3P-15	Screw Adjustable, 500-1500 psi, 3/8" NPTF	Viton
RDV-T3P-15A	Screw Adjustable, 500-1500 psi, 3/8" NPTF	Buna N
RDV-T3P-25	Screw Adjustable, 500-2500 psi, 3/8" NPTF	Viton
RDV-T3P-25A	Screw Adjustable, 500-2500 psi, 3/8" NPTF	Buna N
RDV-T3P-40	Screw Adjustable, 1000-4000 psi, 3/8" NPTF	Viton
RDV-T3P-40A	Screw Adjustable, 1000-4000 psi, 3/8" NPTF	Buna N
RDV-T3P-S40A	Screw Adjustable, 1000-4000 psi, 3/8" NPTF	Buna N
RDV-T4P-15	Screw Adjustable, 500-1500 psi, 1/2" NPTF	Viton
RDV-T4P-15A	Screw Adjustable, 500-1500 psi, 1/2" NPTF	Buna N
RDV-T4P-25	Screw Adjustable, 500-2500 psi, 1/2" NPTF	Viton
RDV-T4P-25A	Screw Adjustable, 500-2500 psi, 1/2" NPTF	Buna N
RDV-T4P-40	Screw Adjustable, 1000-4000 psi, 1/2" NPTF	Viton
RDV-T4P-40A	Screw Adjustable, 1000-4000 psi, 1/2" NPTF	Buna N
RDV-T4S-15	Screw Adjustable, 500-1500 psi, 1/4" SAE	Viton
RDV-T4S-25A	Screw Adjustable, 500-2500 psi, 1/4" SAE	Buna N
RDV-T6P-15	Screw Adjustable, 500-1500 psi, 3/4" NPTF	Viton
RDV-T6P-15A	Screw Adjustable, 500-1500 psi, 3/4" NPTF	Buna N
RDV-T6P-25	Screw Adjustable, 500-2500 psi, 3/4" NPTF	Viton
RDV-T6P-25A	Screw Adjustable, 500-2500 psi, 3/4" NPTF	Buna N
RDV-T6P-40	Screw Adjustable, 1000-4000 psi, 3/4" NPTF	Viton
RDV-T6P-40A	Screw Adjustable, 1000-4000 psi, 3/4" NPTF	Buna N
RDV-T6S-15	Screw Adjustable, 500-1500 psi, 3/8" SAE	Viton
RDV-T6S-25A	Screw Adjustable, 500-2500 psi, 3/8" SAE	Buna N
RDV-T6S-40	Screw Adjustable, 1000-4000 psi, 3/8" SAE	Viton
RDV-T6S-40A	Screw Adjustable, 1000-4000 psi, 3/8" SAE	Buna N
RDV-T8P-15	Screw Adjustable, 500-1500 psi, 1" NPTF	Viton
RDV-T8P-15A	Screw Adjustable, 500-1500 psi, 1" NPTF	Buna N
RDV-T8P-25	Screw Adjustable, 500-2500 psi, 1" NPTF	Viton
RDV-T8P-25A	Screw Adjustable, 500-2500 psi, 1" NPTF	Buna N
RDV-T8P-40	Screw Adjustable, 1000-4000 psi, 1" NPTF	Viton
RDV-T8P-40A	Screw Adjustable, 1000-4000 psi, 1" NPTF	Buna N
RDV-T8S-15A	Screw Adjustable, 500-1500 psi, 1/2" SAE	Buna N
RDV-T8S-25	Screw Adjustable, 500-2500 psi, 1/2" SAE	Viton
RDV-T8S-25A	Screw Adjustable, 500-2500 psi, 1/2" SAE	Buna N
RDV-T8S-40	Screw Adjustable, 1000-4000 psi, 1/2" SAE	Viton
RDV-T8S-40A	Screw Adjustable, 1000-4000 psi, 1/2" SAE	Buna N
