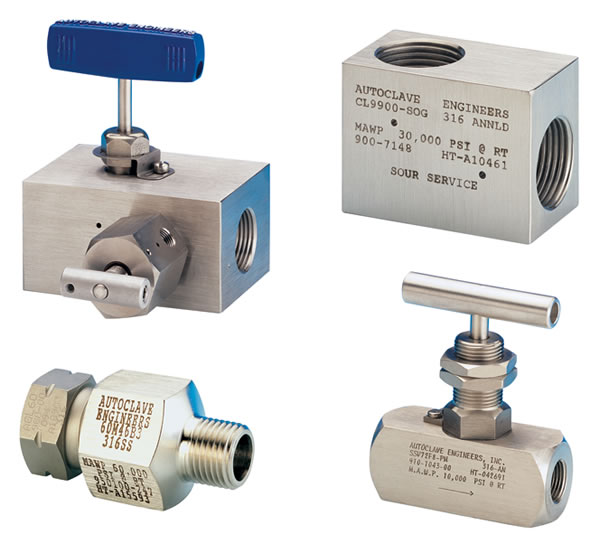

耐酸性腐蝕產品 Autoclave Engineers Sour Service Products
Designed for sour oil and gas flow system applications.

酸氣環境應用產品

Parker Autoclave Engineers專為酸性油氣H2S硫化氫環境設計和制造了高壓閥門，接頭和鋼管，并滿足NACE MR0175-2002(NACE現有版本)要求。S0G產品線的材料與制造工藝符合NACE要求。標準工況的閥門和接頭工作壓力為60000si(4140 bar)100°F 38度。；SOG閥門和接頭工作壓力為3000psi(2068 bar) 100°F 38度。閥門不提供 collars和 glands，除非型號另有標定。

包括針閥、表閥、單向閥、接頭、管子、壓力表等。可用于酸性的油和氣體，滿足或超過NACE MR0175標準的所有要求。 Sour Service Products - Autoclave's Engineers offers sour service oil field components for H2S applications. Valves, fittings, tubing. adapters, and gauges are available for sour service and can be NACE compliant.

用于酸性環境的井口壓力計和放氣閥，壓力為20000 psi 1379 bar Wellhead Gauge and Bleed Valves to 20,000 psi (1379 bar) for Sour Service.	酸性介質用30VM-SOG閥門至20000 psi（1379 bar） 30VM-SOG Valves to 20,000 psi (1379 bar) for Sour Service
酸性介質用60VM-SOG閥門至30000 psi（2068 bar） 60VM-SOG Valves to 30,000 psi (2068 bar) for Sour Service	酸性設備配件彎頭、三通、四通、直通和隔板接頭 Sour Service Fittings Elbows, Tees, Crosses, Straight and Bulkhead Couplings
酸性作業鋼管 Sour Service Tubing： Tubing to 30,000 psi (2068 bar)	酸性設備用錐形和螺紋管接頭達到30000 psi（2068bar） Sour Service Nipples Coned and Threaded Nipples to 30,000 psi (2068 bar)
酸性介質止回閥：O形圈、球形和溢流止回閥至30000 psi（2068 bar） Sour Service Check Valves:O-Ring, Ball and Excess Flow Check Valves to 30,000 psi (2068 bar)	接頭和聯接器達到30000磅/平方英寸（2068bar） Adapter and Couplings to 30,000 psi (2068 bar)
Sever Service Valves to 10,000 psi (690 bar)	壓力表 Pressure Gauges:SOG Gauges to 20,000 psi (1379 bar)

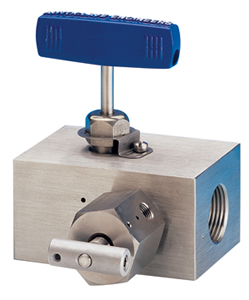

井口壓力表和放氣閥至20000 psi
Wellhead Gauge and Bleed Valves to 20,000 psi (1379 bar)


Wellhead gauge and bleed valves are ideal for instrumentation calibration or sampling. Wellhead gauge and bleed valves are standard in 316 stainless steel annealed material and comply with NACE MR0175.

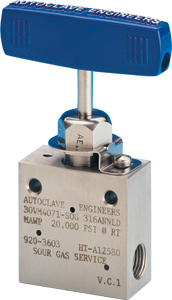

30VM-SOGWO Series
30VM-SOGWO Series rated to 20,000 (1379 bar)

標準30VM系列閥門，設計符合NACE MR0175，額定值為20000 psi（1379 bar）。標準配置有一個整體旋轉閥桿，沒有壓蓋和套環。Standard 30VM series valves designed to NACE MR0175 and rated to 20,000 psi (1379 bar). Furnished with a one piece rotating stem and without glands and collars, as a standard.

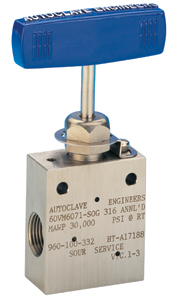

60VM-SOGWO Series
60VM-SOGWO Series rated to 30000 (2068 bar)

根據NACE MR0175-2002設計的標準60VM系列閥門，額定壓力為30000 psi（2068巴）。標準配置有一個整體旋轉閥桿，沒有壓蓋和套環。Standard 60VM series valves designed to NACE MR0175-2002 and rated to 30,000 psi (2068 bar). Furnished with a one piece rotating stem and without glands and collars, as a standard.

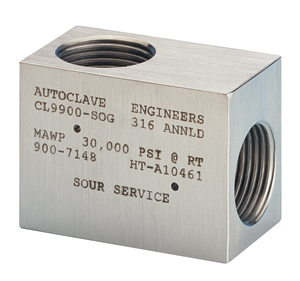

Sour Service Fittings

Sour Service Fittings to 30,000 psi (2068 bar)
Sour gas elbows, tee, crosses, couplings and bulkhead couplings rated to 30,000 psi (2068 bar) without glands and collars.

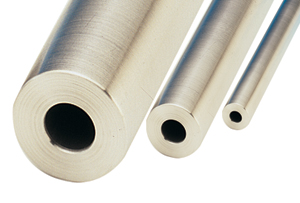

Sour Service Tubing

Sour Service Fittings to 30,000 psi (2068 bar)
Seamless annealed stainless steel tubing for sour gas service in 1/4", 3/8", and 9/16" sizes.

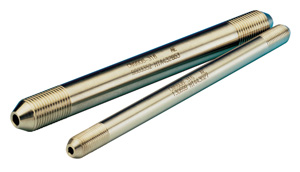

Sour Service Nipples

Sour Service Fittings to 30,000 psi (2068 bar)
Coned and threaded sour gas nipples in 1/4", 3/8", and 9/16" sizes and various lengths.

Sour Service Check Valves

Severe Service Valves to 10,000 psi (690 bar)
Sour gas service O-ring and ball check valves, and ball type excess flow valves.

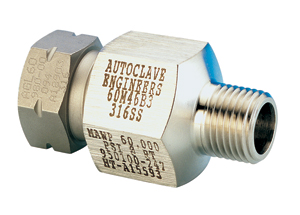

Adapters/Couplings

Severe Service Valves to 10,000 psi (690 bar)
Sour gas male to female, male to male adapters and adapter couplings.

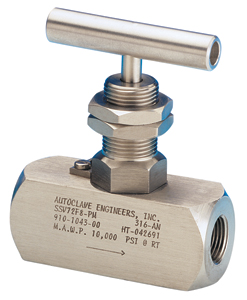

Severe Service Valves

Severe Service Valves to 10,000 psi (690 bar)

重型閥門符合NACE標準，適用于各種重型應用。該閥門獨特的閥桿設計包括一個不旋轉的球頭以及吹出保護。Severe service valves comply with NACE and are suitable for a wide range of severe duty applications. The valve's unique stem design includes a non rotating ball point as well as blow-out protection.

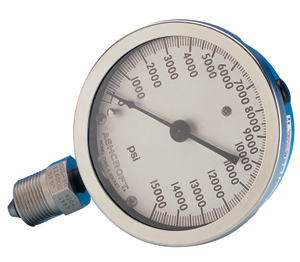

SOG Pressure Gauges
酸氣壓力表

Sour Service Gauges to 20,000 psi (1379 bar), Sour service pressure gauges to 20,000 psi (1379 bar) with male M562C, API Type III connection. Parker Autoclave Engineer's SOG gauges are designed for reliable use in systems with H2S present. These gauges are constructed from stainless steel and are supplied with API Type III connection.
