Autoclave Engineers Pressure Gauges 壓力表 0 to 80000 psi (0 to 5116 bar)
Pressure Gauges SOG Gauges to 20000 psi (1379 bar)

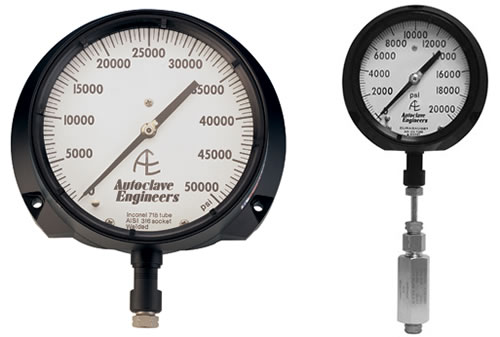

Parker Autoclave Engineer SOG壓力表適用于酸性含H2S的油和氣體，滿足或超過NACE MR0175標準的所有要求。 Parker Autoclave Engineer's SOG gauges are designed for reliable use in systems with H2S present. These gauges are constructed from stainless steel and are supplied with API Type III connection. Parker Autoclave Engineers severe service gauges are used in fluid handling systems for oil and gas where H2S is present. They are suitable for a wide range of service in applications NACE MR0175 is required.
Autoclave Engineers gauges PDF
資料下載
規格參數-材質和特性：
- 量程：0到80,000psi（5116bar）
- 塑料刻度盤蓋/鋁合金外殼
- 吹掃背板可在波登管發生故障時泄壓
- 316不銹鋼波登管
- 精密不銹鋼確保精度和耐空氣腐蝕性
- 指針調零裝置位于表盤后蓋上，操作方便
- 連接尺寸：1/4”，9/16”，4-1/2” and 6”
(114.3 mm and 152.4 mm)
- 全量程的精度：+/-0.5%
- 材質：316SS，Monel
- Accuracy within 1.0% of full scale range.
- Stainless steel case and ring.
- Monel Bourdon tube and socket.
- M562C male tube connection in bottom. (API Type III).
- Precision stainless steel movement for accuracy and resistance to atmospheric corrosion.
- Pointer zero adjustment located on front of gauge behind dial cover for convenience.
- Gauges can be liquid filled
- All gauges are furnished with SOG collar and gland.
- Pressure gauges are used to monitor and control pressure.
Pressure gauges are available in two sizes, 4-1/2” and 6”
(114.3 mm and 152.4 mm), and ranges from 0 to 80,000 psi
(0 to 5116 bar).
Gauge/Instrument Snubber
Autoclave Engineers gauges snubbers are offered for use in medium, and high pressure flow systems. Gauge/instrument snubbers protect components from pressure surges, pulsation, and shock in systems up to pressures of 60,000 psi (4137 bar).
Autoclave Engineers gauges PDF Catalog
規格參數：
Protection without compromising accuracy
Available in 1/4" and 3/8" medium and high pressure connection
316 stainless steel contruction
Female to female, male to female, and male to male connections
Instrument Quality Pressure Gauges
Gauges - Pressure gauges are offered for use in low, medium and high pressure systems. Instrument quality gauges are available to pressure of 80,000 psi (5115.7 bar).
Item #
產品型號 |
Type |
Pressure Range
壓力范圍 |
Minor Interval Value
最小分度值 |
Dial Diameter
刻度盤直徑 |
| P-0499-CG |
Bottom connection calibrated in psi only |
0-1000 psi
0-69 bar |
10 psi
0.69 bar |
4-1/2 in
114.3 mm |
| P-0479-CG |
Bottom connection calibrated in psi only |
0-1500 psi
0-103 bar |
10 psi
0.69 bar |
4-1/2 in
114.3 mm |
| P-0480-CG |
Bottom connection calibrated in psi only |
0-3000 psi
0-207 bar |
20 psi
1.38 bar |
4-1/2 in
114.3 mm |
| P-0481-CG |
Bottom connection calibrated in psi only |
0-5000 psi
0-345 bar |
50 psi
3.44 bar |
4-1/2 in
114.3 mm |
| P-0482-CG |
Bottom connection calibrated in psi only |
0-10000 psi
0-690 bar |
100 psi
6.89 bar |
4-1/2 in
114.3 mm |
| P-0483-CG |
Bottom connection calibrated in psi only |
0-15000 psi
0-1034 bar |
100 psi
6.89 bar |
4-1/2 in
114.3 mm |
| P-0487-CG |
Bottom connection calibrated in psi only |
0-20000 psi
0-1379 bar |
200 psi
13.79 bar |
4-1/2 in
114.3 mm |
| P-0488-CG |
Bottom connection calibrated in psi only |
0-30000 psi
0-2068 bar |
250 psi
17.24 bar |
6 in
152.4 mm |
| P-0489-CG |
Bottom connection calibrated in psi only |
0-50000 psi
0-3447 bar |
500 psi
34.47 bar |
6 in
152.4 mm |
| P-0490-CG |
Bottom connection calibrated in psi only |
0-80000 psi
0-5116 bar |
1.000 psi
68.94 bar |
6 in
152.4 mm |
| P-0482B-CG |
Back connection gauges calibrated in psi only |
0-10000 psi
0-690 bar |
100 psi
6.89 bar |
4-1/2 in
114.3 mm |
| P-0483B-CG |
Back connection gauges calibrated in psi only |
0-15000 psi
0-1034 bar |
100 psi
6.89 bar |
4-1/2 in
114.3 mm |
| P-0487B-CG |
Back connection gauges calibrated in psi only |
0-20000 psi
0-1379 bar |
200 psi
13.79 bar |
4-1/2 in
114.3 mm |
| P-0488B-CG |
Back connection gauges calibrated in psi only |
0-30000 psi
0-2068 bar |
250 psi
17.24 bar |
6 in
152.4 mm |
| P-0489B-CG |
Back connection gauges calibrated in psi only |
0-50000 psi
0-3447 bar |
500 psi
34.47 bar |
6 in
152.4 mm |
| P-0490-CG |
Bottom connection calibrated in psi only |
0-80000 psi
0-5116 bar |
1.000 psi
68.94 bar |
6 in
152.4 mm |

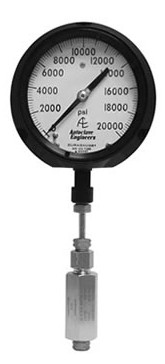

Gauge/Instrument Snubbers
Autoclave Engineers Pressure Snubbers provide protection to gauges and instrumentation from pressure surges, pulsation and shock. The unique snubber design provides superior instrument protection while not compromising instrument accuracy or reaction time. This is accomplished by the use of existing technology from our excess flow check valve with additional design features.
When sudden flow is seen, the poppet will rise, blocking the pressure surge and a small bleed hole in the poppet will allow pressure to slowly equalize. When the pressure is equalized, the poppet will then drop back down allowing normal flow to the gauge. A filter is used to prevent the hole in the plug from becoming plugged. The snubber must be mounted in the vertical position as indicated on the unit.
Snubbers are offered in 316SS as standard, with either male, female or male/female connections in 1/4" and 3/8" sizes. Optional materials available upon request.
All general terms and conditions of sale, including limitations of our liability, apply to all products and services sold.
| Item # |
Pressure Rating |
A - Length |
B - Length |
C - Length |
D - Hex |
HEX |
| SNBFH4FH4 |
60000 psi
4137 bar |
3.36 Inch
85.34 mm |
2.50 Inch
63.50 mm |
0.50 Inch
12.70 mm |
0.63 Inch
15.33 mm |
1.19 Inch
30.15 mm |
| SNBFH4MH4 |
60000 psi
4137 bar |
4.05 Inch
102.87 mm |
2.50 Inch
63.50 mm |
0.50 Inch
12.70 mm |
0.63 Inch
15.33 mm |
1.19 Inch
30.15 mm |
| SNBMH6MH4 |
60000 psi
4137 bar |
3.68 Inch
93.47 mm |
2.13 Inch
54.1 mm |
1.50 Inch
38.10 mm |
0.75 Inch
19.05 mm |
1.19 Inch
30.15 mm |
可選電氣接觸面 |
產品型號 |
表盤安裝直徑
inches |
P-0713 |
4 -1/2 inch |
P-0714 |
6 inch |
* 該表背部連接形式可選。請在產品型號中添加B。例如 P-047B-CG , 1/4 INCH F250C Coned and Threaded連接形式，并配備Collar 和Gland.
|
