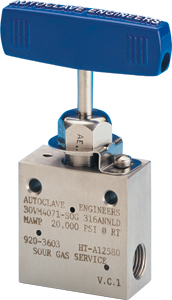

Autoclave Engineers 30VM-SOGWO Series High Pressure Sour Service Valves
30VM-SOGWO Series防酸耐腐蝕閥門
Autoclave valves are complemented by a complete line of high pressure fittings, tubing and check valves. All high pressure valves and fittings use Autclave's high pressure coned-andthreaded connections for dependable performance under widely varying conditions.
The 30VM-SOGWO Series valves are furnished without collars and glands, unless otherwise specified.
Panel mounting drill size: 0.22" all valves.
All dimensions for reference only and subject to change.
For prompt service 'Autoclave stocks select products' Consult factory.
All general terms and conditions of sale, including limitations of our liability, apply to all products and services sold.
Autoclave Engineers High Pressure Valve Features:
- Rising stem/barstock body design.
- Metal-to-metal seating achieves bubble-tight shut-off, longer stem/seat life in abrasive flow, greater durability for repeated on/off cycles and excellent corrosion resistance.
- PTFE encapsulated packing provides dependable stem and body sealing.
- Solid, one-piece stem provides an economical valve for SOG service.
- Optional non-rotating stem assembly available.
- Stem and packing gland materials have been selected to optimize thread cycle life.
- 30VM-SOGWO Series rated to 20,000 (1379 bar)
Autoclave Engineers Sour Service Products
PDF技術(shù)資料下載
| Item # |
Outside Diameter Tube |
Stem Type |
Valve Pattern |
Connection Type |
| 30VM4001-SOGWO |
1/4 Inch
6.35 mm |
VEE |
2-Way Straight |
F250C |
| 30VM4081-SOGWO |
1/4 Inch
6.35 mm |
REG |
2-Way Straight |
F250C |
| 30VM6001-SOGWO |
3/8 Inch
9.53 mm |
VEE |
2-Way Straight |
F375C |
| 30VM6081-SOGWO |
3/8 Inch
9.53 mm |
REG |
2-Way Straight |
F375C |
| 30VM9001-SOGWO |
9/16 Inch
14.29 mm |
VEE |
2-Way Straight |
F562C |
| 30VM9081-SOGWO |
9/16 Inch
14.29 mm |
REG |
2-Way Straight |
F562C |
| 30VM4002-SOGWO |
1/4 Inch
6.35 mm |
VEE |
2-Way Angle |
F250C |
| 30VM4082-SOGWO |
1/4 Inch
6.35 mm |
REG |
2-Way Angle |
F250C |
| 30VM6002-SOGWO |
3/8 Inch
9.53 mm |
VEE |
2-Way Angle |
F375C |
| 30VM6082-SOGWO |
3/8 Inch
9.53 mm |
REG |
2-Way Angle |
F375C |
| 30VM9002-SOGWO |
9/16 Inch
14.29 mm |
VEE |
2-Way Angle |
F562C |
| 30VM9082-SOGWO |
9/16 Inch
14.29 mm |
REG |
2-Way Angle |
F562C |
| 30VM4003-SOGWO |
1/4 Inch
6.35 mm |
VEE |
3-Way / 2 on Pressure |
F250C |
| 30VM4083-SOGWO |
1/4 Inch
6.35 mm |
REG |
3-Way / 2 on Pressure |
F250C |
| 30VM6003-SOGWO |
3/8 Inch
9.53 mm |
VEE |
3-Way / 2 on Pressure |
F375C |
| 30VM6083-SOGWO |
3/8 Inch
9.53 mm |
REG |
3-Way / 2 on Pressure |
F375C |
| 30VM9003-SOGWO |
9/16 Inch
14.29 mm |
VEE |
3-Way / 2 on Pressure |
F562C |
| 30VM9083-SOGWO |
9/16 Inch
14.29 mm |
REG |
3-Way / 2 on Pressure |
F562C |
| 30VM4004-SOGWO |
1/4 Inch
6.35 mm |
VEE |
3-Way / 1 on Pressure |
F250C |
| 30VM4084-SOGWO |
1/4 Inch
6.35 mm |
REG |
3-Way / 1 on Pressure |
F250C |
| 30VM6004-SOGWO |
3/8 Inch
9.53 mm |
VEE |
3-Way / 1 on Pressure |
F375C |
| 30VM6084-SOGWO |
3/8 Inch
9.53 mm |
REG |
3-Way / 1 on Pressure |
F375C |
| 30VM9004-SOGWO |
9/16 Inch
14.29 mm |
VEE |
3-Way / 1 on Pressure |
F562C |
| 30VM9084-SOGWO |
9/16 Inch
14.29 mm |
REG |
3-Way / 1 on Pressure |
F562C |
| 30VM4802-SOGWO |
1/4 Inch
6.35 mm |
VEE |
2-Way Angle / Replaceable Seat |
F250C |
| 30VM4882-SOGWO |
1/4 Inch
6.35 mm |
REG |
2-Way Angle / Replaceable Seat |
F250C |
| 30VM6802-SOGWO |
3/8 Inch
9.53 mm |
VEE |
2-Way Angle / Replaceable Seat |
F375C |
| 30VM6882-SOGWO |
3/8 Inch
9.53 mm |
REG |
2-Way Angle / Replaceable Seat |
F375C |
| 30VM9802-SOGWO |
9/16 Inch
14.29 mm |
VEE |
2-Way Angle / Replaceable Seat |
F562C |
| 30VM9882-SOGWO |
9/16 Inch
14.29 mm |
REG |
2-Way Angle / Replaceable Seat |
F562C |
| 30VM4005-SOGWO |
1/4 Inch
6.35 mm |
VEE |
3-Way / 2-Stem Manifold |
F250C |
| 30VM4085-SOGWO |
1/4 Inch
6.35 mm |
REG |
3-Way / 2-Stem Manifold |
F250C |
| 30VM6005-SOGWO |
3/8 Inch
9.53 mm |
VEE |
3-Way / 2-Stem Manifold |
F375C |
| 30VM6085-SOGWO |
3/8 Inch
9.53 mm |
REG |
3-Way / 2-Stem Manifold |
F375C |
| 30VM9005-SOGWO |
9/16 Inch
14.29 mm |
VEE |
3-Way / 2-Stem Manifold |
F562C |
| 30VM9085-SOGWO |
9/16 Inch
14.29 mm |
REG |
3-Way / 2-Stem Manifold |
F562C |
