          高壓閥門、接頭和鋼管










































































































































































      井口計酸性服務閥

                Wellhead Gauge Sour Service Valves




      Autoclave的井口量規閥設計為在最大工作壓力為20000 psi（1379巴）的可靠關閉服務。井口壓力表和放泄閥采用316不銹鋼退火材料制成，符合NACE MR0175標準。可根據要求提供特殊材料。Autoclave's Wellhead Gauge valves are designed for reliable shut-off service at a maximum working pressure of 20000 psi (1379 bar). The Wellhead Gauge and Bleed Valves are standard in 316 stainless steel annealed material and comply with NACE MR0175. Special materials available on request.










      儀表閥特點Gauge Valve Features:




      • 一個入口，三個出口，所有端口均為9/16“API測試和儀表連接端口

              One inlet, three outlet ports, all ports are 9/16" API test and gauge connection ports

      • 金屬對金屬氣密關閉

              Metal-to-metal bubble tight shut-off

      • 閥桿螺紋下面的填料

              Packing below stem threads

      • 標準服務和SOG閥門上的兩件式非旋轉閥桿

              Two piece non-rotating stem on standard service and SOG valves

      • 可選擇在進口處使用長管嘴安裝在隔熱集管上

            Optional use of long nipples in the inlet for installation on headers that are insulated
        •






      Applications: 應用：


      所有一般銷售條款和條件，包括我們的責任限制，適用于所有銷售的產品和服務。





      - 采樣線 Sample Lines

          - 儀器校準 Instrument calibration




      所有一般銷售條款和條件，包括我們的責任限制，適用于所有銷售的產品和服務。All general terms and conditions of sale, including limitations of our liability, apply to all products and services sold.










              Item #
              Connection Type
              Connection Size
              Pressure Rating at Room Temperature



              20GV6078-SOG
              SF375CX
              3/8 Inch

      9.53 mm
              10000 psi

      690 bar




              20GV9078-SOG
              SF562CX
              9/16 Inch

      14.29 mm
              10000 psi

      690 bar




              30GV9078-SOG
              F562C
              9/16 Inch

      14.29 mm
              20000 psi

      1379 bar

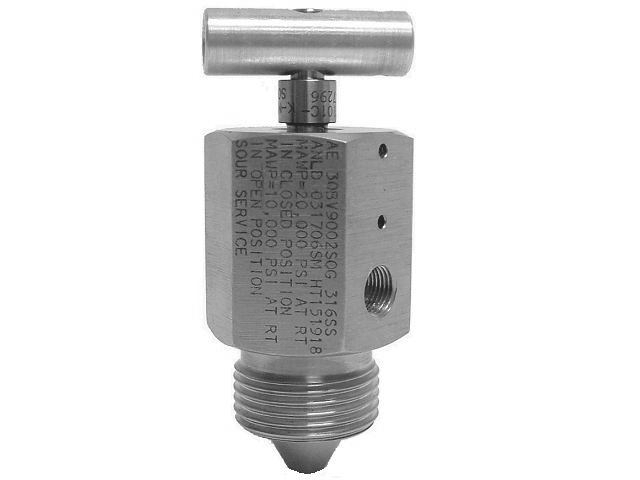

      排放酸性介質閥門Bleed Sour Service Valves






      高壓釜的井口量規閥設計為在最大工作壓力為20000 psi（1379巴）的可靠關閉服務。井口壓力表和放泄閥采用316不銹鋼退火材料制成，符合NACE MR0175標準。可根據要求提供特殊材料。Autoclave's Wellhead Gauge valves are designed for reliable shut-off service at a maximum working pressure of 20000 psi (1379 bar). The Wellhead Gauge and Bleed Valves are standard in 316 stainless steel annealed material and comply with NACE MR0175. Special materials available on request.




      排氣閥特點Bleed Valve Features:




      • One piece hex construction allows easy installation

      • Vent port tapped for plumbing to safe area

      • Tee handle for easy operation

      • Positive blow out prevention on stem

      • Compatible with standard API test and gauge connections for 15000 psi (1034 bar) service.
        •


        Applications:



      • Pressure bleed 壓力泄放
        •



      All general terms and conditions of sale, including limitations of our liability, apply to all products and services sold.










            Item #
            Connection Type
            Connection Size
            Pressure Rating at Room Temperature



            20BV6002-SOG
            SM375CX
            3/8 Inch

      9.53 mm
            10000 psi

      690 bar




            20BV9002-SOG
            SM562CX
            9/16 Inch

      14.29 mm
            10000 psi

      690 bar




            30BV4002-SOG
            M250C
            1/4 Inch

      6.35 mm
            20000 psi

      1379 bar




            30BV9002-SOG
            M562C
            9/16 Inch

      14.29 mm
            20000 psi

      1379 bar
