美國Autoclave Engineers MagneDrive 磁力耦合攪拌器
Autoclave Engineers公司生產的MagnePumps系列高壓泵

Autoclave Engineers 1945年由Fred Gashe成立，以優良的壓力反應器和管路閥門設備聞名于世。在超過半個世紀的發展歷程中，Autoclave Engineers致力于產品的安全和可靠性，持續推動整個行業的發展。極大的提高了壓力反應器安全性和使用范圍，廣泛應用在壓力設備領域，成為行業標準。其產品在石油化工，食品醫藥，環境保護，精細化工等諸多領域得到了廣泛的使用。

Autoclave Engineers公司生產的MagneDrives系列產品是一種高速磁力耦合攪拌設備，該磁力耦合攪拌器適合在高壓環境中使用，且不會對生產過程造成污染。MagneDrives系列攪拌器具有多種型號，從小型的實驗室規格到工廠攪拌器規格均有提供。此類高速攪拌器適用于氣體彌散、液體混合以及固體的懸浮作業。

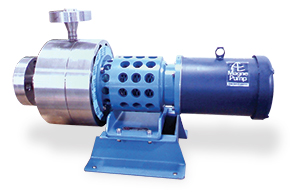

Autoclave Engineers公司生產的MagnePumps系列高壓泵，能夠杜絕或減輕傳統泵的常見問題，如泄漏、污染和發熱等。Autoclave Engineers公司生產的高壓泵適合在以下環境中使用：對液體的高純性有嚴格要求的應用；一旦介質發生泄漏會產生嚴重危險的應用，如核回路、石油水化物回路等。

Magnetically Coupled Mixers
- Agitator/Mixer Product Comparison
- MagneDrive Application Data Sheet
- MagneDrives Select Guide
- Mag III (3050) - MagneDrive
- Mag 2.75 - Production Scale High Pressure Magnetic Mixer
- Mag 0.75 - Laboratory High Pressure Magnetic Mixer
- MAG075 Inline MagneDrive Series
- Mag 1.5001 - Pilot Scale High Presure Magnetic Mixer 1.5001 Pressure Magnetic Mixer MagneDrive II agitator
- Mag 1.5002 - MagneDrive II Series
- Mag 1.5004-1.5010 - MagneDrive II Series

Autoclave Engineers Magnetically Coupled Mixers:
Agitator/Mixer Product Comparison
Mag III (3050) - MagneDrive
Mag 2.75 - Production Scale High Pressure Magnetic Mixer
Mag 0.75 - Laboratory High Pressure Magnetic Mixer
Mag 1.50 - Pilot Scale High Presure Magnetic Mixer
Mag 1.5004-1.5010 - MagneDrive II Series

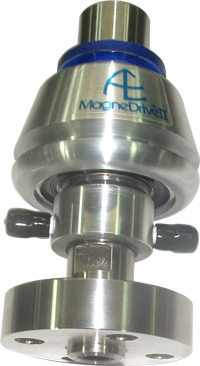

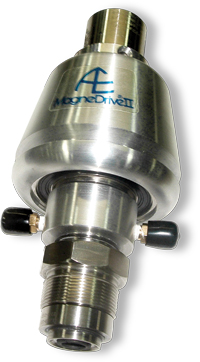

1.5002 Pressure Magnetic Mixer 磁力攪拌器	1.5004-1.5010 MagneDrive磁力攪拌器

Magnetically Coupled Mixers - Autoclave Engineers' MagneDrives

3050 MagneDrive® - III Series
A compact, In-Line Magnetically Coupled Drive.
5 in-lb (565 N-mm) of static torque
Designed for simple disassembly and maintenance
Capable of speeds up to 3,600 rpm and pressures up to 6,000 psi..

075 MagneDrive®- II Series
Magnetic agitator with shaft & torque for high pressure production reactors
The MagneDrive agitator uses rare earth magnets, permitting packless mixing at higher speeds and with higher viscosity fluids. Outer drive magnets, rotated by a motor driven belt exert powerful attraction on the encapsulated inner magnet assembly. As the outer drive magnets are rotated, the inner magnets are actuated, resulting in rotation of the agitator shaft.

MAG075 Inline MagneDrive®
A compact, In-Line Magnetically Coupled Drive.
In-line magnetically coupled drive for contamination-free mixing in high pressure vessels Up to 7 inch-lbs (791 N-mm) of static torque can be created Capable of speeds up to 3300 rpm and pressures up to 6,000 psi @ 850° F
(414 bar @ 454° C) Various impellers or catalyst baskets are available for vessel sizes from 100 ml to 4000 ml

1.5001 MagneDrive® - II Series
Magnetic agitator with shaft for high pressure laboratory reactors
MagneDrive II agitators use rare earth magnets, permitting packless mixing at higher speeds in larger vessels and with higher viscosity fluids. Outer drive magnets, rotated by a motor-driven belt, exert powerful attraction on the encapsulated inner magnet assembly. As the outer drive magnets are rotated, the inner magnets are actuated, resulting in rotation of the agitator shaft.

1.5002 MagneDrive® - II Series
Magnetic agitator with shaft for high pressure laboratory reactors
MagneDrive II agitators use rare earth magnets, permitting packless mixing at higher speeds in larger vessels and with higher viscosity fluids. Outer drive magnets, rotated by a motor-driven belt, exert powerful attraction on the encapsulated inner magnet assembly. As the outer drive magnets are rotated, the inner magnets are actuated, resulting in rotation of the agitator shaft.

1.5004-1.5010 MagneDrive® - II Series
Magnetic agitator with shaft for high pressure laboratory reactors
MagneDrive II agitators use rare earth magnets, permitting packless mixing at higher speeds in larger vessels and with higher viscosity fluids. Outer drive magnets, rotated by a motor-driven belt, exert powerful attraction on the encapsulated inner magnet assembly. As the outer drive magnets are rotated, the inner magnets are actuated, resulting in rotation of the agitator shaft.

2.75 MagneDrive®- II Series
Magnetic agitator with shaft for high pressure laboratory reactors
MagneDrive II agitators use rare earth magnets, permitting packless mixing at higher speeds in larger vessels and with higher viscosity fluids. Outer drive magnets, rotated by a motor-driven belt, exert powerful attraction on the encapsulated inner magnet assembly. As the outer drive magnets are rotated, the inner magnets are actuated, resulting in rotation of the agitator shaft.

MAG III MagneDrive
The MagneDrive agitator uses rare earth magnets, permitting packless mixing at higher speeds and with higher viscosity fluids. Outer drive magnets, rotated by a direct coupled motor exert powerful attraction on the encapsulated inner magnet assembly. As the outer drive magnets are rotated, the inner magnets are actuated, resulting in rotation of the agitator shaft.

Contamination-free mixing- Packless design eliminates shaft packing and need for lubrication.
Zero leakage to atmosphere- The MagneDrive is a sealed system, closed to the atmosphere, so even sensitive fluids can be processed safely.
Continuous, high speed operation- No need to shut down in mid-reaction to change failed packing.

Autoclave Engineers 壓力設備經過嚴格ISO9001質量認證，產品通過了ASME(美國機械工程師學會)，CE(歐洲統一認證)，PED(歐洲壓力許可認證)，CRN(加拿大注冊編號)等國際權威機構的認證。

Autoclave Engineers 產品擴展性良好，可擴展為多釜串聯連續流動反應器，或者多釜平行反應裝置。釜體可在允許范圍內加裝各種檢測設備或配件，以滿足用戶個性化的需求。

Autoclave Engineers 產品提供了高度的通用性，為用戶大程度減少使用和維護成本。不同型號的產品，其部件通用性高達70%，通過更換反應釜體，攪拌部件，閥門管路等方法，擴展使用范圍，達到設備大的利用率。攪拌機MagneDrive第二攪拌器使用稀土磁鐵，允許在更高的速度在較大的船只，并具有較高的粘度流體的無填料混合。外驅動磁體，由電動機驅動皮帶旋轉，封裝內磁鐵大會施加強大的吸引力。作為外部驅動器磁體旋轉，內在的磁鐵驅動，致使攪拌軸旋轉。污染無攪拌，無填料的設計消除了軸填料和潤滑需要。零泄漏到大氣的MagneDrive II是一個密封的系統， 封閉的氣氛，所以即使是敏感的液體可以被安全地處理 。連續，高速運轉，沒有必要把自己關在反應中改變失敗的包裝。
