Autoclave Engineers MAG 075壓力磁力攪拌器，Mag075 Pressure Magnetic Mixer

Autoclave Engineers 產品提供了高度的通用性，為用戶大程度減少使用和維護成本。不同型號的產品，其部件通用性高達70%，通過更換反應釜體，攪拌部件，閥門管路等方法，擴展使用范圍，達到設備大的利用率。攪拌機MagneDrive第二攪拌器使用稀土磁鐵，允許在更高的速度在較大的船只，并具有較高的粘度流體的無填料混合。外驅動磁體，由電動機驅動皮帶旋轉，封裝內磁鐵大會施加強大的吸引力。作為外部驅動器磁體旋轉，內在的磁鐵驅動，致使攪拌軸旋轉。污染無攪拌，無填料的設計消除了軸填料和潤滑需要。零泄漏到大氣的MagneDrive II是一個密封的系統， 封閉的氣氛，所以即使是敏感的液體可以被安全地處理 。連續，高速運轉，沒有必要把自己關在反應中改變失敗的包裝。

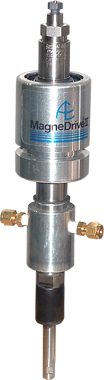

Mag075 Pressure Magnetic Mixer

The MagneDrive? agitator uses rare earth magnets, permitting packless mixing at higher speeds and with higher viscosity fluids. Outer drive magnets, rotated by a motor driven belt exert powerful attraction on the encapsulated inner magnet assembly. As the outer drive magnets are rotated, the inner magnets are actuated, resulting in rotation of the agitator shaft.

Mag075壓力磁性攪拌機 MagneDrive攪拌器使用稀土磁鐵，允許在更高的速度和高粘度流體的無填料混合 。外的驅動器磁鐵，旋轉電機驅動皮帶封裝內磁鐵大會施加強大的吸引力 。作為外部驅動磁鐵旋轉時，內部的磁鐵驅動，導致在攪拌軸的轉動 。

MAG 075壓力磁力攪拌機：

磁耦合調音
臺高壓實驗室反應堆軸

攪拌器特點:

混合容器的大小從50毫升到4000毫升的能力。
能夠在3,600 rpm和20,000 CP攪拌。
工作壓力高達6000磅的高@ 650 ° F（414欄，343 ° C）。
設計緊湊，用7-16磅（0.79至1.8米）的靜態扭矩。
設計簡單的拆卸和維修。
碳石墨和含氟聚合物與碳纖維軸承可供選擇。

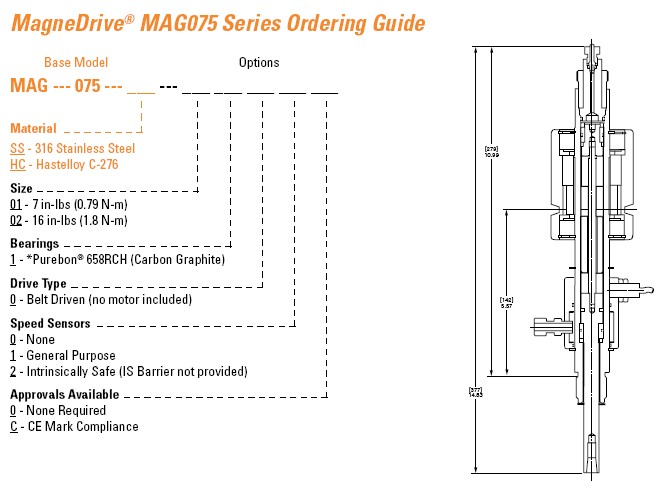

MAG075 Series MagneDrive® Specification

Material of Construction: All wetted parts 316 SS or Hastelloy
C-276. For information on other materials, please
consult factory.
Bearing Material: Purebon? 658RCH.4
Maximum Allowable Working Pressure (MAWP) at
Connection: 6,000 psi @ 650° F (414 bar @ 343° C)
Minimum Metal Design Temperature: -20° F @ 6000 psi
(-29° C @ 414 bar)
Maximum Temperature at Magnet Zone: 300° F (149 °C)5
Maximum Temperature at Connection: 650° F (343 °C)6
Cover Connection: 1”-14 NF with 5/16” Drill.
Purge Connection: 075 Series MagneDrives? are provided
with a 0.125” (3 mm) gas purge connection (top).
Tachometer Pick-up: Magnetic proximity sensor.
Shaft and Impeller: 075 Series MagneDrives? are supplied
without shafts or impellers, allowing for customization
of shaft length and impeller style. A drive shaft, supplied
separately, is screwed into the MagneDrive? encapsulation
assembly. Autoclave Engineers offers a wide selection of
impellers, including the Dispersimax gas dispersion system.
Please consult factory for more information.

Mag075 Pressure Magnetic Mixer

The MagneDrive? agitator uses rare earth magnets, permitting packless mixing at higher speeds and with higher viscosity fluids. Outer drive magnets, rotated by a motor driven belt exert powerful attraction on the encapsulated inner magnet assembly. As the outer drive magnets are rotated, the inner magnets are actuated, resulting in rotation of the agitator shaft.

A magnetically coupled, packless, rotary impeller system designed to provide continuous, high-speed mixing without contamination.

Mag 075 Pressure Magnetic Mixer:
Magnetically Coupled Mixers
Magnetic agitator with shaft of high pressure laboratory reactors

FEATURES:

Capable of mixing vessel sizes from 50 ml up to 4000 ml.
Capable of mixing at 3,600 rpm and 20,000 cp.
Operating pressures as high as 6,000 psi @ 650° F (414 bar @ 343°C).
Compact design with 7-16 in-lb (0.79 to 1.8 N-m) of static torque.
Designed for simple disassembly and maintenance. Bearings can be replaced with minimal effort.
Carbon graphite and fluoropolymer with carbon fiber bearings available.

APPLICATION:

The MagneDrive? agitator uses rare earth magnets, permitting packless mixing at higher speeds and with higher viscosity fluids. Outer drive magnets, rotated by a motor driven belt exert powerful attraction on the encapsulated inner magnet assembly. As the outer drive magnets are rotated, the inner magnets are actuated, resulting in rotation of the agitator shaft.

Contamination-free mixing- Packless design eliminates shaft packing and need for lubrication.

Zero leakage to atmosphere- The MagneDrive? is a sealed system, closed to the atmosphere, so even sensitive fluids can be processed safely.
Continuous, high speed operation- No need to shut down in mid-reaction to change failed packing.
