Autoclave Engineers MAG III MagneDrive 磁力攪拌器

Autoclave Engineers 產品提供了高度的通用性，為用戶大程度減少使用和維護成本。不同型號的產品，其部件通用性高達70%，通過更換反應釜體，攪拌部件，閥門管路等方法，擴展使用范圍，達到設備大的利用率。攪拌機MagneDrive第二攪拌器使用稀土磁鐵，允許在更高的速度在較大的船只，并具有較高的粘度流體的無填料混合。外驅動磁體，由電動機驅動皮帶旋轉，封裝內磁鐵大會施加強大的吸引力。作為外部驅動器磁體旋轉，內在的磁鐵驅動，致使攪拌軸旋轉。污染無攪拌，無填料的設計消除了軸填料和潤滑需要。零泄漏到大氣的MagneDrive II是一個密封的系統， 封閉的氣氛，所以即使是敏感的液體可以被安全地處理 。連續，高速運轉，沒有必要把自己關在反應中改變失敗的包裝。

The MagneDrive®s agitator uses rare earth magnets, permitting packless mixing at higher speeds and with higher viscosity fluids. Outer drive magnets, rotated by a direct coupled motor exert powerful attraction on the encapsulated inner magnet assembly. As the outer drive magnets are rotated, the inner magnets are actuated, resulting in rotation of the agitator shaft.

Contamination-free mixing- Packless design eliminates shaft packing and need for lubrication.
Zero leakage to atmosphere- The MagneDrive? is a sealed system, closed to the atmosphere, so even sensitive fluids can be processed safely.
Continuous, high speed operation- No need to shut down in mid-reaction to change failed packing.

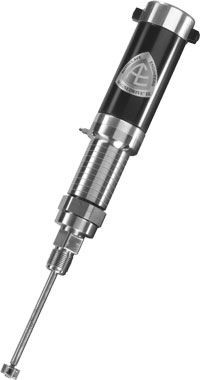

MAG III MagneDrive Magnetically Coupled Mixers
A Compact, In-line, Magnetically Coupled Drive

FEATURES
Capable of mixing vessel sizes from 25 ml up to 150 ml.
Capable of mixing at 3,600 rpm and 20,000 cps.
Operating pressures as high as 5,400 psi @ 650° F (372 bar @ 343°C).
In-line motor eliminates belts, reduces size, and creates nearly silent operation.
Compact design with up to 5 in-lb (565 N-mm) of static torque.
Designed for simple disassembly and maintenance. Bearings can be replaced with minimal effort.
Carbon graphite and fluoropolymer with carbon fiber bearings available.
Various connections available for existing AE and other pressure vessels as well as for glassware.
Motors available up to 1/4 Hp.
Various impellers available, contact factory for details.



BENEFITS

The in-line motor eliminates belts, reduces size, and creates nearly silent operation.
Designed for simple disassembly and maintenance.
Bearings can be changed quickly from either the top or the bottom of the unit.
Contact the factory for operation at conditions exceeding these ratings or for custom applications.
