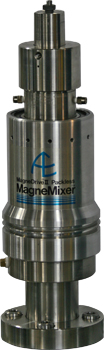

Production Scale High Pressure Magnetic Mixer: 2.75 磁力攪拌器

Autoclave Engineers 產品提供了高度的通用性，為用戶大程度減少使用和維護成本。不同型號的產品，其部件通用性高達70%，通過更換反應釜體，攪拌部件，閥門管路等方法，擴展使用范圍，達到設備大的利用率。攪拌機MagneDrive第二攪拌器使用稀土磁鐵，允許在更高的速度在較大的船只，并具有較高的粘度流體的無填料混合。外驅動磁體，由電動機驅動皮帶旋轉，封裝內磁鐵大會施加強大的吸引力。作為外部驅動器磁體旋轉，內在的磁鐵驅動，致使攪拌軸旋轉。污染無攪拌，無填料的設計消除了軸填料和潤滑需要。零泄漏到大氣的MagneDrive II是一個密封的系統， 封閉的氣氛，所以即使是敏感的液體可以被安全地處理 。連續，高速運轉，沒有必要把自己關在反應中改變失敗的包裝。

MagneDrive? II agitators use rare earth magnets, permitting packless mixing at higher speeds in larger vessels and with higher viscosity fluids. Outer drive magnets, rotated by a motor-driven belt, exert powerful attraction on the encapsulated inner magnet assembly. As the outer drive magnets are rotated, the inner magnets are actuated, resulting in rotation of the agitator shaft.

2.75 Series MagneDrive II® Specification
Maximum RPM, torque, and horsepower

Production Scale High Pressure Magnetic Mixer: 2.75
Magnetically Coupled Mixers
Magnetic agitator with shaft & torque for high pressure production reactors

FEATURES

Capable of mixing gas as high as 1700 rpm.
Operating pressures as high as 3,600 psi @ 650° F (455 bar @ 343°C).
Carbon graphite and Rulon LR7 bearings available.
Material Construction: 316 Stainless Steel, Hastelloy C-276, Monel 400,
for additional material please consult factory.

BENEFITS

MagneDrive? II agitators use rare earth magnets, permitting packless mixing at higher speeds in larger vessels and with higher viscosity fluids. Outer drive
magnets, rotated by a motor-driven belt, exert powerful attraction on the encapsulated inner magnet assembly. As the outer drive magnets are rotated, the inner magnets are actuated, resulting in rotation of the agitator shaft.

Contamination-free mixing - Packless design eliminates shaft packing and need for lubrication.

Zero leakage to atmosphere - The MagneDrive? II is a sealed system, closed to the atmosphere, so even sensitive fluids can be processed safely.

Continuous, high speed operation - No need to shut down in mid-reaction to change failed packing.

APPLICATIONS

Agitator recognized worldwide as a highly efficient method of promoting chemical reactions and catalyst testing among gases, liquids and solids in high pressure autoclaves.

Dispersimax? agitation available for gas dispersion through liquid during mixing. Facilitating tomorrows requirements in a proven mixing package for production facilities the world over.
