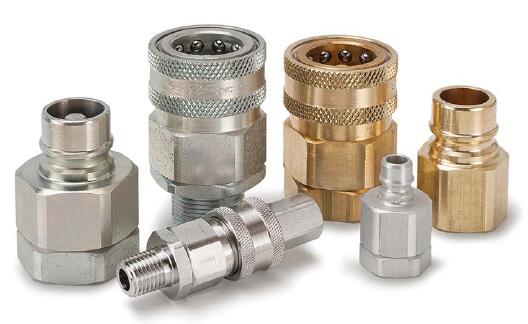

Snap-tite H Series quick disconnects
Snap-tite H Series Couplers (hydraulic, fluids) up to 11,000 psi connect with Snap-tite H and PH Series Nipples. These original Snap-tite H Series quick disconnects are truely multi-purpose. With sizes up to 4”, this coupling can be valved on both sides, single shut-off, or full flow. Both male and female port ends as well as many material options and the widest range of sizes available, make the Snap-tite H Series an ideal quick connection for a variety of applications.
Snap-tite design, general purpose quick couplings for applications where fluid lines up to 4" require fast and easy connection and disconnection. Many sizes, ports and material options.
Double or single shut off - Couplers and nipples are compatible to connect with or without valves, in any combination.
Full flow option - Rated for pressure ranges up to 11,000 psi max when used as a straight through, unvalved connection where both coupler and nipple are plain or without valves.
Connect under pressure option - PH Series couplers allow connection with H Series valved nipples when there is residual pressure on the PH Coupler side. It is recommended that only one half of the connection (coupler or nipple) be a PH Series, not both.
Related Documents
Literature and Reference Materials
Catalog 3800 Quick Coupling Products
Snap-tite H Series Catalog
Snap-tite H Series Product Bulletin
Technical Characteristics:
- Sizes: 1/4” – 4”
- Materials: Steel, Aluminum, Brass, 316 Stainless Steel
- Port Ends: Male NPT, Female NPTF, Female SAE, Male SAE 37 degree Flare
- Seal Options: Nitrile, Fluorocarbon, Ethylene Propylene
| Maximum Working Pressure (psi): |
Up to 6500, Up to 6500 |
| Maximum Operating Temperature: |
Up to 400 °F, Up to 204 °C, Up to 400 °F, Up to 204 °C, 250 to 400 °F |
| Valve Style: |
Poppet, No Valve, Poppet, No Valve, Unvalved, Poppet |
| Brand: |
Parker, Parker |
| Body Size (inch): |
1/4, 3/8, 1/2, 3/4, 1, 1 1/4, 1 1/2, 2 |
| End Fitting Type: |
various, various |
| Interchange Type: |
Snap-tite H, Snap-tite H |
| Material: |
Steel, Brass, Aluminum, Stainless steel, Steel, Brass, Aluminum, Stainless steel |
| Maximum Working Pressure (bar): |
Up to 448, Up to 448 |
| Seal Material: |
Nitrile, Fluorocarbon, Nitrile, Fluorocarbon, Nitrile, Fluorocarbon |
|
| Vacuum: |
No, No |
| Media: |
Hydraulic |
| Coupling Half: |
Coupler |
| Minimum Operating Temperature: |
-40 to -15 °F |
| Sleeve Type: |
Unvalved, Poppet |
| Locking Mechanism: |
Manual sleeve |
| Plating: |
Zinc with clear trivalent chromate on steel |
| Application: |
Hydraulic, General Purpose |
Markets:
- Industrial
- Construction
- Oil and Gas
- Agriculture
Features/Benefits:
- Original Snap-tite H Series multi-purpose coupling, widely used in varied applications
- Widest range of sizes up to 4"
- Couplers and nipples are compatible to connect with or without valves, in any combination
- PH Series connect under pressure version allows connection of lines with residual pressure caused by thermal expansion
- Male port end options add versatility
- Optional sleeve lock helps to prevent accidental disconnection
Applications:
- Industrial hydraulic lines
- Food and chemical processing
- Water and coolant lines
- High pressure fluid transfer
- Mobile equipment
- Cleaning equipment
SNAP-TITE DESIGN, MULTI-PURPOSE QUICK COUPLINGS (HYD, FLUIDS) UP TO 11,000 PSI - H SERIES COUPLERS
| APHC4-4F |
2250 |
1/4 |
Aluminum |
Unvalved |
1/4 - 18 |
NPTF |
Female |
| APHC6-6F |
2250 |
3/8 |
Aluminum |
Unvalved |
3/8 - 18 |
NPTF |
Female |
| AVHC4-4F |
2250 |
1/4 |
Aluminum |
Poppet |
1/4 - 18 |
NPTF |
Female |
| AVHC4-4M |
2250 |
1/4 |
Aluminum |
Poppet |
1/4 - 18 |
NPT |
Male |
| AVHC6-6F |
2250 |
3/8 |
Aluminum |
Poppet |
3/8 - 18 |
NPTF |
Female |
| AVHC6-6M |
2250 |
3/8 |
Aluminum |
Poppet |
3/8 - 18 |
NPT |
Male |
| AVHC8-8F |
1750 |
1/2 |
Aluminum |
Poppet |
1/2 - 14 |
NPTF |
Female |
| BPHC12-12F |
2000 |
3/4 |
Brass |
Unvalved |
3/4 - 14 |
NPTF |
Female |
| BPHC16-16F |
1750 |
1 |
Brass |
Unvalved |
1 - 11 1/2 |
NPTF |
Female |
| BPHC20-20F |
350 |
1 1/4 inch |
Brass |
Unvalved |
1 1/4 - 11 1/2 |
NPT |
Female |
| BPHC24-24F |
350 |
1 1/2 |
Brass |
Unvalved |
1 1/2 - 11 1/2 |
NPT |
Female |
| BPHC32-32F |
400 |
2 |
Brass |
Unvalved |
2 - 11 1/2 |
NPT |
Female |
| BPHC4-4F |
2250 |
1/4 |
Brass |
Unvalved |
1/4 - 18 |
NPTF |
Female |
| BPHC6-6F |
2250 |
3/8 |
Brass |
Unvalved |
3/8 - 18 |
NPTF |
Female |
| BPHC8-8F |
2000 |
1/2 |
Brass |
Unvalved |
1/2 - 14 |
NPTF |
Female |
| BVHC12-12F |
2000 |
3/4 |
Brass |
Poppet |
3/4 - 14 |
NPTF |
Female |
| BVHC12-12M |
2000 |
3/4 |
Brass |
Poppet |
3/4 - 14 |
NPT |
Male |
| BVHC16-16F |
1750 |
1 |
Brass |
Poppet |
1 - 11 1/2 |
NPTF |
Female |
| BVHC16-16M |
1750 |
1 |
Brass |
Poppet |
1 - 11 1/2 |
NPT |
Male |
| BVHC20-20F |
350 |
1 1/4 inch |
Brass |
Poppet |
1 1/4 - 11 1/2 |
NPT |
Female |
| BVHC24-24F |
350 |
1 1/2 |
Brass |
Poppet |
1 1/2 - 11 1/2 |
NPT |
Female |
| BVHC32-32F |
400 |
2 |
Brass |
Poppet |
2 - 11 1/2 |
NPT |
Female |
| BVHC4-4F |
2250 |
1/4 |
Brass |
Poppet |
1/4 - 18 |
NPTF |
Female |
| BVHC4-4M |
2250 |
1/4 |
Brass |
Poppet |
1/4 - 18 |
NPT |
Male |
| BVHC6-6F |
2250 |
3/8 |
Brass |
Poppet |
3/8 - 18 |
NPTF |
Female |
| BVHC6-6M |
2250 |
3/8 |
Brass |
Poppet |
3/8 - 18 |
NPT |
Male |
| BVHC8-8F |
2000 |
1/2 |
Brass |
Poppet |
1/2 - 14 |
NPTF |
Female |
| BVHC8-8M |
2000 |
1/2 |
Brass |
Poppet |
1/2 - 14 |
NPT |
Male |
| PHC12-12F |
3500 |
3/4 |
Steel |
Unvalved |
3/4 - 14 |
NPTF |
Female |
| PHC16-16F |
2000 |
1 |
Steel |
Unvalved |
1 - 11 1/2 |
NPTF |
Female |
| PHC20-20F |
1750 |
1 1/4 inch |
Steel |
Unvalved |
1 1/4 - 11 1/2 |
NPT |
Female |
| PHC24-24F |
1500 |
1 1/2 |
Steel |
Unvalved |
1 1/2 - 11 1/2 |
NPT |
Female |
| PHC32-32F |
1500 |
2 |
Steel |
Unvalved |
2 - 11 1/2 |
NPT |
Female |
| PHC4-4F |
6500 |
1/4 |
Steel |
Unvalved |
1/4 - 18 |
NPTF |
Female |
| PHC6-6F |
4500 |
3/8 |
Steel |
Unvalved |
3/8 - 18 |
NPTF |
Female |
| PHC8-8F |
4000 |
1/2 |
Steel |
Unvalved |
1/2 - 14 |
NPTF |
Female |
| SPHC12-12F |
2000 |
3/4 |
316 Stainless Steel |
Unvalved |
3/4 - 14 |
NPSF |
Female |
| SPHC16-16F |
2000 |
1 |
316 Stainless Steel |
Unvalved |
1 - 11 1/2 |
NPSF |
Female |
| SPHC20-20F |
1500 |
1 1/4 inch |
316 Stainless Steel |
Unvalved |
1 1/4 - 11 1/2 |
NPT |
Female |
| SPHC24-24F |
1500 |
1 1/2 |
316 Stainless Steel |
Unvalved |
1 1/2 - 11 1/2 |
NPT |
Female |
| SPHC32-32F |
500 |
2 |
316 Stainless Steel |
Unvalved |
2 - 11 1/2 |
NPT |
Female |
| SPHC4-4F |
5000 |
1/4 |
316 Stainless Steel |
Unvalved |
1/4 - 18 |
NPSF |
Female |
| SPHC6-6F |
4000 |
3/8 |
316 Stainless Steel |
Unvalved |
3/8 - 18 |
NPSF |
Female |
| SPHC8-8F |
3750 |
1/2 |
316 Stainless Steel |
Unvalved |
1/2 - 14 |
NPSF |
Female |
| SVHC12-12F |
2000 |
3/4 |
316 Stainless Steel |
Poppet |
3/4 - 14 |
NPSF |
Female |
| SVHC12-12M |
2000 |
3/4 |
316 Stainless Steel |
Poppet |
3/4 - 14 |
NPT |
Male |
| SVHC16-16F |
2000 |
1 |
316 Stainless Steel |
Poppet |
1 - 11 1/2 |
NPSF |
Female |
| SVHC16-16M |
2000 |
1 |
316 Stainless Steel |
Poppet |
1 - 11 1/2 |
NPT |
Male |
| SVHC20-20F |
1500 |
1 1/4 inch |
316 Stainless Steel |
Poppet |
1 1/4 - 11 1/2 |
NPT |
Female |
| SVHC24-24F |
1500 |
1 1/2 |
316 Stainless Steel |
Poppet |
1 1/2 - 11 1/2 |
NPT |
Female |
| SVHC32-32F |
500 |
2 |
316 Stainless Steel |
Poppet |
2 - 11 1/2 |
NPT |
Female |
| SVHC4-2F |
5000 |
1/4 |
316 Stainless Steel |
Poppet |
1/8 - 27 |
NPSF |
Female |
| SVHC4-4F |
5000 |
1/4 |
316 Stainless Steel |
Poppet |
1/4 - 18 |
NPSF |
Female |
| SVHC4-4M |
5000 |
1/4 |
316 Stainless Steel |
Poppet |
1/4 - 18 |
NPT |
Male |
| SVHC6-6F |
4000 |
3/8 |
316 Stainless Steel |
Poppet |
3/8 - 18 |
NPSF |
Female |
| SVHC6-6M |
4000 |
3/8 |
316 Stainless Steel |
Poppet |
3/8 - 18 |
NPT |
Male |
| SVHC8-8F |
3750 |
1/2 |
316 Stainless Steel |
Poppet |
1/2 - 14 |
NPSF |
Female |
| SVHC8-8M |
3750 |
1/2 |
316 Stainless Steel |
Poppet |
1/2 - 14 |
NPT |
Male |
| VHC12-12EFV |
3500 |
3/4 |
Steel |
Poppet |
1 1/16 - 12 |
UNF |
Female |
| VHC12-12EM |
3500 |
3/4 |
Steel |
Poppet |
1 1/6 - 12 |
UNF |
Male SAE 37 degree flare |
| VHC12-12F |
3500 |
3/4 |
Steel |
Poppet |
3/4 - 14 |
NPTF |
Female |
| VHC12-12M |
3500 |
3/4 |
Steel |
Poppet |
3/4 - 14 |
NPT |
Male |
| VHC16-16EF |
2000 |
1 |
Steel |
Poppet |
1 5/16 - 12 |
UNF |
Female |
| VHC16-16F |
2000 |
1 |
Steel |
Poppet |
1 - 11 1/2 |
NPTF |
Female |
| VHC16-16M |
2000 |
1 |
Steel |
Poppet |
1 - 11 1/2 |
NPT |
Male |
| VHC20-20F |
1750 |
1 1/4 inch |
Steel |
Poppet |
1 1/4 - 11 1/2 |
NPT |
Female |
| VHC24-24F |
1500 |
1 1/2 |
Steel |
Poppet |
1 1/2 - 11 1/2 |
NPT |
Female |
| VHC32-32F |
1500 |
2 |
Steel |
Poppet |
2 - 11 1/2 |
NPT |
Female |
| VHC32-32M |
1500 |
2 |
Steel |
Poppet |
2 - 11 1/2 |
NPT |
Male |
| VHC4-2F |
6500 |
1/4 |
Steel |
Poppet |
1/8 - 27 |
NPTF |
Female |
| VHC4-2M |
6500 |
1/4 |
Steel |
Poppet |
1/8 - 27 |
NPT |
Male |
| VHC4-4EF |
6500 |
1/4 |
Steel |
Poppet |
7/16 - 20 |
UNF |
Female |
| VHC4-4EM |
6500 |
1/4 |
Steel |
Poppet |
7/16 - 20 |
UNF |
Male SAE 37 degree flare |
| VHC4-4F |
6500 |
1/4 |
Steel |
Poppet |
1/4 - 18 |
NPTF |
Female |
| VHC4-4M |
6500 |
1/4 |
Steel |
Poppet |
1/4 - 18 |
NPT |
Male |
| VHC6-6EF |
4500 |
3/8 |
Steel |
Poppet |
9/16 - 18 |
UNF |
Female |
| VHC6-6EM |
4500 |
3/8 |
Steel |
Poppet |
9/16 - 18 |
UNF |
Male SAE 37 degree flare |
| VHC6-6F |
4500 |
3/8 |
Steel |
Poppet |
3/8 - 18 |
NPTF |
Female |
| VHC6-6M |
4500 |
3/8 |
Steel |
Poppet |
3/8 - 18 |
NPT |
Male |
| VHC8-8EF |
4000 |
1/2 |
Steel |
Poppet |
3/4 - 16 |
UNF |
Female |
| VHC8-8EM |
4000 |
1/2 |
Steel |
Poppet |
3/4 - 16 |
UNF |
Male SAE 37 degree flare |
| VHC8-8F |
4000 |
1/2 |
Steel |
Poppet |
1/2 - 14 |
NPTF |
Female |
| VHC8-8M |
4000 |
1/2 |
Steel |
Poppet |
1/2 - 14 |
NPT |
Male |
SNAP-TITE DESIGN, MULTI-PURPOSE QUICK COUPLINGS (HYD, FLUIDS) UP TO 11,000 PSI - H SERIES NIPPLES
Showing 1 to 103 of 103 entries
| APHN4-4F |
2250 |
1/4 |
Unvalved |
Aluminum |
1/4 - 18 |
NPTF |
Female |
| APHN4-4M |
2250 |
1/4 |
Unvalved |
Aluminum |
1/4 - 18 |
NPT |
Male |
| APHN6-6F |
2250 |
3/8 |
Unvalved |
Aluminum |
3/8 - 18 |
NPTF |
Female |
| AVHN4-4F |
2250 |
1/4 |
Poppet |
Aluminum |
1/4 - 18 |
NPTF |
Female |
| AVHN4-4M |
2250 |
1/4 |
Poppet |
Aluminum |
1/4 - 18 |
NPT |
Male |
| AVHN6-6F |
2250 |
3/8 |
Poppet |
Aluminum |
3/8 - 18 |
NPTF |
Female |
| AVHN6-6M |
2250 |
3/8 |
Poppet |
Aluminum |
3/8 - 18 |
NPT |
Male |
| AVHN8-8F |
1750 |
1/2 |
Poppet |
Aluminum |
1/2 - 14 |
NPTF |
Female |
| BPHN12-12F |
2000 |
3/4 |
Unvalved |
Brass |
3/4 - 14 |
NPTF |
Female |
| BPHN12-12M |
2000 |
3/4 |
Unvalved |
Brass |
3/4 - 14 |
NPT |
Male |
| BPHN16-16F |
1750 |
1 |
Unvalved |
Brass |
1 - 11 1/2 |
NPTF |
Female |
| BPHN16-16M |
1750 |
1 |
Unvalved |
Brass |
1 - 11 1/2 |
NPT |
Male |
| BPHN20-20F |
350 |
1 1/4 inch |
Unvalved |
Brass |
1 1/4 - 11 1/2 |
NPT |
Female |
| BPHN24-24F |
350 |
1 1/2 |
Unvalved |
Brass |
1 1/2 - 11 1/2 |
NPT |
Female |
| BPHN32-32F |
400 |
2 |
Unvalved |
Brass |
2 - 11 1/2 |
NPT |
Female |
| BPHN4-2F |
2250 |
1/4 |
Unvalved |
Brass |
1/8 - 27 |
NPTF |
Female |
| BPHN4-2M |
2250 |
1/4 |
Unvalved |
Brass |
1/8 - 27 |
NPT |
Male |
| BPHN4-4F |
2250 |
1/4 |
Unvalved |
Brass |
1/4 - 18 |
NPTF |
Female |
| BPHN4-4M |
2250 |
1/4 |
Unvalved |
Brass |
1/4 - 18 |
NPT |
Male |
| BPHN6-6F |
2250 |
3/8 |
Unvalved |
Brass |
3/8 - 18 |
NPTF |
Female |
| BPHN6-6M |
2250 |
3/8 |
Unvalved |
Brass |
3/8 - 18 |
NPT |
Male |
| BPHN8-8F |
2000 |
1/2 |
Unvalved |
Brass |
1/2 - 14 |
NPTF |
Female |
| BPHN8-8M |
2000 |
1/2 |
Unvalved |
Brass |
1/2 - 14 |
NPT |
Male |
| BVHN12-12F |
2000 |
3/4 |
Poppet |
Brass |
3/4 - 14 |
NPTF |
Female |
| BVHN12-12M |
2000 |
3/4 |
Poppet |
Brass |
3/4 - 14 |
NPT |
Male |
| BVHN16-16F |
1750 |
1 |
Poppet |
Brass |
1 - 11 1/2 |
NPTF |
Female |
| BVHN16-16M |
1750 |
1 |
Poppet |
Brass |
1 - 11 1/2 |
NPT |
Male |
| BVHN20-20F |
350 |
1 1/4 inch |
Poppet |
Brass |
1 1/4 - 11 1/2 |
NPT |
Female |
| BVHN24-24F |
350 |
1 1/2 |
Poppet |
Brass |
1 1/2 - 11 1/2 |
NPT |
Female |
| BVHN32-32F |
400 |
2 |
Poppet |
Brass |
2 - 11 1/2 |
NPT |
Female |
| BVHN4-4F |
2250 |
1/4 |
Poppet |
Brass |
1/4 - 18 |
NPTF |
Female |
| BVHN4-4M |
2250 |
1/4 |
Poppet |
Brass |
1/4 - 18 |
NPT |
Male |
| BVHN6-6F |
2250 |
3/8 |
Poppet |
Brass |
3/8 - 18 |
NPTF |
Female |
| BVHN6-6M |
2250 |
3/8 |
Poppet |
Brass |
3/8 - 18 |
NPT |
Male |
| BVHN8-8F |
2000 |
1/2 |
Poppet |
Brass |
1/2 - 14 |
NPTF |
Female |
| BVHN8-8M |
2000 |
1/2 |
Poppet |
Brass |
1/2 - 14 |
NPT |
Male |
| PHN12-12F |
3500 |
3/4 |
Unvalved |
Steel |
3/4 - 14 |
NPTF |
Female |
| PHN12-12M |
3500 |
3/4 |
Unvalved |
Steel |
3/4 - 14 |
NPT |
Male |
| PHN16-16F |
2000 |
1 |
Unvalved |
Steel |
1 - 11 1/2 |
NPTF |
Female |
| PHN16-16M |
2000 |
1 |
Unvalved |
Steel |
1 - 11 1/2 |
NPT |
Male |
| PHN20-20F |
1750 |
1 1/4 inch |
Unvalved |
Steel |
1 1/4 - 11 1/2 |
NPT |
Female |
| PHN24-24F |
1500 |
1 1/2 |
Unvalved |
Steel |
1 1/2 - 11 1/2 |
NPT |
Female |
| PHN32-32F |
1500 |
2 |
Unvalved |
Steel |
2 - 11 1/2 |
NPT |
Female |
| PHN32-32M |
1500 |
2 |
Unvalved |
Steel |
2 - 11 1/2 |
NPT |
Male |
| PHN4-2F |
6500 |
1/4 |
Unvalved |
Steel |
1/8 - 27 |
NPTF |
Female |
| PHN4-2M |
6500 |
1/4 |
Unvalved |
Steel |
1/8 - 27 |
NPT |
Male |
| PHN4-4F |
6500 |
1/4 |
Unvalved |
Steel |
1/4 - 18 |
NPTF |
Female |
| PHN4-4M |
6500 |
1/4 |
Unvalved |
Steel |
1/4 - 18 |
NPT |
Male |
| PHN6-6F |
4500 |
3/8 |
Unvalved |
Steel |
3/8 - 18 |
NPTF |
Female |
| PHN6-6M |
4500 |
3/8 |
Unvalved |
Steel |
3/8 - 18 |
NPT |
Male |
| PHN8-8F |
4000 |
1/2 |
Unvalved |
Steel |
1/2 - 14 |
NPTF |
Female |
| PHN8-8M |
4000 |
1/2 |
Unvalved |
Steel |
1/2 - 14 |
NPT |
Male |
| SPHN12-12F |
2000 |
3/4 |
Unvalved |
316 Stainless Steel |
3/4 - 14 |
NPSF |
Female |
| SPHN16-16F |
2000 |
1 |
Unvalved |
316 Stainless Steel |
1 - 11 1/2 |
NPSF |
Female |
| SPHN20-20F |
1500 |
1 1/4 inch |
Unvalved |
316 Stainless Steel |
1 1/4 - 11 1/2 |
NPT |
Female |
| SPHN24-24F |
1500 |
1 1/2 |
Unvalved |
316 Stainless Steel |
1 1/2 - 11 1/2 |
NPT |
Female |
| SPHN32-32F |
500 |
2 |
Unvalved |
316 Stainless Steel |
2 - 11 1/2 |
NPT |
Female |
| SPHN4-2F |
5000 |
1/4 |
Unvalved |
316 Stainless Steel |
1/8 - 27 |
NPSF |
Female |
| SPHN4-2M |
5000 |
1/4 |
Unvalved |
316 Stainless Steel |
1/8 - 27 |
NPT |
Male |
| SPHN4-4F |
5000 |
1/4 |
Unvalved |
316 Stainless Steel |
1/4 - 18 |
NPSF |
Female |
| SPHN4-4M |
5000 |
1/4 |
Unvalved |
316 Stainless Steel |
1/4 - 18 |
NPT |
Male |
| SPHN6-6F |
4000 |
3/8 |
Unvalved |
316 Stainless Steel |
3/8 - 18 |
NPSF |
Female |
| SPHN6-6M |
4000 |
3/8 |
Unvalved |
316 Stainless Steel |
3/8 - 18 |
NPT |
Male |
| SPHN8-8F |
3750 |
1/2 |
Unvalved |
316 Stainless Steel |
1/2 - 14 |
NPSF |
Female |
| SPHN8-8M |
3750 |
1/2 |
Unvalved |
316 Stainless Steel |
1/2 - 14 |
NPT |
Male |
| SVHN12-12F |
2000 |
3/4 |
Poppet |
316 Stainless Steel |
3/4 - 14 |
NPSF |
Female |
| SVHN12-12M |
2000 |
3/4 |
Poppet |
316 Stainless Steel |
3/4 - 14 |
NPT |
Male |
| SVHN16-16F |
2000 |
1 |
Poppet |
316 Stainless Steel |
1 - 11 1/2 |
NPSF |
Female |
| SVHN16-16M |
2000 |
1 |
Poppet |
316 Stainless Steel |
1 - 11 1/2 |
NPT |
Male |
| SVHN20-20F |
1500 |
1 1/4 inch |
Poppet |
316 Stainless Steel |
1 1/4 - 11 1/2 |
NPT |
Female |
| SVHN20-20M |
1500 |
1 1/4 inch |
Poppet |
316 Stainless Steel |
1 1/4 - 11 1/2 |
NPT |
Male |
| SVHN24-24F |
1500 |
1 1/2 |
Poppet |
316 Stainless Steel |
1 1/2 - 11 1/2 |
NPT |
Female |
| SVHN32-32F |
500 |
2 |
Poppet |
316 Stainless Steel |
2 - 11 1/2 |
NPT |
Female |
| SVHN4-2F |
5000 |
1/4 |
Poppet |
316 Stainless Steel |
1/8 - 27 |
NPSF |
Female |
| SVHN4-4F |
5000 |
1/4 |
Poppet |
316 Stainless Steel |
1/4 - 18 |
NPSF |
Female |
| SVHN4-4M |
5000 |
1/4 |
Poppet |
316 Stainless Steel |
1/4 - 18 |
NPT |
Male |
| SVHN6-6F |
4000 |
3/8 |
Poppet |
316 Stainless Steel |
3/8 - 18 |
NPSF |
Female |
| SVHN6-6M |
4000 |
3/8 |
Poppet |
316 Stainless Steel |
3/8 - 18 |
NPT |
Male |
| SVHN8-8F |
3750 |
1/2 |
Poppet |
316 Stainless Steel |
1/2 - 14 |
NPSF |
Female |
| SVHN8-8M |
3750 |
1/2 |
Poppet |
316 Stainless Steel |
1/2 - 14 |
NPT |
Male |
| VHN12-12EF |
3500 |
3/4 |
Poppet |
Steel |
1 1/16 - 12 |
UNF |
Female |
| VHN12-12EM |
3500 |
3/4 |
Poppet |
Steel |
1 1/6 - 12 |
UNF |
Male SAE 37 degree flare |
| VHN12-12F |
3500 |
3/4 |
Poppet |
Steel |
3/4 - 14 |
NPTF |
Female |
| VHN12-12M |
3500 |
3/4 |
Poppet |
Steel |
3/4 - 14 |
NPT |
Male |
| VHN16-16EF |
2000 |
1 |
Poppet |
Steel |
1 5/16 - 12 |
UNF |
Female |
| VHN16-16F |
2000 |
1 |
Poppet |
Steel |
1 - 11 1/2 |
NPTF |
Female |
| VHN16-16M |
2000 |
1 |
Poppet |
Steel |
1 - 11 1/2 |
NPT |
Male |
| VHN20-20F |
1750 |
1 1/4 inch |
Poppet |
Steel |
1 1/4 - 11 1/2 |
NPT |
Female |
| VHN20-20M |
1750 |
1 1/4 inch |
Poppet |
Steel |
1 1/4 - 11 1/2 |
NPT |
Male |
| VHN24-24F |
1500 |
1 1/2 |
Poppet |
Steel |
1 1/2 - 11 1/2 |
NPT |
Female |
| VHN32-32F |
1500 |
2 |
Poppet |
Steel |
2 - 11 1/2 |
NPT |
Female |
| VHN4-2F |
6500 |
1/4 |
Poppet |
Steel |
1/8 - 27 |
NPTF |
Female |
| VHN4-2M |
6500 |
1/4 |
Poppet |
Steel |
1/8 - 27 |
NPT |
Male |
| VHN4-4EM |
6500 |
1/4 |
Poppet |
Steel |
7/16 - 20 |
UNF |
Male SAE 37 degree flare |
| VHN4-4F |
6500 |
1/4 |
Poppet |
Steel |
1/4 - 18 |
NPTF |
Female |
| VHN4-4M |
6500 |
1/4 |
Poppet |
Steel |
1/4 - 18 |
NPT |
Male |
| VHN6-6EM |
4500 |
3/8 |
Poppet |
Steel |
9/16 - 18 |
UNF |
Male SAE 37 degree flare |
| VHN6-6F |
4500 |
3/8 |
Poppet |
Steel |
3/8 - 18 |
NPTF |
Female |
| VHN6-6M |
4500 |
3/8 |
Poppet |
Steel |
3/8 - 18 |
NPT |
Male |
| VHN8-8EF |
4000 |
1/2 |
Poppet |
Steel |
3/4 - 16 |
UNF |
Female |
| VHN8-8EM |
4000 |
1/2 |
Poppet |
Steel |
3/4 - 16 |
UNF |
Male SAE 37 degree flare |
| VHN8-8F |
4000 |
1/2 |
Poppet |
Steel |
1/2 - 14 |
NPTF |
Female |
| VHN8-8M |
4000 |
1/2 |
Poppet |
Steel |
1/2 - 14 |
NPT |
Male |
- High Pressure, High Flow Air Quick Couplings (pneumatic, air) up to 6,500 psi - Snap-tite IH Series Couplers
Parker Hannifin Products
- Aerospace Systems and Technologies
- Air Preparation (FRL) and Dryers
- Cylinders and Actuators
- EMI Shielding
- Filters, Separators and Purifiers
- Fittings and Quick Couplings
- Gas Generators
- Hose, Piping, Tubing and T-Slot Framing
- Medical and Dental Equipment
- Motors, Drives and Controllers
- Power Take Offs and Drive Systems
- Pumps
- Refrigeration and Air Conditioning
- Regulators, Monitors, Sensors and Flow Control
- Seals and O-Rings
- Thermal and Power Management
- Valves
|
fcg.cnmec@parkerdistribution.com.cn
