Rectus MD Series Quick Couplings Quick Coupling for Medical Technology
Parker Rectus MD系列醫療用熱塑材料快換接頭

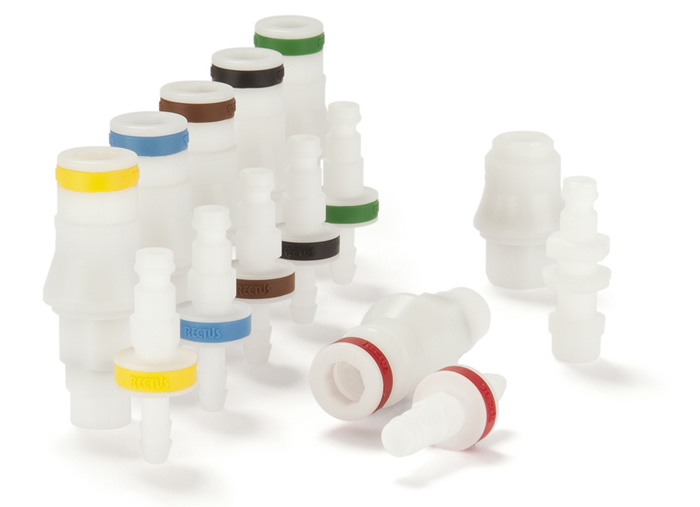

Rectus MD Series Quick Coupling
Rectus MD Series系列派克快換接頭，公稱通徑是5 mm，耐壓可達10 bar，可供材料：熱塑材料（聚甲醛）派克MD系列快換接頭，是用于醫療行業的專用快換接頭。接頭材料為符合USPVI級要求的聚甲醛材料，設計是符合這個尺寸下世界上最常用的結構形式。對于液體以及氣體的應用，MD 系列的流量性能表現都高于同類型產品。該系列快換接頭可使用單手操作。并且使用了便利的套筒鎖緊系統，從而擴大了其應用范圍。快換陰接頭以及陽接頭都有獨特的顏色以及機械標識系統，從而能夠保證連接不同流體回路時不會混淆。該系列接頭還可以提供直通形式（不帶閥）。
Rectus MD Series Quick Couplings Quick Coupling for Medical Technology
市場：
- 生命科學Life Science
- 過程控制Process
特征/優勢：
- 快換陰接頭以及陽接頭都有獨特的顏色以及機械標識系統，從而能夠保證連接不同流體回路時不會混淆。No mix-ups between media due to the color and mechanical coding of coupling and plug
- 單手操作系統，連接時簡單快速Single-hand operation for easy and fast connection
性能特點
標稱直徑 (DN) 5
閥門 是, 否
長度 (MM) 32 高達 83,5
外六角 (MM) na, 14, 17
外徑 (MM) 25,5 高達 28
材料 聚甲醛，USP 等級VI，白色
密封材料 三元乙丙橡膠，USP 等級VI，na
最低工作溫度(°C) -20
最高工作溫度 (C) 80
最大工作壓力 (BAR) 10
流速 (LPM) 300, 490
應用Applications:
- 手術設備 Surgical devices
- 無創血壓 NIBP
- 病人監測 Patient monitoring
- 溫度及壓力治療 Temperature & compression therapy
Parker's Quick Coupling Series MD is a coupling system for the medical field in POM of USP class VI with the world's most popular profile in this nominal diameter. Series MD stands out for its above average flow performance for liquid and gaseous media.This coupling system is developed for single-hand operation. The new type of plastic locking system with handy sleeve considerably expands the applications. The color and mechanical coding of the coupling and plug offers a guarantee for avoiding mix-ups between media when coupling. The coupling is also available straight-through (with no valve).
LITERATURE AND REFERENCE MATERIALS
- Catalogue Page Parker Rectus Series MD
MD系列醫療技術快速接頭
RECTUS MD Series Quick Coupling for Medical Technology
標稱直徑為5的快速連接系統，用于醫療應用，壓力高達10 bar。可用熱塑性塑料（POM）制成。Quick coupling system with nominal diameter 5 for medical applications up to 10 bar. Available made of thermoplastic (POM).
派克的快速接頭系列MD是用于USP VI級POM的醫療領域的接頭系統，其公稱直徑是世界上最受歡迎的型材。MD系列因其在液體和氣體介質中的平均流動性能出色而脫穎而出。
該耦合系統專為單手操作而開發。新型帶方便套的塑料鎖定系統大大擴展了應用范圍。聯軸器和插頭的顏色和機械編碼為聯軸器避免介質之間的混淆提供了保證。聯軸器也可直接使用（無閥）。Parker's Quick Coupling Series MD is a coupling system for the medical field in POM of USP class VI with the world's most popular profile in this nominal diameter. Series MD stands out for its above average flow performance for liquid and gaseous media.This coupling system is developed for single-hand operation. The new type of plastic locking system with handy sleeve considerably expands the applications. The color and mechanical coding of the coupling and plug offers a guarantee for avoiding mix-ups between media when coupling. The coupling is also available straight-through (with no valve).
市場：
-生命科學
-工藝
特點/優點：
-由于耦合器和插頭的顏色和機械編碼，介質之間沒有混淆
-單手操作，方便快捷地連接
應用：
-手術器械
-無創血壓
-患者監護
-溫度和壓縮療法
Markets:
- Life Science
- Process
Features/Benefits:
- No mix-ups between media due to the color and mechanical coding of coupling and plug
- Single-hand operation for easy and fast connection
Applications:
- Surgical devices
- NIBP
- Patient monitoring
- Temperature & compression therapy
技術指標
最低工作溫度： -20°攝氏度
直徑： 標稱：5毫米
應用： 醫療技術
牌： 直肌
配件連接類型： 各種
交換類型： 直肌簡介
最大工作壓力： 145磅/平方英寸，10巴
最高工作溫度： 176°F，80°C
媒體： 化學流體，氣體，氣動介質，水
閥門類型： 提升閥
閥門包括： 是或否 到版本
長度： 32至83.5毫米
十六進制大小： 14至17毫米
外徑： 25.5至28毫米
結構材料： POM，USP VI級，白色
密封材料： EPDM USP VI級
流量： 300至490 L / min
Part |
Type |
Version |
Connection Type |
Connection Thread Size (inch) |
Hose I.D. |
Color |
MD-M51-2FB |
Coupling |
Double Shut-Off |
Female Thread |
1/8 |
na |
na |
MD-M51-2FB-K0 |
Coupling |
Single Shut-Off |
Female Thread |
1/8 |
na |
green - 0 |
MD-M51-2FB-K2 |
Coupling |
Single Shut-Off |
Female Thread |
1/8 |
na |
black - 2 |
MD-M51-2FB-K3 |
Coupling |
Single Shut-Off |
Female Thread |
1/8 |
na |
brown - 3 |
MD-M51-2FB-K5 |
Coupling |
Single Shut-Off |
Female Thread |
1/8 |
na |
yellow - 5 |
MD-M51-2FB-K6 |
Coupling |
Single Shut-Off |
Female Thread |
1/8 |
na |
blue - 6 |
MD-M51-2FB-K8 |
Coupling |
Single Shut-Off |
Female Thread |
1/8 |
na |
red - 8 |
MD-M51-2MB |
Coupling |
Double Shut-Off |
Male Thread |
1/8 |
na |
na |
MD-M51-2MB-K0 |
Coupling |
Single Shut-Off |
Male Thread |
1/8 |
na |
green - 0 |
MD-M51-2MB-K2 |
Coupling |
Single Shut-Off |
Male Thread |
1/8 |
na |
black - 2 |
MD-M51-2MB-K3 |
Coupling |
Single Shut-Off |
Male Thread |
1/8 |
na |
brown - 3 |
MD-M51-2MB-K5 |
Coupling |
Single Shut-Off |
Male Thread |
1/8 |
na |
yellow - 5 |
MD-M51-2MB-K6 |
Coupling |
Single Shut-Off |
Male Thread |
1/8 |
na |
blue - 6 |
MD-M51-2MB-K8 |
Coupling |
Single Shut-Off |
Male Thread |
1/8 |
na |
red - 8 |
MD-M51-4FB |
Coupling |
Double Shut-Off |
Female Thread |
1/4 |
na |
na |
MD-M51-4FB-K0 |
Coupling |
Single Shut-Off |
Female Thread |
1/4 |
na |
green - 0 |
MD-M51-4FB-K2 |
Coupling |
Single Shut-Off |
Female Thread |
1/4 |
na |
black - 2 |
MD-M51-4FB-K3 |
Coupling |
Single Shut-Off |
Female Thread |
1/4 |
na |
brown - 3 |
MD-M51-4FB-K5 |
Coupling |
Single Shut-Off |
Female Thread |
1/4 |
na |
yellow - 5 |
MD-M51-4FB-K6 |
Coupling |
Single Shut-Off |
Female Thread |
1/4 |
na |
blue - 6 |
MD-M51-4FB-K8 |
Coupling |
Single Shut-Off |
Female Thread |
1/4 |
na |
red - 8 |
MD-M51-4MB |
Coupling |
Double Shut-Off |
Male Thread |
1/4 |
na |
na |
MD-M51-4MB-K0 |
Coupling |
Single Shut-Off |
Male Thread |
1/4 |
na |
green - 0 |
MD-M51-4MB-K2 |
Coupling |
Single Shut-Off |
Male Thread |
1/4 |
na |
black - 2 |
MD-M51-4MB-K3 |
Coupling |
Single Shut-Off |
Male Thread |
1/4 |
na |
brown - 3 |
MD-M51-4MB-K5 |
Coupling |
Single Shut-Off |
Male Thread |
1/4 |
na |
yellow - 5 |
MD-M51-4MB-K6 |
Coupling |
Single Shut-Off |
Male Thread |
1/4 |
na |
blue - 6 |
MD-M51-4MB-K8 |
Coupling |
Single Shut-Off |
Male Thread |
1/4 |
na |
red - 8 |
MD-M51-HM4HB |
Coupling |
Double Shut-Off |
Panel Mount with Hose Barb |
na |
4 |
na |
MD-M51-HM4HB-K0 |
Coupling |
Single Shut-Off |
Panel Mount with Hose Barb |
na |
4 |
green - 0 |
MD-M51-HM4HB-K2 |
Coupling |
Single Shut-Off |
Panel Mount with Hose Barb |
na |
4 |
black - 2 |
MD-M51-HM4HB-K3 |
Coupling |
Single Shut-Off |
Panel Mount with Hose Barb |
na |
4 |
brown - 3 |
MD-M51-HM4HB-K5 |
Coupling |
Single Shut-Off |
Panel Mount with Hose Barb |
na |
4 |
yellow - 5 |
MD-M51-HM4HB-K6 |
Coupling |
Single Shut-Off |
Panel Mount with Hose Barb |
na |
4 |
blue - 6 |
MD-M51-HM4HB-K8 |
Coupling |
Single Shut-Off |
Panel Mount with Hose Barb |
na |
4 |
red - 8 |
MD-M51-HM6CSP |
Coupling |
Double Shut-Off |
Panel Mount with Plastic Hose Connection |
na |
4x6 |
na |
MD-M51-HM6CSP-K0 |
Coupling |
Single Shut-Off |
Panel Mount with Plastic Hose Connection |
na |
4x6 |
green - 0 |
MD-M51-HM6CSP-K2 |
Coupling |
Single Shut-Off |
Panel Mount with Plastic Hose Connection |
na |
4x6 |
black - 2 |
MD-M51-HM6CSP-K3 |
Coupling |
Single Shut-Off |
Panel Mount with Plastic Hose Connection |
na |
4x6 |
brown - 3 |
MD-M51-HM6CSP-K5 |
Coupling |
Single Shut-Off |
Panel Mount with Plastic Hose Connection |
na |
4x6 |
yellow - 5 |
MD-M51-HM6CSP-K6 |
Coupling |
Single Shut-Off |
Panel Mount with Plastic Hose Connection |
na |
4x6 |
blue - 6 |
MD-M51-HM6CSP-K8 |
Coupling |
Single Shut-Off |
Panel Mount with Plastic Hose Connection |
na |
4x6 |
red - 8 |
MD-M51-HM6HB |
Coupling |
Double Shut-Off |
Panel Mount with Hose Barb |
na |
6 |
na |
MD-M51-HM6HB-K0 |
Coupling |
Single Shut-Off |
Panel Mount with Hose Barb |
na |
6 |
green - 0 |
MD-M51-HM6HB-K2 |
Coupling |
Single Shut-Off |
Panel Mount with Hose Barb |
na |
6 |
black - 2 |
MD-M51-HM6HB-K3 |
Coupling |
Single Shut-Off |
Panel Mount with Hose Barb |
na |
6 |
brown - 3 |
MD-M51-HM6HB-K5 |
Coupling |
Single Shut-Off |
Panel Mount with Hose Barb |
na |
6 |
yellow - 5 |
MD-M51-HM6HB-K6 |
Coupling |
Single Shut-Off |
Panel Mount with Hose Barb |
na |
6 |
blue - 6 |
MD-M51-HM6HB-K8 |
Coupling |
Single Shut-Off |
Panel Mount with Hose Barb |
na |
6 |
red - 8 |
MD-M51-HM8CSP |
Coupling |
Double Shut-Off |
Panel Mount with Plastic Hose Connection |
na |
6x8 |
na |
Part |
Type |
Version |
Connection Type |
Connection Thread Size (inch) |
Hose I.D. |
Color |
MD-M51-HM8CSP-K0 |
Coupling |
Single Shut-Off |
Panel Mount with Plastic Hose Connection |
na |
6x8 |
green - 0 |
MD-M51-HM8CSP-K2 |
Coupling |
Single Shut-Off |
Panel Mount with Plastic Hose Connection |
na |
6x8 |
black - 2 |
MD-M51-HM8CSP-K3 |
Coupling |
Single Shut-Off |
Panel Mount with Plastic Hose Connection |
na |
6x8 |
brown - 3 |
MD-M51-HM8CSP-K5 |
Coupling |
Single Shut-Off |
Panel Mount with Plastic Hose Connection |
na |
6x8 |
yellow - 5 |
MD-M51-HM8CSP-K6 |
Coupling |
Single Shut-Off |
Panel Mount with Plastic Hose Connection |
na |
6x8 |
blue - 6 |
MD-M51-HM8CSP-K8 |
Coupling |
Single Shut-Off |
Panel Mount with Plastic Hose Connection |
na |
6x8 |
red - 8 |
MD-M51-M4HB |
Coupling |
Double Shut-Off |
Hose Barb |
na |
4 |
na |
MD-M51-M4HB-K0 |
Coupling |
Single Shut-Off |
Hose Barb |
na |
4 |
green - 0 |
MD-M51-M4HB-K2 |
Coupling |
Single Shut-Off |
Hose Barb |
na |
4 |
black - 2 |
MD-M51-M4HB-K3 |
Coupling |
Single Shut-Off |
Hose Barb |
na |
4 |
brown - 3 |
MD-M51-M4HB-K5 |
Coupling |
Single Shut-Off |
Hose Barb |
na |
4 |
yellow - 5 |
MD-M51-M4HB-K6 |
Coupling |
Single Shut-Off |
Hose Barb |
na |
4 |
blue - 6 |
MD-M51-M4HB-K8 |
Coupling |
Single Shut-Off |
Hose Barb |
na |
4 |
red - 8 |
MD-M51-M6CSP |
Coupling |
Double Shut-Off |
with Plastic Hose Connection |
na |
4x6 |
na |
MD-M51-M6CSP-K0 |
Coupling |
Single Shut-Off |
with Plastic Hose Connection |
na |
4x6 |
green - 0 |
MD-M51-M6CSP-K2 |
Coupling |
Single Shut-Off |
with Plastic Hose Connection |
na |
4x6 |
black - 2 |
MD-M51-M6CSP-K3 |
Coupling |
Single Shut-Off |
with Plastic Hose Connection |
na |
4x6 |
brown - 3 |
MD-M51-M6CSP-K5 |
Coupling |
Single Shut-Off |
with Plastic Hose Connection |
na |
4x6 |
yellow - 5 |
MD-M51-M6CSP-K6 |
Coupling |
Single Shut-Off |
with Plastic Hose Connection |
na |
4x6 |
blue - 6 |
MD-M51-M6CSP-K8 |
Coupling |
Single Shut-Off |
with Plastic Hose Connection |
na |
4x6 |
red - 8 |
MD-M51-M6HB |
Coupling |
Double Shut-Off |
Hose Barb |
na |
6 |
na |
MD-M51-M6HB-K0 |
Coupling |
Single Shut-Off |
Hose Barb |
na |
6 |
green - 0 |
MD-M51-M6HB-K2 |
Coupling |
Single Shut-Off |
Hose Barb |
na |
6 |
black - 2 |
MD-M51-M6HB-K3 |
Coupling |
Single Shut-Off |
Hose Barb |
na |
6 |
brown - 3 |
MD-M51-M6HB-K5 |
Coupling |
Single Shut-Off |
Hose Barb |
na |
6 |
yellow - 5 |
MD-M51-M6HB-K6 |
Coupling |
Single Shut-Off |
Hose Barb |
na |
6 |
blue - 6 |
MD-M51-M6HB-K8 |
Coupling |
Single Shut-Off |
Hose Barb |
na |
6 |
red - 8 |
MD-M51-M8CSP |
Coupling |
Double Shut-Off |
with Plastic Hose Connection |
na |
6x8 |
na |
MD-M51-M8CSP-K0 |
Coupling |
Single Shut-Off |
with Plastic Hose Connection |
na |
6x8 |
green - 0 |
MD-M51-M8CSP-K2 |
Coupling |
Single Shut-Off |
with Plastic Hose Connection |
na |
6x8 |
black - 2 |
MD-M51-M8CSP-K3 |
Coupling |
Single Shut-Off |
with Plastic Hose Connection |
na |
6x8 |
brown - 3 |
MD-M51-M8CSP-K5 |
Coupling |
Single Shut-Off |
with Plastic Hose Connection |
na |
6x8 |
yellow - 5 |
MD-M51-M8CSP-K6 |
Coupling |
Single Shut-Off |
with Plastic Hose Connection |
na |
6x8 |
blue - 6 |
MD-M51-M8CSP-K8 |
Coupling |
Single Shut-Off |
with Plastic Hose Connection |
na |
6x8 |
red - 8 |
MD-M51-QM4HB |
Coupling |
Double Shut-Off |
Hose Barb, Flush Mount |
na |
4 |
na |
MD-M51-QM6CSP |
Coupling |
Double Shut-Off |
Plastic Hose Connection, Flush Mount |
na |
4x6 |
na |
MD-M51-QM6HB |
Coupling |
Double Shut-Off |
Hose Barb, Flush Mount |
na |
6 |
na |
MD-M51-QM8CSP |
Coupling |
Double Shut-Off |
Plastic Hose Connection, Flush Mount |
na |
6x8 |
na |
MD-M52-2FB |
Plug |
Double Shut-Off |
Female Thread |
1/8 |
na |
na |
MD-M52-2MB |
Plug |
Double Shut-Off |
Male Thread |
1/8 |
na |
na |
MD-M52-4FB |
Plug |
Double Shut-Off |
Female Thread |
1/4 |
na |
na |
MD-M52-4MB |
Plug |
Double Shut-Off |
Male Thread |
1/4 |
na |
na |
MD-M52-HM4HB |
Plug |
Double Shut-Off |
Panel Mount with Hose Barb |
na |
4 |
na |
MD-M52-HM6CSP |
Plug |
Double Shut-Off |
Panel Mount with Plastic Hose Connection |
na |
4x6 |
na |
MD-M52-HM6HB |
Plug |
Double Shut-Off |
Panel Mount with Hose Barb |
na |
6 |
na |
MD-M52-HM8CSP |
Plug |
Double Shut-Off |
Panel Mount with Plastic Hose Connection |
na |
6x8 |
na |
MD-M52-M4HB |
Plug |
Double Shut-Off |
Hose Barb |
na |
4 |
na |
MD-M52-M6CSP |
Plug |
Double Shut-Off |
with Plastic Hose Connection |
na |
4x6 |
na |
MD-M52-M6HB |
Plug |
Double Shut-Off |
Hose Barb |
na |
6 |
na |
MD-M52-M8CSP |
Plug |
Double Shut-Off |
with Plastic Hose Connection |
na |
6x8 |
na |
|
fcg.cnmec@parkerdistribution.com.cn
