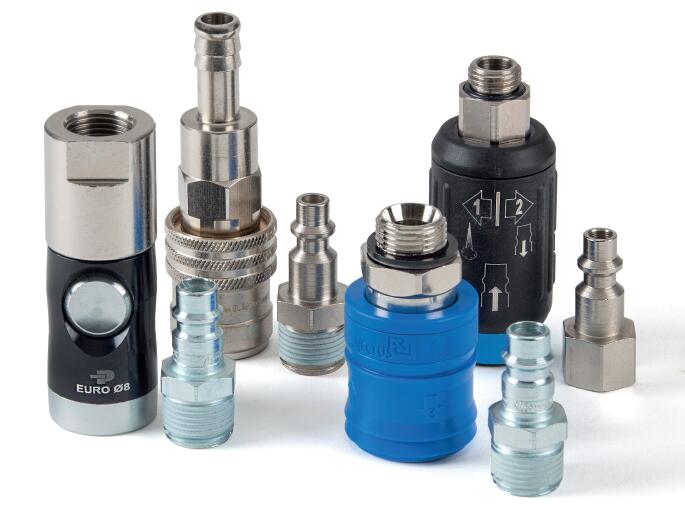

Parker Rectus KP Series Push-button Safety Coupling
Safety Push Button Quick Coupling, Series KP
Self-venting quick coupling system

PARKER派克的安全快速接頭系列KP是一種帶有按鈕的安全接頭，集成了符合ISO 6150 B、ISO 6150 C和歐洲標準的自動排氣系統。在斷開連接的過程中，分兩步進行自動排氣-無壓力軟管被甩的風險。當推壓一次后，插頭松開，但仍保持鎖定狀態。耦合閥關閉，空氣同時從空氣管路中排出。只有再次按下按鈕，才能安全地進行解鉤。該系統滿足ISO 4414-工作場所安全標準的要求，使用方便。Parker's Safety Quick Coupling Series KP is a safety coupling with pushing button integrating self-venting system according to ISO 6150 B, ISO 6150 C and EURO. The self-venting takes place during disconnection in 2 steps – no risk of pressurized hoses being tossed around. When the pushing buttind is pressed one time, the plug is released yet remains locked in. The coupling valve closes and the air is vented from the air line at the same time. Only then, by pressing the button again, can uncoupling take place safely. The system fulfils the requirements of ISO 4414 – increased safety standards in the work place and make the use easy.

Parker Safety Self-Venting Couplers for Pneumatic Applications

The right plug for self-venting series KP can be found as followings :
- ISO 6150 B; DN 5,5 : Plug series 23
- ISO 6150 B; DN 8 : Plug series 30
- ISO 6150 C; DN 5,5 : Plug series 18
- ISO 6150 B; DN 8 : Plug series 84
- EURO; DN 7,4 : Plug series 25

Markets:
- Machinery Construction
- Automotive
- Industrial process factory

Features/Benefits:
- Safety coupling with self-venting mechanism
- No whiplash effect due to the self-venting which takes place during disconnection
- Easy to connect and discconnet with one hand

Applications:
- Workshops
- Cleaning
- Blowing
- Pneumatics
- Air-Operated Tools
- Ring Main Circuits
- Packaging

Safety Push Button Quick Coupling, Series KP

Self-venting quick coupling system with push button, nominal diameter from 5.5 to 8 mm for pneumatic applications up to 12 bar. Coupling system with ISO B, ISO C and Euro profile. Made of anodised aluminium/nickel plated brass/NBR seals.
