Parker NSS Series系列半導體行業液冷不銹鋼快速接頭-NSS 系列高流量液壓、無泄漏、推接式接頭
Parker NSS Series non-spill couplings Connect with Confidence
Parker NSS Series Compact, Non-Spill Stainless Steel Quick Couplings

當您的應用涉及到一個關鍵的工藝環境，其中流體損失或空氣夾雜可能導致重大質量或安全問題時，Parker的NSS系列無泄漏連接器提供安全連接。NSS快速接頭由耐腐蝕、介質相容的材料制成，設計用于執行。它們緊湊的尺寸和引導式的對齊方式節省了在有限空間連接流體管線的時間和挫折感。NSS聯軸器提供高流速，具有良好的流量與壓降特性，以保持佳系統性能和效率。用于電子、服務器和超級計算機的液體冷卻和熱管理應用的快速連接、無泄漏快速接頭。When your application involves a critical process environment where fluid loss or air inclusion can cause significant quality or safety issues, Parker’s NSS Series non-spill couplings provide a secure connection. Constructed of corrosion resistant, media compatible materials, NSS quick couplings are designed to perform. Their compact size and guided alignment save time and frustration when connecting fluid lines in confined spaces. NSS couplings deliver high flow rates with excellent flow vs pressure drop characteristics to maintain optimum system performance and efficiency.

Parker NSS Series系列不銹鋼快速接頭技術資料下載
Parker NSS Series non-spill couplings Connect with Confidence data sheet
Parker NSS Series Compact, Non-Spill Stainless Steel Quick Couplings pdf catalog download

Parker NSS Series Features
性能特點:

- 防泄漏閥確保小的液體損失和低空氣含量。Non-spill valving ensures minimal fluid loss and low air inclusion
- 簡單的推接操作和引導對準。Easy push to connect operation with guided alignment
- 高流量和緊湊尺寸。High flow and compact size
- 不銹鋼結構。 Stainless steel construction
- 密封材料和端部配件選項。Seal material and end fitting options

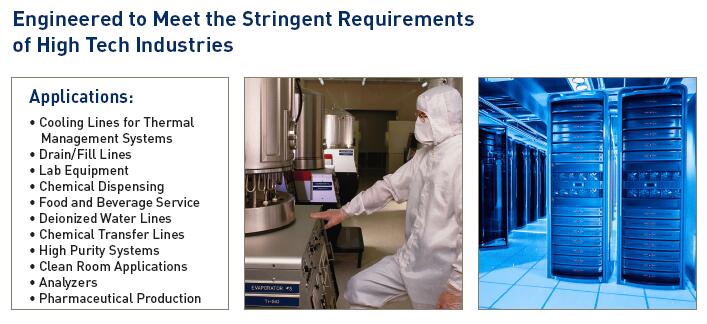

Engineered to Meet the Stringent Requirements of High Tech Industries
為滿足高科技行業的嚴格要求而設計

NSS系列產品應用領域
Applications:

- 熱管理系統的冷卻管線 Cooling Lines for Thermal Management Systems
- 排放/加注管路 Drain/Fill Lines
- 實驗室設備 Lab Equipment
- 化學制劑 Chemical Dispensing
- 食品和飲料行業 Food and Beverage Service
- 去離子水 Deionized Water Lines
- 化學品輸送管線Chemical Transfer Lines
- 高純度系統 High Purity Systems
- 潔凈室應用Clean Room Applications
- 分析儀器Analyzers
- 藥品生產行業 Pharmaceutical Production

NSS快速接頭提供高流速和出色的流量與壓降特性，以保持佳的系統性能和效率。高科技行業冷卻應用的理想選擇，接頭和接頭采用 316 不銹鋼，帶有乙烯丙烯密封件。在狹窄空間內連接流體管線時，它們緊湊的機身尺寸和引導對準可節省時間和挫敗感。

技術特性：
- 尺寸：3/8” 和 1/2”
- 材??料：不銹鋼
- 端口端：內螺紋 ORB、Push-Lok? 軟管倒鉤、A-Lok、隔板和面板安裝
- 密封選項：EPDM

Markets :
- 液體冷卻
- 熱管理
- 數據中心
- 超級計算機
- 電子產品
- 服務器
- 機架式服務器系統

特性/優點：
- 無泄漏閥確保小的流體損失和低空氣夾雜物
- 耐腐蝕不銹鋼結構
- 易于推動連接操作，引導對準
- 高流量和緊湊尺寸

應用：
- 冷卻管線
- 化學品輸送生產線
- 高純度系統
- 實驗室設備

- NSS Series Compact, Non-Spill Stainless Steel Quick Couplings

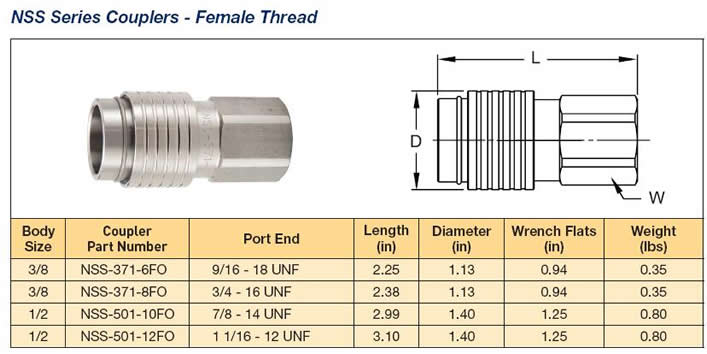

NSS Series Couplers - Female Thread
Part Number
NSS-371-6FO
NSS-371-8FO
NSS-501-10FO
NSS-501-12FO
NSS Series Couplers - Push-LOK. Hose Barb*
NSS-371-6HB
NSS-371-8HB
NSS-501-8HB
NSS-501-12HB

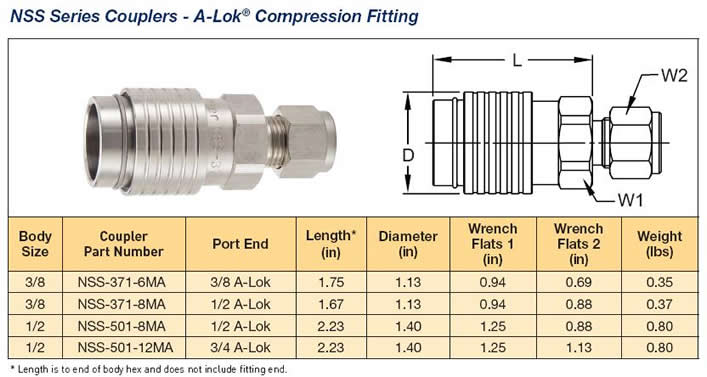

NSS Series Couplers - A-Lok. Compression Fitting
Body Size Coupler
Part Number
NSS-371-6MA
NSS-371-8MA
NSS-501-8MA
NSS-501-12MA
NSS Series Couplers - A-Lok. Compression Fitting / Bulkhead Mount
Part Number
NSS-371-6BMA
NSS-501-8BMA
NSS-501-12BMA

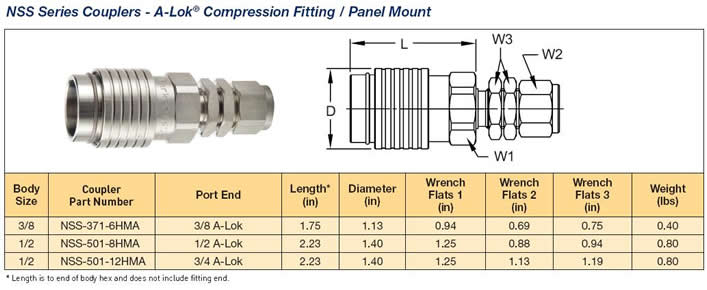

NSS Series Couplers - A-Lok. Compression Fitting / Panel Mount
NSS-371-6HMA
NSS-501-8HMA
NSS-501-12HMA

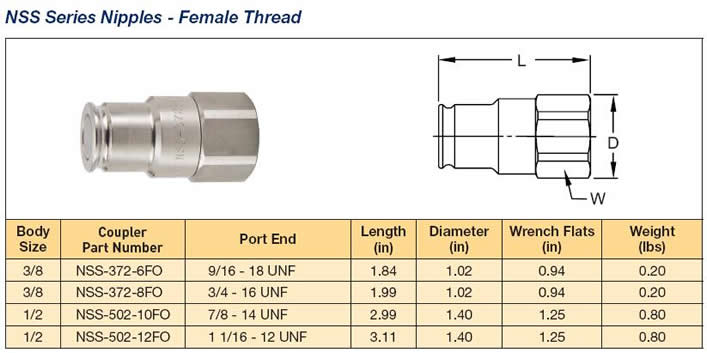

NSS-372-6FO
NSS-372-8FO
NSS-502-10FO
NSS-502-12FO

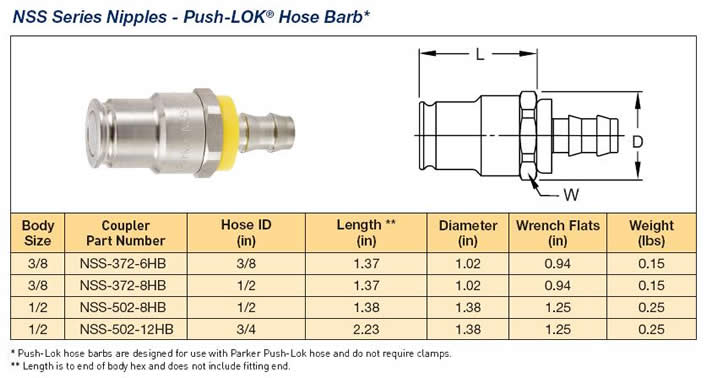

NSS-372-6HB
NSS-372-8HB
NSS-502-8HB
NSS-502-12HB

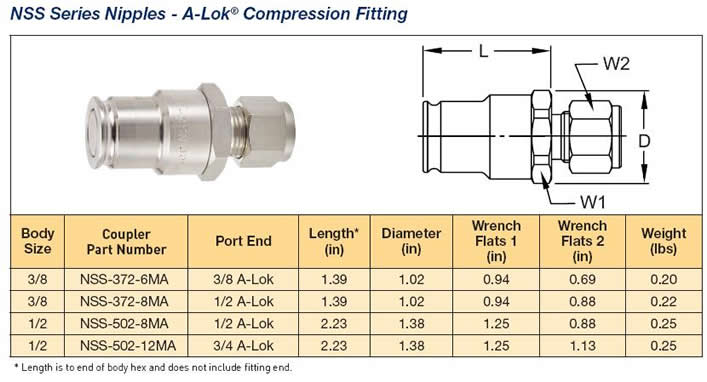

NSS Series Nipples - A-Lok. Compression Fitting
NSS-372-6MA
NSS-372-8MA
NSS-502-8MA
NSS-502-12MA

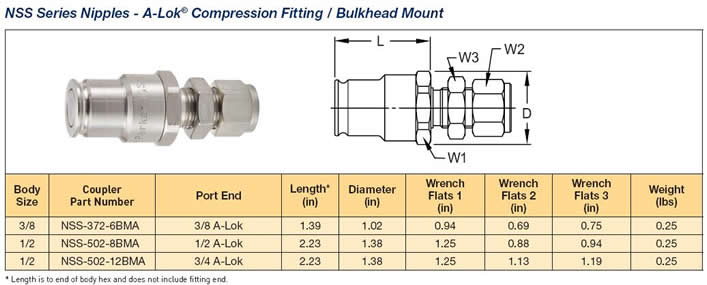

NSS Series Nipples - A-Lok. Compression Fitting / Bulkhead Mount
NSS-372-6BMA
NSS-502-8BMA
NSS-502-12BMA
NSS Series Nipples - A-Lok. Compression Fitting / Panel Mount
NSS-372-6HMA
NSS-502-8HMA
NSS-502-12HMA
