Parker派克閥組 - H 系列2 /3 /5 閥組
Parker 2, 3 and 5 Valve Manifolds - H Series HDS5M
Parker's manifold valve


派克閥組提供遠程和直接安裝的優越性能閥組，適合所有儀表安裝、說明和應用派克遠程和直接安裝閥組廣泛應用于過程儀表行業，適合不同類型的儀表安裝，規范和應用。可選單隔離-單排放，雙隔離-雙排放，雙隔離-雙平衡，雙隔離-雙平衡-雙排放。派克 H 系列閥組中針閥閥座及填料標準材料為 PTFE，PEEK 閥座和石墨填料可選.針閥使用標準截止型閥帽設計，具有安全、穩定和可重復的性能。它們具有方爆裂閥桿、 自動定心, 非旋轉閥針和外部可調填料帽。作為標準，針閥有金屬-金屬閥座，實現氣密關閉，和 PTFE 填料。石墨填料和 PEEK 或 PCTFE 軟閥針用于燃?xì)庑袠I(yè)可選。更有防誤操作閥桿，以及可鎖定手輪和T型手柄.大多數 H 系列閥門和閥組標準材料為 316 不銹鋼。氧氣吹掃，符合NACE 標準和其他材料可選。作為標準，元件工作壓力可達 10000 PSI (689 bar)。操作溫度依賴于指定的的閥座和填料材質。

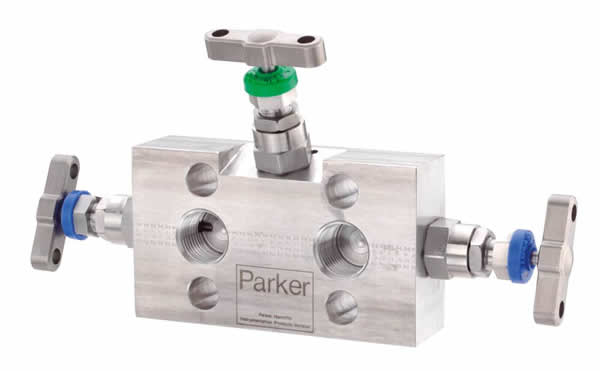

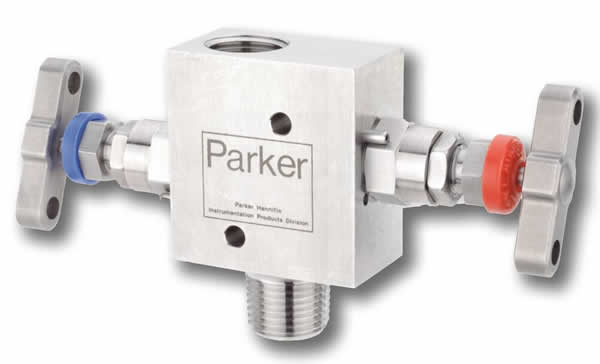

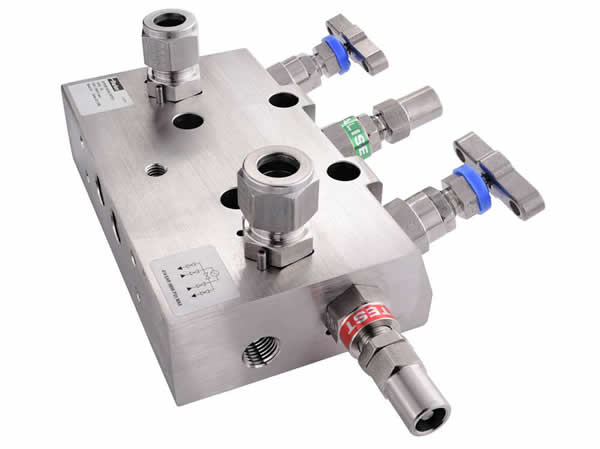

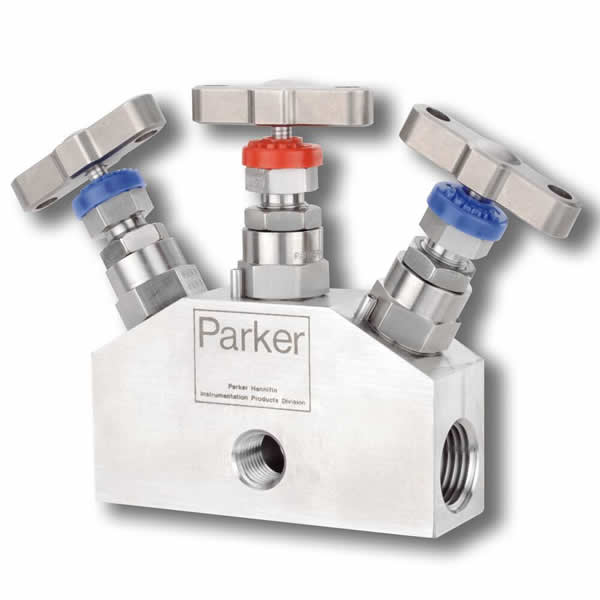

Parker's manifold valve offers superior performance with a comprehensive range of remote and direct mount manifolds to suit all types of instrumentation installations, specifications and applications.Parker's remote and direct mount manifolds are one of the most extensive in the process instrumentation industry and accommodates all types of instrumentation installations, specifications and applications. There is a choice of single-isolate-and-vent, double-isolate-and-vent, double-isolate-and-equalise, and double-isolate-equalise-and-double-vent block configurations. All needle valves in Parker’s H series manifold valves have PTFE seats and gland packing as standard, with PEEK seats and graphoil gland packing options.The needle valves use a standard globe style bonnet design for safe, reliable and repeatable performance. They feature an anti-blowout stem, a self centering, non-rotating spindle tip and an externally adjustable gland. As standard, the needle valves have metal-to-metal seats to ensure 100% bubble-tight shut-off, and PTFE gland packing. Graphoil gland packing and PEEK or PCTFE soft tips for gas applications are available. Further options include anti-tamper spindles, as well as lockable handwheels and T-bars.Most of the valves and manifolds in this series are manufactured from 316 stainless steel. Oxygen clean, NACE compliant and other types of materials are also available. As standard, the components have a maximum working pressure of 10000 PSI (689 bar). The operating temperature range depends on the type of valve seat and gland packing material that is specified.

H-Series 3 and 5 Valve Differential Pressure Manifold Catalogue
H-Series Two Valve Manifolds Catalogue

市場:

- 海上石油和天然氣
- 陸上石油和天然氣
- 石化
- 化工

特點/優勢:

- 兩片式閥體，泄漏通路更小
- 4:1 壓力邊界設計安全系數
- 符合 ANSI/ASME B16.34
- 雙流向
- 浮動球心配合動力響應閥座，實現自動調整
- 一體式卡套接頭無需螺紋及螺紋密封膠
- 操作扭矩低
- 1/4 圈限位擋塊手柄，配套符合人體工學護套
- 每個產品需進行水壓和低壓空氣測試
- 抗靜電
- 可選防火設計，防火等級： API 607, BS6755 Pt2.d

應用:

- 儀表管路
- 過程隔離
- 頂部臍帶終端盒
- 液壓動力單元
- 化學注入撬

性能特點

結構材料 316不銹鋼
閥罩方向 反面
閥門配置 雙隔離/平衡/雙排放
入口連接尺寸 1/2" NPT內螺紋
出口連接尺寸 法蘭
排氣孔尺寸 1/4" NPT內螺紋 inch
安裝類型 直接
閥門數量 5閥組
連接類型 NPT
包裝材料 PTFE聚四氟乙烯
符合規格 N/A
螺栓材料 N/A
最大運行壓力 6,000 psi
414 bar
選件 N/A

貨號： HDS5M
多種類型: 5 Valve
閥外形類型: Double Isolate/Equalise/Double Vent
入口連接: 1/2" NPT F
出口連接: Flanged
排氣尺寸（英寸）: 1/4" NPT F
安裝方式: Direct
連接類型: NPT
包裝材料: PTFE
證書: N/A
螺栓材料: N/A
最大工作壓力（PSI): 6,000
選件: N/A
