SCP04氫氣壓力傳感器 / SensoControl SCP04 Hydrogen Pressure Sensor
派克漢尼汾推出適用于氫氣應用的新型SensoControl壓力傳感器SCP04
SCP04壓力傳感器設計應用于氫氣，并符合其化學和物理要求。數字校準的壓阻式不銹鋼測量元件可以檢測到從4 bar到1000 bar范圍內的壓力。粘結的連接銷，即使在低溫、沖擊或振動的情況下也能保持穩定。測量元件與介質接觸的壓力連接采用一體式設計。因此，無需使用內部密封件，也不會有焊縫。無材料混淆。該結構設計可使金屬表面免于電離氫脆化。一體式設計解除了因內部密封材料疲勞而導致的泄漏。SCP04無壓力傳輸流體，沒有大的受壓區域，并且使真空密封和不含彈性體的。由此產生的低滲透性與不銹鋼相結合，使其具備了廣泛的介質兼容性。為配合氫氣應用，工藝連接也采用了無墊片設計。
緊湊的不銹鋼外殼設計，在惡劣的環境條件應用下表現優越。
SCP04氫氣壓力傳感器 / SensoControl SCP04 Hydrogen Pressure Sensor
派克漢尼汾推出適用于氫氣應用的新型SensoControl壓力傳感器SCP04
特性/優勢：
- 一體式設計
- 無內部密封件
- 無材料混淆
- 無焊縫
- 正在申請EC79/2009
- 介質兼容性高
- 氫氣
- 耐負壓
- 最高工作壓力可達1000 bar
- 有多種連接
市場：
- 能源
- 環境
- 工業
- 基礎設施
- 機床
- 物料搬運
- 發電
- 工藝
- 工程機械
- 動力單元
應用：
- 氫氣應用
SCP04-004-35-0E
SCP04-004 35-0EQ2
SCP04-004-35-0EQ8
SCP04-004-35-07S
CP04-025-A5-07Q8
SCP04-025-R7-0E
SCP04-025-R7-0EQ
2SCP04-025-R7-0EQ8
SCP04-025-35-07
SCP04-1000-R5-0E
SCP04-1000-R5-0EQ2
SCP04-1000-R5-0EQ8
SCP04-1000-R5-07
SCP04-1000-R6-0E
SCP04-1000-R6-0EQ2
SCP04-1000-R6-0EQ8
SCP04-1000-R7-0E
SCP04-1000-R7-0EQ2
SCP04-1000-R7-0EQ8
SCP04-1000-R7-076
SCP04-400-OE
SCP04-500-R6-0EQ2
SCP04-500-R6-0EQ8
SCP04-500-R7-0E
SCP04-500-R7-0EQ2
SCP04-600-35-07
技術規格：
工作壓力:0 .. 004, 0 ... 025, 0 ... 400, 0500, 0 ... 600, 0 ... 1000 bar
行業:Industrial
品牌:SensoControl
長度:
應用:Hydrogen applications
技術: Piezoresistive stainless steelmeasuring cell
端口類型:1/4 NPT 7/16"-20UNF-2AG1/4 B (EN 837)
寬度:
數量/箱:50
工作溫度:-40 to 105 ,-40 to 221 F
重重:approx. 120 g
輸出類型:0,5 ... 4,5 V (ratiometric), 010 V, 4 ... 20 mA (2-wire)
電氣連接:Circular connector M12X1 4-pole, Device connector DIN EN175301-803 Form A 4-poleDevice plug DT04 3-pole
端口尺寸:1/4 NPT 7/16"-20UNF-2AG1/4 B(EN 837)
產品類型Pressure sensor
高度:
分部:HPCE
產品風格:Monolithic design
符合規格:CE

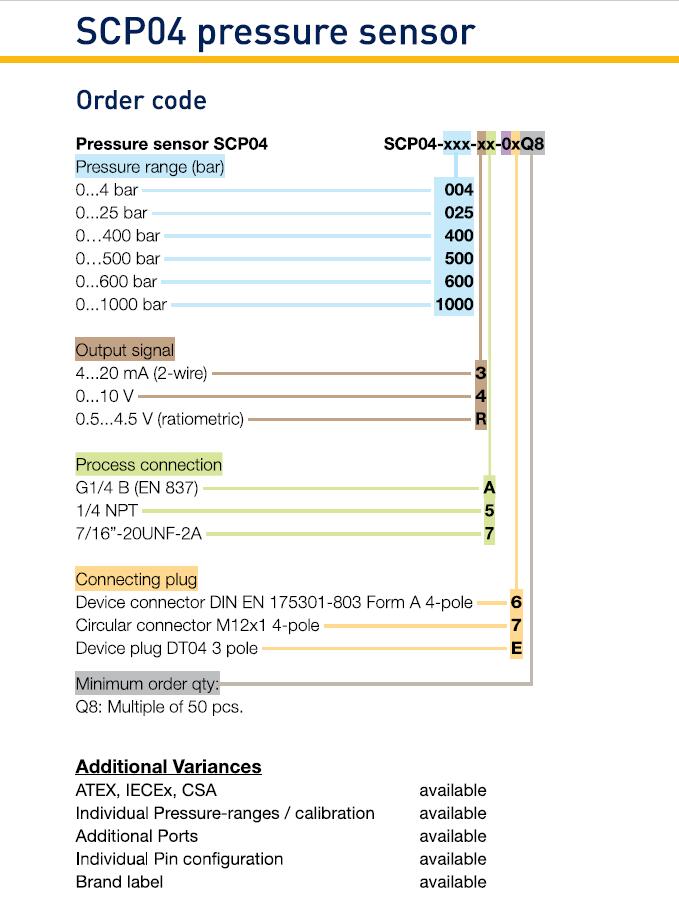

| 部件 |
工作壓力 |
輸出類型 |
端口尺寸 |
電氣連接 |
| SCP04-004-35-06-Q8 |
0 … 004 |
4 … 20 mA (2-wire) |
1/4 NPT |
Device connector DIN EN 175301-803 Form A 4-pole |
| SCP04-004-35-07-Q8 |
0 … 004 |
4 … 20 mA (2-wire) |
1/4 NPT |
Circular connector M12x1 4-pole |
| SCP04-004-35-0E-Q8 |
0 … 004 |
4 … 20 mA (2-wire) |
1/4 NPT |
Device plug DT04 3-pole |
| SCP04-004-37-06-Q8 |
0 … 004 |
4 … 20 mA (2-wire) |
7/16"-20UNF-2A |
Device connector DIN EN 175301-803 Form A 4-pole |
| SCP04-004-37-07-Q8 |
0 … 004 |
4 … 20 mA (2-wire) |
7/16"-20UNF-2A |
Circular connector M12x1 4-pole |
| SCP04-004-37-0E-Q8 |
0 … 004 |
4 … 20 mA (2-wire) |
7/16"-20UNF-2A |
Device plug DT04 3-pole |
| SCP04-004-3A-06-Q8 |
0 … 004 |
4 … 20 mA (2-wire) |
G1/4 B (EN 837) |
Device connector DIN EN 175301-803 Form A 4-pole |
| SCP04-004-3A-07-Q8 |
0 … 004 |
4 … 20 mA (2-wire) |
G1/4 B (EN 837) |
Circular connector M12x1 4-pole |
| SCP04-004-3A-0E-Q8 |
0 … 004 |
4 … 20 mA (2-wire) |
G1/4 B (EN 837) |
Device plug DT04 3-pole |
| SCP04-004-45-06-Q8 |
0 … 004 |
0 … 10 V |
1/4 NPT |
Device connector DIN EN 175301-803 Form A 4-pole |
| SCP04-004-45-07-Q8 |
0 … 004 |
0 … 10 V |
1/4 NPT |
Circular connector M12x1 4-pole |
| SCP04-004-45-0E-Q8 |
0 … 004 |
0 … 10 V |
1/4 NPT |
Device plug DT04 3-pole |
| SCP04-004-47-06-Q8 |
0 … 004 |
0 … 10 V |
7/16"-20UNF-2A |
Device connector DIN EN 175301-803 Form A 4-pole |
| SCP04-004-47-07-Q8 |
0 … 004 |
0 … 10 V |
7/16"-20UNF-2A |
Circular connector M12x1 4-pole |
| SCP04-004-47-0E-Q8 |
0 … 004 |
0 … 10 V |
7/16"-20UNF-2A |
Device plug DT04 3-pole |
| SCP04-004-4A-06-Q8 |
0 … 004 |
0 … 10 V |
G1/4 B (EN 837) |
Device connector DIN EN 175301-803 Form A 4-pole |
| SCP04-004-4A-07-Q8 |
0 … 004 |
0 … 10 V |
G1/4 B (EN 837) |
Circular connector M12x1 4-pole |
| SCP04-004-4A-0E-Q8 |
0 … 004 |
0 … 10 V |
G1/4 B (EN 837) |
Device plug DT04 3-pole |
| SCP04-004-R5-06-Q8 |
0 … 004 |
0,5 … 4,5 V (ratiometric) |
1/4 NPT |
Device connector DIN EN 175301-803 Form A 4-pole |
| SCP04-004-R5-07-Q8 |
0 … 004 |
0,5 … 4,5 V (ratiometric) |
1/4 NPT |
Circular connector M12x1 4-pole |
| SCP04-004-R5-0E-Q8 |
0 … 004 |
0,5 … 4,5 V (ratiometric) |
1/4 NPT |
Device plug DT04 3-pole |
| SCP04-004-R7-06-Q8 |
0 … 004 |
0,5 … 4,5 V (ratiometric) |
7/16"-20UNF-2A |
Device connector DIN EN 175301-803 Form A 4-pole |
| SCP04-004-R7-07-Q8 |
0 … 004 |
0,5 … 4,5 V (ratiometric) |
7/16"-20UNF-2A |
Circular connector M12x1 4-pole |
| SCP04-004-R7-0E-Q8 |
0 … 004 |
0,5 … 4,5 V (ratiometric) |
7/16"-20UNF-2A |
Device plug DT04 3-pole |
| SCP04-004-RA-06-Q8 |
0 … 004 |
0,5 … 4,5 V (ratiometric) |
G1/4 B (EN 837) |
Device connector DIN EN 175301-803 Form A 4-pole |
| SCP04-004-RA-07-Q8 |
0 … 004 |
0,5 … 4,5 V (ratiometric) |
G1/4 B (EN 837) |
Circular connector M12x1 4-pole |
| SCP04-004-RA-0E-Q8 |
0 … 004 |
0,5 … 4,5 V (ratiometric) |
G1/4 B (EN 837) |
Device plug DT04 3-pole |
| SCP04-025-35-06-Q8 |
0 … 025 |
4 … 20 mA (2-wire) |
1/4 NPT |
Device connector DIN EN 175301-803 Form A 4-pole |
| SCP04-025-35-07-Q8 |
0 … 025 |
4 … 20 mA (2-wire) |
1/4 NPT |
Circular connector M12x1 4-pole |
| SCP04-025-35-0E-Q8 |
0 … 025 |
4 … 20 mA (2-wire) |
1/4 NPT |
Device plug DT04 3-pole |
| SCP04-025-37-06-Q8 |
0 … 025 |
4 … 20 mA (2-wire) |
7/16"-20UNF-2A |
Device connector DIN EN 175301-803 Form A 4-pole |
| SCP04-025-37-07-Q8 |
0 … 025 |
4 … 20 mA (2-wire) |
7/16"-20UNF-2A |
Circular connector M12x1 4-pole |
| SCP04-025-37-0E-Q8 |
0 … 025 |
4 … 20 mA (2-wire) |
7/16"-20UNF-2A |
Device plug DT04 3-pole |
| SCP04-025-3A-06-Q8 |
0 … 025 |
4 … 20 mA (2-wire) |
G1/4 B (EN 837) |
Device connector DIN EN 175301-803 Form A 4-pole |
| SCP04-025-3A-07-Q8 |
0 … 025 |
4 … 20 mA (2-wire) |
G1/4 B (EN 837) |
Circular connector M12x1 4-pole |
| SCP04-025-3A-0E-Q8 |
0 … 025 |
4 … 20 mA (2-wire) |
G1/4 B (EN 837) |
Device plug DT04 3-pole |
| SCP04-025-45-06-Q8 |
0 … 025 |
0 … 10 V |
1/4 NPT |
Device connector DIN EN 175301-803 Form A 4-pole |
| SCP04-025-45-07-Q8 |
0 … 025 |
0 … 10 V |
1/4 NPT |
Circular connector M12x1 4-pole |
| SCP04-025-45-0E-Q8 |
0 … 025 |
0 … 10 V |
1/4 NPT |
Device plug DT04 3-pole |
| SCP04-025-47-06-Q8 |
0 … 025 |
0 … 10 V |
7/16"-20UNF-2A |
Device connector DIN EN 175301-803 Form A 4-pole |
| SCP04-025-47-07-Q8 |
0 … 025 |
0 … 10 V |
7/16"-20UNF-2A |
Circular connector M12x1 4-pole |
| SCP04-025-47-0E-Q8 |
0 … 025 |
0 … 10 V |
7/16"-20UNF-2A |
Device plug DT04 3-pole |
| SCP04-025-4A-06-Q8 |
0 … 025 |
0 … 10 V |
G1/4 B (EN 837) |
Device connector DIN EN 175301-803 Form A 4-pole |
| SCP04-025-4A-07-Q8 |
0 … 025 |
0 … 10 V |
G1/4 B (EN 837) |
Circular connector M12x1 4-pole |
| SCP04-025-4A-0E-Q8 |
0 … 025 |
0 … 10 V |
G1/4 B (EN 837) |
Device plug DT04 3-pole |
| SCP04-025-R5-06-Q8 |
0 … 025 |
0,5 … 4,5 V (ratiometric) |
1/4 NPT |
Device connector DIN EN 175301-803 Form A 4-pole |
| SCP04-025-R5-07-Q8 |
0 … 025 |
0,5 … 4,5 V (ratiometric) |
1/4 NPT |
Circular connector M12x1 4-pole |
| SCP04-025-R5-0E-Q8 |
0 … 025 |
0,5 … 4,5 V (ratiometric) |
1/4 NPT |
Device plug DT04 3-pole |
| SCP04-025-R7-06-Q8 |
0 … 025 |
0,5 … 4,5 V (ratiometric) |
7/16"-20UNF-2A |
Device connector DIN EN 175301-803 Form A 4-pole |
| SCP04-025-R7-07-Q8 |
0 … 025 |
0,5 … 4,5 V (ratiometric) |
7/16"-20UNF-2A |
Circular connector M12x1 4-pole |
| 部件 |
工作壓力 |
輸出類型 |
端口尺寸 |
電氣連接 |
| SCP04-025-R7-0E-Q8 |
0 … 025 |
0,5 … 4,5 V (ratiometric) |
7/16"-20UNF-2A |
Device plug DT04 3-pole |
| SCP04-025-RA-06-Q8 |
0 … 025 |
0,5 … 4,5 V (ratiometric) |
G1/4 B (EN 837) |
Device connector DIN EN 175301-803 Form A 4-pole |
| SCP04-025-RA-07-Q8 |
0 … 025 |
0,5 … 4,5 V (ratiometric) |
G1/4 B (EN 837) |
Circular connector M12x1 4-pole |
| SCP04-025-RA-0E-Q8 |
0 … 025 |
0,5 … 4,5 V (ratiometric) |
G1/4 B (EN 837) |
Device plug DT04 3-pole |
| SCP04-1000-35-06-Q8 |
0 … 1000 |
4 … 20 mA (2-wire) |
1/4 NPT |
Device connector DIN EN 175301-803 Form A 4-pole |
| SCP04-1000-35-07-Q8 |
0 … 1000 |
4 … 20 mA (2-wire) |
1/4 NPT |
Circular connector M12x1 4-pole |
| SCP04-1000-35-0E-Q8 |
0 … 1000 |
4 … 20 mA (2-wire) |
1/4 NPT |
Device plug DT04 3-pole |
| SCP04-1000-37-06-Q8 |
0 … 1000 |
4 … 20 mA (2-wire) |
7/16"-20UNF-2A |
Device connector DIN EN 175301-803 Form A 4-pole |
| SCP04-1000-37-07-Q8 |
0 … 1000 |
4 … 20 mA (2-wire) |
7/16"-20UNF-2A |
Circular connector M12x1 4-pole |
| SCP04-1000-37-0E-Q8 |
0 … 1000 |
4 … 20 mA (2-wire) |
7/16"-20UNF-2A |
Device plug DT04 3-pole |
| SCP04-1000-3A-06-Q8 |
0 … 1000 |
4 … 20 mA (2-wire) |
G1/4 B (EN 837) |
Device connector DIN EN 175301-803 Form A 4-pole |
| SCP04-1000-3A-07-Q8 |
0 … 1000 |
4 … 20 mA (2-wire) |
G1/4 B (EN 837) |
Circular connector M12x1 4-pole |
| SCP04-1000-3A-0E-Q8 |
0 … 1000 |
4 … 20 mA (2-wire) |
G1/4 B (EN 837) |
Device plug DT04 3-pole |
| SCP04-1000-45-06-Q8 |
0 … 1000 |
0 … 10 V |
1/4 NPT |
Device connector DIN EN 175301-803 Form A 4-pole |
| SCP04-1000-45-07-Q8 |
0 … 1000 |
0 … 10 V |
1/4 NPT |
Circular connector M12x1 4-pole |
| SCP04-1000-45-0E-Q8 |
0 … 1000 |
0 … 10 V |
1/4 NPT |
Device plug DT04 3-pole |
| SCP04-1000-47-06-Q8 |
0 … 1000 |
0 … 10 V |
7/16"-20UNF-2A |
Device connector DIN EN 175301-803 Form A 4-pole |
| SCP04-1000-47-07-Q8 |
0 … 1000 |
0 … 10 V |
7/16"-20UNF-2A |
Circular connector M12x1 4-pole |
| SCP04-1000-47-0E-Q8 |
0 … 1000 |
0 … 10 V |
7/16"-20UNF-2A |
Device plug DT04 3-pole |
| SCP04-1000-4A-06-Q8 |
0 … 1000 |
0 … 10 V |
G1/4 B (EN 837) |
Device connector DIN EN 175301-803 Form A 4-pole |
| SCP04-1000-4A-07-Q8 |
0 … 1000 |
0 … 10 V |
G1/4 B (EN 837) |
Circular connector M12x1 4-pole |
| SCP04-1000-4A-0E-Q8 |
0 … 1000 |
0 … 10 V |
G1/4 B (EN 837) |
Device plug DT04 3-pole |
| SCP04-1000-R5-06-Q8 |
0 … 1000 |
0,5 … 4,5 V (ratiometric) |
1/4 NPT |
Device connector DIN EN 175301-803 Form A 4-pole |
| SCP04-1000-R5-07-Q8 |
0 … 1000 |
0,5 … 4,5 V (ratiometric) |
1/4 NPT |
Circular connector M12x1 4-pole |
| SCP04-1000-R5-0E-Q8 |
0 … 1000 |
0,5 … 4,5 V (ratiometric) |
1/4 NPT |
Device plug DT04 3-pole |
| SCP04-1000-R7-06-Q8 |
0 … 1000 |
0,5 … 4,5 V (ratiometric) |
7/16"-20UNF-2A |
Device connector DIN EN 175301-803 Form A 4-pole |
| SCP04-1000-R7-07-Q8 |
0 … 1000 |
0,5 … 4,5 V (ratiometric) |
7/16"-20UNF-2A |
Circular connector M12x1 4-pole |
| SCP04-1000-R7-0E-Q8 |
0 … 1000 |
0,5 … 4,5 V (ratiometric) |
7/16"-20UNF-2A |
Device plug DT04 3-pole |
| SCP04-1000-RA-06-Q8 |
0 … 1000 |
0,5 … 4,5 V (ratiometric) |
G1/4 B (EN 837) |
Device connector DIN EN 175301-803 Form A 4-pole |
| SCP04-1000-RA-07-Q8 |
0 … 1000 |
0,5 … 4,5 V (ratiometric) |
G1/4 B (EN 837) |
Circular connector M12x1 4-pole |
| SCP04-1000-RA-0E-Q8 |
0 … 1000 |
0,5 … 4,5 V (ratiometric) |
G1/4 B (EN 837) |
Device plug DT04 3-pole |
| SCP04-400-35-06-Q8 |
0 … 400 |
4 … 20 mA (2-wire) |
1/4 NPT |
Device connector DIN EN 175301-803 Form A 4-pole |
| SCP04-400-35-07-Q8 |
0 … 400 |
4 … 20 mA (2-wire) |
1/4 NPT |
Circular connector M12x1 4-pole |
| SCP04-400-35-0E-Q8 |
0 … 400 |
4 … 20 mA (2-wire) |
1/4 NPT |
Device plug DT04 3-pole |
| SCP04-400-37-06-Q8 |
0 … 400 |
4 … 20 mA (2-wire) |
7/16"-20UNF-2A |
Device connector DIN EN 175301-803 Form A 4-pole |
| SCP04-400-37-07-Q8 |
0 … 400 |
4 … 20 mA (2-wire) |
7/16"-20UNF-2A |
Circular connector M12x1 4-pole |
| SCP04-400-37-0E-Q8 |
0 … 400 |
4 … 20 mA (2-wire) |
7/16"-20UNF-2A |
Device plug DT04 3-pole |
| SCP04-400-3A-06-Q8 |
0 … 400 |
4 … 20 mA (2-wire) |
G1/4 B (EN 837) |
Device connector DIN EN 175301-803 Form A 4-pole |
| SCP04-400-3A-07-Q8 |
0 … 400 |
4 … 20 mA (2-wire) |
G1/4 B (EN 837) |
Circular connector M12x1 4-pole |
| SCP04-400-3A-0E-Q8 |
0 … 400 |
4 … 20 mA (2-wire) |
G1/4 B (EN 837) |
Device plug DT04 3-pole |
| SCP04-400-45-06-Q8 |
0 … 400 |
0 … 10 V |
1/4 NPT |
Device connector DIN EN 175301-803 Form A 4-pole |
| SCP04-400-45-07-Q8 |
0 … 400 |
0 … 10 V |
1/4 NPT |
Circular connector M12x1 4-pole |
| SCP04-400-45-0E-Q8 |
0 … 400 |
0 … 10 V |
1/4 NPT |
Device plug DT04 3-pole |
| SCP04-400-47-06-Q8 |
0 … 400 |
0 … 10 V |
7/16"-20UNF-2A |
Device connector DIN EN 175301-803 Form A 4-pole |
| SCP04-400-47-07-Q8 |
0 … 400 |
0 … 10 V |
7/16"-20UNF-2A |
Circular connector M12x1 4-pole |
| SCP04-400-47-0E-Q8 |
0 … 400 |
0 … 10 V |
7/16"-20UNF-2A |
Device plug DT04 3-pole |
| SCP04-400-4A-06-Q8 |
0 … 400 |
0 … 10 V |
G1/4 B (EN 837) |
Device connector DIN EN 175301-803 Form A 4-pole |
| SCP04-400-4A-07-Q8 |
0 … 400 |
0 … 10 V |
G1/4 B (EN 837) |
Circular connector M12x1 4-pole |
| SCP04-400-4A-0E-Q8 |
0 … 400 |
0 … 10 V |
G1/4 B (EN 837) |
Device plug DT04 3-pole |
| SCP04-400-R5-06-Q8 |
0 … 400 |
0,5 … 4,5 V (ratiometric) |
1/4 NPT |
Device connector DIN EN 175301-803 Form A 4-pole |
| 部件 |
工作壓力 |
輸出類型 |
端口尺寸 |
電氣連接 |
| SCP04-400-R5-07-Q8 |
0 … 400 |
0,5 … 4,5 V (ratiometric) |
1/4 NPT |
Circular connector M12x1 4-pole |
| SCP04-400-R5-0E-Q8 |
0 … 400 |
0,5 … 4,5 V (ratiometric) |
1/4 NPT |
Device plug DT04 3-pole |
| SCP04-400-R7-06-Q8 |
0 … 400 |
0,5 … 4,5 V (ratiometric) |
7/16"-20UNF-2A |
Device connector DIN EN 175301-803 Form A 4-pole |
| SCP04-400-R7-07-Q8 |
0 … 400 |
0,5 … 4,5 V (ratiometric) |
7/16"-20UNF-2A |
Circular connector M12x1 4-pole |
| SCP04-400-R7-0E-Q8 |
0 … 400 |
0,5 … 4,5 V (ratiometric) |
7/16"-20UNF-2A |
Device plug DT04 3-pole |
| SCP04-400-RA-06-Q8 |
0 … 400 |
0,5 … 4,5 V (ratiometric) |
G1/4 B (EN 837) |
Device connector DIN EN 175301-803 Form A 4-pole |
| SCP04-400-RA-07-Q8 |
0 … 400 |
0,5 … 4,5 V (ratiometric) |
G1/4 B (EN 837) |
Circular connector M12x1 4-pole |
| SCP04-400-RA-0E-Q8 |
0 … 400 |
0,5 … 4,5 V (ratiometric) |
G1/4 B (EN 837) |
Device plug DT04 3-pole |
| SCP04-500-35-06-Q8 |
0 … 500 |
4 … 20 mA (2-wire) |
1/4 NPT |
Device connector DIN EN 175301-803 Form A 4-pole |
| SCP04-500-35-07-Q8 |
0 … 500 |
4 … 20 mA (2-wire) |
1/4 NPT |
Circular connector M12x1 4-pole |
| SCP04-500-35-0E-Q8 |
0 … 500 |
4 … 20 mA (2-wire) |
1/4 NPT |
Device plug DT04 3-pole |
| SCP04-500-37-06-Q8 |
0 … 500 |
4 … 20 mA (2-wire) |
7/16"-20UNF-2A |
Device connector DIN EN 175301-803 Form A 4-pole |
| SCP04-500-37-07-Q8 |
0 … 500 |
4 … 20 mA (2-wire) |
7/16"-20UNF-2A |
Circular connector M12x1 4-pole |
| SCP04-500-37-0E-Q8 |
0 … 500 |
4 … 20 mA (2-wire) |
7/16"-20UNF-2A |
Device plug DT04 3-pole |
| SCP04-500-3A-06-Q8 |
0 … 500 |
4 … 20 mA (2-wire) |
G1/4 B (EN 837) |
Device connector DIN EN 175301-803 Form A 4-pole |
| SCP04-500-3A-07-Q8 |
0 … 500 |
4 … 20 mA (2-wire) |
G1/4 B (EN 837) |
Circular connector M12x1 4-pole |
| SCP04-500-3A-0E-Q8 |
0 … 500 |
4 … 20 mA (2-wire) |
G1/4 B (EN 837) |
Device plug DT04 3-pole |
| SCP04-500-45-06-Q8 |
0 … 500 |
0 … 10 V |
1/4 NPT |
Device connector DIN EN 175301-803 Form A 4-pole |
| SCP04-500-45-07-Q8 |
0 … 500 |
0 … 10 V |
1/4 NPT |
Circular connector M12x1 4-pole |
| SCP04-500-45-0E-Q8 |
0 … 500 |
0 … 10 V |
1/4 NPT |
Device plug DT04 3-pole |
| SCP04-500-47-06-Q8 |
0 … 500 |
0 … 10 V |
7/16"-20UNF-2A |
Device connector DIN EN 175301-803 Form A 4-pole |
| SCP04-500-47-07-Q8 |
0 … 500 |
0 … 10 V |
7/16"-20UNF-2A |
Circular connector M12x1 4-pole |
| SCP04-500-47-0E-Q8 |
0 … 500 |
0 … 10 V |
7/16"-20UNF-2A |
Device plug DT04 3-pole |
| SCP04-500-4A-06-Q8 |
0 … 500 |
0 … 10 V |
G1/4 B (EN 837) |
Device connector DIN EN 175301-803 Form A 4-pole |
| SCP04-500-4A-07-Q8 |
0 … 500 |
0 … 10 V |
G1/4 B (EN 837) |
Circular connector M12x1 4-pole |
| SCP04-500-4A-0E-Q8 |
0 … 500 |
0 … 10 V |
G1/4 B (EN 837) |
Device plug DT04 3-pole |
| SCP04-500-R5-06-Q8 |
0 … 500 |
0,5 … 4,5 V (ratiometric) |
1/4 NPT |
Device connector DIN EN 175301-803 Form A 4-pole |
| SCP04-500-R5-07-Q8 |
0 … 500 |
0,5 … 4,5 V (ratiometric) |
1/4 NPT |
Circular connector M12x1 4-pole |
| SCP04-500-R5-0E-Q8 |
0 … 500 |
0,5 … 4,5 V (ratiometric) |
1/4 NPT |
Device plug DT04 3-pole |
| SCP04-500-R7-06-Q8 |
0 … 500 |
0,5 … 4,5 V (ratiometric) |
7/16"-20UNF-2A |
Device connector DIN EN 175301-803 Form A 4-pole |
| SCP04-500-R7-07-Q8 |
0 … 500 |
0,5 … 4,5 V (ratiometric) |
7/16"-20UNF-2A |
Circular connector M12x1 4-pole |
| SCP04-500-R7-0E-Q8 |
0 … 500 |
0,5 … 4,5 V (ratiometric) |
7/16"-20UNF-2A |
Device plug DT04 3-pole |
| SCP04-500-RA-06-Q8 |
0 … 500 |
0,5 … 4,5 V (ratiometric) |
G1/4 B (EN 837) |
Device connector DIN EN 175301-803 Form A 4-pole |
| SCP04-500-RA-07-Q8 |
0 … 500 |
0,5 … 4,5 V (ratiometric) |
G1/4 B (EN 837) |
Circular connector M12x1 4-pole |
| SCP04-500-RA-0E-Q8 |
0 … 500 |
0,5 … 4,5 V (ratiometric) |
G1/4 B (EN 837) |
Device plug DT04 3-pole |
| SCP04-600-35-06-Q8 |
0 … 600 |
4 … 20 mA (2-wire) |
1/4 NPT |
Device connector DIN EN 175301-803 Form A 4-pole |
| SCP04-600-35-07-Q8 |
0 … 600 |
4 … 20 mA (2-wire) |
1/4 NPT |
Circular connector M12x1 4-pole |
| SCP04-600-35-0E-Q8 |
0 … 600 |
4 … 20 mA (2-wire) |
1/4 NPT |
Device plug DT04 3-pole |
| SCP04-600-37-06-Q8 |
0 … 600 |
4 … 20 mA (2-wire) |
7/16"-20UNF-2A |
Device connector DIN EN 175301-803 Form A 4-pole |
| SCP04-600-37-07-Q8 |
0 … 600 |
4 … 20 mA (2-wire) |
7/16"-20UNF-2A |
Circular connector M12x1 4-pole |
| SCP04-600-37-0E-Q8 |
0 … 600 |
4 … 20 mA (2-wire) |
7/16"-20UNF-2A |
Device plug DT04 3-pole |
| SCP04-600-3A-06-Q8 |
0 … 600 |
4 … 20 mA (2-wire) |
G1/4 B (EN 837) |
Device connector DIN EN 175301-803 Form A 4-pole |
| SCP04-600-3A-07-Q8 |
0 … 600 |
4 … 20 mA (2-wire) |
G1/4 B (EN 837) |
Circular connector M12x1 4-pole |
| SCP04-600-3A-0E-Q8 |
0 … 600 |
4 … 20 mA (2-wire) |
G1/4 B (EN 837) |
Device plug DT04 3-pole |
| SCP04-600-45-06-Q8 |
0 … 600 |
0 … 10 V |
1/4 NPT |
Device connector DIN EN 175301-803 Form A 4-pole |
| SCP04-600-45-07-Q8 |
0 … 600 |
0 … 10 V |
1/4 NPT |
Circular connector M12x1 4-pole |
| SCP04-600-45-0E-Q8 |
0 … 600 |
0 … 10 V |
1/4 NPT |
Device plug DT04 3-pole |
| SCP04-600-47-06-Q8 |
0 … 600 |
0 … 10 V |
7/16"-20UNF-2A |
Device connector DIN EN 175301-803 Form A 4-pole |
| SCP04-600-47-07-Q8 |
0 … 600 |
0 … 10 V |
7/16"-20UNF-2A |
Circular connector M12x1 4-pole |
| SCP04-600-47-0E-Q8 |
0 … 600 |
0 … 10 V |
7/16"-20UNF-2A |
Device plug DT04 3-pole |
| 部件 |
工作壓力 |
輸出類型 |
端口尺寸 |
電氣連接 |
| SCP04-600-4A-06-Q8 |
0 … 600 |
0 … 10 V |
G1/4 B (EN 837) |
Device connector DIN EN 175301-803 Form A 4-pole |
| SCP04-600-4A-07-Q8 |
0 … 600 |
0 … 10 V |
G1/4 B (EN 837) |
Circular connector M12x1 4-pole |
| SCP04-600-4A-0E-Q8 |
0 … 600 |
0 … 10 V |
G1/4 B (EN 837) |
Device plug DT04 3-pole |
| SCP04-600-R5-06-Q8 |
0 … 600 |
0,5 … 4,5 V (ratiometric) |
1/4 NPT |
Device connector DIN EN 175301-803 Form A 4-pole |
| SCP04-600-R5-07-Q8 |
0 … 600 |
0,5 … 4,5 V (ratiometric) |
1/4 NPT |
Circular connector M12x1 4-pole |
| SCP04-600-R5-0E-Q8 |
0 … 600 |
0,5 … 4,5 V (ratiometric) |
1/4 NPT |
Device plug DT04 3-pole |
| SCP04-600-R7-06-Q8 |
0 … 600 |
0,5 … 4,5 V (ratiometric) |
7/16"-20UNF-2A |
Device connector DIN EN 175301-803 Form A 4-pole |
| SCP04-600-R7-07-Q8 |
0 … 600 |
0,5 … 4,5 V (ratiometric) |
7/16"-20UNF-2A |
Circular connector M12x1 4-pole |
| SCP04-600-R7-0E-Q8 |
0 … 600 |
0,5 … 4,5 V (ratiometric) |
7/16"-20UNF-2A |
Device plug DT04 3-pole |
| SCP04-600-RA-06-Q8 |
0 … 600 |
0,5 … 4,5 V (ratiometric) |
G1/4 B (EN 837) |
Device connector DIN EN 175301-803 Form A 4-pole |
| SCP04-600-RA-07-Q8 |
0 … 600 |
0,5 … 4,5 V (ratiometric) |
G1/4 B (EN 837) |
Circular connector M12x1 4-pole |
| SCP04-600-RA-0E-Q8 |
0 … 600 |
0,5 … 4,5 V (ratiometric) |
G1/4 B (EN 837) |
Device plug DT04 3-pole |
|
fcg.cnmec@parkerdistribution.com.cn
