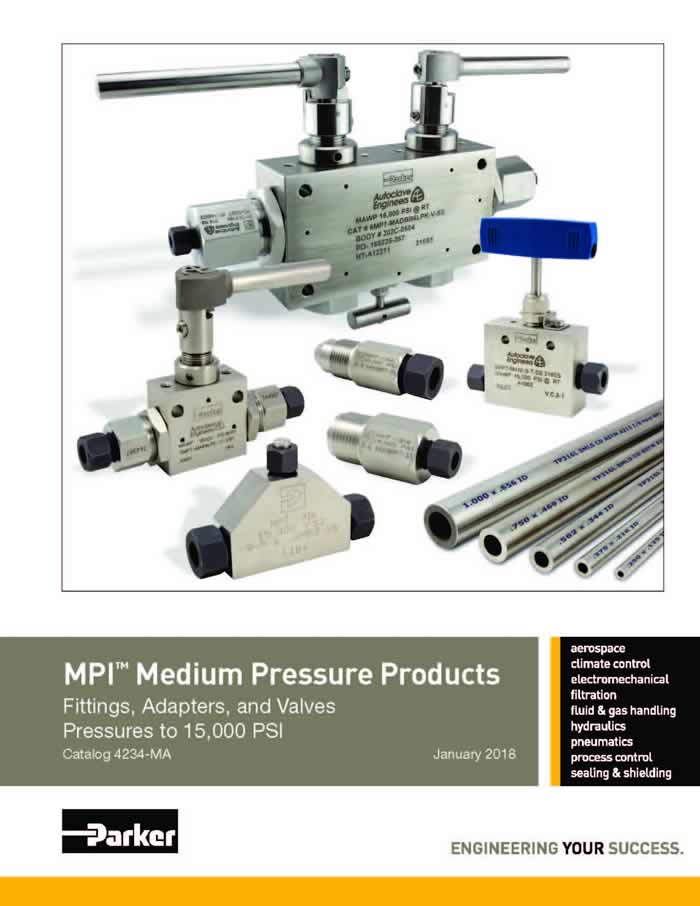

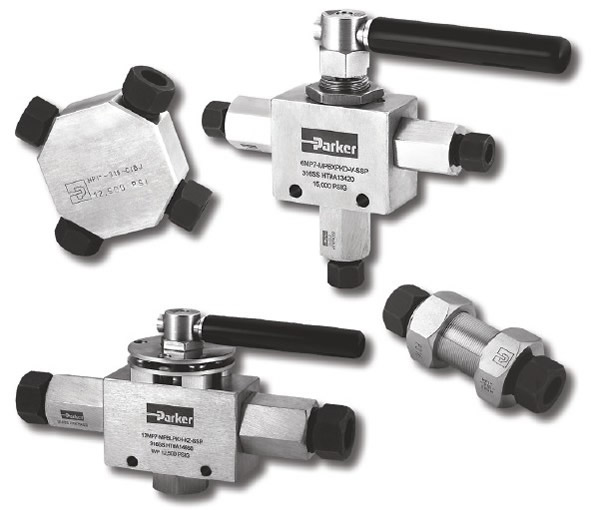

MPI Medium Pressure Products Fittings, Adapters, and Valves Pressures to 15,000 PSI
MPI Medium Pressure Products

派克MPI系列使用反向雙卡套設計，為小通徑儀表應用提供安全、密閉、無泄漏連接，工作壓力可 15,000 PSI.派克MPI接頭是反置雙卡套接頭. 它們的設計和制造為整個行業提供了安全、牢固、防泄漏的連接，包括海上石油和天然氣開發平臺、研究實驗室和其他工作壓力范圍在6,000 到 15,000 psi 的設施. MPI接頭非常適合處理流體、氣體或化學品，可用于多種管材，包括冷拔–1/8 硬（退火）不銹鋼管 , 退火2507 無縫鋼管或儀表級薄壁退火不銹鋼。每只 MPI接頭是可裝配的整體套件。派克精密儀表接頭廣泛用于過程控制、電力、石化和天然氣 等行業，為液體、氣體和化學品系統連接提供解決方案。 派克始終堅持為客戶設計和制造穩定、可靠、高品質的儀表 接頭，所有產品的工作壓力都符合ANSI B31.3.標準。MPI接頭應用Applications: 海上工藝盤 Offshore Process Panels， 化學注射 Chemical Injection ， 井口控制盤 Well Head Control Panels和高壓罐 High Pressure Tanks。

Parker's MPI Series is an inverted two ferrule design engineered and manufactured to provide secure, tight, and leak resistant connections for small bore instrumentation applications up to 15,000 PSI.Parker MPI Fittings are an inverted two ferrule, compression design. They are engineered and manufactured to provide secure, tight, and leak-resistant connections throughout industry, including off-shore oil and gas exploration platforms, research labs, and other facilities that require operating pressures in the range of 6,000 to 15,000 psi. MPI Fittings are ideally suited to handle liquids, gases, or chemicals and can be used on a wide variety of tubing materials including cold drawn – 1/8 hard (unannealed) stainless steel tubing, annealed 2507 seamless tubing or instrument grade thick-walled annealed stainless steel. Every Parker MPI Fitting is supplied complete and ready to install.

MPI 嵌入式雙卡套接頭 (Catalog 4234) - 中壓卡套接頭，承壓可達15,000 PSI (1034 bar) - 采用獨特的嵌入式外螺紋螺母設計，有效加強對厚壁儀表管的抓緊力 - 加長螺紋提供更好的承載性能和抗振能力 - 螺母經二硫化鉬涂層處理，防止螺紋咬死，適用于高溫工況 - 節省50%安裝和重裝的時間

Parker Hannifin MPI配件的設計和制造旨在為整個行業提供安全、緊密和防泄漏的連接，包括海上油氣勘探平臺、研究實驗室和其他需要6000至15000 psi操作壓力的設施。Parker Hannifin MPI Fittings are engineered and manufactured to provide secure, tight, and leakresistant connections throughout industry, including off-shore oil and gas exploration platforms, research labs, and other facilities that require operating pressures in the range of 6,000 to 15,000 psi.

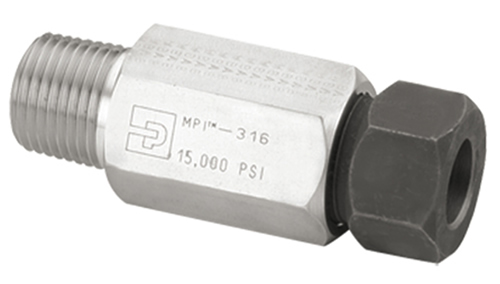

Parker Hannifin MPI Fittings Parker MPI系列雙卡套接頭 儀表管接頭,反向雙卡套
Parker MPI Series inverted two ferrule compression tube fitting

市場Markets:

- 海上 Offshore
- 石油和天然氣 Oil and Gas
- 化工 Chemical
- 石化 Petrochemical
- 電力 Power
- 科研院所 Research

特點/優勢Features/Benefits::

- 經過耐腐蝕派克Suparcase處理的前卡套，在管子、接頭體和卡套之間形成密封.它還在管上提供了一個機械保持. Front ferrule with corrosion-resistant Parker Suparcase forms a seal between the tube, body and ferrule. It also provides a mechanical hold on the tube.
- 經過耐腐蝕派克Suparcase處理的后卡套在管上提供了強機械保持. Back ferrule with corrosion-resistant Parker Suparcase provides a strong mechanical hold on the tube.
- 更長螺紋區域，改進的抗壓力和負荷的卡套. Longer thread area for improved resistance to pressure and load on the ferrules.
- 二硫化鉬涂層反螺母，有助于防止磨損, 提供容易的裝配，允許重復使用. Molybdenum disulfide-coated inverted nut helps prevent galling, provides easier assembly, and permits multiple remakes.
- 長的管支撐區域，提高抗震性和管路負荷.Long tube-support area improves resistance to vibration and line loads.

應用Applications:

- 海上工藝盤 Offshore Process Panels
- 化學注射 Chemical Injection
- 井口控制盤 Well Head Control Panels
- 高壓罐 High Pressure Tanks

- MPI Medium Pressure Products Fittings, Adapters, and Valves Pressures to 15,000 PSI
MPI Medium Pressure Products
PDF Catalog技術資料下載

- 性能特點

管件類型： 卡套
材料： 不銹鋼
連接尺寸： 1/4" 至 3/4"
連接尺寸： 1/4" 至 3/4"
連接螺紋尺寸（英寸）： 1/4" 至 3/4"
連接螺紋尺寸（英寸）： 1/4" 至 3/4"
連接器類型： NPT 外螺紋, NPT 內螺紋,外螺紋 PI 卡套接頭
連接3螺紋形式： MPI 卡套接頭
連接4螺紋形式： MPI 卡套接頭
閥體形式： 外螺紋接頭，內螺紋接頭，聯合接頭，彎頭，三通接頭，四通接頭
- 大工作壓力（PSI)： 15,000, 10,000

【產品簡介】

尺寸：1/4“-1“
- 高工作壓力：15000 psig
卡套式連接，安裝簡便
Suparcase硬化工藝
材質：316 SS

Parker MPI Fittings卡套接頭
Parker MPI Series Tube Fitting, Inverted Two ferrule Compression

【詳細說明】

MPI卡套接頭
尺寸：1/4"-1"
- 高工作壓力：15000 psig
Medium Pressure Products MPI Fittings and Valves 6,000 – 15,000 PSI Range
卡套式連接，安裝簡便
Suparcase硬化工藝
材質：316 SS

MPI Fittings Pressure Ratings
The maximum pressure rating is marked on each fitting. MPI Fittings are designed to a 4 to 1 design factor.
- Size 4 MPI end – to 15,000 psi
- Size 6 MPI end – to 15,000 psi
- Size 8 MPI end – to 15,000 psi
- Size 9 MPI end – to 15,000 psi
- Size 12 MPI end – to 15,000 psi
- Size 16 MPI end – to 12,500 psi

Parker MPI inverted tube fittings are designed to provide secure, tight, and leak-resistant connections for applications that require operating pressures in the range of 6000 to 15,000 psi. Ideally suited for use with liquids and gases, standard MPI fittings are made of Heat Code Traceable 316 stainless steel.

Two ferrule design for tight pressure seal
Positive leak-free seal after repeated reassembly
Long thread area for improved resistance to pressure and load on ferrules
Long tube-support area improves resistance to vibration and line loads

The MPI Fittings are engineered and manufactured to provide secure, tight and leak resistnat connections throughout industry, including offshore oil and gas exploration platforms, research labs, and other facilities that require operating pressures in the range of 6,000 to 15,000 psi (414 to 1,034 bar). MPI Fittings are ideally suited to handle liquids, gases, or chemicals and can be used on a wide variety of tubing materials including cold drawn - 1/8 hard (unannealed) tubing or instrument grade thick-walled annealed stainless steel. Every Parker MPI Fitting is supplied complete and ready to install.

MPI Fittings are installed with standrad hand tools. Each size can be preset with a Parker hydraulic preset tool. Tube preparation does not require cutting of threads of tube end "coning".

MPI Fittings are ideally suited to handle liquids,gases, or chemicals and can be used on a wide variety of tubing materials including cold drawn – 1/8 hard (unannealed) tubing or instrument grade thick-walled annealed stainless steel. Every Parker MPI Fitting is supplied complete and ready to install.

Parker MPI Series Tube Fitting, Inverted Two ferrule Compression

Parker's MPI Series is an inverted two ferrule design engineered and manufactured to provide secure, tight, and leak resistant connections for small bore instrumentation applications up to 15,000 PSI.Parker MPI Fittings are an inverted two ferrule, compression design. They are engineered and manufactured to provide secure, tight, and leak-resistant connections throughout industry, including off-shore oil and gas exploration platforms, research labs, and other facilities that require operating pressures in the range of 6,000 to 15,000 psi.

MPI Fittings are ideally suited to handle liquids, gases, or chemicals and can be used on a wide variety of tubing materials including cold drawn – 1/8 hard (unannealed) stainless steel tubing, annealed 2507 seamless tubing or instrument grade thick-walled annealed stainless steel. Every Parker MPI? Fitting is supplied complete and ready to install.

Markets:
- Offshore
- Oil and Gas
- Chemical
- Petrochemical
- Power
- Research

Features/Benefits:
- Front ferrule with corrosion-resistant Parker Suparcase? forms a seal between the tube, body and ferrule. It also provides a mechanical hold on the tube.
- Back ferrule with corrosion-resistant Parker Suparcase? provides a strong mechanical hold on the tube.
- Longer thread area for improved resistance to pressure and load on the ferrules.
- Molybdenum disulfide-coated inverted nut helps prevent galling, provides easier assembly, and permits multiple remakes.
- Long tube-support area improves resistance to vibration and line loads.

Applications:
- Offshore Process Panels
- Chemical Injection
- Well Head Control Panels
- High Pressure Tanks

Performance Characteristics
Fitting Type Compression
Material Stainless Steel
Connection 1 Size 1/4" to 3/4"
Connection 2 Size 1/4" to 3/4"
Connection 3 Thread Size (inch) 1/4" to 3/4"
Connection 4 Thread Size (inch) 1/4" to 3/4"
Connection 2 Style NPT M, NPT F, MPI Compression
Connection 3 Thread Style MPI Compression
Connection 4 Thread Style MPI Compression
Body Style Male Connector, Female Connector, Union, Elbow, Tee, Cross
Maximum Working Pressure (psi) 15,000, 10,000

Literature and Reference Materials

MPI Bulletin
