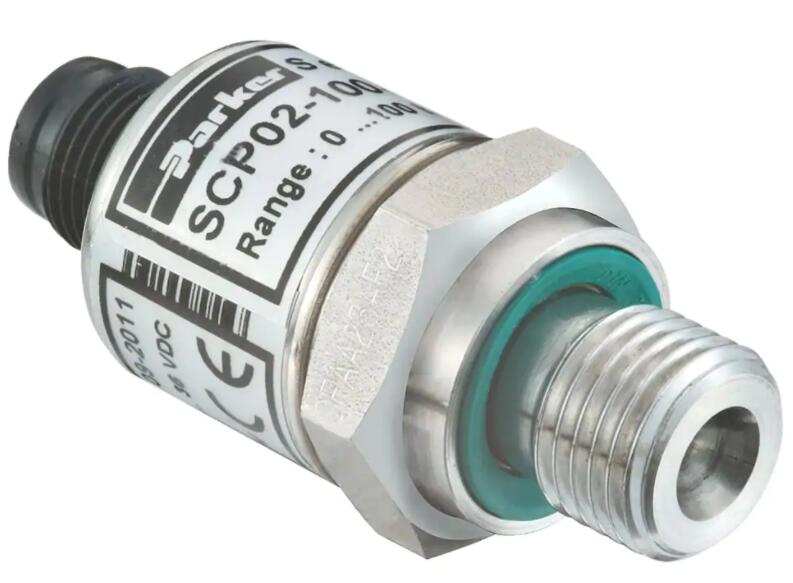

Parker派克Pressure Sensor SCP02,壓力范圍0-630bar
Parker派克壓力傳感器SCP02 | ＃SCP02-010-24-00
Parker派克壓力傳感器SensoControl SCP02專為在移動工作機中使用而設計。SCP02已獲得e1批準，并根據ISO / TS 16949采用先進的生產方法制造。壓力傳感器SensoControl SCP02專為在移動工作機中使用而設計。SCP02已通過e1認證，并按照ISO / TS 16949的新生產方法進行制造�？箾_擊和振動，EMC特性，電源以及擴展的溫度范圍均針對該應用類型而設計。 SCP02具有快速的響應速度，因此適用于快速控制解決方案。帶有塑料連接器的緊湊型不銹鋼外殼允許在惡劣的環境條件下使用，例如在移動液壓系統中。與該物質接觸的組件由不銹鋼（1.4548）制成。此功能與焊接的薄層測量池相結合，可確保與物質的佳兼容性。添加了EDM孔，以便您進行精確，無干擾的壓力測量。這樣可以大程度地減少空氣和污垢的氣穴現象，從而防止測量單元受到壓力波動和壓力峰值的影響。The pressure sensor SensoControl SCP02 is designed especifically for the use in mobile working machines. The SCP02 has e1-approval and is manufactured with state of the art production methods according to ISO/TS 16949.

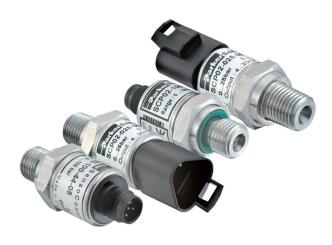

Parker pressure sensor SensoControl SCP02
市場：
- 汽車
- 國防
- 移動
- 運輸
功能/優點：
- 小型設計
- 不銹鋼測量單元
- 不銹鋼外殼
- 防震和振動
- 防護等級高
- E1道路認可
- 物質溫度-40至150°C
- 上至1000 bar
- 1毫秒
- 高達36V的接線系統
技術指標
- 端口尺寸：G 1/4“ BSPP
- 端口類型：BSPP
- 每盒數量：1個
- 運營壓力：0…630 bar
- 輸出類型：4…20 mA（3線）
- 電氣連接：固定電纜1 m
- 高度：吶
- 重量：大約 55克
- 師：HPCE
- 行業：移動
- 寬度：主體直徑21.3毫米
- 牌：SensoControl
- 產品款式：旋入式傳感器
- 長度：28.8毫米（不帶插頭和連接器）
- 符合規格：CE認證
- 應用：壓力測量
- 產品類別：壓力傳感器
- 技術：DMS
應用：
- 移動液壓
- 運輸車輛
- 輸送車輛
- 商用車輛
- 汽車技術
- 制動系統
- 油壓
- 測試設備和技術
- 變速箱控制
部件號 |
工作壓力 |
輸出類型 |
數量 / 箱 |
電氣連接 |
端口類型 |
端口尺寸 |
SCP02-010-24-00 |
0 … 010 bar |
4 … 20 mA (3-wire) |
1 |
Stationary cable 1 m |
BSPP |
G 1/4" BSPP |
SCP02-010-24-00Q9 |
0 … 010 bar |
4 … 20 mA (3-wire) |
100 |
Stationary cable 1 m |
BSPP |
G 1/4" BSPP |
SCP02-010-24-05 |
0 … 010 bar |
4 … 20 mA (3-wire) |
1 |
Circular connector M12x1 5-pole |
BSPP |
G 1/4" BSPP |
SCP02-010-24-05Q9 |
0 … 010 bar |
4 … 20 mA (3-wire) |
100 |
Circular connector M12x1 5-pole |
BSPP |
G 1/4" BSPP |
SCP02-010-24-0A |
0 … 010 bar |
4 … 20 mA (3-wire) |
1 |
Device plug AMP Superseal |
BSPP |
G 1/4" BSPP |
SCP02-010-24-0AQ9 |
0 … 010 bar |
4 … 20 mA (3-wire) |
100 |
Device plug AMP Superseal |
BSPP |
G 1/4" BSPP |
SCP02-010-24-0D |
0 … 010 bar |
4 … 20 mA (3-wire) |
1 |
Device plug DT04 4-pole |
BSPP |
G 1/4" BSPP |
SCP02-010-24-0DQ9 |
0 … 010 bar |
4 … 20 mA (3-wire) |
100 |
Device plug DT04 4-pole |
BSPP |
G 1/4" BSPP |
SCP02-010-24-0E |
0 … 010 bar |
4 … 20 mA (3-wire) |
1 |
Device plug DT04 3-pole |
BSPP |
G 1/4" BSPP |
SCP02-010-24-0EQ9 |
0 … 010 bar |
4 … 20 mA (3-wire) |
100 |
Device plug DT04 3-pole |
BSPP |
G 1/4" BSPP |
SCP02-010-25-00 |
0 … 010 bar |
4 … 20 mA (3-wire) |
1 |
Stationary cable 1 m |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
SCP02-010-25-00Q9 |
0 … 010 bar |
4 … 20 mA (3-wire) |
100 |
Stationary cable 1 m |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
SCP02-010-25-05 |
0 … 010 bar |
4 … 20 mA (3-wire) |
1 |
Circular connector M12x1 5-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
SCP02-010-25-05Q9 |
0 … 010 bar |
4 … 20 mA (3-wire) |
100 |
Circular connector M12x1 5-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
SCP02-010-25-0A |
0 … 010 bar |
4 … 20 mA (3-wire) |
1 |
Device plug AMP Superseal |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
SCP02-010-25-0AQ9 |
0 … 010 bar |
4 … 20 mA (3-wire) |
100 |
Device plug AMP Superseal |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
SCP02-010-25-0D |
0 … 010 bar |
4 … 20 mA (3-wire) |
1 |
Device plug DT04 4-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
SCP02-010-25-0DQ9 |
0 … 010 bar |
4 … 20 mA (3-wire) |
100 |
Device plug DT04 4-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
SCP02-010-25-0E |
0 … 010 bar |
4 … 20 mA (3-wire) |
1 |
Device plug DT04 3-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
SCP02-010-25-0EQ9 |
0 … 010 bar |
4 … 20 mA (3-wire) |
100 |
Device plug DT04 3-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
SCP02-010-26-00 |
0 … 010 bar |
4 … 20 mA (3-wire) |
1 |
Stationary cable 1 m |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
SCP02-010-26-00Q9 |
0 … 010 bar |
4 … 20 mA (3-wire) |
100 |
Stationary cable 1 m |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
SCP02-010-26-05 |
0 … 010 bar |
4 … 20 mA (3-wire) |
1 |
Circular connector M12x1 5-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
SCP02-010-26-05Q9 |
0 … 010 bar |
4 … 20 mA (3-wire) |
100 |
Circular connector M12x1 5-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
SCP02-010-26-0A |
0 … 010 bar |
4 … 20 mA (3-wire) |
1 |
Device plug AMP Superseal |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
SCP02-010-26-0AQ9 |
0 … 010 bar |
4 … 20 mA (3-wire) |
100 |
Device plug AMP Superseal |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
SCP02-010-26-0D |
0 … 010 bar |
4 … 20 mA (3-wire) |
1 |
Device plug DT04 4-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
SCP02-010-26-0DQ9 |
0 … 010 bar |
4 … 20 mA (3-wire) |
100 |
Device plug DT04 4-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
SCP02-010-26-0E |
0 … 010 bar |
4 … 20 mA (3-wire) |
1 |
Device plug DT04 3-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
SCP02-010-26-0EQ9 |
0 … 010 bar |
4 … 20 mA (3-wire) |
100 |
Device plug DT04 3-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
SCP02-010-27-00 |
0 … 010 bar |
4 … 20 mA (3-wire) |
1 |
Stationary cable 1 m |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
SCP02-010-27-00Q9 |
0 … 010 bar |
4 … 20 mA (3-wire) |
100 |
Stationary cable 1 m |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
SCP02-010-27-05 |
0 … 010 bar |
4 … 20 mA (3-wire) |
1 |
Circular connector M12x1 5-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
SCP02-010-27-05Q9 |
0 … 010 bar |
4 … 20 mA (3-wire) |
100 |
Circular connector M12x1 5-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
SCP02-010-27-0A |
0 … 010 bar |
4 … 20 mA (3-wire) |
1 |
Device plug AMP Superseal |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
SCP02-010-27-0AQ9 |
0 … 010 bar |
4 … 20 mA (3-wire) |
100 |
Device plug AMP Superseal |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
SCP02-010-27-0D |
0 … 010 bar |
4 … 20 mA (3-wire) |
1 |
Device plug DT04 4-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
SCP02-010-27-0DQ9 |
0 … 010 bar |
4 … 20 mA (3-wire) |
100 |
Device plug DT04 4-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
SCP02-010-27-0E |
0 … 010 bar |
4 … 20 mA (3-wire) |
1 |
Device plug DT04 3-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
SCP02-010-27-0EQ9 |
0 … 010 bar |
4 … 20 mA (3-wire) |
100 |
Device plug DT04 3-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
SCP02-010-28-00 |
0 … 010 bar |
4 … 20 mA (3-wire) |
1 |
Stationary cable 1 m |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
SCP02-010-28-00Q9 |
0 … 010 bar |
4 … 20 mA (3-wire) |
100 |
Stationary cable 1 m |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
SCP02-010-28-05 |
0 … 010 bar |
4 … 20 mA (3-wire) |
1 |
Circular connector M12x1 5-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
SCP02-010-28-05Q9 |
0 … 010 bar |
4 … 20 mA (3-wire) |
100 |
Circular connector M12x1 5-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
SCP02-010-28-0A |
0 … 010 bar |
4 … 20 mA (3-wire) |
1 |
Device plug AMP Superseal |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
SCP02-010-28-0AQ9 |
0 … 010 bar |
4 … 20 mA (3-wire) |
100 |
Device plug AMP Superseal |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
SCP02-010-28-0D |
0 … 010 bar |
4 … 20 mA (3-wire) |
1 |
Device plug DT04 4-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
SCP02-010-28-0DQ9 |
0 … 010 bar |
4 … 20 mA (3-wire) |
100 |
Device plug DT04 4-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
SCP02-010-28-0E |
0 … 010 bar |
4 … 20 mA (3-wire) |
1 |
Device plug DT04 3-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
SCP02-010-28-0EQ9 |
0 … 010 bar |
4 … 20 mA (3-wire) |
100 |
Device plug DT04 3-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
部件號 |
工作壓力 |
輸出類型 |
數量 / 箱 |
電氣連接 |
端口類型 |
端口尺寸 |
SCP02-010-34-00 |
0 … 010 bar |
4 … 20 mA (2-wire) |
1 |
Stationary cable 1 m |
BSPP |
G 1/4" BSPP |
SCP02-010-34-00Q9 |
0 … 010 bar |
4 … 20 mA (2-wire) |
100 |
Stationary cable 1 m |
BSPP |
G 1/4" BSPP |
SCP02-010-34-05 |
0 … 010 bar |
4 … 20 mA (2-wire) |
1 |
Circular connector M12x1 5-pole |
BSPP |
G 1/4" BSPP |
SCP02-010-34-05Q9 |
0 … 010 bar |
4 … 20 mA (2-wire) |
100 |
Circular connector M12x1 5-pole |
BSPP |
G 1/4" BSPP |
SCP02-010-34-0A |
0 … 010 bar |
4 … 20 mA (2-wire) |
1 |
Device plug AMP Superseal |
BSPP |
G 1/4" BSPP |
SCP02-010-34-0AQ9 |
0 … 010 bar |
4 … 20 mA (2-wire) |
100 |
Device plug AMP Superseal |
BSPP |
G 1/4" BSPP |
SCP02-010-34-0D |
0 … 010 bar |
4 … 20 mA (2-wire) |
1 |
Device plug DT04 4-pole |
BSPP |
G 1/4" BSPP |
SCP02-010-34-0DQ9 |
0 … 010 bar |
4 … 20 mA (2-wire) |
100 |
Device plug DT04 4-pole |
BSPP |
G 1/4" BSPP |
SCP02-010-34-0E |
0 … 010 bar |
4 … 20 mA (2-wire) |
1 |
Device plug DT04 3-pole |
BSPP |
G 1/4" BSPP |
SCP02-010-34-0EQ9 |
0 … 010 bar |
4 … 20 mA (2-wire) |
100 |
Device plug DT04 3-pole |
BSPP |
G 1/4" BSPP |
SCP02-010-35-00 |
0 … 010 bar |
4 … 20 mA (2-wire) |
1 |
Stationary cable 1 m |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
SCP02-010-35-00Q9 |
0 … 010 bar |
4 … 20 mA (2-wire) |
100 |
Stationary cable 1 m |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
SCP02-010-35-05 |
0 … 010 bar |
4 … 20 mA (2-wire) |
1 |
Circular connector M12x1 5-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
SCP02-010-35-05Q9 |
0 … 010 bar |
4 … 20 mA (2-wire) |
100 |
Circular connector M12x1 5-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
SCP02-010-35-0A |
0 … 010 bar |
4 … 20 mA (2-wire) |
1 |
Device plug AMP Superseal |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
SCP02-010-35-0AQ9 |
0 … 010 bar |
4 … 20 mA (2-wire) |
100 |
Device plug AMP Superseal |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
SCP02-010-35-0D |
0 … 010 bar |
4 … 20 mA (2-wire) |
1 |
Device plug DT04 4-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
SCP02-010-35-0DQ9 |
0 … 010 bar |
4 … 20 mA (2-wire) |
100 |
Device plug DT04 4-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
SCP02-010-35-0E |
0 … 010 bar |
4 … 20 mA (2-wire) |
1 |
Device plug DT04 3-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
SCP02-010-35-0EQ9 |
0 … 010 bar |
4 … 20 mA (2-wire) |
100 |
Device plug DT04 3-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
SCP02-010-36-00 |
0 … 010 bar |
4 … 20 mA (2-wire) |
1 |
Stationary cable 1 m |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
SCP02-010-36-00Q9 |
0 … 010 bar |
4 … 20 mA (2-wire) |
100 |
Stationary cable 1 m |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
SCP02-010-36-05 |
0 … 010 bar |
4 … 20 mA (2-wire) |
1 |
Circular connector M12x1 5-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
SCP02-010-36-05Q9 |
0 … 010 bar |
4 … 20 mA (2-wire) |
100 |
Circular connector M12x1 5-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
SCP02-010-36-0A |
0 … 010 bar |
4 … 20 mA (2-wire) |
1 |
Device plug AMP Superseal |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
SCP02-010-36-0AQ9 |
0 … 010 bar |
4 … 20 mA (2-wire) |
100 |
Device plug AMP Superseal |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
SCP02-010-36-0D |
0 … 010 bar |
4 … 20 mA (2-wire) |
1 |
Device plug DT04 4-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
SCP02-010-36-0DQ9 |
0 … 010 bar |
4 … 20 mA (2-wire) |
100 |
Device plug DT04 4-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
SCP02-010-36-0E |
0 … 010 bar |
4 … 20 mA (2-wire) |
1 |
Device plug DT04 3-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
SCP02-010-36-0EQ9 |
0 … 010 bar |
4 … 20 mA (2-wire) |
100 |
Device plug DT04 3-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
SCP02-010-37-00 |
0 … 010 bar |
4 … 20 mA (2-wire) |
1 |
Stationary cable 1 m |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
SCP02-010-37-00Q9 |
0 … 010 bar |
4 … 20 mA (2-wire) |
100 |
Stationary cable 1 m |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
SCP02-010-37-05 |
0 … 010 bar |
4 … 20 mA (2-wire) |
1 |
Circular connector M12x1 5-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
SCP02-010-37-05Q9 |
0 … 010 bar |
4 … 20 mA (2-wire) |
100 |
Circular connector M12x1 5-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
SCP02-010-37-0A |
0 … 010 bar |
4 … 20 mA (2-wire) |
1 |
Device plug AMP Superseal |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
SCP02-010-37-0AQ9 |
0 … 010 bar |
4 … 20 mA (2-wire) |
100 |
Device plug AMP Superseal |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
SCP02-010-37-0D |
0 … 010 bar |
4 … 20 mA (2-wire) |
1 |
Device plug DT04 4-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
SCP02-010-37-0DQ9 |
0 … 010 bar |
4 … 20 mA (2-wire) |
100 |
Device plug DT04 4-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
SCP02-010-37-0E |
0 … 010 bar |
4 … 20 mA (2-wire) |
1 |
Device plug DT04 3-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
SCP02-010-37-0EQ9 |
0 … 010 bar |
4 … 20 mA (2-wire) |
100 |
Device plug DT04 3-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
SCP02-010-38-00 |
0 … 010 bar |
4 … 20 mA (2-wire) |
1 |
Stationary cable 1 m |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
SCP02-010-38-00Q9 |
0 … 010 bar |
4 … 20 mA (2-wire) |
100 |
Stationary cable 1 m |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
SCP02-010-38-05 |
0 … 010 bar |
4 … 20 mA (2-wire) |
1 |
Circular connector M12x1 5-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
SCP02-010-38-05Q9 |
0 … 010 bar |
4 … 20 mA (2-wire) |
100 |
Circular connector M12x1 5-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
SCP02-010-38-0A |
0 … 010 bar |
4 … 20 mA (2-wire) |
1 |
Device plug AMP Superseal |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
SCP02-010-38-0AQ9 |
0 … 010 bar |
4 … 20 mA (2-wire) |
100 |
Device plug AMP Superseal |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
SCP02-010-38-0D |
0 … 010 bar |
4 … 20 mA (2-wire) |
1 |
Device plug DT04 4-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
SCP02-010-38-0DQ9 |
0 … 010 bar |
4 … 20 mA (2-wire) |
100 |
Device plug DT04 4-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
SCP02-010-38-0E |
0 … 010 bar |
4 … 20 mA (2-wire) |
1 |
Device plug DT04 3-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
SCP02-010-38-0EQ9 |
0 … 010 bar |
4 … 20 mA (2-wire) |
100 |
Device plug DT04 3-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
部件號 |
工作壓力 |
輸出類型 |
數量 / 箱 |
電氣連接 |
端口類型 |
端口尺寸 |
SCP02-010-44-00 |
0 … 010 bar |
0 … 10 V |
1 |
Stationary cable 1 m |
BSPP |
G 1/4" BSPP |
SCP02-010-44-00Q9 |
0 … 010 bar |
0 … 10 V |
100 |
Stationary cable 1 m |
BSPP |
G 1/4" BSPP |
SCP02-010-44-05 |
0 … 010 bar |
0 … 10 V |
1 |
Circular connector M12x1 5-pole |
BSPP |
G 1/4" BSPP |
SCP02-010-44-05Q9 |
0 … 010 bar |
0 … 10 V |
100 |
Circular connector M12x1 5-pole |
BSPP |
G 1/4" BSPP |
SCP02-010-44-0A |
0 … 010 bar |
0 … 10 V |
1 |
Device plug AMP Superseal |
BSPP |
G 1/4" BSPP |
SCP02-010-44-0AQ9 |
0 … 010 bar |
0 … 10 V |
100 |
Device plug AMP Superseal |
BSPP |
G 1/4" BSPP |
SCP02-010-44-0D |
0 … 010 bar |
0 … 10 V |
1 |
Device plug DT04 4-pole |
BSPP |
G 1/4" BSPP |
SCP02-010-44-0DQ9 |
0 … 010 bar |
0 … 10 V |
100 |
Device plug DT04 4-pole |
BSPP |
G 1/4" BSPP |
SCP02-010-44-0E |
0 … 010 bar |
0 … 10 V |
1 |
Device plug DT04 3-pole |
BSPP |
G 1/4" BSPP |
SCP02-010-44-0EQ9 |
0 … 010 bar |
0 … 10 V |
100 |
Device plug DT04 3-pole |
BSPP |
G 1/4" BSPP |
SCP02-010-45-00 |
0 … 010 bar |
0 … 10 V |
1 |
Stationary cable 1 m |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
SCP02-010-45-00Q9 |
0 … 010 bar |
0 … 10 V |
100 |
Stationary cable 1 m |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
SCP02-010-45-05 |
0 … 010 bar |
0 … 10 V |
1 |
Circular connector M12x1 5-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
SCP02-010-45-05Q9 |
0 … 010 bar |
0 … 10 V |
100 |
Circular connector M12x1 5-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
SCP02-010-45-0A |
0 … 010 bar |
0 … 10 V |
1 |
Device plug AMP Superseal |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
SCP02-010-45-0AQ9 |
0 … 010 bar |
0 … 10 V |
100 |
Device plug AMP Superseal |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
SCP02-010-45-0D |
0 … 010 bar |
0 … 10 V |
1 |
Device plug DT04 4-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
SCP02-010-45-0DQ9 |
0 … 010 bar |
0 … 10 V |
100 |
Device plug DT04 4-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
SCP02-010-45-0E |
0 … 010 bar |
0 … 10 V |
1 |
Device plug DT04 3-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
SCP02-010-45-0EQ9 |
0 … 010 bar |
0 … 10 V |
100 |
Device plug DT04 3-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
SCP02-010-46-00 |
0 … 010 bar |
0 … 10 V |
1 |
Stationary cable 1 m |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
SCP02-010-46-00Q9 |
0 … 010 bar |
0 … 10 V |
100 |
Stationary cable 1 m |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
SCP02-010-46-05 |
0 … 010 bar |
0 … 10 V |
1 |
Circular connector M12x1 5-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
SCP02-010-46-05Q9 |
0 … 010 bar |
0 … 10 V |
100 |
Circular connector M12x1 5-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
SCP02-010-46-0A |
0 … 010 bar |
0 … 10 V |
1 |
Device plug AMP Superseal |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
SCP02-010-46-0AQ9 |
0 … 010 bar |
0 … 10 V |
100 |
Device plug AMP Superseal |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
SCP02-010-46-0D |
0 … 010 bar |
0 … 10 V |
1 |
Device plug DT04 4-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
SCP02-010-46-0DQ9 |
0 … 010 bar |
0 … 10 V |
100 |
Device plug DT04 4-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
SCP02-010-46-0E |
0 … 010 bar |
0 … 10 V |
1 |
Device plug DT04 3-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
SCP02-010-46-0EQ9 |
0 … 010 bar |
0 … 10 V |
100 |
Device plug DT04 3-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
SCP02-010-47-00 |
0 … 010 bar |
0 … 10 V |
1 |
Stationary cable 1 m |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
SCP02-010-47-00Q9 |
0 … 010 bar |
0 … 10 V |
100 |
Stationary cable 1 m |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
SCP02-010-47-05 |
0 … 010 bar |
0 … 10 V |
1 |
Circular connector M12x1 5-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
SCP02-010-47-05Q9 |
0 … 010 bar |
0 … 10 V |
100 |
Circular connector M12x1 5-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
SCP02-010-47-0A |
0 … 010 bar |
0 … 10 V |
1 |
Device plug AMP Superseal |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
SCP02-010-47-0AQ9 |
0 … 010 bar |
0 … 10 V |
100 |
Device plug AMP Superseal |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
SCP02-010-47-0D |
0 … 010 bar |
0 … 10 V |
1 |
Device plug DT04 4-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
SCP02-010-47-0DQ9 |
0 … 010 bar |
0 … 10 V |
100 |
Device plug DT04 4-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
SCP02-010-47-0E |
0 … 010 bar |
0 … 10 V |
1 |
Device plug DT04 3-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
SCP02-010-47-0EQ9 |
0 … 010 bar |
0 … 10 V |
100 |
Device plug DT04 3-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
SCP02-010-48-00 |
0 … 010 bar |
0 … 10 V |
1 |
Stationary cable 1 m |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
SCP02-010-48-00Q9 |
0 … 010 bar |
0 … 10 V |
100 |
Stationary cable 1 m |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
SCP02-010-48-05 |
0 … 010 bar |
0 … 10 V |
1 |
Circular connector M12x1 5-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
SCP02-010-48-05Q9 |
0 … 010 bar |
0 … 10 V |
100 |
Circular connector M12x1 5-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
SCP02-010-48-0A |
0 … 010 bar |
0 … 10 V |
1 |
Device plug AMP Superseal |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
SCP02-010-48-0AQ9 |
0 … 010 bar |
0 … 10 V |
100 |
Device plug AMP Superseal |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
SCP02-010-48-0D |
0 … 010 bar |
0 … 10 V |
1 |
Device plug DT04 4-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
SCP02-010-48-0DQ9 |
0 … 010 bar |
0 … 10 V |
100 |
Device plug DT04 4-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
SCP02-010-48-0E |
0 … 010 bar |
0 … 10 V |
1 |
Device plug DT04 3-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
SCP02-010-48-0EQ9 |
0 … 010 bar |
0 … 10 V |
100 |
Device plug DT04 3-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
部件號 |
工作壓力 |
輸出類型 |
數量 / 箱 |
電氣連接 |
端口類型 |
端口尺寸 |
SCP02-010-A4-00 |
0 … 010 bar |
0 … 5 V |
1 |
Stationary cable 1 m |
BSPP |
G 1/4" BSPP |
SCP02-010-A4-00Q9 |
0 … 010 bar |
0 … 5 V |
100 |
Stationary cable 1 m |
BSPP |
G 1/4" BSPP |
SCP02-010-A4-05 |
0 … 010 bar |
0 … 5 V |
1 |
Circular connector M12x1 5-pole |
BSPP |
G 1/4" BSPP |
SCP02-010-A4-05Q9 |
0 … 010 bar |
0 … 5 V |
100 |
Circular connector M12x1 5-pole |
BSPP |
G 1/4" BSPP |
SCP02-010-A4-0A |
0 … 010 bar |
0 … 5 V |
1 |
Device plug AMP Superseal |
BSPP |
G 1/4" BSPP |
SCP02-010-A4-0AQ9 |
0 … 010 bar |
0 … 5 V |
100 |
Device plug AMP Superseal |
BSPP |
G 1/4" BSPP |
SCP02-010-A4-0D |
0 … 010 bar |
0 … 5 V |
1 |
Device plug DT04 4-pole |
BSPP |
G 1/4" BSPP |
SCP02-010-A4-0DQ9 |
0 … 010 bar |
0 … 5 V |
100 |
Device plug DT04 4-pole |
BSPP |
G 1/4" BSPP |
SCP02-010-A4-0E |
0 … 010 bar |
0 … 5 V |
1 |
Device plug DT04 3-pole |
BSPP |
G 1/4" BSPP |
SCP02-010-A4-0EQ9 |
0 … 010 bar |
0 … 5 V |
100 |
Device plug DT04 3-pole |
BSPP |
G 1/4" BSPP |
SCP02-010-A5-00 |
0 … 010 bar |
0 … 5 V |
1 |
Stationary cable 1 m |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
SCP02-010-A5-00Q9 |
0 … 010 bar |
0 … 5 V |
100 |
Stationary cable 1 m |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
SCP02-010-A5-05 |
0 … 010 bar |
0 … 5 V |
1 |
Circular connector M12x1 5-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
SCP02-010-A5-05Q9 |
0 … 010 bar |
0 … 5 V |
100 |
Circular connector M12x1 5-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
SCP02-010-A5-0A |
0 … 010 bar |
0 … 5 V |
1 |
Device plug AMP Superseal |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
SCP02-010-A5-0AQ9 |
0 … 010 bar |
0 … 5 V |
100 |
Device plug AMP Superseal |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
SCP02-010-A5-0D |
0 … 010 bar |
0 … 5 V |
1 |
Device plug DT04 4-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
SCP02-010-A5-0DQ9 |
0 … 010 bar |
0 … 5 V |
100 |
Device plug DT04 4-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
SCP02-010-A5-0E |
0 … 010 bar |
0 … 5 V |
1 |
Device plug DT04 3-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
SCP02-010-A5-0EQ9 |
0 … 010 bar |
0 … 5 V |
100 |
Device plug DT04 3-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
SCP02-010-A6-00 |
0 … 010 bar |
0 … 5 V |
1 |
Stationary cable 1 m |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
SCP02-010-A6-00Q9 |
0 … 010 bar |
0 … 5 V |
100 |
Stationary cable 1 m |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
SCP02-010-A6-05 |
0 … 010 bar |
0 … 5 V |
1 |
Circular connector M12x1 5-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
SCP02-010-A6-05Q9 |
0 … 010 bar |
0 … 5 V |
100 |
Circular connector M12x1 5-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
SCP02-010-A6-0A |
0 … 010 bar |
0 … 5 V |
1 |
Device plug AMP Superseal |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
SCP02-010-A6-0AQ9 |
0 … 010 bar |
0 … 5 V |
100 |
Device plug AMP Superseal |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
SCP02-010-A6-0D |
0 … 010 bar |
0 … 5 V |
1 |
Device plug DT04 4-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
SCP02-010-A6-0DQ9 |
0 … 010 bar |
0 … 5 V |
100 |
Device plug DT04 4-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
SCP02-010-A6-0E |
0 … 010 bar |
0 … 5 V |
1 |
Device plug DT04 3-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
SCP02-010-A6-0EQ9 |
0 … 010 bar |
0 … 5 V |
100 |
Device plug DT04 3-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
SCP02-010-A7-00 |
0 … 010 bar |
0 … 5 V |
1 |
Stationary cable 1 m |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
SCP02-010-A7-00Q9 |
0 … 010 bar |
0 … 5 V |
100 |
Stationary cable 1 m |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
SCP02-010-A7-05 |
0 … 010 bar |
0 … 5 V |
1 |
Circular connector M12x1 5-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
SCP02-010-A7-05Q9 |
0 … 010 bar |
0 … 5 V |
100 |
Circular connector M12x1 5-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
SCP02-010-A7-0A |
0 … 010 bar |
0 … 5 V |
1 |
Device plug AMP Superseal |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
SCP02-010-A7-0AQ9 |
0 … 010 bar |
0 … 5 V |
100 |
Device plug AMP Superseal |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
SCP02-010-A7-0D |
0 … 010 bar |
0 … 5 V |
1 |
Device plug DT04 4-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
SCP02-010-A7-0DQ9 |
0 … 010 bar |
0 … 5 V |
100 |
Device plug DT04 4-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
SCP02-010-A7-0E |
0 … 010 bar |
0 … 5 V |
1 |
Device plug DT04 3-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
SCP02-010-A7-0EQ9 |
0 … 010 bar |
0 … 5 V |
100 |
Device plug DT04 3-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
SCP02-010-A8-00 |
0 … 010 bar |
0 … 5 V |
1 |
Stationary cable 1 m |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
SCP02-010-A8-00Q9 |
0 … 010 bar |
0 … 5 V |
100 |
Stationary cable 1 m |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
SCP02-010-A8-05 |
0 … 010 bar |
0 … 5 V |
1 |
Circular connector M12x1 5-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
SCP02-010-A8-05Q9 |
0 … 010 bar |
0 … 5 V |
100 |
Circular connector M12x1 5-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
SCP02-010-A8-0A |
0 … 010 bar |
0 … 5 V |
1 |
Device plug AMP Superseal |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
SCP02-010-A8-0AQ9 |
0 … 010 bar |
0 … 5 V |
100 |
Device plug AMP Superseal |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
SCP02-010-A8-0D |
0 … 010 bar |
0 … 5 V |
1 |
Device plug DT04 4-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
SCP02-010-A8-0DQ9 |
0 … 010 bar |
0 … 5 V |
100 |
Device plug DT04 4-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
SCP02-010-A8-0E |
0 … 010 bar |
0 … 5 V |
1 |
Device plug DT04 3-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
SCP02-010-A8-0EQ9 |
0 … 010 bar |
0 … 5 V |
100 |
Device plug DT04 3-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
部件號 |
工作壓力 |
輸出類型 |
數量 / 箱 |
電氣連接 |
端口類型 |
端口尺寸 |
SCP02-010-B4-00 |
0 … 010 bar |
1 … 6 V (nominal) |
1 |
Stationary cable 1 m |
BSPP |
G 1/4" BSPP |
SCP02-010-B4-00Q9 |
0 … 010 bar |
1 … 6 V (nominal) |
100 |
Stationary cable 1 m |
BSPP |
G 1/4" BSPP |
SCP02-010-B4-05 |
0 … 010 bar |
1 … 6 V (nominal) |
1 |
Circular connector M12x1 5-pole |
BSPP |
G 1/4" BSPP |
SCP02-010-B4-05Q9 |
0 … 010 bar |
1 … 6 V (nominal) |
100 |
Circular connector M12x1 5-pole |
BSPP |
G 1/4" BSPP |
SCP02-010-B4-0A |
0 … 010 bar |
1 … 6 V (nominal) |
1 |
Device plug AMP Superseal |
BSPP |
G 1/4" BSPP |
SCP02-010-B4-0AQ9 |
0 … 010 bar |
1 … 6 V (nominal) |
100 |
Device plug AMP Superseal |
BSPP |
G 1/4" BSPP |
SCP02-010-B4-0D |
0 … 010 bar |
1 … 6 V (nominal) |
1 |
Device plug DT04 4-pole |
BSPP |
G 1/4" BSPP |
SCP02-010-B4-0DQ9 |
0 … 010 bar |
1 … 6 V (nominal) |
100 |
Device plug DT04 4-pole |
BSPP |
G 1/4" BSPP |
SCP02-010-B4-0E |
0 … 010 bar |
1 … 6 V (nominal) |
1 |
Device plug DT04 3-pole |
BSPP |
G 1/4" BSPP |
SCP02-010-B4-0EQ9 |
0 … 010 bar |
1 … 6 V (nominal) |
100 |
Device plug DT04 3-pole |
BSPP |
G 1/4" BSPP |
SCP02-010-B5-00 |
0 … 010 bar |
1 … 6 V (nominal) |
1 |
Stationary cable 1 m |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
SCP02-010-B5-00Q9 |
0 … 010 bar |
1 … 6 V (nominal) |
100 |
Stationary cable 1 m |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
SCP02-010-B5-05 |
0 … 010 bar |
1 … 6 V (nominal) |
1 |
Circular connector M12x1 5-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
SCP02-010-B5-05Q9 |
0 … 010 bar |
1 … 6 V (nominal) |
100 |
Circular connector M12x1 5-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
SCP02-010-B5-0A |
0 … 010 bar |
1 … 6 V (nominal) |
1 |
Device plug AMP Superseal |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
SCP02-010-B5-0AQ9 |
0 … 010 bar |
1 … 6 V (nominal) |
100 |
Device plug AMP Superseal |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
SCP02-010-B5-0D |
0 … 010 bar |
1 … 6 V (nominal) |
1 |
Device plug DT04 4-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
SCP02-010-B5-0DQ9 |
0 … 010 bar |
1 … 6 V (nominal) |
100 |
Device plug DT04 4-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
SCP02-010-B5-0E |
0 … 010 bar |
1 … 6 V (nominal) |
1 |
Device plug DT04 3-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
SCP02-010-B5-0EQ9 |
0 … 010 bar |
1 … 6 V (nominal) |
100 |
Device plug DT04 3-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
SCP02-010-B6-00 |
0 … 010 bar |
1 … 6 V (nominal) |
1 |
Stationary cable 1 m |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
SCP02-010-B6-00Q9 |
0 … 010 bar |
1 … 6 V (nominal) |
100 |
Stationary cable 1 m |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
SCP02-010-B6-05 |
0 … 010 bar |
1 … 6 V (nominal) |
1 |
Circular connector M12x1 5-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
SCP02-010-B6-05Q9 |
0 … 010 bar |
1 … 6 V (nominal) |
100 |
Circular connector M12x1 5-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
SCP02-010-B6-0A |
0 … 010 bar |
1 … 6 V (nominal) |
1 |
Device plug AMP Superseal |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
SCP02-010-B6-0AQ9 |
0 … 010 bar |
1 … 6 V (nominal) |
100 |
Device plug AMP Superseal |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
SCP02-010-B6-0D |
0 … 010 bar |
1 … 6 V (nominal) |
1 |
Device plug DT04 4-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
SCP02-010-B6-0DQ9 |
0 … 010 bar |
1 … 6 V (nominal) |
100 |
Device plug DT04 4-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
SCP02-010-B6-0E |
0 … 010 bar |
1 … 6 V (nominal) |
1 |
Device plug DT04 3-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
SCP02-010-B6-0EQ9 |
0 … 010 bar |
1 … 6 V (nominal) |
100 |
Device plug DT04 3-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
SCP02-010-B7-00 |
0 … 010 bar |
1 … 6 V (nominal) |
1 |
Stationary cable 1 m |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
SCP02-010-B7-00Q9 |
0 … 010 bar |
1 … 6 V (nominal) |
100 |
Stationary cable 1 m |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
SCP02-010-B7-05 |
0 … 010 bar |
1 … 6 V (nominal) |
1 |
Circular connector M12x1 5-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
SCP02-010-B7-05Q9 |
0 … 010 bar |
1 … 6 V (nominal) |
100 |
Circular connector M12x1 5-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
SCP02-010-B7-0A |
0 … 010 bar |
1 … 6 V (nominal) |
1 |
Device plug AMP Superseal |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
SCP02-010-B7-0AQ9 |
0 … 010 bar |
1 … 6 V (nominal) |
100 |
Device plug AMP Superseal |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
SCP02-010-B7-0D |
0 … 010 bar |
1 … 6 V (nominal) |
1 |
Device plug DT04 4-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
SCP02-010-B7-0DQ9 |
0 … 010 bar |
1 … 6 V (nominal) |
100 |
Device plug DT04 4-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
SCP02-010-B7-0E |
0 … 010 bar |
1 … 6 V (nominal) |
1 |
Device plug DT04 3-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
SCP02-010-B7-0EQ9 |
0 … 010 bar |
1 … 6 V (nominal) |
100 |
Device plug DT04 3-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
SCP02-010-B8-00 |
0 … 010 bar |
1 … 6 V (nominal) |
1 |
Stationary cable 1 m |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
SCP02-010-B8-00Q9 |
0 … 010 bar |
1 … 6 V (nominal) |
100 |
Stationary cable 1 m |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
SCP02-010-B8-05 |
0 … 010 bar |
1 … 6 V (nominal) |
1 |
Circular connector M12x1 5-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
SCP02-010-B8-05Q9 |
0 … 010 bar |
1 … 6 V (nominal) |
100 |
Circular connector M12x1 5-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
SCP02-010-B8-0A |
0 … 010 bar |
1 … 6 V (nominal) |
1 |
Device plug AMP Superseal |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
SCP02-010-B8-0AQ9 |
0 … 010 bar |
1 … 6 V (nominal) |
100 |
Device plug AMP Superseal |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
SCP02-010-B8-0D |
0 … 010 bar |
1 … 6 V (nominal) |
1 |
Device plug DT04 4-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
SCP02-010-B8-0DQ9 |
0 … 010 bar |
1 … 6 V (nominal) |
100 |
Device plug DT04 4-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
SCP02-010-B8-0E |
0 … 010 bar |
1 … 6 V (nominal) |
1 |
Device plug DT04 3-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
SCP02-010-B8-0EQ9 |
0 … 010 bar |
1 … 6 V (nominal) |
100 |
Device plug DT04 3-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
部件號 |
工作壓力 |
輸出類型 |
數量 / 箱 |
電氣連接 |
端口類型 |
端口尺寸 |
SCP02-010-K4-05 |
0 … 010 bar |
CAN Open |
1 |
Circular connector M12x1 5-pole |
BSPP |
G 1/4" BSPP |
SCP02-010-K4-05Q9 |
0 … 010 bar |
CAN Open |
100 |
Circular connector M12x1 5-pole |
BSPP |
G 1/4" BSPP |
SCP02-010-K5-05 |
0 … 010 bar |
CAN Open |
1 |
Circular connector M12x1 5-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
SCP02-010-K5-05Q9 |
0 … 010 bar |
CAN Open |
100 |
Circular connector M12x1 5-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
SCP02-010-K6-05 |
0 … 010 bar |
CAN Open |
1 |
Circular connector M12x1 5-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
SCP02-010-K6-05Q9 |
0 … 010 bar |
CAN Open |
100 |
Circular connector M12x1 5-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
SCP02-010-K7-05 |
0 … 010 bar |
CAN Open |
1 |
Circular connector M12x1 5-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
SCP02-010-K7-05Q9 |
0 … 010 bar |
CAN Open |
100 |
Circular connector M12x1 5-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
SCP02-010-K8-05 |
0 … 010 bar |
CAN Open |
1 |
Circular connector M12x1 5-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
SCP02-010-K8-05Q9 |
0 … 010 bar |
CAN Open |
100 |
Circular connector M12x1 5-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
SCP02-010-R4-00 |
0 … 010 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Stationary cable 1 m |
BSPP |
G 1/4" BSPP |
SCP02-010-R4-00Q9 |
0 … 010 bar |
0,5 … 4,5 V (ratiometric) |
100 |
Stationary cable 1 m |
BSPP |
G 1/4" BSPP |
SCP02-010-R4-05 |
0 … 010 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Circular connector M12x1 5-pole |
BSPP |
G 1/4" BSPP |
SCP02-010-R4-05Q9 |
0 … 010 bar |
0,5 … 4,5 V (ratiometric) |
100 |
Circular connector M12x1 5-pole |
BSPP |
G 1/4" BSPP |
SCP02-010-R4-0A |
0 … 010 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Device plug AMP Superseal |
BSPP |
G 1/4" BSPP |
SCP02-010-R4-0AQ9 |
0 … 010 bar |
0,5 … 4,5 V (ratiometric) |
100 |
Device plug AMP Superseal |
BSPP |
G 1/4" BSPP |
SCP02-010-R4-0D |
0 … 010 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Device plug DT04 4-pole |
BSPP |
G 1/4" BSPP |
SCP02-010-R4-0DQ9 |
0 … 010 bar |
0,5 … 4,5 V (ratiometric) |
100 |
Device plug DT04 4-pole |
BSPP |
G 1/4" BSPP |
SCP02-010-R4-0E |
0 … 010 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Device plug DT04 3-pole |
BSPP |
G 1/4" BSPP |
SCP02-010-R4-0EQ9 |
0 … 010 bar |
0,5 … 4,5 V (ratiometric) |
100 |
Device plug DT04 3-pole |
BSPP |
G 1/4" BSPP |
SCP02-010-R5-00 |
0 … 010 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Stationary cable 1 m |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
SCP02-010-R5-00Q9 |
0 … 010 bar |
0,5 … 4,5 V (ratiometric) |
100 |
Stationary cable 1 m |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
SCP02-010-R5-05 |
0 … 010 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Circular connector M12x1 5-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
SCP02-010-R5-05Q9 |
0 … 010 bar |
0,5 … 4,5 V (ratiometric) |
100 |
Circular connector M12x1 5-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
SCP02-010-R5-0A |
0 … 010 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Device plug AMP Superseal |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
SCP02-010-R5-0AQ9 |
0 … 010 bar |
0,5 … 4,5 V (ratiometric) |
100 |
Device plug AMP Superseal |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
SCP02-010-R5-0D |
0 … 010 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Device plug DT04 4-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
SCP02-010-R5-0DQ9 |
0 … 010 bar |
0,5 … 4,5 V (ratiometric) |
100 |
Device plug DT04 4-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
SCP02-010-R5-0E |
0 … 010 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Device plug DT04 3-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
SCP02-010-R5-0EQ9 |
0 … 010 bar |
0,5 … 4,5 V (ratiometric) |
100 |
Device plug DT04 3-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
SCP02-010-R6-00 |
0 … 010 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Stationary cable 1 m |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
SCP02-010-R6-00Q9 |
0 … 010 bar |
0,5 … 4,5 V (ratiometric) |
100 |
Stationary cable 1 m |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
SCP02-010-R6-05 |
0 … 010 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Circular connector M12x1 5-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
SCP02-010-R6-05Q9 |
0 … 010 bar |
0,5 … 4,5 V (ratiometric) |
100 |
Circular connector M12x1 5-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
SCP02-010-R6-0A |
0 … 010 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Device plug AMP Superseal |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
SCP02-010-R6-0AQ9 |
0 … 010 bar |
0,5 … 4,5 V (ratiometric) |
100 |
Device plug AMP Superseal |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
SCP02-010-R6-0D |
0 … 010 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Device plug DT04 4-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
SCP02-010-R6-0DQ9 |
0 … 010 bar |
0,5 … 4,5 V (ratiometric) |
100 |
Device plug DT04 4-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
SCP02-010-R6-0E |
0 … 010 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Device plug DT04 3-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
SCP02-010-R6-0EQ9 |
0 … 010 bar |
0,5 … 4,5 V (ratiometric) |
100 |
Device plug DT04 3-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
SCP02-010-R7-00 |
0 … 010 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Stationary cable 1 m |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
SCP02-010-R7-00Q9 |
0 … 010 bar |
0,5 … 4,5 V (ratiometric) |
100 |
Stationary cable 1 m |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
SCP02-010-R7-05 |
0 … 010 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Circular connector M12x1 5-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
SCP02-010-R7-05Q9 |
0 … 010 bar |
0,5 … 4,5 V (ratiometric) |
100 |
Circular connector M12x1 5-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
SCP02-010-R7-0A |
0 … 010 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Device plug AMP Superseal |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
SCP02-010-R7-0AQ9 |
0 … 010 bar |
0,5 … 4,5 V (ratiometric) |
100 |
Device plug AMP Superseal |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
SCP02-010-R7-0D |
0 … 010 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Device plug DT04 4-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
SCP02-010-R7-0DQ9 |
0 … 010 bar |
0,5 … 4,5 V (ratiometric) |
100 |
Device plug DT04 4-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
SCP02-010-R7-0E |
0 … 010 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Device plug DT04 3-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
SCP02-010-R7-0EQ9 |
0 … 010 bar |
0,5 … 4,5 V (ratiometric) |
100 |
Device plug DT04 3-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
部件號 |
工作壓力 |
輸出類型 |
數量 / 箱 |
電氣連接 |
端口類型 |
端口尺寸 |
SCP02-025-28-00 |
0 … 025 bar |
4 … 20 mA (3-wire) |
1 |
Stationary cable 1 m |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
SCP02-025-28-00Q9 |
0 … 025 bar |
4 … 20 mA (3-wire) |
100 |
Stationary cable 1 m |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
SCP02-025-28-05 |
0 … 025 bar |
4 … 20 mA (3-wire) |
1 |
Circular connector M12x1 5-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
SCP02-025-28-05Q9 |
0 … 025 bar |
4 … 20 mA (3-wire) |
100 |
Circular connector M12x1 5-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
SCP02-025-28-0A |
0 … 025 bar |
4 … 20 mA (3-wire) |
1 |
Device plug AMP Superseal |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
SCP02-025-28-0AQ9 |
0 … 025 bar |
4 … 20 mA (3-wire) |
100 |
Device plug AMP Superseal |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
SCP02-025-28-0D |
0 … 025 bar |
4 … 20 mA (3-wire) |
1 |
Device plug DT04 4-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
SCP02-025-28-0DQ9 |
0 … 025 bar |
4 … 20 mA (3-wire) |
100 |
Device plug DT04 4-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
SCP02-025-28-0E |
0 … 025 bar |
4 … 20 mA (3-wire) |
1 |
Device plug DT04 3-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
SCP02-025-28-0EQ9 |
0 … 025 bar |
4 … 20 mA (3-wire) |
100 |
Device plug DT04 3-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
SCP02-025-34-00 |
0 … 025 bar |
4 … 20 mA (2-wire) |
1 |
Stationary cable 1 m |
BSPP |
G 1/4" BSPP |
SCP02-025-34-00Q9 |
0 … 025 bar |
4 … 20 mA (2-wire) |
100 |
Stationary cable 1 m |
BSPP |
G 1/4" BSPP |
SCP02-025-34-05 |
0 … 025 bar |
4 … 20 mA (2-wire) |
1 |
Circular connector M12x1 5-pole |
BSPP |
G 1/4" BSPP |
SCP02-025-34-05Q9 |
0 … 025 bar |
4 … 20 mA (2-wire) |
100 |
Circular connector M12x1 5-pole |
BSPP |
G 1/4" BSPP |
SCP02-025-34-0A |
0 … 025 bar |
4 … 20 mA (2-wire) |
1 |
Device plug AMP Superseal |
BSPP |
G 1/4" BSPP |
SCP02-025-34-0AQ9 |
0 … 025 bar |
4 … 20 mA (2-wire) |
100 |
Device plug AMP Superseal |
BSPP |
G 1/4" BSPP |
SCP02-025-34-0D |
0 … 025 bar |
4 … 20 mA (2-wire) |
1 |
Device plug DT04 4-pole |
BSPP |
G 1/4" BSPP |
SCP02-025-34-0DQ9 |
0 … 025 bar |
4 … 20 mA (2-wire) |
100 |
Device plug DT04 4-pole |
BSPP |
G 1/4" BSPP |
SCP02-025-34-0E |
0 … 025 bar |
4 … 20 mA (2-wire) |
1 |
Device plug DT04 3-pole |
BSPP |
G 1/4" BSPP |
SCP02-025-34-0EQ9 |
0 … 025 bar |
4 … 20 mA (2-wire) |
100 |
Device plug DT04 3-pole |
BSPP |
G 1/4" BSPP |
SCP02-025-35-00 |
0 … 025 bar |
4 … 20 mA (2-wire) |
1 |
Stationary cable 1 m |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
SCP02-025-35-00Q9 |
0 … 025 bar |
4 … 20 mA (2-wire) |
100 |
Stationary cable 1 m |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
SCP02-025-35-05 |
0 … 025 bar |
4 … 20 mA (2-wire) |
1 |
Circular connector M12x1 5-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
SCP02-025-35-05Q9 |
0 … 025 bar |
4 … 20 mA (2-wire) |
100 |
Circular connector M12x1 5-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
SCP02-025-35-0A |
0 … 025 bar |
4 … 20 mA (2-wire) |
1 |
Device plug AMP Superseal |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
SCP02-025-35-0AQ9 |
0 … 025 bar |
4 … 20 mA (2-wire) |
100 |
Device plug AMP Superseal |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
SCP02-025-35-0D |
0 … 025 bar |
4 … 20 mA (2-wire) |
1 |
Device plug DT04 4-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
SCP02-025-35-0DQ9 |
0 … 025 bar |
4 … 20 mA (2-wire) |
100 |
Device plug DT04 4-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
SCP02-025-35-0E |
0 … 025 bar |
4 … 20 mA (2-wire) |
1 |
Device plug DT04 3-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
SCP02-025-35-0EQ9 |
0 … 025 bar |
4 … 20 mA (2-wire) |
100 |
Device plug DT04 3-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
SCP02-025-36-00 |
0 … 025 bar |
4 … 20 mA (2-wire) |
1 |
Stationary cable 1 m |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
SCP02-025-36-00Q9 |
0 … 025 bar |
4 … 20 mA (2-wire) |
100 |
Stationary cable 1 m |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
SCP02-025-36-05 |
0 … 025 bar |
4 … 20 mA (2-wire) |
1 |
Circular connector M12x1 5-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
SCP02-025-36-05Q9 |
0 … 025 bar |
4 … 20 mA (2-wire) |
100 |
Circular connector M12x1 5-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
SCP02-025-36-0A |
0 … 025 bar |
4 … 20 mA (2-wire) |
1 |
Device plug AMP Superseal |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
SCP02-025-36-0AQ9 |
0 … 025 bar |
4 … 20 mA (2-wire) |
100 |
Device plug AMP Superseal |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
SCP02-025-36-0D |
0 … 025 bar |
4 … 20 mA (2-wire) |
1 |
Device plug DT04 4-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
SCP02-025-36-0DQ9 |
0 … 025 bar |
4 … 20 mA (2-wire) |
100 |
Device plug DT04 4-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
SCP02-025-36-0E |
0 … 025 bar |
4 … 20 mA (2-wire) |
1 |
Device plug DT04 3-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
SCP02-025-36-0EQ9 |
0 … 025 bar |
4 … 20 mA (2-wire) |
100 |
Device plug DT04 3-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
SCP02-025-37-00 |
0 … 025 bar |
4 … 20 mA (2-wire) |
1 |
Stationary cable 1 m |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
SCP02-025-37-00Q9 |
0 … 025 bar |
4 … 20 mA (2-wire) |
100 |
Stationary cable 1 m |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
SCP02-025-37-05 |
0 … 025 bar |
4 … 20 mA (2-wire) |
1 |
Circular connector M12x1 5-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
SCP02-025-37-05Q9 |
0 … 025 bar |
4 … 20 mA (2-wire) |
100 |
Circular connector M12x1 5-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
SCP02-025-37-0A |
0 … 025 bar |
4 … 20 mA (2-wire) |
1 |
Device plug AMP Superseal |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
SCP02-025-37-0AQ9 |
0 … 025 bar |
4 … 20 mA (2-wire) |
100 |
Device plug AMP Superseal |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
SCP02-025-37-0D |
0 … 025 bar |
4 … 20 mA (2-wire) |
1 |
Device plug DT04 4-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
SCP02-025-37-0DQ9 |
0 … 025 bar |
4 … 20 mA (2-wire) |
100 |
Device plug DT04 4-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
SCP02-025-37-0E |
0 … 025 bar |
4 … 20 mA (2-wire) |
1 |
Device plug DT04 3-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
SCP02-025-37-0EQ9 |
0 … 025 bar |
4 … 20 mA (2-wire) |
100 |
Device plug DT04 3-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
部件號 |
工作壓力 |
輸出類型 |
數量 / 箱 |
電氣連接 |
端口類型 |
端口尺寸 |
SCP02-025-38-00 |
0 … 025 bar |
4 … 20 mA (2-wire) |
1 |
Stationary cable 1 m |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
SCP02-025-38-00Q9 |
0 … 025 bar |
4 … 20 mA (2-wire) |
100 |
Stationary cable 1 m |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
SCP02-025-38-05 |
0 … 025 bar |
4 … 20 mA (2-wire) |
1 |
Circular connector M12x1 5-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
SCP02-025-38-05Q9 |
0 … 025 bar |
4 … 20 mA (2-wire) |
100 |
Circular connector M12x1 5-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
SCP02-025-38-0A |
0 … 025 bar |
4 … 20 mA (2-wire) |
1 |
Device plug AMP Superseal |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
SCP02-025-38-0AQ9 |
0 … 025 bar |
4 … 20 mA (2-wire) |
100 |
Device plug AMP Superseal |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
SCP02-025-38-0D |
0 … 025 bar |
4 … 20 mA (2-wire) |
1 |
Device plug DT04 4-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
SCP02-025-38-0DQ9 |
0 … 025 bar |
4 … 20 mA (2-wire) |
100 |
Device plug DT04 4-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
SCP02-025-38-0E |
0 … 025 bar |
4 … 20 mA (2-wire) |
1 |
Device plug DT04 3-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
SCP02-025-38-0EQ9 |
0 … 025 bar |
4 … 20 mA (2-wire) |
100 |
Device plug DT04 3-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
SCP02-025-44-00 |
0 … 025 bar |
0 … 10 V |
1 |
Stationary cable 1 m |
BSPP |
G 1/4" BSPP |
SCP02-025-44-00Q9 |
0 … 025 bar |
0 … 10 V |
100 |
Stationary cable 1 m |
BSPP |
G 1/4" BSPP |
SCP02-025-44-05 |
0 … 025 bar |
0 … 10 V |
1 |
Circular connector M12x1 5-pole |
BSPP |
G 1/4" BSPP |
SCP02-025-44-05Q9 |
0 … 025 bar |
0 … 10 V |
100 |
Circular connector M12x1 5-pole |
BSPP |
G 1/4" BSPP |
SCP02-025-44-0A |
0 … 025 bar |
0 … 10 V |
1 |
Device plug AMP Superseal |
BSPP |
G 1/4" BSPP |
SCP02-025-44-0AQ9 |
0 … 025 bar |
0 … 10 V |
100 |
Device plug AMP Superseal |
BSPP |
G 1/4" BSPP |
SCP02-025-44-0D |
0 … 025 bar |
0 … 10 V |
1 |
Device plug DT04 4-pole |
BSPP |
G 1/4" BSPP |
SCP02-025-44-0DQ9 |
0 … 025 bar |
0 … 10 V |
100 |
Device plug DT04 4-pole |
BSPP |
G 1/4" BSPP |
SCP02-025-44-0E |
0 … 025 bar |
0 … 10 V |
1 |
Device plug DT04 3-pole |
BSPP |
G 1/4" BSPP |
SCP02-025-44-0EQ9 |
0 … 025 bar |
0 … 10 V |
100 |
Device plug DT04 3-pole |
BSPP |
G 1/4" BSPP |
SCP02-025-45-00 |
0 … 025 bar |
0 … 10 V |
1 |
Stationary cable 1 m |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
SCP02-025-45-00Q9 |
0 … 025 bar |
0 … 10 V |
100 |
Stationary cable 1 m |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
SCP02-025-45-05 |
0 … 025 bar |
0 … 10 V |
1 |
Circular connector M12x1 5-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
SCP02-025-45-05Q9 |
0 … 025 bar |
0 … 10 V |
100 |
Circular connector M12x1 5-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
SCP02-025-45-0A |
0 … 025 bar |
0 … 10 V |
1 |
Device plug AMP Superseal |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
SCP02-025-45-0AQ9 |
0 … 025 bar |
0 … 10 V |
100 |
Device plug AMP Superseal |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
SCP02-025-45-0D |
0 … 025 bar |
0 … 10 V |
1 |
Device plug DT04 4-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
SCP02-025-45-0DQ9 |
0 … 025 bar |
0 … 10 V |
100 |
Device plug DT04 4-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
SCP02-025-45-0E |
0 … 025 bar |
0 … 10 V |
1 |
Device plug DT04 3-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
SCP02-025-45-0EQ9 |
0 … 025 bar |
0 … 10 V |
100 |
Device plug DT04 3-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
SCP02-025-46-00 |
0 … 025 bar |
0 … 10 V |
1 |
Stationary cable 1 m |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
SCP02-025-46-00Q9 |
0 … 025 bar |
0 … 10 V |
100 |
Stationary cable 1 m |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
SCP02-025-46-05 |
0 … 025 bar |
0 … 10 V |
1 |
Circular connector M12x1 5-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
SCP02-025-46-05Q9 |
0 … 025 bar |
0 … 10 V |
100 |
Circular connector M12x1 5-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
SCP02-025-46-0A |
0 … 025 bar |
0 … 10 V |
1 |
Device plug AMP Superseal |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
SCP02-025-46-0AQ9 |
0 … 025 bar |
0 … 10 V |
100 |
Device plug AMP Superseal |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
SCP02-025-46-0D |
0 … 025 bar |
0 … 10 V |
1 |
Device plug DT04 4-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
SCP02-025-46-0DQ9 |
0 … 025 bar |
0 … 10 V |
100 |
Device plug DT04 4-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
SCP02-025-46-0E |
0 … 025 bar |
0 … 10 V |
1 |
Device plug DT04 3-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
SCP02-025-46-0EQ9 |
0 … 025 bar |
0 … 10 V |
100 |
Device plug DT04 3-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
SCP02-025-47-00 |
0 … 025 bar |
0 … 10 V |
1 |
Stationary cable 1 m |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
SCP02-025-47-00Q9 |
0 … 025 bar |
0 … 10 V |
100 |
Stationary cable 1 m |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
SCP02-025-47-05 |
0 … 025 bar |
0 … 10 V |
1 |
Circular connector M12x1 5-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
SCP02-025-47-05Q9 |
0 … 025 bar |
0 … 10 V |
100 |
Circular connector M12x1 5-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
SCP02-025-47-0A |
0 … 025 bar |
0 … 10 V |
1 |
Device plug AMP Superseal |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
SCP02-025-47-0AQ9 |
0 … 025 bar |
0 … 10 V |
100 |
Device plug AMP Superseal |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
SCP02-025-47-0D |
0 … 025 bar |
0 … 10 V |
1 |
Device plug DT04 4-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
SCP02-025-47-0DQ9 |
0 … 025 bar |
0 … 10 V |
100 |
Device plug DT04 4-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
SCP02-025-47-0E |
0 … 025 bar |
0 … 10 V |
1 |
Device plug DT04 3-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
SCP02-025-47-0EQ9 |
0 … 025 bar |
0 … 10 V |
100 |
Device plug DT04 3-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
部件號 |
工作壓力 |
輸出類型 |
數量 / 箱 |
電氣連接 |
端口類型 |
端口尺寸 |
SCP02-025-48-00 |
0 … 025 bar |
0 … 10 V |
1 |
Stationary cable 1 m |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
SCP02-025-48-00Q9 |
0 … 025 bar |
0 … 10 V |
100 |
Stationary cable 1 m |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
SCP02-025-48-05 |
0 … 025 bar |
0 … 10 V |
1 |
Circular connector M12x1 5-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
SCP02-025-48-05Q9 |
0 … 025 bar |
0 … 10 V |
100 |
Circular connector M12x1 5-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
SCP02-025-48-0A |
0 … 025 bar |
0 … 10 V |
1 |
Device plug AMP Superseal |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
SCP02-025-48-0AQ9 |
0 … 025 bar |
0 … 10 V |
100 |
Device plug AMP Superseal |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
SCP02-025-48-0D |
0 … 025 bar |
0 … 10 V |
1 |
Device plug DT04 4-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
SCP02-025-48-0DQ9 |
0 … 025 bar |
0 … 10 V |
100 |
Device plug DT04 4-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
SCP02-025-48-0E |
0 … 025 bar |
0 … 10 V |
1 |
Device plug DT04 3-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
SCP02-025-48-0EQ9 |
0 … 025 bar |
0 … 10 V |
100 |
Device plug DT04 3-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
SCP02-025-A4-00 |
0 … 025 bar |
0 … 5 V |
1 |
Stationary cable 1 m |
BSPP |
G 1/4" BSPP |
SCP02-025-A4-00Q9 |
0 … 025 bar |
0 … 5 V |
100 |
Stationary cable 1 m |
BSPP |
G 1/4" BSPP |
SCP02-025-A4-05 |
0 … 025 bar |
0 … 5 V |
1 |
Circular connector M12x1 5-pole |
BSPP |
G 1/4" BSPP |
SCP02-025-A4-05Q9 |
0 … 025 bar |
0 … 5 V |
100 |
Circular connector M12x1 5-pole |
BSPP |
G 1/4" BSPP |
SCP02-025-A4-0A |
0 … 025 bar |
0 … 5 V |
1 |
Device plug AMP Superseal |
BSPP |
G 1/4" BSPP |
SCP02-025-A4-0AQ9 |
0 … 025 bar |
0 … 5 V |
100 |
Device plug AMP Superseal |
BSPP |
G 1/4" BSPP |
SCP02-025-A4-0D |
0 … 025 bar |
0 … 5 V |
1 |
Device plug DT04 4-pole |
BSPP |
G 1/4" BSPP |
SCP02-025-A4-0DQ9 |
0 … 025 bar |
0 … 5 V |
100 |
Device plug DT04 4-pole |
BSPP |
G 1/4" BSPP |
SCP02-025-A4-0E |
0 … 025 bar |
0 … 5 V |
1 |
Device plug DT04 3-pole |
BSPP |
G 1/4" BSPP |
SCP02-025-A4-0EQ9 |
0 … 025 bar |
0 … 5 V |
100 |
Device plug DT04 3-pole |
BSPP |
G 1/4" BSPP |
SCP02-025-A5-00 |
0 … 025 bar |
0 … 5 V |
1 |
Stationary cable 1 m |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
SCP02-025-A5-00Q9 |
0 … 025 bar |
0 … 5 V |
100 |
Stationary cable 1 m |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
SCP02-025-A5-05 |
0 … 025 bar |
0 … 5 V |
1 |
Circular connector M12x1 5-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
SCP02-025-A5-05Q9 |
0 … 025 bar |
0 … 5 V |
100 |
Circular connector M12x1 5-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
SCP02-025-A5-0A |
0 … 025 bar |
0 … 5 V |
1 |
Device plug AMP Superseal |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
SCP02-025-A5-0AQ9 |
0 … 025 bar |
0 … 5 V |
100 |
Device plug AMP Superseal |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
SCP02-025-A5-0D |
0 … 025 bar |
0 … 5 V |
1 |
Device plug DT04 4-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
SCP02-025-A5-0DQ9 |
0 … 025 bar |
0 … 5 V |
100 |
Device plug DT04 4-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
SCP02-025-A5-0E |
0 … 025 bar |
0 … 5 V |
1 |
Device plug DT04 3-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
SCP02-025-A5-0EQ9 |
0 … 025 bar |
0 … 5 V |
100 |
Device plug DT04 3-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
SCP02-025-A6-00 |
0 … 025 bar |
0 … 5 V |
1 |
Stationary cable 1 m |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
SCP02-025-A6-00Q9 |
0 … 025 bar |
0 … 5 V |
100 |
Stationary cable 1 m |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
SCP02-025-A6-05 |
0 … 025 bar |
0 … 5 V |
1 |
Circular connector M12x1 5-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
SCP02-025-A6-05Q9 |
0 … 025 bar |
0 … 5 V |
100 |
Circular connector M12x1 5-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
SCP02-025-A6-0A |
0 … 025 bar |
0 … 5 V |
1 |
Device plug AMP Superseal |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
SCP02-025-A6-0AQ9 |
0 … 025 bar |
0 … 5 V |
100 |
Device plug AMP Superseal |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
SCP02-025-A6-0D |
0 … 025 bar |
0 … 5 V |
1 |
Device plug DT04 4-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
SCP02-025-A6-0DQ9 |
0 … 025 bar |
0 … 5 V |
100 |
Device plug DT04 4-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
SCP02-025-A6-0E |
0 … 025 bar |
0 … 5 V |
1 |
Device plug DT04 3-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
SCP02-025-A6-0EQ9 |
0 … 025 bar |
0 … 5 V |
100 |
Device plug DT04 3-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
SCP02-025-A7-00 |
0 … 025 bar |
0 … 5 V |
1 |
Stationary cable 1 m |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
SCP02-025-A7-00Q9 |
0 … 025 bar |
0 … 5 V |
100 |
Stationary cable 1 m |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
SCP02-025-A7-05 |
0 … 025 bar |
0 … 5 V |
1 |
Circular connector M12x1 5-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
SCP02-025-A7-05Q9 |
0 … 025 bar |
0 … 5 V |
100 |
Circular connector M12x1 5-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
SCP02-025-A7-0A |
0 … 025 bar |
0 … 5 V |
1 |
Device plug AMP Superseal |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
SCP02-025-A7-0AQ9 |
0 … 025 bar |
0 … 5 V |
100 |
Device plug AMP Superseal |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
SCP02-025-A7-0D |
0 … 025 bar |
0 … 5 V |
1 |
Device plug DT04 4-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
SCP02-025-A7-0DQ9 |
0 … 025 bar |
0 … 5 V |
100 |
Device plug DT04 4-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
SCP02-025-A7-0E |
0 … 025 bar |
0 … 5 V |
1 |
Device plug DT04 3-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
SCP02-025-A7-0EQ9 |
0 … 025 bar |
0 … 5 V |
100 |
Device plug DT04 3-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
|
fcg.cnmec@parkerdistribution.com.cn
