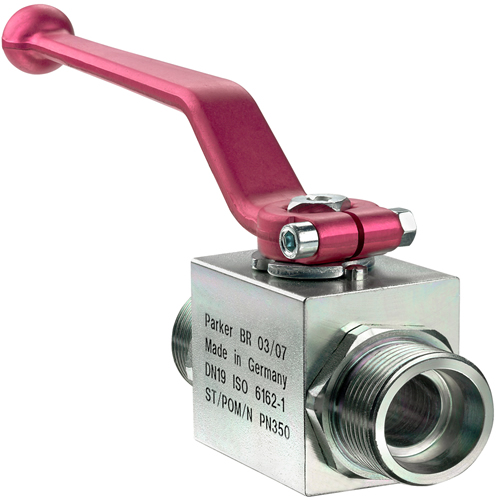

Parker 派克2位2通球閥Parker 2-way ball valves
Parker派克二通球閥
派克2位2通球閥可關斷或重新開啟系統介質流動。這類球閥全球通用，可選配手柄鎖定裝置，防止意外打開或關閉，以更好地保證整個液壓系統的安全性。派克2位2通球閥可關斷或重新開啟系統介質流動。這類球閥全球通用，可選配手柄鎖定裝置，防止意外打開或關閉，以更好地保證整個液壓系統的安全性。帶機械定位或緊固孔等功能的球閥也在開發之中。2/2-way ball valves interrupt or facilitate the medium flow. These valves, available worldwide, can be optionally equipped with a locking device to avoid unauthorized opening and shut-off; they support the safety of the entire system.
Parker派克二通球閥
Parker 派克2位2通球閥2-way ball valve
市場
- 農用機械Agriculture
- 行走機械Mobile hydraulics
- 空氣/氣體壓縮機Air & Gas Compressors
- 海工和造船Offshore and Shipbuilding
- 建筑機械Construction Machinery
- 鐵路工業Railway Industry
- 卡車Trucks
- 天然氣 Natural Gas
應用
- 適用于通用液壓系統。Suitable for general hydraulic application
特征/優勢
- 極好的密封性能和易操作系統使得整個液壓系統的安全性得以提升。
- 派克2位2通球閥質量穩定可靠，保證了整個液壓單元的安全性。
- 供貨范圍：2位2通球閥本體可選碳鋼和不銹鋼兩種材料，其密封材料也多種多樣，如NBR和POM等。這些材料的組合使得該球閥系列可最大程度地滿足客戶的需求。
- 碳鋼2位2通球閥表面處理采用無六價鉻鍍鋅，無污染，對環境非常無害，且具有很高的防腐蝕性能。此特性使得該產品擁有更長的使用壽命。
性能特點
標稱直徑 (DN) 4 至 50
連接尺寸 G 1/8 至 G 11/2; 1/8-27 NPT 至 1 1/2-11.5 NPT
連接尺寸 2 G 1/8 至 G 11/2; 1/8-27 NPT 至 1 1/2-11.5 NPT
連接 1 管道外徑 (MM) 06 至 42
連接 2 管道外徑 (MM) 06 至 42
形狀 二通球閥，二通BSPP球閥，二通NPT球閥
連接 1 樣式 24°錐尾端，BSPP內螺紋(ISO 1179-1)，NPT內螺紋(SAE 476)
連接 2 樣式 24°錐尾端，BSPP內螺紋(ISO 1179-1)，NPT內螺紋(SAE 476)
預裝選配附件 無，預先裝配螺母和EO-PSR卡套，預先裝配EO-2功能螺母，預先裝配螺母和EO-DPR不銹鋼卡套
材料 碳鋼DIN 50938-FE//A/T4，碳鋼DIN 50938-FE//A/T5，碳鋼DIN 50938-FE//A/T6，碳鋼帶無六價鉻鍍鋅，不銹鋼
產品資料COMPLIANCE, CERTIFICATIONS, & SAFETY
ABS Certificate HN-2096093-X0001 for Manufacturing Assessment
Bureau Veritas Certificate for Ermeto Original product range
CSS China Classification Society Approval
DVGW DG-4502AR0945 for EO-2
Det Norske Veritas P-14319 for Ball Valves
Germanischer Lloyd 47117-03 HH for EO2-FORM
REACH HPDE Declaration--July 2017
Russian Maritime Register of Shipping Certificate for fittings
LITERATURE AND REFERENCE MATERIALS
- 2-way ball valves
CAT-4100-UK - Industrial Tube Fittings
How to assembly Parkrimp No-Skive Hose KK1-KK2--WC4400-10_UK
How to make Parkrimp No-Skive hose assemblies with a Parkrimp 2 --WC4400-11_UK
How to order hydraulic hose and fittings
Hydraulic Hose Fittings Overview--WC4400-1_UK
Hydraulic Hose Fittings Pressure Rating--WC4400-3_UK
Industrial Tube Fittings Catalogue
Parkrimp No-Skive Crimp Dimensions Wall Chart--WC4400-4/UK-DE-FR
Part |
Shape |
Series |
Connection 1 Style |
Connection 2 Style |
Connection 1 Tube O.D. (mm) |
Connection 2 Tube O.D. (mm) |
Connection Size |
Connection Size 2 |
Diameter Nominal (DN) |
Material |
Pre-Installed Optional Accessories |
KH06L |
2-way ball valve |
Light |
24° cone end |
24° cone end |
6 |
6 |
na |
na |
4 |
Steel DIN 50938-FE//A/T5 |
Pre-assembled with nut and EO-PSR cutting ring |
KH06L71 |
2-way ball valve |
Light |
24° cone end |
24° cone end |
6 |
6 |
na |
na |
4 |
Stainless steel |
Pre-assembled with nut and EO-DPR cutting ring |
KH06L71X |
2-way ball valve |
Light |
24° cone end |
24° cone end |
6 |
6 |
na |
na |
4 |
Stainless steel |
na |
KH06LCF |
2-way ball valve |
Light |
24° cone end |
24° cone end |
6 |
6 |
na |
na |
4 |
Steel, zinc plated, Cr(VI)-free |
Pre-assembled with nut and EO-PSR cutting ring |
KH06LCFX |
2-way ball valve |
Light |
24° cone end |
24° cone end |
6 |
6 |
na |
na |
4 |
Steel, zinc plated, Cr(VI)-free |
na |
KH06LX |
2-way ball valve |
Light |
24° cone end |
24° cone end |
6 |
6 |
na |
na |
4 |
Steel DIN 50938-FE//A/T4 |
na |
KH06ZL |
2-way ball valve |
Light |
24° cone end |
24° cone end |
6 |
6 |
na |
na |
4 |
Steel DIN 50938-FE//A/T6 |
Pre-assembled with EO-2 functional nut |
KH06ZL71 |
2-way ball valve |
Light |
24° cone end |
24° cone end |
6 |
6 |
na |
na |
4 |
Stainless steel |
Pre-assembled with EO-2 functional nut |
KH06ZLCF |
2-way ball valve |
Light |
24° cone end |
24° cone end |
6 |
6 |
na |
na |
4 |
Steel, zinc plated, Cr(VI)-free |
Pre-assembled with EO-2 functional nut |
KH08L |
2-way ball valve |
Light |
24° cone end |
24° cone end |
8 |
8 |
na |
na |
6 |
Steel DIN 50938-FE//A/T5 |
Pre-assembled with nut and EO-PSR cutting ring |
KH08L71 |
2-way ball valve |
Light |
24° cone end |
24° cone end |
8 |
8 |
na |
na |
6 |
Stainless steel |
Pre-assembled with nut and EO-DPR cutting ring |
KH08L71X |
2-way ball valve |
Light |
24° cone end |
24° cone end |
8 |
8 |
na |
na |
6 |
Stainless steel |
na |
KH08LCF |
2-way ball valve |
Light |
24° cone end |
24° cone end |
8 |
8 |
na |
na |
6 |
Steel, zinc plated, Cr(VI)-free |
Pre-assembled with nut and EO-PSR cutting ring |
KH08LCFX |
2-way ball valve |
Light |
24° cone end |
24° cone end |
8 |
8 |
na |
na |
6 |
Steel, zinc plated, Cr(VI)-free |
na |
KH08LX |
2-way ball valve |
Light |
24° cone end |
24° cone end |
8 |
8 |
na |
na |
6 |
Steel DIN 50938-FE//A/T4 |
na |
KH08S |
2-way ball valve |
Heavy |
24° cone end |
24° cone end |
8 |
8 |
na |
na |
4 |
Steel DIN 50938-FE//A/T5 |
Pre-assembled with nut and EO-PSR cutting ring |
KH08S71 |
2-way ball valve |
Heavy |
24° cone end |
24° cone end |
8 |
8 |
na |
na |
4 |
Stainless steel |
Pre-assembled with nut and EO-DPR cutting ring |
KH08S71X |
2-way ball valve |
Heavy |
24° cone end |
24° cone end |
8 |
8 |
na |
na |
4 |
Stainless steel |
na |
KH08SCF |
2-way ball valve |
Heavy |
24° cone end |
24° cone end |
8 |
8 |
na |
na |
4 |
Steel, zinc plated, Cr(VI)-free |
Pre-assembled with nut and EO-PSR cutting ring |
KH08SCFX |
2-way ball valve |
Heavy |
24° cone end |
24° cone end |
8 |
8 |
na |
na |
4 |
Steel, zinc plated, Cr(VI)-free |
na |
KH08SX |
2-way ball valve |
Heavy |
24° cone end |
24° cone end |
8 |
8 |
na |
na |
4 |
Steel DIN 50938-FE//A/T4 |
na |
KH08ZL |
2-way ball valve |
Light |
24° cone end |
24° cone end |
8 |
8 |
na |
na |
6 |
Steel DIN 50938-FE//A/T6 |
Pre-assembled with EO-2 functional nut |
KH08ZL71 |
2-way ball valve |
Light |
24° cone end |
24° cone end |
8 |
8 |
na |
na |
6 |
Stainless steel |
Pre-assembled with EO-2 functional nut |
KH08ZLCF |
2-way ball valve |
Light |
24° cone end |
24° cone end |
8 |
8 |
na |
na |
6 |
Steel, zinc plated, Cr(VI)-free |
Pre-assembled with EO-2 functional nut |
KH08ZS |
2-way ball valve |
Heavy |
24° cone end |
24° cone end |
8 |
8 |
na |
na |
|
|
|
Part |
Shape |
Series |
Connection 1 Style |
Connection 2 Style |
Connection 1 Tube O.D. (mm) |
Connection 2 Tube O.D. (mm) |
Connection Size |
Connection Size 2 |
Diameter Nominal (DN) |
Material |
Pre-Installed Optional Accessories |
KH08ZS71 |
2-way ball valve |
Heavy |
24° cone end |
24° cone end |
8 |
8 |
na |
na |
4 |
Stainless steel |
Pre-assembled with EO-2 functional nut |
KH08ZSCF |
2-way ball valve |
Heavy |
24° cone end |
24° cone end |
8 |
8 |
na |
na |
4 |
Steel, zinc plated, Cr(VI)-free |
Pre-assembled with EO-2 functional nut |
KH1/271X |
2-way BSPP ball valve |
na |
Female BSPP thread (ISO 1179-1) |
Female BSPP thread (ISO 1179-1) |
na |
na |
G 1/2 |
G 1/2 |
12 |
Stainless steel |
na |
KH1/2CFX |
2-way BSPP ball valve |
na |
Female BSPP thread (ISO 1179-1) |
Female BSPP thread (ISO 1179-1) |
na |
na |
G 1/2 |
G 1/2 |
12 |
Steel, zinc plated, Cr(VI)-free |
na |
KH1/2NPT71X |
2-way NPT ball valve |
na |
Female NPT thread (SAE 476) |
Female NPT thread (SAE 476) |
na |
na |
1/2-14 NPT |
1/2-14 NPT |
12 |
Stainless steel |
na |
KH1/2NPTCFX |
2-way NPT ball valve |
na |
Female NPT thread (SAE 476) |
Female NPT thread (SAE 476) |
na |
na |
1/2-14 NPT |
1/2-14 NPT |
12 |
Steel, zinc plated, Cr(VI)-free |
na |
KH1/2NPTX |
2-way NPT ball valve |
na |
Female NPT thread (SAE 476) |
Female NPT thread (SAE 476) |
na |
na |
1/2-14 NPT |
1/2-14 NPT |
12 |
Steel DIN 50938-FE//A/T4 |
na |
KH1/2X |
2-way BSPP ball valve |
na |
Female BSPP thread (ISO 1179-1) |
Female BSPP thread (ISO 1179-1) |
na |
na |
G 1/2 |
G 1/2 |
12 |
Steel DIN 50938-FE//A/T4 |
na |
KH1/471X |
2-way BSPP ball valve |
na |
Female BSPP thread (ISO 1179-1) |
Female BSPP thread (ISO 1179-1) |
na |
na |
G 1/4 |
G 1/4 |
6 |
Stainless steel |
na |
KH1/4CFX |
2-way BSPP ball valve |
na |
Female BSPP thread (ISO 1179-1) |
Female BSPP thread (ISO 1179-1) |
na |
na |
G 1/4 |
G 1/4 |
6 |
Steel, zinc plated, Cr(VI)-free |
na |
KH1/4NPT71X |
2-way NPT ball valve |
na |
Female NPT thread (SAE 476) |
Female NPT thread (SAE 476) |
na |
na |
1/4-18 NPT |
1/4-18 NPT |
6 |
Stainless steel |
na |
KH1/4NPTCFX |
2-way NPT ball valve |
na |
Female NPT thread (SAE 476) |
Female NPT thread (SAE 476) |
na |
na |
1/4-18 NPT |
1/4-18 NPT |
6 |
Steel, zinc plated, Cr(VI)-free |
na |
KH1/4NPTX |
2-way NPT ball valve |
na |
Female NPT thread (SAE 476) |
Female NPT thread (SAE 476) |
na |
na |
1/4-18 NPT |
1/4-18 NPT |
6 |
Steel DIN 50938-FE//A/T4 |
na |
KH1/4X |
2-way BSPP ball valve |
na |
Female BSPP thread (ISO 1179-1) |
Female BSPP thread (ISO 1179-1) |
na |
na |
G 1/4 |
G 1/4 |
6 |
Steel DIN 50938-FE//A/T4 |
na |
KH1/871X |
2-way BSPP ball valve |
na |
Female BSPP thread (ISO 1179-1) |
Female BSPP thread (ISO 1179-1) |
na |
na |
G 1/8 |
G 1/8 |
4 |
Stainless steel |
na |
KH1/8CFX |
2-way BSPP ball valve |
na |
Female BSPP thread (ISO 1179-1) |
Female BSPP thread (ISO 1179-1) |
na |
na |
G 1/8 |
G 1/8 |
4 |
Steel, zinc plated, Cr(VI)-free |
na |
KH1/8NPT71X |
2-way NPT ball valve |
na |
Female NPT thread (SAE 476) |
Female NPT thread (SAE 476) |
na |
na |
1/8.27NPT |
1/8.27NPT |
4 |
Stainless steel |
na |
KH1/8NPTCFX |
2-way NPT ball valve |
na |
Female NPT thread (SAE 476) |
Female NPT thread (SAE 476) |
na |
na |
1/8-27 NPT |
1/8-27 NPT |
4 |
Steel, zinc plated, Cr(VI)-free |
na |
KH1/8NPTX |
2-way NPT ball valve |
na |
Female NPT thread (SAE 476) |
Female NPT thread (SAE 476) |
na |
na |
1/8-27 NPT |
1/8-27 NPT |
4 |
Steel DIN 50938-FE//A/T4 |
na |
KH1/8X |
2-way BSPP ball valve |
na |
Female BSPP thread (ISO 1179-1) |
Female BSPP thread (ISO 1179-1) |
na |
na |
G1/8 |
G 1/8 |
4 |
Steel DIN 50938-FE//A/T4 |
na |
KH10L |
2-way ball valve |
Light |
24° cone end |
24° cone end |
10 |
10 |
na |
na |
8 |
Steel DIN 50938-FE//A/T5 |
Pre-assembled with nut and EO-PSR cutting ring |
KH10L71 |
2-way ball valve |
Light |
24° cone end |
24° cone end |
10 |
10 |
na |
na |
8 |
Stainless steel |
Pre-assembled with nut and EO-DPR cutting ring |
KH10L71X |
2-way ball valve |
Light |
24° cone end |
24° cone end |
10 |
10 |
na |
na |
8 |
Stainless steel |
na |
KH10LCF |
2-way ball valve |
Light |
24° cone end |
24° cone end |
10 |
10 |
na |
na |
8 |
Steel, zinc plated, Cr(VI)-free |
Pre-assembled with nut and EO-PSR cutting ring |
KH10LCFX |
2-way ball valve |
Light |
24° cone end |
24° cone end |
10 |
10 |
na |
na |
8 |
Steel, zinc plated, Cr(VI)-free |
na |
Part |
Shape |
Series |
Connection 1 Style |
Connection 2 Style |
Connection 1 Tube O.D. (mm) |
Connection 2 Tube O.D. (mm) |
Connection Size |
Connection Size 2 |
Diameter Nominal (DN) |
Material |
Pre-Installed Optional Accessories |
KH10LX |
2-way ball valve |
Light |
24° cone end |
24° cone end |
10 |
10 |
na |
na |
8 |
Steel DIN 50938-FE//A/T4 |
na |
KH10S |
2-way ball valve |
Heavy |
24° cone end |
24° cone end |
10 |
10 |
na |
na |
6 |
Steel DIN 50938-FE//A/T5 |
Pre-assembled with nut and EO-PSR cutting ring |
KH10S71 |
2-way ball valve |
Heavy |
24° cone end |
24° cone end |
10 |
10 |
na |
na |
6 |
Stainless steel |
Pre-assembled with nut and EO-DPR cutting ring |
KH10S71X |
2-way ball valve |
Heavy |
24° cone end |
24° cone end |
10 |
10 |
na |
na |
6 |
Stainless steel |
na |
KH10SCF |
2-way ball valve |
Heavy |
24° cone end |
24° cone end |
10 |
10 |
na |
na |
6 |
Steel, zinc plated, Cr(VI)-free |
Pre-assembled with nut and EO-PSR cutting ring |
KH10SCFX |
2-way ball valve |
Heavy |
24° cone end |
24° cone end |
10 |
10 |
na |
na |
6 |
Steel, zinc plated, Cr(VI)-free |
na |
KH10SX |
2-way ball valve |
Heavy |
24° cone end |
24° cone end |
10 |
10 |
na |
na |
6 |
Steel DIN 50938-FE//A/T4 |
na |
KH10ZL |
2-way ball valve |
Light |
24° cone end |
24° cone end |
10 |
10 |
na |
na |
8 |
Steel DIN 50938-FE//A/T6 |
Pre-assembled with EO-2 functional nut |
KH10ZL71 |
2-way ball valve |
Light |
24° cone end |
24° cone end |
10 |
10 |
na |
na |
8 |
Stainless steel |
Pre-assembled with EO-2 functional nut |
KH10ZLCF |
2-way ball valve |
Light |
24° cone end |
24° cone end |
10 |
10 |
na |
na |
8 |
Steel, zinc plated, Cr(VI)-free |
Pre-assembled with EO-2 functional nut |
KH10ZS |
2-way ball valve |
Heavy |
24° cone end |
24° cone end |
10 |
10 |
na |
na |
6 |
Steel DIN 50938-FE//A/T6 |
Pre-assembled with EO-2 functional nut |
KH10ZS71 |
2-way ball valve |
Heavy |
24° cone end |
24° cone end |
10 |
10 |
na |
na |
6 |
Stainless steel |
Pre-assembled with EO-2 functional nut |
KH10ZSCF |
2-way ball valve |
Heavy |
24° cone end |
24° cone end |
10 |
10 |
na |
na |
6 |
Steel, zinc plated, Cr(VI)-free |
Pre-assembled with EO-2 functional nut |
KH11/271X |
2-way BSPP ball valve |
na |
Female BSPP thread (ISO 1179-1) |
Female BSPP thread (ISO 1179-1) |
na |
na |
G 1 1/2 |
G 1 1/2 |
40 |
Stainless steel |
na |
KH11/2CFX |
2-way BSPP ball valve |
na |
Female BSPP thread (ISO 1179-1) |
Female BSPP thread (ISO 1179-1) |
na |
na |
G 1 1/2 |
G 1 1/2 |
40 |
Steel, zinc plated, Cr(VI)-free |
na |
KH11/2DN25CFX |
2-way BSPP ball valve |
na |
Female BSPP thread (ISO 1179-1) |
Female BSPP thread (ISO 1179-1) |
na |
na |
G 1 1/2 |
G 1 1/2 |
25 |
Steel, zinc plated, Cr(VI)-free |
na |
KH11/2DN25X |
2-way BSPP ball valve |
na |
Female BSPP thread (ISO 1179-1) |
Female BSPP thread (ISO 1179-1) |
na |
na |
G 1 1/2 |
G 1 1/2 |
25 |
Steel DIN 50938-FE//A/T4 |
na |
KH11/2NPT71X |
2-way NPT ball valve |
na |
Female NPT thread (SAE 476) |
Female NPT thread (SAE 476) |
na |
na |
1 1/2-11.5 NPT |
1 1/2-11.5 NPT |
40 |
Stainless steel |
na |
KH11/2NPTCFX |
2-way NPT ball valve |
na |
Female NPT thread (SAE 476) |
Female NPT thread (SAE 476) |
na |
na |
1 1/2-11.5 NPT |
1 1/2-11.5 NPT |
40 |
Steel, zinc plated, Cr(VI)-free |
na |
KH11/2NPTX |
2-way NPT ball valve |
na |
Female NPT thread (SAE 476) |
Female NPT thread (SAE 476) |
na |
na |
1 1/2-11.5 NPT |
1 1/2-11.5 NPT |
40 |
Steel DIN 50938-FE//A/T4 |
na |
KH11/2X |
2-way BSPP ball valve |
na |
Female BSPP thread (ISO 1179-1) |
Female BSPP thread (ISO 1179-1) |
na |
na |
G 1 1/2 |
G 1 1/2 |
40 |
Steel DIN 50938-FE//A/T4 |
na |
KH11/471X |
2-way BSPP ball valve |
na |
Female BSPP thread (ISO 1179-1) |
Female BSPP thread (ISO 1179-1) |
na |
na |
G 1 1/4 |
G 1 1/4 |
32 |
Stainless steel |
na |
KH11/4CFX |
2-way BSPP ball valve |
na |
Female BSPP thread (ISO 1179-1) |
Female BSPP thread (ISO 1179-1) |
na |
na |
G 1 1/4 |
G 1 1/4 |
32 |
Steel, zinc plated, Cr(VI)-free |
na |
KH11/4DN25CFX |
2-way BSPP ball valve |
na |
Female BSPP thread (ISO 1179-1) |
Female BSPP thread (ISO 1179-1) |
na |
na |
G 1 1/4 |
G 1 1/4 |
25 |
Steel, zinc plated, Cr(VI)-free |
na |
KH11/4DN25X |
2-way BSPP ball valve |
na |
Female BSPP thread (ISO 1179-1) |
Female BSPP thread (ISO 1179-1) |
na |
na |
G 1 1/4 |
G 1 1/4 |
25 |
Steel DIN 50938-FE//A/T4 |
na |
Part |
Shape |
Series |
Connection 1 Style |
Connection 2 Style |
Connection 1 Tube O.D. (mm) |
Connection 2 Tube O.D. (mm) |
Connection Size |
Connection Size 2 |
Diameter Nominal (DN) |
Material |
Pre-Installed Optional Accessories |
KH11/4NPT71X |
2-way NPT ball valve |
na |
Female NPT thread (SAE 476) |
Female NPT thread (SAE 476) |
na |
na |
1 1/4-11.5 NPT |
1 1/4-11.5 NPT |
32 |
Stainless steel |
na |
KH11/4NPTCFX |
2-way NPT ball valve |
na |
Female NPT thread (SAE 476) |
Female NPT thread (SAE 476) |
na |
na |
1 1/4-11.5 NPT |
1 1/4-11.5 NPT |
32 |
Steel, zinc plated, Cr(VI)-free |
na |
KH11/4NPTX |
2-way NPT ball valve |
na |
Female NPT thread (SAE 476) |
Female NPT thread (SAE 476) |
na |
na |
1 1/4-11.5 NPT |
1 1/4-11.5 NPT |
32 |
Steel DIN 50938-FE//A/T4 |
na |
KH11/4X |
2-way BSPP ball valve |
na |
Female BSPP thread (ISO 1179-1) |
Female BSPP thread (ISO 1179-1) |
na |
na |
G 1 1/4 |
G 1 1/4 |
32 |
Steel DIN 50938-FE//A/T4 |
na |
KH12L |
2-way ball valve |
Light |
24° cone end |
24° cone end |
12 |
12 |
na |
na |
10 |
Steel DIN 50938-FE//A/T5 |
Pre-assembled with nut and EO-PSR cutting ring |
KH12L71 |
2-way ball valve |
Light |
24° cone end |
24° cone end |
12 |
12 |
na |
na |
10 |
Stainless steel |
Pre-assembled with nut and EO-DPR cutting ring |
KH12L71X |
2-way ball valve |
Light |
24° cone end |
24° cone end |
12 |
12 |
na |
na |
10 |
Stainless steel |
na |
KH12LCF |
2-way ball valve |
Light |
24° cone end |
24° cone end |
12 |
12 |
na |
na |
10 |
Steel, zinc plated, Cr(VI)-free |
Pre-assembled with nut and EO-PSR cutting ring |
KH12LCFX |
2-way ball valve |
Light |
24° cone end |
24° cone end |
12 |
12 |
na |
na |
10 |
Steel, zinc plated, Cr(VI)-free |
na |
KH12LX |
2-way ball valve |
Light |
24° cone end |
24° cone end |
12 |
12 |
na |
na |
10 |
Steel DIN 50938-FE//A/T4 |
na |
KH12S |
2-way ball valve |
Heavy |
24° cone end |
24° cone end |
12 |
12 |
na |
na |
8 |
Steel DIN 50938-FE//A/T5 |
Pre-assembled with nut and EO-PSR cutting ring |
KH12S71 |
2-way ball valve |
Heavy |
24° cone end |
24° cone end |
12 |
12 |
na |
na |
8 |
Stainless steel |
Pre-assembled with nut and EO-DPR cutting ring |
KH12S71X |
2-way ball valve |
Heavy |
24° cone end |
24° cone end |
12 |
12 |
na |
na |
8 |
Stainless steel |
na |
KH12SCF |
2-way ball valve |
Heavy |
24° cone end |
24° cone end |
12 |
12 |
na |
na |
8 |
Steel, zinc plated, Cr(VI)-free |
Pre-assembled with nut and EO-PSR cutting ring |
KH12SCFX |
2-way ball valve |
Heavy |
24° cone end |
24° cone end |
12 |
12 |
na |
na |
8 |
Steel, zinc plated, Cr(VI)-free |
na |
KH12SX |
2-way ball valve |
Heavy |
24° cone end |
24° cone end |
12 |
12 |
na |
na |
8 |
Steel DIN 50938-FE//A/T4 |
na |
KH12ZL |
2-way ball valve |
Light |
24° cone end |
24° cone end |
12 |
12 |
na |
na |
10 |
Steel DIN 50938-FE//A/T6 |
Pre-assembled with EO-2 functional nut |
KH12ZL71 |
2-way ball valve |
Light |
24° cone end |
24° cone end |
12 |
12 |
na |
na |
10 |
Stainless steel |
Pre-assembled with EO-2 functional nut |
KH12ZLCF |
2-way ball valve |
Light |
24° cone end |
24° cone end |
12 |
12 |
na |
na |
10 |
Steel, zinc plated, Cr(VI)-free |
Pre-assembled with EO-2 functional nut |
KH12ZS |
2-way ball valve |
Heavy |
24° cone end |
24° cone end |
12 |
12 |
na |
na |
8 |
Steel DIN 50938-FE//A/T6 |
Pre-assembled with EO-2 functional nut |
KH12ZS71 |
2-way ball valve |
Heavy |
24° cone end |
24° cone end |
12 |
12 |
na |
na |
8 |
Stainless steel |
Pre-assembled with EO-2 functional nut |
KH12ZSCF |
2-way ball valve |
Heavy |
24° cone end |
24° cone end |
12 |
12 |
na |
na |
8 |
Steel, zinc plated, Cr(VI)-free |
Pre-assembled with EO-2 functional nut |
KH14S |
2-way ball valve |
Heavy |
24° cone end |
24° cone end |
14 |
14 |
na |
na |
10 |
Steel DIN 50938-FE//A/T5 |
Pre-assembled with nut and EO-PSR cutting ring |
KH14S71 |
2-way ball valve |
Heavy |
24° cone end |
24° cone end |
14 |
14 |
na |
na |
10 |
Stainless steel |
Pre-assembled with nut and EO-DPR cutting ring |
KH14S71X |
2-way ball valve |
Heavy |
24° cone end |
24° cone end |
14 |
14 |
na |
na |
10 |
Stainless steel |
na |
Part |
Shape |
Series |
Connection 1 Style |
Connection 2 Style |
Connection 1 Tube O.D. (mm) |
Connection 2 Tube O.D. (mm) |
Connection Size |
Connection Size 2 |
Diameter Nominal (DN) |
Material |
Pre-Installed Optional Accessories |
KH14SCF |
2-way ball valve |
Heavy |
24° cone end |
24° cone end |
14 |
14 |
na |
na |
10 |
Steel, zinc plated, Cr(VI)-free |
Pre-assembled with nut and EO-PSR cutting ring |
KH14SCFX |
2-way ball valve |
Heavy |
24° cone end |
24° cone end |
14 |
14 |
na |
na |
10 |
Steel, zinc plated, Cr(VI)-free |
na |
KH14SX |
2-way ball valve |
Heavy |
24° cone end |
24° cone end |
14 |
14 |
na |
na |
10 |
Steel DIN 50938-FE//A/T4 |
na |
KH14ZS |
2-way ball valve |
Heavy |
24° cone end |
24° cone end |
14 |
14 |
na |
na |
10 |
Steel DIN 50938-FE//A/T6 |
Pre-assembled with EO-2 functional nut |
KH14ZS71 |
2-way ball valve |
Heavy |
24° cone end |
24° cone end |
14 |
14 |
na |
na |
10 |
Stainless steel |
Pre-assembled with EO-2 functional nut |
KH14ZSCF |
2-way ball valve |
Heavy |
24° cone end |
24° cone end |
14 |
14 |
na |
na |
10 |
Steel, zinc plated, Cr(VI)-free |
Pre-assembled with EO-2 functional nut |
KH15L |
2-way ball valve |
Light |
24° cone end |
24° cone end |
15 |
15 |
na |
na |
12 |
Steel DIN 50938-FE//A/T5 |
Pre-assembled with nut and EO-PSR cutting ring |
KH15L71 |
2-way ball valve |
Light |
24° cone end |
24° cone end |
15 |
15 |
na |
na |
12 |
Stainless steel |
Pre-assembled with nut and EO-DPR cutting ring |
KH15L71X |
2-way ball valve |
Light |
24° cone end |
24° cone end |
15 |
15 |
na |
na |
12 |
Stainless steel |
na |
KH15LCF |
2-way ball valve |
Light |
24° cone end |
24° cone end |
15 |
15 |
na |
na |
12 |
Steel, zinc plated, Cr(VI)-free |
Pre-assembled with nut and EO-PSR cutting ring |
KH15LCFX |
2-way ball valve |
Light |
24° cone end |
24° cone end |
15 |
15 |
na |
na |
12 |
Steel, zinc plated, Cr(VI)-free |
na |
KH15LX |
2-way ball valve |
Light |
24° cone end |
24° cone end |
15 |
15 |
na |
na |
12 |
Steel DIN 50938-FE//A/T4 |
na |
KH15ZL |
2-way ball valve |
Light |
24° cone end |
24° cone end |
15 |
15 |
na |
na |
12 |
Steel DIN 50938-FE//A/T6 |
Pre-assembled with EO-2 functional nut |
KH15ZL71 |
2-way ball valve |
Light |
24° cone end |
24° cone end |
15 |
15 |
na |
na |
12 |
Stainless steel |
Pre-assembled with EO-2 functional nut |
KH15ZLCF |
2-way ball valve |
Light |
24° cone end |
24° cone end |
15 |
15 |
na |
na |
12 |
Steel, zinc plated, Cr(VI)-free |
Pre-assembled with EO-2 functional nut |
KH16S |
2-way ball valve |
Heavy |
24° cone end |
24° cone end |
16 |
16 |
na |
na |
12 |
Steel DIN 50938-FE//A/T5 |
Pre-assembled with nut and EO-PSR cutting ring |
KH16S71 |
2-way ball valve |
Heavy |
24° cone end |
24° cone end |
16 |
16 |
na |
na |
12 |
Stainless steel |
Pre-assembled with nut and EO-DPR cutting ring |
KH16S71X |
2-way ball valve |
Heavy |
24° cone end |
24° cone end |
16 |
16 |
na |
na |
12 |
Stainless steel |
na |
KH16SCF |
2-way ball valve |
Heavy |
24° cone end |
24° cone end |
16 |
16 |
na |
na |
12 |
Steel, zinc plated, Cr(VI)-free |
Pre-assembled with nut and EO-PSR cutting ring |
KH16SCFX |
2-way ball valve |
Heavy |
24° cone end |
24° cone end |
16 |
16 |
na |
na |
12 |
Steel, zinc plated, Cr(VI)-free |
na |
KH16SX |
2-way ball valve |
Heavy |
24° cone end |
24° cone end |
16 |
16 |
na |
na |
12 |
Steel DIN 50938-FE//A/T4 |
na |
KH16ZS |
2-way ball valve |
Heavy |
24° cone end |
24° cone end |
16 |
16 |
na |
na |
12 |
Steel DIN 50938-FE//A/T6 |
Pre-assembled with EO-2 functional nut |
KH16ZS71 |
2-way ball valve |
Heavy |
24° cone end |
24° cone end |
16 |
16 |
na |
na |
12 |
Stainless steel |
Pre-assembled with EO-2 functional nut |
KH16ZSCF |
2-way ball valve |
Heavy |
24° cone end |
24° cone end |
16 |
16 |
na |
na |
12 |
Steel, zinc plated, Cr(VI)-free |
Pre-assembled with EO-2 functional nut |
KH171X |
2-way BSPP ball valve |
na |
Female BSPP thread (ISO 1179-1) |
Female BSPP thread (ISO 1179-1) |
na |
na |
G 1 |
G 1 |
25 |
Stainless steel |
na |
Part |
Shape |
Series |
Connection 1 Style |
Connection 2 Style |
Connection 1 Tube O.D. (mm) |
Connection 2 Tube O.D. (mm) |
Connection Size |
Connection Size 2 |
Diameter Nominal (DN) |
Material |
Pre-Installed Optional Accessories |
KH18L |
2-way ball valve |
Light |
24° cone end |
24° cone end |
18 |
18 |
na |
na |
16 |
Steel DIN 50938-FE//A/T5 |
Pre-assembled with nut and EO-PSR cutting ring |
KH18L71 |
2-way ball valve |
Light |
24° cone end |
24° cone end |
18 |
18 |
na |
na |
16/12 |
Stainless steel |
Pre-assembled with nut and EO-DPR cutting ring |
KH18L71X |
2-way ball valve |
Light |
24° cone end |
24° cone end |
18 |
18 |
na |
na |
16/12 |
Stainless steel |
na |
KH18LCF |
2-way ball valve |
Light |
24° cone end |
24° cone end |
18 |
18 |
na |
na |
16 |
Steel, zinc plated, Cr(VI)-free |
Pre-assembled with nut and EO-PSR cutting ring |
KH18LCFX |
2-way ball valve |
Light |
24° cone end |
24° cone end |
18 |
18 |
na |
na |
16 |
Steel, zinc plated, Cr(VI)-free |
na |
KH18LX |
2-way ball valve |
Light |
24° cone end |
24° cone end |
18 |
18 |
na |
na |
16 |
Steel DIN 50938-FE//A/T4 |
na |
KH18ZL |
2-way ball valve |
Light |
24° cone end |
24° cone end |
18 |
18 |
na |
na |
16 |
Steel DIN 50938-FE//A/T6 |
Pre-assembled with EO-2 functional nut |
KH18ZL71 |
2-way ball valve |
Light |
24° cone end |
24° cone end |
18 |
18 |
na |
na |
16/12 |
Stainless steel |
Pre-assembled with EO-2 functional nut |
KH18ZLCF |
2-way ball valve |
Light |
24° cone end |
24° cone end |
18 |
18 |
na |
na |
16 |
Steel, zinc plated, Cr(VI)-free |
Pre-assembled with EO-2 functional nut |
KH1CFX |
2-way BSPP ball valve |
na |
Female BSPP thread (ISO 1179-1) |
Female BSPP thread (ISO 1179-1) |
na |
na |
G 1 |
G 1 |
25 |
Steel, zinc plated, Cr(VI)-free |
na |
KH1NPT71X |
2-way NPT ball valve |
na |
Female NPT thread (SAE 476) |
Female NPT thread (SAE 476) |
na |
na |
1-11.5 NPT |
1-11.5 NPT |
25 |
Stainless steel |
na |
KH1NPTCFX |
2-way NPT ball valve |
na |
Female NPT thread (SAE 476) |
Female NPT thread (SAE 476) |
na |
na |
1-11.5 NPT |
1-11.5 NPT |
25 |
Steel, zinc plated, Cr(VI)-free |
na |
KH1NPTX |
2-way NPT ball valve |
na |
Female NPT thread (SAE 476) |
Female NPT thread (SAE 476) |
na |
na |
1-11.5 NPT |
1-11.5 NPT |
25 |
Steel DIN 50938-FE//A/T4 |
na |
KH1X |
2-way BSPP ball valve |
na |
Female BSPP thread (ISO 1179-1) |
Female BSPP thread (ISO 1179-1) |
na |
na |
G 1 |
G 1 |
25 |
Steel DIN 50938-FE//A/T4 |
na |
KH20S |
2-way ball valve |
Heavy |
24° cone end |
24° cone end |
20 |
20 |
na |
na |
16 |
Steel DIN 50938-FE//A/T5 |
Pre-assembled with nut and EO-PSR cutting ring |
KH20S71 |
2-way ball valve |
Heavy |
24° cone end |
24° cone end |
20 |
20 |
na |
na |
16/12 |
Stainless steel |
Pre-assembled with nut and EO-DPR cutting ring |
KH20S71X |
2-way ball valve |
Heavy |
24° cone end |
24° cone end |
20 |
20 |
na |
na |
16/12 |
Stainless steel |
na |
KH20SCF |
2-way ball valve |
Heavy |
24° cone end |
24° cone end |
20 |
20 |
na |
na |
16 |
Steel, zinc plated, Cr(VI)-free |
Pre-assembled with nut and EO-PSR cutting ring |
KH20SCFX |
2-way ball valve |
Heavy |
24° cone end |
24° cone end |
20 |
20 |
na |
na |
16 |
Steel, zinc plated, Cr(VI)-free |
na |
KH20SX |
2-way ball valve |
Heavy |
24° cone end |
24° cone end |
20 |
20 |
na |
na |
16 |
Steel DIN 50938-FE//A/T4 |
na |
KH20ZS |
2-way ball valve |
Heavy |
24° cone end |
24° cone end |
20 |
20 |
na |
na |
16 |
Steel DIN 50938-FE//A/T6 |
Pre-assembled with EO-2 functional nut |
KH20ZS71 |
2-way ball valve |
Heavy |
24° cone end |
24° cone end |
20 |
20 |
na |
na |
16/12 |
Stainless steel |
Pre-assembled with EO-2 functional nut |
KH20ZSCF |
2-way ball valve |
Heavy |
24° cone end |
24° cone end |
20 |
20 |
na |
na |
16 |
Steel, zinc plated, Cr(VI)-free |
Pre-assembled with EO-2 functional nut |
KH22L |
2-way ball valve |
Light |
24° cone end |
24° cone end |
22 |
22 |
na |
na |
20 |
Steel DIN 50938-FE//A/T5 |
Pre-assembled with nut and EO-PSR cutting ring |
KH22L71 |
2-way ball valve |
Light |
24° cone end |
24° cone end |
22 |
22 |
na |
na |
20 |
Stainless steel |
Pre-assembled with nut and EO-DPR cutting ring |
Part |
Shape |
Series |
Connection 1 Style |
Connection 2 Style |
Connection 1 Tube O.D. (mm) |
Connection 2 Tube O.D. (mm) |
Connection Size |
Connection Size 2 |
Diameter Nominal (DN) |
Material |
Pre-Installed Optional Accessories |
KH22L71X |
2-way ball valve |
Light |
24° cone end |
24° cone end |
22 |
22 |
na |
na |
20 |
Stainless steel |
na |
KH22LCF |
2-way ball valve |
Light |
24° cone end |
24° cone end |
22 |
22 |
na |
na |
20 |
Steel, zinc plated, Cr(VI)-free |
Pre-assembled with nut and EO-PSR cutting ring |
KH22LCFX |
2-way ball valve |
Light |
24° cone end |
24° cone end |
22 |
22 |
na |
na |
20 |
Steel, zinc plated, Cr(VI)-free |
na |
KH22LX |
2-way ball valve |
Light |
24° cone end |
24° cone end |
22 |
22 |
na |
na |
20 |
Steel DIN 50938-FE//A/T4 |
na |
KH22ZL |
2-way ball valve |
Light |
24° cone end |
24° cone end |
22 |
22 |
na |
na |
20 |
Steel DIN 50938-FE//A/T6 |
Pre-assembled with EO-2 functional nut |
KH22ZL71 |
2-way ball valve |
Light |
24° cone end |
24° cone end |
22 |
22 |
na |
na |
20 |
Stainless steel |
Pre-assembled with EO-2 functional nut |
KH22ZLCF |
2-way ball valve |
Light |
24° cone end |
24° cone end |
22 |
22 |
na |
na |
20 |
Steel, zinc plated, Cr(VI)-free |
Pre-assembled with EO-2 functional nut |
KH25S |
2-way ball valve |
Heavy |
24° cone end |
24° cone end |
25 |
25 |
na |
na |
20 |
Steel DIN 50938-FE//A/T5 |
Pre-assembled with nut and EO-PSR cutting ring |
KH25S71 |
2-way ball valve |
Heavy |
24° cone end |
24° cone end |
25 |
25 |
na |
na |
20 |
Stainless steel |
Pre-assembled with nut and EO-DPR cutting ring |
KH25S71X |
2-way ball valve |
Heavy |
24° cone end |
24° cone end |
25 |
25 |
na |
na |
20 |
Stainless steel |
na |
KH25SCF |
2-way ball valve |
Heavy |
24° cone end |
24° cone end |
25 |
25 |
na |
na |
20 |
Steel, zinc plated, Cr(VI)-free |
Pre-assembled with nut and EO-PSR cutting ring |
KH25SCFX |
2-way ball valve |
Heavy |
24° cone end |
24° cone end |
25 |
25 |
na |
na |
20 |
Steel, zinc plated, Cr(VI)-free |
na |
KH25SX |
2-way ball valve |
Heavy |
24° cone end |
24° cone end |
25 |
25 |
na |
na |
20 |
Steel DIN 50938-FE//A/T4 |
na |
KH25ZS |
2-way ball valve |
Heavy |
24° cone end |
24° cone end |
25 |
25 |
na |
na |
20 |
Steel DIN 50938-FE//A/T6 |
Pre-assembled with EO-2 functional nut |
KH25ZS71 |
2-way ball valve |
Heavy |
24° cone end |
24° cone end |
25 |
25 |
na |
na |
20 |
Stainless steel |
Pre-assembled with EO-2 functional nut |
KH25ZSCF |
2-way ball valve |
Heavy |
24° cone end |
24° cone end |
25 |
25 |
na |
na |
20 |
Steel, zinc plated, Cr(VI)-free |
Pre-assembled with EO-2 functional nut |
KH271X |
2-way BSPP ball valve |
na |
Female BSPP thread (ISO 1179-1) |
Female BSPP thread (ISO 1179-1) |
na |
na |
G 2 |
G 2 |
50 |
Stainless steel |
na |
KH28L |
2-way ball valve |
Light |
24° cone end |
24° cone end |
28 |
28 |
na |
na |
25 |
Steel DIN 50938-FE//A/T5 |
Pre-assembled with nut and EO-PSR cutting ring |
KH28L71 |
2-way ball valve |
Light |
24° cone end |
24° cone end |
28 |
28 |
na |
na |
25 |
Stainless steel |
Pre-assembled with nut and EO-DPR cutting ring |
KH28L71X |
2-way ball valve |
Light |
24° cone end |
24° cone end |
28 |
28 |
na |
na |
25 |
Stainless steel |
na |
KH28LCF |
2-way ball valve |
Light |
24° cone end |
24° cone end |
28 |
28 |
na |
na |
25 |
Steel, zinc plated, Cr(VI)-free |
Pre-assembled with nut and EO-PSR cutting ring |
KH28LCFX |
2-way ball valve |
Light |
24° cone end |
24° cone end |
28 |
28 |
na |
na |
25 |
Steel, zinc plated, Cr(VI)-free |
na |
KH28LX |
2-way ball valve |
Light |
24° cone end |
24° cone end |
28 |
28 |
na |
na |
25 |
Steel DIN 50938-FE//A/T4 |
na |
KH28ZL |
2-way ball valve |
Light |
24° cone end |
24° cone end |
28 |
28 |
na |
na |
25 |
Steel DIN 50938-FE//A/T6 |
Pre-assembled with EO-2 functional nut |
KH28ZL71 |
2-way ball valve |
Light |
24° cone end |
24° cone end |
28 |
28 |
na |
na |
25 |
Stainless steel |
Pre-assembled with EO-2 functional nut |
Part |
Shape |
Series |
Connection 1 Style |
Connection 2 Style |
Connection 1 Tube O.D. (mm) |
Connection 2 Tube O.D. (mm) |
Connection Size |
Connection Size 2 |
Diameter Nominal (DN) |
Material |
Pre-Installed Optional Accessories |
KH28ZLCF |
2-way ball valve |
Light |
24° cone end |
24° cone end |
28 |
28 |
na |
na |
25 |
Steel, zinc plated, Cr(VI)-free |
Pre-assembled with EO-2 functional nut |
KH2CFX |
2-way BSPP ball valve |
na |
Female BSPP thread (ISO 1179-1) |
Female BSPP thread (ISO 1179-1) |
na |
na |
G 2 |
G 2 |
50 |
Steel, zinc plated, Cr(VI)-free |
na |
KH2X |
2-way BSPP ball valve |
na |
Female BSPP thread (ISO 1179-1) |
Female BSPP thread (ISO 1179-1) |
na |
na |
G 2 |
G 2 |
50 |
Steel DIN 50938-FE//A/T4 |
na |
KH3/471X |
2-way BSPP ball valve |
na |
Female BSPP thread (ISO 1179-1) |
Female BSPP thread (ISO 1179-1) |
na |
na |
G 3/4 |
G 3/4 |
20 |
Stainless steel |
na |
KH3/4CFX |
2-way BSPP ball valve |
na |
Female BSPP thread (ISO 1179-1) |
Female BSPP thread (ISO 1179-1) |
na |
na |
G 3/4 |
G 3/4 |
20 |
Steel, zinc plated, Cr(VI)-free |
na |
KH3/4NPT71X |
2-way NPT ball valve |
na |
Female NPT thread (SAE 476) |
Female NPT thread (SAE 476) |
na |
na |
3/4-14 NPT |
3/4-14 NPT |
20 |
Stainless steel |
na |
KH3/4NPTCFX |
2-way NPT ball valve |
na |
Female NPT thread (SAE 476) |
Female NPT thread (SAE 476) |
na |
na |
3/4-14 NPT |
3/4-14 NPT |
20 |
Steel, zinc plated, Cr(VI)-free |
na |
KH3/4NPTX |
2-way NPT ball valve |
na |
Female NPT thread (SAE 476) |
Female NPT thread (SAE 476) |
na |
na |
3/4-14 NPT |
3/4-14 NPT |
20 |
Steel DIN 50938-FE//A/T4 |
na |
KH3/4X |
2-way BSPP ball valve |
na |
Female BSPP thread (ISO 1179-1) |
Female BSPP thread (ISO 1179-1) |
na |
na |
G 3/4 |
G 3/4 |
20 |
Steel DIN 50938-FE//A/T4 |
na |
KH3/871X |
2-way BSPP ball valve |
na |
Female BSPP thread (ISO 1179-1) |
Female BSPP thread (ISO 1179-1) |
na |
na |
G 3/8 |
G 3/8 |
10 |
Stainless steel |
na |
KH3/8CFX |
2-way BSPP ball valve |
na |
Female BSPP thread (ISO 1179-1) |
Female BSPP thread (ISO 1179-1) |
na |
na |
G 3/8 |
G 3/8 |
10 |
Steel, zinc plated, Cr(VI)-free |
na |
KH3/8NPT71X |
2-way NPT ball valve |
na |
Female NPT thread (SAE 476) |
Female NPT thread (SAE 476) |
na |
na |
3/8-18 NPT |
3/8-18 NPT |
10 |
Stainless steel |
na |
KH3/8NPTCFX |
2-way NPT ball valve |
na |
Female NPT thread (SAE 476) |
Female NPT thread (SAE 476) |
na |
na |
3/8-18 NPT |
3/8-18 NPT |
10 |
Steel, zinc plated, Cr(VI)-free |
na |
KH3/8NPTX |
2-way NPT ball valve |
na |
Female NPT thread (SAE 476) |
Female NPT thread (SAE 476) |
na |
na |
3/8-18 NPT |
3/8-18 NPT |
10 |
Steel DIN 50938-FE//A/T4 |
na |
KH3/8X |
2-way BSPP ball valve |
na |
Female BSPP thread (ISO 1179-1) |
Female BSPP thread (ISO 1179-1) |
na |
na |
G 3/8 |
G 3/8 |
10 |
Steel DIN 50938-FE//A/T4 |
na |
KH30S |
2-way ball valve |
Heavy |
24° cone end |
24° cone end |
30 |
30 |
na |
na |
25 |
Steel DIN 50938-FE//A/T5 |
Pre-assembled with nut and EO-PSR cutting ring |
KH30S71 |
2-way ball valve |
Heavy |
24° cone end |
24° cone end |
30 |
30 |
na |
na |
25 |
Stainless steel |
Pre-assembled with nut and EO-DPR cutting ring |
KH30S71X |
2-way ball valve |
Heavy |
24° cone end |
24° cone end |
30 |
30 |
na |
na |
25 |
Stainless steel |
na |
KH30SCF |
2-way ball valve |
Heavy |
24° cone end |
24° cone end |
30 |
30 |
na |
na |
25 |
Steel, zinc plated, Cr(VI)-free |
Pre-assembled with nut and EO-PSR cutting ring |
KH30SCFX |
2-way ball valve |
Heavy |
24° cone end |
24° cone end |
30 |
30 |
na |
na |
25 |
Steel, zinc plated, Cr(VI)-free |
na |
KH30SX |
2-way ball valve |
Heavy |
24° cone end |
24° cone end |
30 |
30 |
na |
na |
25 |
Steel DIN 50938-FE//A/T4 |
na |
KH30ZS |
2-way ball valve |
Heavy |
24° cone end |
24° cone end |
30 |
30 |
na |
na |
25 |
Steel DIN 50938-FE//A/T6 |
Pre-assembled with EO-2 functional nut |
KH30ZS71 |
2-way ball valve |
Heavy |
24° cone end |
24° cone end |
30 |
30 |
na |
na |
25 |
Stainless steel |
Pre-assembled with EO-2 functional nut |
KH30ZSCF |
2-way ball valve |
Heavy |
24° cone end |
24° cone end |
30 |
30 |
na |
na |
25 |
Steel, zinc plated, Cr(VI)-free |
Pre-assembled with EO-2 functional nut |
KH35L |
2-way ball valve |
Light |
24° cone end |
24° cone end |
35 |
35 |
na |
na |
32 |
Steel DIN 50938-FE//A/T5 |
Pre-assembled with nut and EO-PSR cutting ring |
Part |
Shape |
Series |
Connection 1 Style |
Connection 2 Style |
Connection 1 Tube O.D. (mm) |
Connection 2 Tube O.D. (mm) |
Connection Size |
Connection Size 2 |
Diameter Nominal (DN) |
Material |
Pre-Installed Optional Accessories |
KH35L71 |
2-way ball valve |
Light |
24° cone end |
24° cone end |
35 |
35 |
na |
na |
32 |
Stainless steel |
Pre-assembled with nut and EO-DPR cutting ring |
KH35L71X |
2-way ball valve |
Light |
24° cone end |
24° cone end |
35 |
35 |
na |
na |
32 |
Stainless steel |
na |
KH35LCF |
2-way ball valve |
Light |
24° cone end |
24° cone end |
35 |
35 |
na |
na |
32 |
Steel, zinc plated, Cr(VI)-free |
Pre-assembled with nut and EO-PSR cutting ring |
KH35LCFDN25 |
2-way ball valve |
Light |
24° cone end |
24° cone end |
35 |
35 |
na |
na |
25 |
Steel, zinc plated, Cr(VI)-free |
Pre-assembled with nut and EO-PSR cutting ring |
KH35LCFX |
2-way ball valve |
Light |
24° cone end |
24° cone end |
35 |
35 |
na |
na |
32 |
Steel, zinc plated, Cr(VI)-free |
na |
KH35LCFXDN25 |
2-way ball valve |
Light |
24° cone end |
24° cone end |
35 |
35 |
na |
na |
25 |
Steel, zinc plated, Cr(VI)-free |
na |
KH35LDN25 |
2-way ball valve |
Light |
24° cone end |
24° cone end |
35 |
35 |
na |
na |
25 |
Steel DIN 50938-FE//A/T5 |
Pre-assembled with nut and EO-PSR cutting ring |
KH35LX |
2-way ball valve |
Light |
24° cone end |
24° cone end |
35 |
35 |
na |
na |
32 |
Steel DIN 50938-FE//A/T4 |
na |
KH35LXDN25 |
2-way ball valve |
Light |
24° cone end |
24° cone end |
35 |
35 |
na |
na |
25 |
Steel DIN 50938-FE//A/T4 |
na |
KH35ZL |
2-way ball valve |
Light |
24° cone end |
24° cone end |
35 |
35 |
na |
na |
32 |
Steel DIN 50938-FE//A/T6 |
Pre-assembled with EO-2 functional nut |
KH35ZL71 |
2-way ball valve |
Light |
24° cone end |
24° cone end |
35 |
35 |
na |
na |
32 |
Stainless steel |
Pre-assembled with EO-2 functional nut |
KH35ZLCF |
2-way ball valve |
Light |
24° cone end |
24° cone end |
35 |
35 |
na |
na |
32 |
Steel, zinc plated, Cr(VI)-free |
Pre-assembled with EO-2 functional nut |
KH35ZLCFDN25 |
2-way ball valve |
Light |
24° cone end |
24° cone end |
35 |
35 |
na |
na |
25 |
Steel, zinc plated, Cr(VI)-free |
Pre-assembled with EO-2 functional nut |
KH35ZLDN25 |
2-way ball valve |
Light |
24° cone end |
24° cone end |
35 |
35 |
na |
na |
25 |
Steel DIN 50938-FE//A/T6 |
Pre-assembled with EO-2 functional nut |
KH38S |
2-way ball valve |
Heavy |
24° cone end |
24° cone end |
38 |
38 |
na |
na |
32 |
Steel DIN 50938-FE//A/T5 |
Pre-assembled with nut and EO-PSR cutting ring |
KH38S71 |
2-way ball valve |
Heavy |
24° cone end |
24° cone end |
38 |
38 |
na |
na |
32 |
Stainless steel |
Pre-assembled with nut and EO-DPR cutting ring |
KH38S71X |
2-way ball valve |
Heavy |
24° cone end |
24° cone end |
38 |
38 |
na |
na |
32 |
Stainless steel |
na |
KH38SCF |
2-way ball valve |
Heavy |
24° cone end |
24° cone end |
38 |
38 |
na |
na |
32 |
Steel, zinc plated, Cr(VI)-free |
Pre-assembled with nut and EO-PSR cutting ring |
KH38SCFDN25 |
2-way ball valve |
Heavy |
24° cone end |
24° cone end |
38 |
38 |
na |
na |
25 |
Steel, zinc plated, Cr(VI)-free |
Pre-assembled with nut and EO-PSR cutting ring |
KH38SCFX |
2-way ball valve |
Heavy |
24° cone end |
24° cone end |
38 |
38 |
na |
na |
32 |
Steel, zinc plated, Cr(VI)-free |
na |
KH38SCFXDN25 |
2-way ball valve |
Heavy |
24° cone end |
24° cone end |
38 |
38 |
na |
na |
25 |
Steel, zinc plated, Cr(VI)-free |
na |
KH38SDN25 |
2-way ball valve |
Heavy |
24° cone end |
24° cone end |
38 |
38 |
na |
na |
25 |
Steel DIN 50938-FE//A/T5 |
Pre-assembled with nut and EO-PSR cutting ring |
KH38SX |
2-way ball valve |
Heavy |
24° cone end |
24° cone end |
38 |
38 |
na |
na |
32 |
Steel DIN 50938-FE//A/T4 |
na |
KH38SXDN25 |
2-way ball valve |
Heavy |
24° cone end |
24° cone end |
38 |
38 |
na |
na |
25 |
Steel DIN 50938-FE//A/T4 |
na |
KH38ZS |
2-way ball valve |
Heavy |
24° cone end |
24° cone end |
38 |
38 |
na |
na |
32 |
Steel DIN 50938-FE//A/T6 |
Pre-assembled with EO-2 functional nut |
Part |
Shape |
Series |
Connection 1 Style |
Connection 2 Style |
Connection 1 Tube O.D. (mm) |
Connection 2 Tube O.D. (mm) |
Connection Size |
Connection Size 2 |
Diameter Nominal (DN) |
Material |
Pre-Installed Optional Accessories |
KH38ZS71 |
2-way ball valve |
Heavy |
24° cone end |
24° cone end |
38 |
38 |
na |
na |
32 |
Stainless steel |
Pre-assembled with EO-2 functional nut |
KH38ZSCF |
2-way ball valve |
Heavy |
24° cone end |
24° cone end |
38 |
38 |
na |
na |
32 |
Steel, zinc plated, Cr(VI)-free |
Pre-assembled with EO-2 functional nut |
KH38ZSCFDN25 |
2-way ball valve |
Heavy |
24° cone end |
24° cone end |
38 |
38 |
na |
na |
25 |
Steel, zinc plated, Cr(VI)-free |
Pre-assembled with EO-2 functional nut |
KH38ZSDN25 |
2-way ball valve |
Heavy |
24° cone end |
24° cone end |
38 |
38 |
na |
na |
25 |
Steel DIN 50938-FE//A/T6 |
Pre-assembled with EO-2 functional nut |
KH42L |
2-way ball valve |
Light |
24° cone end |
24° cone end |
42 |
42 |
na |
na |
40 |
Steel DIN 50938-FE//A/T5 |
Pre-assembled with nut and EO-PSR cutting ring |
KH42L71 |
2-way ball valve |
Light |
24° cone end |
24° cone end |
42 |
42 |
na |
na |
40 |
Stainless steel |
Pre-assembled with nut and EO-DPR cutting ring |
KH42L71X |
2-way ball valve |
Light |
24° cone end |
24° cone end |
42 |
42 |
na |
na |
40 |
Stainless steel |
na |
KH42LCF |
2-way ball valve |
Light |
24° cone end |
24° cone end |
42 |
42 |
na |
na |
40 |
Steel, zinc plated, Cr(VI)-free |
Pre-assembled with nut and EO-PSR cutting ring |
KH42LCFDN25 |
2-way ball valve |
Light |
24° cone end |
24° cone end |
42 |
42 |
na |
na |
25 |
Steel, zinc plated, Cr(VI)-free |
Pre-assembled with nut and EO-PSR cutting ring |
KH42LCFX |
2-way ball valve |
Light |
24° cone end |
24° cone end |
42 |
42 |
na |
na |
40 |
Steel, zinc plated, Cr(VI)-free |
na |
KH42LCFXDN25 |
2-way ball valve |
Light |
24° cone end |
24° cone end |
42 |
42 |
na |
na |
25 |
Steel, zinc plated, Cr(VI)-free |
na |
KH42LDN25 |
2-way ball valve |
Light |
24° cone end |
24° cone end |
42 |
42 |
na |
na |
25 |
Steel DIN 50938-FE//A/T5 |
Pre-assembled with nut and EO-PSR cutting ring |
KH42LX |
2-way ball valve |
Light |
24° cone end |
24° cone end |
42 |
42 |
na |
na |
40 |
Steel DIN 50938-FE//A/T4 |
na |
KH42LXDN25 |
2-way ball valve |
Light |
24° cone end |
24° cone end |
42 |
42 |
na |
na |
25 |
Steel DIN 50938-FE//A/T4 |
na |
KH42ZL |
2-way ball valve |
Light |
24° cone end |
24° cone end |
42 |
42 |
na |
na |
40 |
Steel DIN 50938-FE//A/T6 |
Pre-assembled with EO-2 functional nut |
KH42ZL71 |
2-way ball valve |
Light |
24° cone end |
24° cone end |
42 |
42 |
na |
na |
40 |
Stainless steel |
Pre-assembled with EO-2 functional nut |
KH42ZLCF |
2-way ball valve |
Light |
24° cone end |
24° cone end |
42 |
42 |
na |
na |
40 |
Steel, zinc plated, Cr(VI)-free |
Pre-assembled with EO-2 functional nut |
KH42ZLCFDN25 |
2-way ball valve |
Light |
24° cone end |
24° cone end |
42 |
42 |
na |
na |
25 |
Steel, zinc plated, Cr(VI)-free |
Pre-assembled with EO-2 functional nut |
KH42ZLDN25 |
2-way ball valve |
Light |
24° cone end |
24° cone end |
42 |
42 |
na |
na |
25 |
Steel DIN 50938-FE//A/T6 |
Pre-assembled with EO-2 functional nut |
KH5/8CFX |
2-way BSPP ball valve |
na |
Female BSPP thread (ISO 1179-1) |
Female BSPP thread (ISO 1179-1) |
na |
na |
G 5/8 |
G 5/8 |
16 |
Steel, zinc plated, Cr(VI)-free |
na |
KH5/8X |
2-way BSPP ball valve |
na |
Female BSPP thread (ISO 1179-1) |
Female BSPP thread (ISO 1179-1) |
na |
na |
G 5/8 |
G 5/8 |
16 |
Steel DIN 50938-FE//A/T4 |
na |
|
fcg.cnmec@parkerdistribution.com.cn
