Parker派克EO 旋轉接頭
Parker ROTARY Swivel Joints FITTINGS

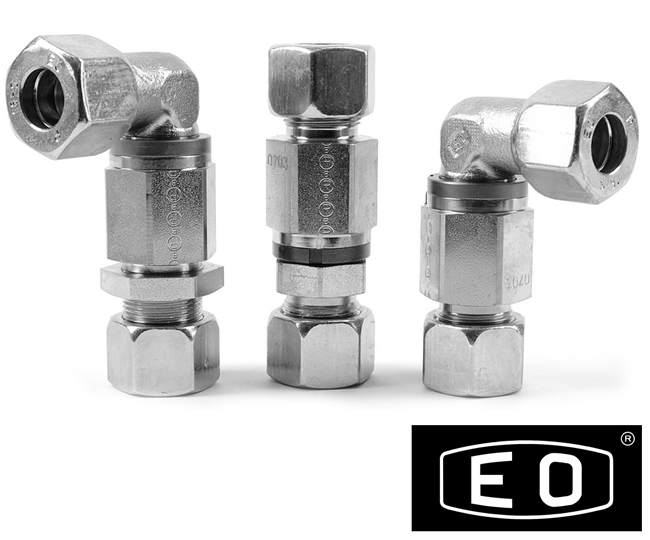

Parker派克DG 滾珠軸承旋轉接頭Parker EO Ball Bearing Fittings for Metric Tubing,旋轉接頭與軟管連接，使一個固定點與轉動，擺動或移動的機器部件形成連接 防止扭曲和避免軟管過度彎曲。結構緊湊，免維護，兼具滾動和滑動軸承及潤滑作用。起 動扭矩低。耐磨型環形活塞密封。

- PARKER派克DG滾珠軸承旋轉接頭 Rotary Fittings - Ball Bearings

Flareless Union DG101 24°錐/24°錐 直通旋轉接頭	Flareless Union DG103 24°錐/24°錐 90°旋轉接頭	Flareless Union DG105 24°錐/24°錐 雙彎通旋轉接頭
Union Bulkhead DG107 24°錐/24°錐 直通隔板接頭	90 Union Bulkhead DG108 24°錐/24°錐 90°隔板接頭	BSPP-ED Flareless DG102-R 公制螺紋/24°錐 端直通旋轉接頭
Metric ED Flareless DG102-M 公制螺紋/24°錐 端直角旋轉接頭	90 BSPP-ED Flareless DG104-R BSPP 螺紋/24°錐 端直角旋轉接頭	90 Metric ED Flareless DG104-M 公制螺紋/24°錐 端直角旋轉接頭
Double Elbow BSPP Flareless DG106-R BSPP 螺紋/24°錐 端雙彎通選擇接頭	Double Elbow Metric Flareless DG106-M 公制螺紋/24°錐 端雙彎通旋轉接頭	DG208 BSPP 螺紋/24°錐 端直角雙旋轉接頭

- Parker Tema DG-Series Swivel Joints
Parker DG/KR液壓旋轉接頭，液壓附件類

- PARKER派克滑動軸承旋轉接頭Parker EO Plain Bearing Fittings for Metric Tubing

DVGE-M 公制螺紋/24°錐 直通旋轉接頭	DVWE-M 公制螺紋/24°錐 直角旋轉接頭	DVGE-R BSPP 螺紋/24°錐 直通旋轉接頭	DVWE-R BSPP 螺紋/24°錐 直角旋轉接頭

Parker Swivel Fittings
Parker Hydraulic Swivel Fittings
parker hydraulic swivel fittings
Parker 90 Degree Elbow Live Swivels available in the PS series and S series
Parker Straight Live Swivel Fittings

- Parker S系列旋轉接頭
Parker S Series Swivel
Parker S Series 90 Degree Elbow, Pressure Balanced Swivels (hydraulic, pneumatic) up to 3000 psi

- Parker PS SERIES SWIVELS系列旋轉接頭
Parker PS Series Swivels (hydraulic) up to 5000 psi

- Parker派克 PS系列以及S系列旋轉接頭維護以及維修套件以及備品備件
Service and Repair Kits with Replacement Parts for PS and S Series Swivels

Parker派克旋轉接頭
Parker派克EO 旋轉接頭
Parker ROTARY Swivel Joints FITTINGS
Parker fittings, parker DG / DVGE / DVWE ball bearing swivel

Parker派克DG 滾珠軸承旋轉接頭Parker EO Ball Bearing Fittings for Metric Tubing,旋轉接頭與軟管連接，使一個固定點與轉動，擺動或移動的機器部件形成連接 防止扭曲和避免軟管過度彎曲。結構緊湊，免維護，兼具滾動和滑動軸承及潤滑作用。起 動扭矩低。耐磨型環形活塞密封。Parker 90 Degree Elbow Live SwivelsParker 90 Degree Elbow Live Swivels available in the PS series and S series. PS Series Swivels are available in 90 degree and in-line configurations; 1/4" through 2" body sizes and pressure capabilities up to 5000 PSI. S Series Swivels are compact with a variety of port options; 1/4" through 1" body sizes and pressure capabilities up to 3000 PSI.Parker's Swivel Joints Series DG can be used in hydraulic systems where rotating connections are essential, for example on accessories with rotating movements. Depending on design, the body is made of brass (Series DG) or steel (Series KR) and the rotating axis of surfacepurified/stainless steel.

Hydraulic Flanges
DIAGNOSTIC FITTINGS
PIPE FITTINGS
PIPE SWIVELS
EO 旋轉接頭
DG 滾珠軸承旋轉接頭
B-189 樣本3400-CN
EO 旋轉接頭
DG 滾珠軸承旋轉接頭
滑動軸承旋轉接頭
DG 滾珠軸承旋轉接頭
隔板式滾珠軸承旋轉接頭
DG-M 公制外螺紋滾珠軸承旋轉接頭
DG-R 英制外螺紋滾珠軸承旋轉接頭
BSPP-ED
DG 208-R 90°滾珠軸承雙旋轉接頭
BSPP 螺紋-ED 密封(ISO 1179) / EO24°錐
DG 208-R 90°滾珠軸承雙旋轉接頭
BSPP 螺紋-ED 密封(ISO 1179) / EO24°錐
DVGE-M 端直通滑動軸承旋轉接頭
公制螺紋-ED 密封 / EO24°錐
DVWE-M 90°滑動軸承旋轉接頭
公制螺紋-ED 密封 / EO24°錐
DVGE-R 端直通滑動軸承旋轉接頭
BSPP 螺紋-ED 密封 / EO24°錐
DVWE-R 90°滑動軸承旋轉接頭
BSPP 螺紋-ED 密封 / EO24°錐

Parker fittings, parker DG / DVGE / DVWE ball bearing swivel

parker connector, ermeto Parker ball bearing swivel joint, Parker DG-type ball bearing swivel joint of some parameters: working pressure up to 250BAR, starting torque, good pressure / speed ratio; applications: by tube or hose connection fixed contacts and rotation \ moving the body. to avoid the hose twisting and bending radius is too small.

Parker fittings, parker DG / DVGE / DVWE ball bearing swivel main types: DG101/06SCF, DG101/08SCF, DG101/12SCF, DG101/16SCF, DG101/20SCF, DG101/25SCF, DG101/30SCF, DG101/38SCF; DG103 / 06SCF, DG103/08SCF, DG103/12SCF, DG103/16SCF, DG103/20SCF, DG103/25SCF, DG103/30SCF, DG103/38SCF; DG105/12SCF, DG105/16SCF, DG105/20SCF, DG105/25SCF, DG105/30SCF, DG105/38SCF; DG107/06SCF, DG107/08SCF, DG107/12SCF, DG107/16SCF, DG107/20SCF, DG107/25SCF, DG107/30SCF, DG107/38SCF; DG108/06SCF, DG108/08SCF, DG108/12SCF, DG108 / 16SCF, DG108/20SCF, DG108/25SCF, DG108/30SCF, DG108/38SCF; DG102/06SMCF, DG102/08SMCF, DG102/12SMCF, DG102/16SMCF, DG102/20SMCF, DG102/25SMCF, DG102/30SMCF, DG102/38SMCF; DG104/06SMCF, DG104/08SMCF, DG104/12SMCF, DG104/16SMCF, DG104/20SMCF, DG104/25SMCF, DG104/30SMCF, DG104/38SMCF; DG106/12SMCF, DG106/16SMCF, DG106/20SMCF, DG106/25SMCF, DG106 / 30SMCF, DG106/38SMCF; DG102/06SRCF, DG102/08SRCF, DG102/12SRCF, DG102/16SRCF, DG102/20SRCF, DG102/25SRCF, DG102/30SRCF, DG102/38SRCF; DG104/06SRCF, DG104/08SRCF, DG104/12SRCF, DG104/16SRCF, DG104/20SRCF, DG104/25SRCF, DG104/30SRCF, DG104/38SRCF; DG106/12SRCF, DG106/16SRCF, DG106/20SRCF, DG106/25SRCF, DG106/30SRCF, DG106/38SRCF

Parker派克EO 旋轉接頭
Parker ROTARY Swivel Joints FITTINGS
Parker派克DG 滾珠軸承旋轉接頭Parker EO Ball Bearing Fittings for Metric Tubing,旋轉接頭與軟管連接，使一個固定點與轉動，擺動或移動的機器部件形成連接 防止扭曲和避免軟管過度彎曲。結構緊湊，免維護，兼具滾動和滑動軸承及潤滑作用。起 動扭矩低。耐磨型環形活塞密封。

- PARKER派克DG滾珠軸承旋轉接頭 Rotary Fittings - Ball Bearings

Flareless Union

DG101
24°錐/24°錐
直通旋轉接頭

Flareless Union

DG103
24°錐/24°錐
90°旋轉接頭

Flareless Union
DG105
24°錐/24°錐
雙彎通旋轉接頭

Union Bulkhead

DG107
24°錐/24°錐
直通隔板接頭

90 Union Bulkhead

DG108
24°錐/24°錐
90°隔板接頭

BSPP-ED Flareless

DG102-R
公制螺紋/24°錐
端直通旋轉接頭

Metric ED Flareless

DG102-M
公制螺紋/24°錐
端直角旋轉接頭

90 BSPP-ED Flareless

DG104-R
BSPP 螺紋/24°錐
端直角旋轉接頭

90 Metric ED Flareless

DG104-M
公制螺紋/24°錐
端直角旋轉接頭

Double Elbow BSPP Flareless

DG106-R
BSPP 螺紋/24°錐
端雙彎通選擇接頭

Double Elbow Metric Flareless

DG106-M
公制螺紋/24°錐
端雙彎通旋轉接頭

DG208
BSPP 螺紋/24°錐
端直角雙旋轉接頭

- Parker Tema DG-Series Swivel Joints
Parker DG/KR液壓旋轉接頭，液壓附件類

- PARKER派克滑動軸承旋轉接頭Parker EO Plain Bearing Fittings for Metric Tubing

DVGE-M
公制螺紋/24°錐
直通旋轉接頭
DVWE-M
公制螺紋/24°錐
直角旋轉接頭
DVGE-R
BSPP 螺紋/24°錐
直通旋轉接頭
DVWE-R
BSPP 螺紋/24°錐
直角旋轉接頭
