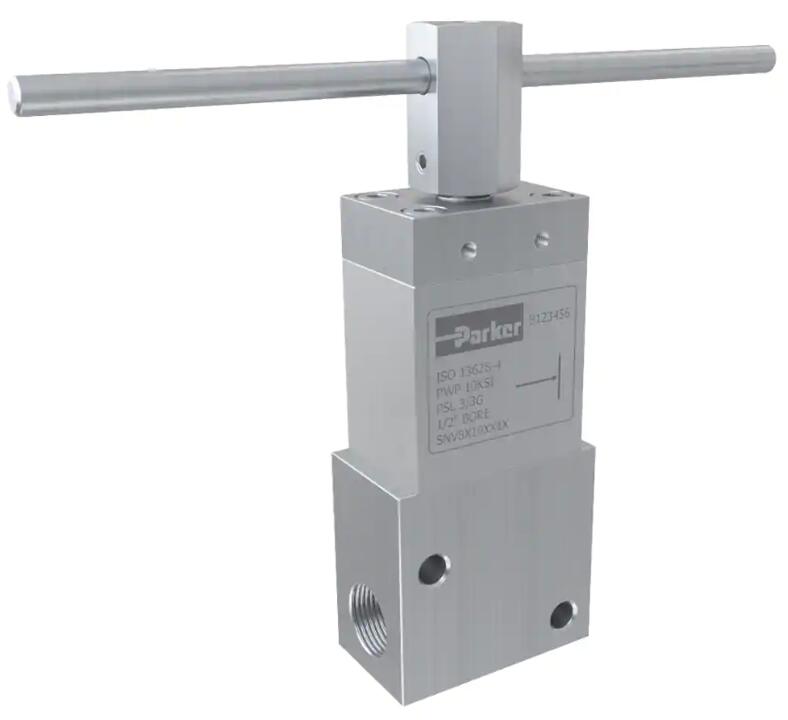

Parker 2-way subsea needle valve
派克2通海底針閥
派克的2通海底針形閥具有不升高，不旋轉的閥桿，可用于高達10,000 PSI的操作和3050m的深度。根據API 17D PSL 3 / 3G（包括API 6A PR2F）進行設計和測試，以在海底應用中實現安全可靠的性能。派克的不上升，不旋轉的桿式針型閥專門設計用于在海底應用中提供平穩，低扭矩的性能。具有金屬對金屬閥座，可實現氣密性關斷，更長的閥桿/閥座壽命，更長的耐用性，可重復進行開/關循環以及閥桿螺紋下方的增強型PTFE / PEEK人字形填料，可實現可靠的閥桿和閥體密封。該海底針形閥帶有附加的O形圈密封件，可防止海水進入閥內，這可能會對閥的操作產生不利影響并污染過程流體。單向閥可用各種耐腐蝕合金制成，適用于深度小于3,050m的設備。閥門的設計便于手動操作或通過遙控車ROV進行操作。派克的海底針閥設計達到或超過了API 17D PSL 3 / 3G的嚴格資格測試要求。勞埃德檢驗員在見證API 17D閥門設計驗證協議的情況下確認了設計的結構完整性和性能。這是在316SS模型的基礎上執行的，包括API 6A PR2F PSL3 / 3G單向測試協議以及API 17D高壓測試協議。
New Parker Subsea Small-Bore Valves deliver leak-free, long-term performance in oil and gas exploration and production
Parker 2-way subsea needle valve
派克2通海底針形閥
市場：
- 上游油氣
特性/優勢：
- 三件式螺栓閥蓋結構
- 單向流
- 金屬對金屬閥座實現了氣密性關閉，更長的閥桿/閥座壽命，更長的耐用性（可重復進行開/關循環）和出色的耐腐蝕性。
- 雙O型圈閥桿密封件可防止海水和泥沙進入任何螺紋或旋轉的部件
- 額外的閥帽密封件設計用于防止水和泥沙進入任何螺紋或旋轉的部件
- 低摩擦，壓力輔助的PTFE / PEEK軸密封件可延長使用壽命并降低操作扭矩。填料位于閥桿螺紋下方，可提供可靠的閥桿和閥體密封。
- 非上升，不旋轉的閥桿可防止閥桿磨損和閥座損壞
- 設計用于接受多種類型的管和管端連接
- 可提供多種耐腐蝕材料
- 按照API 17D / API 6A標準進行設計和測試
應用：
- 水下液壓歧管
- 水下控制臍帶
- 水下井口和控制組件
- 化學注入
- DBB，放氣，排氣孔，測試管線
技術指標
- 連接類型： 錐和螺紋
- 孔徑： 12
- 最高壓力等級： 10，000 PSI
- 選項： 處理
- 主體材質： 鉻鎳鐵合金625
- 連接尺寸： 3/8“
- 閥門配置： 2通直通
- 其他選項： 不適用
- 孔徑： 12毫米
- 主體材質： 鉻鎳鐵合金625
- 連接類型： 錐和螺紋
- 連接尺寸： 3/8“
- 閥門配置： 2通直通
- 選項： 處理
- 流動的方向： 單向
- 閥桿類型： 不上升，不旋轉的莖
- 其他選項： 不適用
- 設計等級： API 6A
- 最低工作溫度： -29°攝氏度
- 最高工作溫度： 121°攝氏度
- 最大深度： 3050m
- 最高壓力等級： 10,000 PSI
Subsea Needle valve, Non-Rising, Non-Rotating Stem
Parker 2-way subsea needle valve featuring non-rising, non-rotating stem for operations up to 10,000 PSI and depths to 3050m. Designed and tested to API 17D PSL 3/3G (including API 6A PR2F) for safe and reliable performance in subsea applications.
Subsea Needle valve, Non-Rising, Non-Rotating Stem | #SNV8M10M61-H
Parker's 2-way subsea needle valve featuring non-rising, non-rotating stem for operations up to 10,000 PSI and depths to 3050m. Designed and tested to API 17D PSL 3/3G (including API 6A PR2F) for safe and reliable performance in subsea applications.
Parker's non-rising, non-rotating stem needle valve designed specifically to deliver smooth, low-torque performance in subsea applications. Featuring metal-to-metal seat for bubble-tight shut-off, longer stem/seat life, greater durability for repeated on/off cycles and reinforced PTFE/PEEK chevron packing below stem threads for dependable stem and body sealing. This subsea needle valve incorporates additional o-ring seals, which prevent the ingress of sea water into the valve which could adversely affect the operation of the valve as well as contaminate the process fluid.
The uni-directional valves are available in a range of corrosion-resistant alloys and are suitable for equipment located at depths down to 3,050m.
The valves are designed to facilitate operation either manually or by a Remotely Operated Vehicle (ROV).
Parker's subsea needle valves have been designed to meet or exceed the rigorous qualification test requirements of API 17D PSL 3/3G. The design's structural integrity and performance have been confirmed by Lloyds inspectors witnessing the API 17D valve design validation protocol. This was carried out on the base 316SS model and included the API 6A PR2F PSL3/3G uni-directional testing protocol as well as the API 17D Hyperbaric test protocol.
Markets:
- Upstream Oil & Gas
Features/Benefits:
- Three-piece, bolted bonnet construction
- Uni-directional flow
- Metal-to-Metal seating achieves bubble-tight shut-off, longer stem/seat life, greater durability for repeated on/off cycles and excellent corrosion resistance.
- Double O-ring stem seal prevents sea water and silt ingress to any threaded or rotating parts
- Additional bonnet seals engineered to prevent water and silt ingress to any threaded or rotating parts
- Low friction, pressure assisted PTFE/PEEK shaft seal increases cycle life and reduces operating torque. The packing is situated below stem threads provides dependable stem and body sealing.
- Non-rising, non-rotating stem protects against stem galling and seat damage
- Designed to accept multiple types of tube and pipe end connections
- Available in a variety of corrosion-resistant materials
- Designed and tested to API 17D/API 6A standards
Applications:
- Subsea Hydraulic Manifolds
- Subsea Control Umbilicals
- Subsea Wellheads and Control Packages
- Chemical injection
- DBB, bleed, vents, test lines
Products
- Aerospace Systems and Technologies
- Air Preparation (FRL) and Dryers
- Cylinders and Actuators
- EMI Shielding
- Filters, Separators and Purifiers
- Fittings and Quick Couplings
- Gas Generators
- Hose, Piping, Tubing and T-Slot Framing
- Medical and Dental Equipment
- Motors, Drives and Controllers
- Power Take Offs and Drive Systems
- Pumps
- Refrigeration and Air Conditioning
- Regulators, Monitoring, Sensors and Flow Control
- Seals and O-Rings
- Thermal and Power Management
- Valves
Parker Hannifin
- New Parker Subsea Small-Bore Valves deliver leak-free, long-term performance in oil and gas exploration and production
-
Part |
Bore Diameter (mm) |
Body Material |
Maximum Pressure Rating |
Connection Type |
Connection Size |
Valve Configuration |
Options |
Additional Options |
SNV8E106B1-H |
12 |
Duplex Stainless Steel |
10,000 PSI |
Butt Weld |
3/8" |
2-way Straight |
Handle |
N/A |
SNV8E106B1-HN |
12 |
Duplex Stainless Steel |
10,000 PSI |
Butt Weld |
3/8" |
2-way Straight |
Handle |
NACE certification |
SNV8E106B1-P |
12 |
Duplex Stainless Steel |
10,000 PSI |
Butt Weld |
3/8" |
2-way Straight |
ROV Low Torque Paddle |
N/A |
SNV8E106B1-PN |
12 |
Duplex Stainless Steel |
10,000 PSI |
Butt Weld |
3/8" |
2-way Straight |
ROV Low Torque Paddle |
NACE certification |
SNV8E106N1-H |
12 |
Duplex Stainless Steel |
10,000 PSI |
NPT |
3/8" |
2-way Straight |
Handle |
N/A |
SNV8E106N1-HN |
12 |
Duplex Stainless Steel |
10,000 PSI |
NPT |
3/8" |
2-way Straight |
Handle |
NACE certification |
SNV8E106N1-P |
12 |
Duplex Stainless Steel |
10,000 PSI |
NPT |
3/8" |
2-way Straight |
ROV Low Torque Paddle |
N/A |
SNV8E106N1-PN |
12 |
Duplex Stainless Steel |
10,000 PSI |
NPT |
3/8" |
2-way Straight |
ROV Low Torque Paddle |
NACE certification |
SNV8E108B1-H |
12 |
Duplex Stainless Steel |
10,000 PSI |
Butt Weld |
1/2" |
2-way Straight |
Handle |
N/A |
SNV8E108B1-HN |
12 |
Duplex Stainless Steel |
10,000 PSI |
Butt Weld |
1/2" |
2-way Straight |
Handle |
NACE certification |
SNV8E108B1-P |
12 |
Duplex Stainless Steel |
10,000 PSI |
Butt Weld |
1/2" |
2-way Straight |
ROV Low Torque Paddle |
N/A |
SNV8E108B1-PN |
12 |
Duplex Stainless Steel |
10,000 PSI |
Butt Weld |
1/2" |
2-way Straight |
ROV Low Torque Paddle |
NACE certification |
SNV8E108N1-H |
12 |
Duplex Stainless Steel |
10,000 PSI |
NPT |
1/2" |
2-way Straight |
Handle |
N/A |
SNV8E108N1-HN |
12 |
Duplex Stainless Steel |
10,000 PSI |
NPT |
1/2" |
2-way Straight |
Handle |
NACE certification |
SNV8E108N1-P |
12 |
Duplex Stainless Steel |
10,000 PSI |
NPT |
1/2" |
2-way Straight |
ROV Low Torque Paddle |
N/A |
SNV8E108N1-PN |
12 |
Duplex Stainless Steel |
10,000 PSI |
NPT |
1/2" |
2-way Straight |
ROV Low Torque Paddle |
NACE certification |
SNV8E10M121-H |
12 |
Duplex Stainless Steel |
10,000 PSI |
Cone and Thread |
3/4" |
2-way Straight |
Handle |
N/A |
SNV8E10M121-HN |
12 |
Duplex Stainless Steel |
10,000 PSI |
Cone and Thread |
3/4" |
2-way Straight |
Handle |
NACE certification |
SNV8E10M121-P |
12 |
Duplex Stainless Steel |
10,000 PSI |
Cone and Thread |
3/4" |
2-way Straight |
ROV Low Torque Paddle |
N/A |
SNV8E10M121-PN |
12 |
Duplex Stainless Steel |
10,000 PSI |
Cone and Thread |
3/4" |
2-way Straight |
ROV Low Torque Paddle |
NACE certification |
SNV8E10M61-H |
12 |
Duplex Stainless Steel |
10,000 PSI |
Cone and Thread |
3/8" |
2-way Straight |
Handle |
N/A |
SNV8E10M61-HN |
12 |
Duplex Stainless Steel |
10,000 PSI |
Cone and Thread |
3/8" |
2-way Straight |
Handle |
NACE certification |
SNV8E10M61-P |
12 |
Duplex Stainless Steel |
10,000 PSI |
Cone and Thread |
3/8" |
2-way Straight |
ROV Low Torque Paddle |
N/A |
SNV8E10M61-PN |
12 |
Duplex Stainless Steel |
10,000 PSI |
Cone and Thread |
3/8" |
2-way Straight |
ROV Low Torque Paddle |
NACE certification |
SNV8E10M91-H |
12 |
Duplex Stainless Steel |
10,000 PSI |
Cone and Thread |
9/16" |
2-way Straight |
Handle |
N/A |
SNV8E10M91-HN |
12 |
Duplex Stainless Steel |
10,000 PSI |
Cone and Thread |
9/16" |
2-way Straight |
Handle |
NACE certification |
SNV8E10M91-P |
12 |
Duplex Stainless Steel |
10,000 PSI |
Cone and Thread |
9/16" |
2-way Straight |
ROV Low Torque Paddle |
N/A |
SNV8E10M91-PN |
12 |
Duplex Stainless Steel |
10,000 PSI |
Cone and Thread |
9/16" |
2-way Straight |
ROV Low Torque Paddle |
NACE certification |
SNV8F106B1-H |
12 |
Super Duplex |
10,000 PSI |
Butt Weld |
3/8" |
2-way Straight |
Handle |
N/A |
SNV8F106B1-HN |
12 |
Super Duplex |
10,000 PSI |
Butt Weld |
3/8" |
2-way Straight |
Handle |
NACE certification |
SNV8F106B1-P |
12 |
Super Duplex |
10,000 PSI |
Butt Weld |
3/8" |
2-way Straight |
ROV Low Torque Paddle |
N/A |
SNV8F106B1-PN |
12 |
Super Duplex |
10,000 PSI |
Butt Weld |
3/8" |
2-way Straight |
ROV Low Torque Paddle |
NACE certification |
SNV8F106N1-H |
12 |
Super Duplex |
10,000 PSI |
NPT |
3/8" |
2-way Straight |
Handle |
N/A |
SNV8F106N1-HN |
12 |
Super Duplex |
10,000 PSI |
NPT |
3/8" |
2-way Straight |
Handle |
NACE certification |
SNV8F106N1-P |
12 |
Super Duplex |
10,000 PSI |
NPT |
3/8" |
2-way Straight |
ROV Low Torque Paddle |
N/A |
SNV8F106N1-PN |
12 |
Super Duplex |
10,000 PSI |
NPT |
3/8" |
2-way Straight |
ROV Low Torque Paddle |
NACE certification |
SNV8F108B1-H |
12 |
Super Duplex |
10,000 PSI |
Butt Weld |
1/2" |
2-way Straight |
Handle |
N/A |
SNV8F108B1-HN |
12 |
Super Duplex |
10,000 PSI |
Butt Weld |
1/2" |
2-way Straight |
Handle |
NACE certification |
SNV8F108B1-P |
12 |
Super Duplex |
10,000 PSI |
Butt Weld |
1/2" |
2-way Straight |
ROV Low Torque Paddle |
N/A |
SNV8F108B1-PN |
12 |
Super Duplex |
10,000 PSI |
Butt Weld |
1/2" |
2-way Straight |
ROV Low Torque Paddle |
NACE certification |
SNV8F108N1-H |
12 |
Super Duplex |
10,000 PSI |
NPT |
1/2" |
2-way Straight |
Handle |
N/A |
SNV8F108N1-HN |
12 |
Super Duplex |
10,000 PSI |
NPT |
1/2" |
2-way Straight |
Handle |
NACE certification |
SNV8F108N1-P |
12 |
Super Duplex |
10,000 PSI |
NPT |
1/2" |
2-way Straight |
ROV Low Torque Paddle |
N/A |
SNV8F108N1-PN |
12 |
Super Duplex |
10,000 PSI |
NPT |
1/2" |
2-way Straight |
ROV Low Torque Paddle |
NACE certification |
SNV8F10M121-H |
12 |
Super Duplex |
10,000 PSI |
Cone and Thread |
3/4" |
2-way Straight |
Handle |
N/A |
SNV8F10M121-HN |
12 |
Super Duplex |
10,000 PSI |
Cone and Thread |
3/4" |
2-way Straight |
Handle |
NACE certification |
SNV8F10M121-P |
12 |
Super Duplex |
10,000 PSI |
Cone and Thread |
3/4" |
2-way Straight |
ROV Low Torque Paddle |
N/A |
SNV8F10M121-PN |
12 |
Super Duplex |
10,000 PSI |
Cone and Thread |
3/4" |
2-way Straight |
ROV Low Torque Paddle |
NACE certification |
SNV8F10M61-H |
12 |
Super Duplex |
10,000 PSI |
Cone and Thread |
3/8" |
2-way Straight |
Handle |
N/A |
SNV8F10M61-HN |
12 |
Super Duplex |
10,000 PSI |
Cone and Thread |
3/8" |
2-way Straight |
Handle |
NACE certification |
-
Part |
Bore Diameter (mm) |
Body Material |
Maximum Pressure Rating |
Connection Type |
Connection Size |
Valve Configuration |
Options |
Additional Options |
SNV8F10M61-P |
12 |
Super Duplex |
10,000 PSI |
Cone and Thread |
3/8" |
2-way Straight |
ROV Low Torque Paddle |
N/A |
SNV8F10M61-PN |
12 |
Super Duplex |
10,000 PSI |
Cone and Thread |
3/8" |
2-way Straight |
ROV Low Torque Paddle |
NACE certification |
SNV8F10M91-H |
12 |
Super Duplex |
10,000 PSI |
Cone and Thread |
9/16" |
2-way Straight |
Handle |
N/A |
SNV8F10M91-HN |
12 |
Super Duplex |
10,000 PSI |
Cone and Thread |
9/16" |
2-way Straight |
Handle |
NACE certification |
SNV8F10M91-P |
12 |
Super Duplex |
10,000 PSI |
Cone and Thread |
9/16" |
2-way Straight |
ROV Low Torque Paddle |
N/A |
SNV8F10M91-PN |
12 |
Super Duplex |
10,000 PSI |
Cone and Thread |
9/16" |
2-way Straight |
ROV Low Torque Paddle |
NACE certification |
SNV8M106B1-H |
12 |
Inconel 625 |
10,000 PSI |
Butt Weld |
3/8" |
2-way Straight |
Handle |
N/A |
SNV8M106B1-HN |
12 |
Inconel 625 |
10,000 PSI |
Butt Weld |
3/8" |
2-way Straight |
Handle |
NACE certification |
SNV8M106B1-P |
12 |
Inconel 625 |
10,000 PSI |
Butt Weld |
3/8" |
2-way Straight |
ROV Low Torque Paddle |
N/A |
SNV8M106B1-PN |
12 |
Inconel 625 |
10,000 PSI |
Butt Weld |
3/8" |
2-way Straight |
ROV Low Torque Paddle |
NACE certification |
SNV8M106N1-H |
12 |
Inconel 625 |
10,000 PSI |
NPT |
3/8" |
2-way Straight |
Handle |
N/A |
SNV8M106N1-HN |
12 |
Inconel 625 |
10,000 PSI |
NPT |
3/8" |
2-way Straight |
Handle |
NACE certification |
SNV8M106N1-P |
12 |
Inconel 625 |
10,000 PSI |
NPT |
3/8" |
2-way Straight |
ROV Low Torque Paddle |
N/A |
SNV8M106N1-PN |
12 |
Inconel 625 |
10,000 PSI |
NPT |
3/8" |
2-way Straight |
ROV Low Torque Paddle |
NACE certification |
SNV8M108B1-H |
12 |
Inconel 625 |
10,000 PSI |
Butt Weld |
1/2" |
2-way Straight |
Handle |
N/A |
SNV8M108B1-HN |
12 |
Inconel 625 |
10,000 PSI |
Butt Weld |
1/2" |
2-way Straight |
Handle |
NACE certification |
SNV8M108B1-P |
12 |
Inconel 625 |
10,000 PSI |
Butt Weld |
1/2" |
2-way Straight |
ROV Low Torque Paddle |
N/A |
SNV8M108B1-PN |
12 |
Inconel 625 |
10,000 PSI |
Butt Weld |
1/2" |
2-way Straight |
ROV Low Torque Paddle |
NACE certification |
SNV8M108N1-H |
12 |
Inconel 625 |
10,000 PSI |
NPT |
1/2" |
2-way Straight |
Handle |
N/A |
SNV8M108N1-HN |
12 |
Inconel 625 |
10,000 PSI |
NPT |
1/2" |
2-way Straight |
Handle |
NACE certification |
SNV8M108N1-P |
12 |
Inconel 625 |
10,000 PSI |
NPT |
1/2" |
2-way Straight |
ROV Low Torque Paddle |
N/A |
SNV8M108N1-PN |
12 |
Inconel 625 |
10,000 PSI |
NPT |
1/2" |
2-way Straight |
ROV Low Torque Paddle |
NACE certification |
SNV8M10M121-H |
12 |
Inconel 625 |
10,000 PSI |
Cone and Thread |
3/4" |
2-way Straight |
Handle |
N/A |
SNV8M10M121-HN |
12 |
Inconel 625 |
10,000 PSI |
Cone and Thread |
3/4" |
2-way Straight |
Handle |
NACE certification |
SNV8M10M121-P |
12 |
Inconel 625 |
10,000 PSI |
Cone and Thread |
3/4" |
2-way Straight |
ROV Low Torque Paddle |
N/A |
SNV8M10M121-PN |
12 |
Inconel 625 |
10,000 PSI |
Cone and Thread |
3/4" |
2-way Straight |
ROV Low Torque Paddle |
NACE certification |
SNV8M10M61-H |
12 |
Inconel 625 |
10,000 PSI |
Cone and Thread |
3/8" |
2-way Straight |
Handle |
N/A |
SNV8M10M61-HN |
12 |
Inconel 625 |
10,000 PSI |
Cone and Thread |
3/8" |
2-way Straight |
Handle |
NACE certification |
SNV8M10M61-P |
12 |
Inconel 625 |
10,000 PSI |
Cone and Thread |
3/8" |
2-way Straight |
ROV Low Torque Paddle |
N/A |
SNV8M10M61-PN |
12 |
Inconel 625 |
10,000 PSI |
Cone and Thread |
3/8" |
2-way Straight |
ROV Low Torque Paddle |
NACE certification |
SNV8M10M91-H |
12 |
Inconel 625 |
10,000 PSI |
Cone and Thread |
9/16" |
2-way Straight |
Handle |
N/A |
SNV8M10M91-HN |
12 |
Inconel 625 |
10,000 PSI |
Cone and Thread |
9/16" |
2-way Straight |
Handle |
NACE certification |
SNV8M10M91-P |
12 |
Inconel 625 |
10,000 PSI |
Cone and Thread |
9/16" |
2-way Straight |
ROV Low Torque Paddle |
N/A |
SNV8M10M91-PN |
12 |
Inconel 625 |
10,000 PSI |
Cone and Thread |
9/16" |
2-way Straight |
ROV Low Torque Paddle |
NACE certification |
SNV8S106B1-H |
12 |
316 Stainless Steel |
10,000 PSI |
Butt Weld |
3/8" |
2-way Straight |
Handle |
N/A |
SNV8S106B1-HN |
12 |
316 Stainless Steel |
10,000 PSI |
Butt Weld |
3/8" |
2-way Straight |
Handle |
NACE certification |
SNV8S106B1-P |
12 |
316 Stainless Steel |
10,000 PSI |
Butt Weld |
3/8" |
2-way Straight |
ROV Low Torque Paddle |
N/A |
SNV8S106B1-PN |
12 |
316 Stainless Steel |
10,000 PSI |
Butt Weld |
3/8" |
2-way Straight |
ROV Low Torque Paddle |
NACE certification |
SNV8S106N1-H |
12 |
316 Stainless Steel |
10,000 PSI |
NPT |
3/8" |
2-way Straight |
Handle |
N/A |
SNV8S106N1-HN |
12 |
316 Stainless Steel |
10,000 PSI |
NPT |
3/8" |
2-way Straight |
Handle |
NACE certification |
SNV8S106N1-P |
12 |
316 Stainless Steel |
10,000 PSI |
NPT |
3/8" |
2-way Straight |
ROV Low Torque Paddle |
N/A |
SNV8S106N1-PN |
12 |
316 Stainless Steel |
10,000 PSI |
NPT |
3/8" |
2-way Straight |
ROV Low Torque Paddle |
NACE certification |
SNV8S108B1-H |
12 |
316 Stainless Steel |
10,000 PSI |
Butt Weld |
1/2" |
2-way Straight |
Handle |
N/A |
SNV8S108B1-HN |
12 |
316 Stainless Steel |
10,000 PSI |
Butt Weld |
1/2" |
2-way Straight |
Handle |
NACE certification |
SNV8S108B1-P |
12 |
316 Stainless Steel |
10,000 PSI |
Butt Weld |
1/2" |
2-way Straight |
ROV Low Torque Paddle |
N/A |
SNV8S108B1-PN |
12 |
316 Stainless Steel |
10,000 PSI |
Butt Weld |
1/2" |
2-way Straight |
ROV Low Torque Paddle |
NACE certification |
SNV8S108N1-H |
12 |
316 Stainless Steel |
10,000 PSI |
NPT |
1/2" |
2-way Straight |
Handle |
N/A |
SNV8S108N1-HN |
12 |
316 Stainless Steel |
10,000 PSI |
NPT |
1/2" |
2-way Straight |
Handle |
NACE certification |
SNV8S108N1-P |
12 |
316 Stainless Steel |
10,000 PSI |
NPT |
1/2" |
2-way Straight |
ROV Low Torque Paddle |
N/A |
SNV8S108N1-PN |
12 |
316 Stainless Steel |
10,000 PSI |
NPT |
1/2" |
2-way Straight |
ROV Low Torque Paddle |
NACE certification |
-
Part |
Bore Diameter (mm) |
Body Material |
Maximum Pressure Rating |
Connection Type |
Connection Size |
Valve Configuration |
Options |
Additional Options |
SNV8S10M121-H |
12 |
316 Stainless Steel |
10,000 PSI |
Cone and Thread |
3/4" |
2-way Straight |
Handle |
N/A |
SNV8S10M121-HN |
12 |
316 Stainless Steel |
10,000 PSI |
Cone and Thread |
3/4" |
2-way Straight |
Handle |
NACE certification |
SNV8S10M121-P |
12 |
316 Stainless Steel |
10,000 PSI |
Cone and Thread |
3/4" |
2-way Straight |
ROV Low Torque Paddle |
N/A |
SNV8S10M121-PN |
12 |
316 Stainless Steel |
10,000 PSI |
Cone and Thread |
3/4" |
2-way Straight |
ROV Low Torque Paddle |
NACE certification |
SNV8S10M61-H |
12 |
316 Stainless Steel |
10,000 PSI |
Cone and Thread |
3/8" |
2-way Straight |
Handle |
N/A |
SNV8S10M61-HN |
12 |
316 Stainless Steel |
10,000 PSI |
Cone and Thread |
3/8" |
2-way Straight |
Handle |
NACE certification |
SNV8S10M61-P |
12 |
316 Stainless Steel |
10,000 PSI |
Cone and Thread |
3/8" |
2-way Straight |
ROV Low Torque Paddle |
N/A |
SNV8S10M61-PN |
12 |
316 Stainless Steel |
10,000 PSI |
Cone and Thread |
3/8" |
2-way Straight |
ROV Low Torque Paddle |
NACE certification |
SNV8S10M91-H |
12 |
316 Stainless Steel |
10,000 PSI |
Cone and Thread |
9/16" |
2-way Straight |
Handle |
N/A |
SNV8S10M91-HN |
12 |
316 Stainless Steel |
10,000 PSI |
Cone and Thread |
9/16" |
2-way Straight |
Handle |
NACE certification |
SNV8S10M91-P |
12 |
316 Stainless Steel |
10,000 PSI |
Cone and Thread |
9/16" |
2-way Straight |
ROV Low Torque Paddle |
N/A |
SNV8S10M91-PN |
12 |
316 Stainless Steel |
10,000 PSI |
Cone and Thread |
9/16" |
2-way Straight |
ROV Low Torque Paddle |
NACE certification |
|
fcg.cnmec@parkerdistribution.com.cn
