Parker 5400自密封鋼制管接頭用于流體輸送應用，便于制冷和空調系統的維護。快速接頭還允許對單元進行預充電，以便于安裝。應用包括船用制冷和空調系統，以及低溫裝置。派克快速接頭用于流體輸送應用，便于制冷或空調系統的維護。派克漢尼芬擁有市場上-廣泛的快速接頭產品。無論是快速連接，斷開后自動密封，還是黃銅或鋼結構，派克都有你所需要的。派克的應用范圍從房間空調到低溫泵，有你要找的產品。

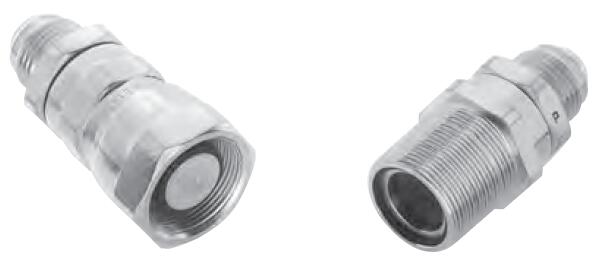

Parker 5400 self-sealing steel couplings are used in fluid-transfer applications for easy maintenance on refrigeration and air conditioning systems. The couplings also allow for pre-charging of units for easy installation. Applications can include marine refrigeration and air conditioning systems, along with cryogenic units.
Parker couplings are used in fluid transfer applications for easy maintenance on refrigeration or air conditioning systems.Parker Hannifin has the broadest coupling product offering in the market. Whether it is quick- connect, self- sealing upon disconnection, or brass or steel construction, Parker has what you need. With applications ranging from room air conditioners to cryogenic pumps, Parker has the product you are looking for.
Parker 5400 self-sealing steel couplings PDF Catalog
這種完整的生產線方法允許派克開發增值的組件，這將減少SKU和減少總的任務時間。結合派克提供的出色服務，一切皆有可能。This complete line approach allows Parker to develop value- added assemblies that will reduce SKU’s and decrease overall task time. Combine this with the outstanding services Parker offers and anything is possible.
這些快速接頭用于流體輸送應用，以便于制冷或空調系統的維護。有些可以用自密封鋼或黃銅制成。另一些則是用于預充電系統的一次性黃銅。短管套件提供獨特的銅連接，以創造一個替代品，允許銅對銅釬焊。These couplings are used in fluid transfer applications for easy maintenance on refrigeration or air conditioning systems. Some are available in self- sealing steel or brass. Others are one-shot brass for pre-charged systems. Stub kits are available with unique copper connections to create a drop in replacement allowing copper to copper brazing.
市場
- Air Conditioning
- Refrigeration
- Industrial Refrigeration
- Transportation
性能特點:
- Self- sealing disconnection maintains minimum air inclusion and fluid loss
- Brass coupling provides corrosion resistance
- Final metal to metal seal prevents refrigerant loss
- One-Shot series contains a diaphragm that is pierced upon connection and folded back into the coupling to provide a high flow path and low pressure drop
產品應用行業:
- Air Conditioning – Residential, Commercial, Portable split systems, Manufactured home units
- Heat Pumps – Split units
- Refrigeration – Marine, Split systems
- Transportation
- Cryogenic units using the steel couplings
-空調-住宅、商業、便攜式分體式系統、家庭制造單元
-熱泵-分體式機組
-制冷-船用，分體式系統
-運輸
-使用鋼聯軸器的低溫裝置
規格參數
Technical Specifications
Maximum Burst Pressure: Not Applicable, or 2100 to 9000 psi
External Leak Rate: <0.25 ounce of R-22 refrigerant per year at operating pressure range, <0.1 ounce of R-22 refrigerant per year at operating pressure range or Not Applicable
Model Number: Please Configure Part for Model Number
Agency Approvals
U.L. listed; File No: SA7511
Part |
Coupling Half |
Inlet Connection |
Outlet Connection |
Product Type |
Maximum Operating Temperature (F) |
Minimum Operating Temperature (F) |
Maximum Operating Pressure (psig) |
150-22-12 |
N/A |
3/4" ODF |
N/A |
5500 Series Steel Mounting Flange |
N/A |
N/A |
N/A |
150-22-16 |
N/A |
1" ODF |
N/A |
5500 Series Steel Mounting Flange |
N/A |
N/A |
N/A |
150-22-8 |
N/A |
1/2" ODF |
N/A |
5500 Series Steel Mounting Flange |
N/A |
N/A |
N/A |
5400-S2-12 |
Male |
1-1/4"-18 Threaded |
1-7/16"-16UN Threaded |
Self-Sealing Steel |
250 |
-40 |
700 |
5400-S2-16 |
Male |
1-19/32"-20 Threaded |
1-3/4"-16UN Threaded |
Self-Sealing Steel |
250 |
-40 |
700 |
5400-S2-4 |
Male |
1/2"-20 Threaded |
5/8"-18UNF Threaded |
Self-Sealing Steel |
250 |
-40 |
3000 |
5400-S2-8 |
Male |
7/8"-20 Threaded |
1"-20UNEF Threaded |
Self-Sealing Steel |
250 |
-40 |
1750 |
5400-S5-12 |
Female |
1-1/4"-18 Threaded |
1-7/16"-16UN Threaded |
Self-Sealing Steel |
250 |
-40 |
700 |
5400-S5-16 |
Female |
1-19/32"-20 Threaded |
1-3/4"-16UN Threaded |
Self-Sealing Steel |
250 |
-40 |
700 |
5400-S5-4 |
Female |
1/2"-20 Threaded |
5/8"-18UNF Threaded |
Self-Sealing Steel |
250 |
-40 |
3000 |
5400-S5-8 |
Female |
7/8"-20 Threaded |
1"-20UNEF Threaded |
Self-Sealing Steel |
250 |
-40 |
1750 |
5400-S6-12 |
N/A |
1-7/16"-16UN Threaded |
N/A |
Self-Sealing Steel Dust Cap with Gasket |
N/A |
N/A |
N/A |
5400-S6-16 |
N/A |
1-3/4"-16UN Threaded |
N/A |
Self-Sealing Steel Dust Cap with Gasket |
N/A |
N/A |
N/A |
5400-S6-4 |
N/A |
5/8"-18UNF Threaded |
N/A |
Self-Sealing Steel Dust Cap with Gasket |
N/A |
N/A |
N/A |
5400-S6-8 |
N/A |
1"-20UNEF Threaded |
N/A |
Self-Sealing Steel Dust Cap with Gasket |
N/A |
N/A |
N/A |
5400-S8-12 |
N/A |
1-7/16"-16UN Threaded |
N/A |
Self-Sealing Steel Dust Plug with Gasket |
N/A |
N/A |
N/A |
5400-S8-16 |
N/A |
1-3/4"-16UN Threaded |
N/A |
Self-Sealing Steel Dust Plug with Gasket |
N/A |
N/A |
N/A |
5400-S8-4 |
N/A |
5/8"-18UNF Threaded |
N/A |
Self-Sealing Steel Dust Plug with Gasket |
N/A |
N/A |
N/A |
5400-S8-8 |
N/A |
1"-20UNEF Threaded |
N/A |
Self-Sealing Steel Dust Plug with Gasket |
N/A |
N/A |
N/A |
5500-04-08 |
N/A |
1/4" ODF |
1/2" |
Self-Sealing Brass |
250 |
-40 |
750 |
5500-06-08 |
Male/Female Assembly |
3/8" ODF |
1/2" |
Self-Sealing Brass |
250 |
-40 |
750 |
5500-08-08 |
Male/Female Assembly |
1/2" ODF |
1/2" |
Self-Sealing Brass |
250 |
-40 |
750 |
5500-10-08 |
N/A |
5/8" ODF |
1/2" |
Self-Sealing Brass |
250 |
-40 |
750 |
5500-10-12 |
N/A |
5/8" ODF |
3/4" |
Self-Sealing Brass |
250 |
-40 |
750 |
5500-12-12 |
N/A |
3/4" ODF |
3/4" |
Self-Sealing Brass |
250 |
-40 |
750 |
5500-14-12 |
N/A |
7/8" ODF |
3/4" |
Self-Sealing Brass |
250 |
-40 |
750 |
5500-14-16 |
N/A |
7/8" ODF |
1" |
Self-Sealing Brass |
250 |
-40 |
750 |
5500-18-16 |
N/A |
1-1/8" ODF |
1" |
Self-Sealing Brass |
250 |
-40 |
750 |
5502-04B-06 |
Male |
1/4" ODF |
3/8" |
Self-Sealing Brass with Plastic Protective Cap |
250 |
-40 |
750 |
5502-04B-08 |
Male |
1/4" ODF |
1/2" |
Self-Sealing Brass with Plastic Protective Cap |
250 |
-40 |
750 |
5502-06B-06 |
Male |
3/8" ODF |
3/8" |
Self-Sealing Brass with Plastic Protective Cap |
250 |
-40 |
750 |
5502-06B-08 |
Male |
3/8" ODF |
1/2" |
Self-Sealing Brass with Plastic Protective Cap |
250 |
-40 |
750 |
5502-08B-08 |
Male |
1/2" ODF |
1/2" |
Self-Sealing Brass with Plastic Protective Cap |
250 |
-40 |
750 |
5502-10-12 |
Male |
5/8" ODF |
3/4" |
Self-Sealing Brass |
250 |
-40 |
750 |
5502-10B-08 |
Male |
5/8" ODF |
1/2" |
Self-Sealing Brass |
250 |
-40 |
750 |
5502-12-12 |
Male |
3/4" ODF |
3/4" |
Self-Sealing Brass |
250 |
-40 |
750 |
5502-14-12 |
Male |
7/8" ODF |
3/4" |
Self-Sealing Brass |
250 |
-40 |
750 |
5502-14-16 |
Male |
7/8" ODF |
1" |
Self-Sealing Brass |
250 |
-40 |
750 |
5505-04B-06 |
Female |
1/4" ODF |
3/8" |
Self-Sealing Brass with Plastic Protective Cap |
250 |
-40 |
750 |
5505-04B-08 |
Female |
1/4" ODF |
1/2" |
Self-Sealing Brass with Plastic Protective Cap |
250 |
-40 |
750 |
5505-06B-06 |
Female |
3/8" ODF |
3/8" |
Self-Sealing Brass with Plastic Protective Cap |
250 |
-40 |
750 |
5505-06B-08 |
Female |
3/8" ODF |
1/2" |
Self-Sealing Brass with Plastic Protective Cap |
250 |
-40 |
750 |
5505-08B-08 |
Female |
1/2" ODF |
1/2" |
Self-Sealing Brass with Plastic Protective Cap |
250 |
-40 |
750 |
5505-10-12 |
Female |
5/8" ODF |
3/4" |
Self-Sealing Brass |
250 |
-40 |
750 |
5505-10B-08 |
Female |
5/8" ODF |
1/2" |
Self-Sealing Brass with Plastic Protective Cap |
250 |
-40 |
750 |
5505-12-12 |
Female |
3/4" ODF |
3/4" |
Self-Sealing Brass |
250 |
-40 |
750 |
5505-14-12 |
Female |
7/8" ODF |
3/4" |
Self-Sealing Brass |
250 |
-40 |
750 |
5505-14-16 |
Female |
7/8" ODF |
1" |
Self-Sealing Brass |
250 |
-40 |
750 |
RC01C-002 |
N/A |
M14x1.5-6H |
13 mm |
Automotive Process Coupling - Low Side R-134a |
250 |
-40 |
500 |
RC01C-003 |
N/A |
M14x1.5-6H |
16 mm |
Automotive Process Coupling - High Side R-134a |
250 |
-40 |
500 |
RC01C-011 |
N/A |
7/16"-20 Male |
13 mm |
Automotive Process Coupling - Low Side R-134a |
250 |
-40 |
500 |
RC01C-012 |
N/A |
7/16"-20 Male |
16 mm |
Automotive Process Coupling - High Side R-134a |
250 |
-40 |
500 |
RC01YF-012 |
N/A |
N/A |
N/A |
Automotive Process Coupling - Low Side R-1243YF |
250 |
-40 |
500 |
RC01YF-013 |
N/A |
N/A |
N/A |
Automotive Process Coupling - High Side R-1243YF |
250 |
-40 |
500 |
|
