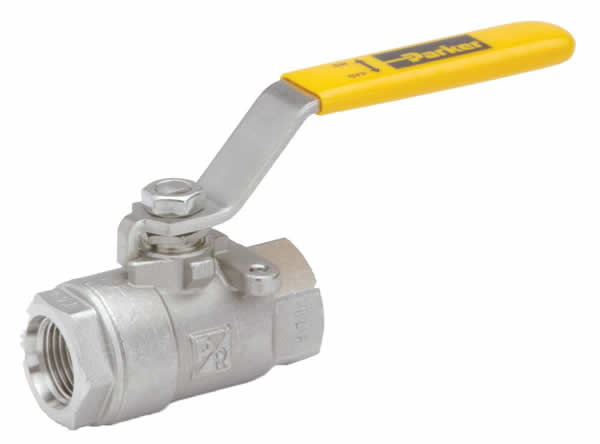

Parker Stainless Steel Industrial Ball Valves
派克不銹鋼球閥

派克不銹鋼球閥符合NACE MR-01-75的材料要求。帕克公司的工業不銹鋼球閥是為一般用途。不銹鋼球閥用于全開或全關位置。根據應用條件，閥門節流可能導致過早密封失效和/或無法轉動閥門手柄。派克不銹鋼球閥符合NACE MR-01-75的材料要求。Parker's stainless steel ball valves meet the material requirements of NACE MR-01-75. Parker's industrial stainless steel ball valve line is intended for general purpose use. Stainless steel ball valves are intended for use in the fully open or closed positions. Depending on the application conditions, throttling of the valve may result in premature seal failure and/or inability to turn the valve handle. Parker's stainless steel ball valves meet the material requirements of of NACE MR-01-75.

Ball Valve Products and Custom Solutions

派克的不銹鋼球閥符合NACE MR-01-75的材料要求。派克的工業不銹鋼球閥產品線適用于一般用途。不銹鋼球閥適用于全開或全關位置。根據應用條件，閥門的節流可能導致過早的密封失效和/或無法旋轉閥門手柄。派克的不銹鋼球閥符合NACE MR-01-75的材料要求。

派克的不銹鋼球閥有以下幾種樣式。
- 公管x母管- 母
管x母管
-

不銹鋼球閥的面板安裝選項包括：
- 橢圓形手柄
- 短手柄
- 掛鎖手柄
- 焊接固定螺母
- 執行器套件

市場：
- 石油化工
- 煉油廠
- 鋼鐵
- 農業
- 食品加工
- 工業

功能/優點：
- CF-8M不銹鋼閥體
- 不銹鋼球
- PTFE閥座/密封件
- 滿足材料要求NACE MR-01-75

應用：
- 燃料管線
- 化學管線
- 沖洗
- 需要完全關閉能力的工廠設計管道

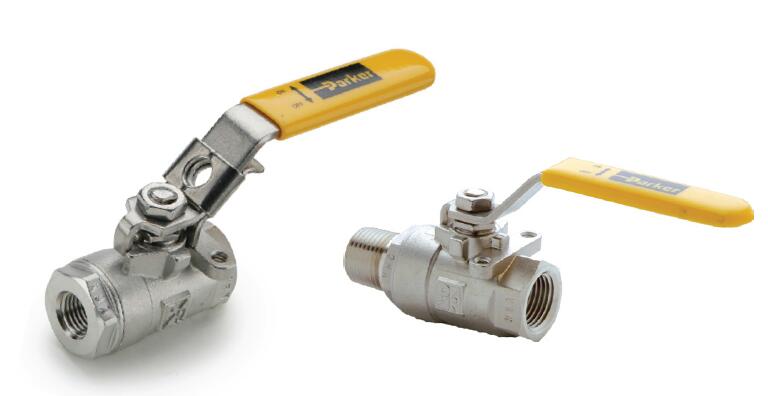

Parker's stainless steel ball valves are available in the following styles.
- Male Pipe x Female Pipe
- Female Pipe x Female Pipe
- Panel Mount

Options for the stainless steel ball valve include:
- Oval Handle
- Short Handle
- Padlocking Handle
- Welded Retainer Nut
- Actuator Kit

市場:
- Petrochemical
- Refineries
- Steel
- Agriculture
- Food Processing
- Industrial

參數:
- CF-8M Stainless Steel Body
- Stainless Steel Ball
- PTFE Seats/Seals
- Meets Material Requirements NACE MR-01-75

應用:
- Fuel Lines
- Chemical Lines
- Wash Down
- Plant Design Plumbing Requiring Total Shutoff Capability

規格參數

Technical Specifications
Minimum Operating Temperature: 0 °F, -17 °C
Maximum Operating Temperature: 400 °F, 204 °C
Maximum Operating Pressure: 2000 (1/4 - 1), 1500 (1 1/4 - 2) psi, 103 - 138 bar
Connection Type: NPT
Body Material: CF-8M Stainless Steel
Ball Material: Stainless Steel
Seat Material: PTFE
Specifications Met: NACE MR-01-75
Vacuum Pressure Rating: 28 Inch-Hg
