Parker Legris LF3600系列適用于流體及氣體銅鍍鎳接頭, 銅鍍鎳
Parker LF3600 FDA Chemical Nickel-Plated Brass Push-In Fittings datasheet

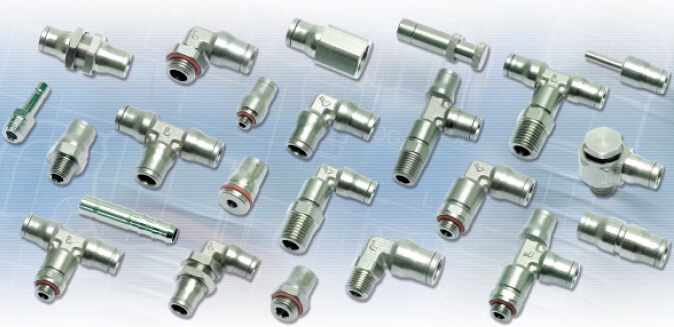

Legris LF3600系列銅鍍鎳快插式接頭
Legris LF6100 Brass Push-In Fittings
Parker Legris LF3600 Push-In Fittings

為了滿足您的技術和環境要求，派克樂可利設計了該系列的金屬快插式接頭，在大多數苛刻環境下能夠為工業流體提供穩定、可靠和耐用的連接方案。為了滿足您的技術和環境要求，派克樂可利設計了該系列的金屬快插式接頭，在大多數苛刻環境下能夠為工業流體提供穩定、可靠和耐用的連接方案。Parker Legris 派克樂可利LF3600銅鍍鎳接頭用于低腐蝕性環境或食品制造行業．銅鍍鎳的材質和FKM的密封圈都符合FDA標準。適用真空應用，工作壓力30bar，工作溫度從-20°C 到150°C間，可與所有塑料管類產品連接使用。In order to meet your technical and environment requirements, Parker Legris designed this range of metal fittings, offering robustness, reliability and resistance to industrial fluids for the most demanding environments。LF3600 push-in fittings for food fluids Materials: FDA approved chemical nickel-plated brass and FKM seals。

Parker Legris LF3600系列適用于流體及氣體銅鍍鎳接頭, 銅鍍鎳
Parker LF3600 FDA Chemical Nickel-Plated Brass Push-In Fittings datasheet

產品優勢：

> 性能出色
- 能夠耐受30 bar壓力，+150?C的環境
- 優秀的機械性能
- 防沖擊和振動的加長型螺紋
- 由于采用高磷化學鍍鎳，因此具備優秀的耐磨損和防腐蝕性能
- 全流量，壓降小

> 多功能性
- 材質符合美國食品和藥物管理局標準
- 彈簧卡爪可用于連接金屬管（槽型）和塑料軟管
- 優秀的高壓和真空能力
- 出色的化學相容性
- 超過250個產品型號
- 一款接頭可適用于多種應用：庫存優化
- 手動快速連接和拆卸
- 緊湊、美觀、符合人體工程學的設計

> 可靠性
- 高性能銅材質可提高使用壽命
- 生產環節100%防泄漏檢測
- 保證質量和可追溯性的日期代碼

產品類型：
- 油口接頭
- 帶尾管的油口接頭
- 埋入式
- 油口彎頭
- 加長型油口彎頭
- 緊湊型彎頭
- 支管油口三通
- 直管油口三通
- 鉸接接頭
- 管對管接頭
- 管對管彎通連接件
- 等徑彎頭
- 等徑三通
- 隔板連接接頭
- 等徑隔板連接接頭
- 隔板接頭
- 等徑隔板彎頭
- 減徑插桿接頭
- 插桿過渡接頭
- 插桿膨脹接頭
- 插桿寶塔連接接頭
- 插桿連接件
- 堵頭
- 斷開工具
- 釋放鈕蓋

應用：
- 食品加工
- 咖啡機
- 汽車生產
- 醫用器材
- 印刷
- 霧化
- 焊接機器人

技術特點：
- 流體：壓縮空氣，潤滑脂，潤滑劑，水
- 材料：化學鍍鎳黃銅，FKM
- 壓力：真空至30bar
- 溫度：-20°C至+ 150°C
- 公制：4-14 mm

法規：
>工業
- ISO 14743: 氣動傳動裝置，用于熱塑性管材的快插接頭
- DI:97/23/EC (PED)
- DI :2002/95/EC (RoHS), 2011/65/EC
- RG:1907/2006 (REACH)
- DI:94/9/EC (ATEX )
- UL94 V-0: 請咨詢我們
>食品
- RG:21CFR (FDA)
- RG:1935/2004/EC (流量0.02 l/h)
- USDA NSF H1: 油脂
- ASTM B733-04: 自催化（無電解）鎳磷涂層

技術：
- 油口接頭
- 管對管接頭
- 隔板連接件
- 快插接頭
- 銅鍍鎳快插接頭
- 快插接頭
- 氣動接頭
- 即時接頭
- 快速接頭
- 連接件
- 旋轉接頭

性能特點

壓力 (BARG) 30, 20
工作溫度(°C) -20
工作溫度 (C) 150
真空額定值 (HG MM) 755, na
箱數 10, 5, 100
重量 (KG) 0.043, 0.03, 0.034, 0.042, 0.038, 0.045, 0.01, 0.009, 0.015, 0.006, 0.007, 0.011, 0.014, 0.016, 0.028, 0.025, 0.023, 0.033, 0.056, 0.017, 0.048, 0.067, 0.069, 0.103, 0.147, 0.322, 0.001, 0.044, 0.003, 0.039, 0.091, 0.115, 0.018, 0.02, 0, 0.031, 0.037, 0.
應用食品加工，咖啡機，車內汽車，醫療設備，印刷，霧化，焊接機器人
媒介壓縮空氣，油脂，潤滑劑，水
證書工業 - ISO 14743：氣動傳輸，用于熱塑性管道推入式管接頭DI：97/23 / EC（PED），DI：2002/95 / EC（RoHS），2011/65 / EC，RG：1907/2006 REACH），DI：94/9 / EC（ATEX），UL94 V-0：請咨詢我們 - 食品 - RG：21CFR（FDA），RG：193

COMPLIANCE, CERTIFICATIONS, & SAFETY
產品資料下載

Quality and Safety, the Basis of Our Commitment
CONTACT & SUPPORT INFORMATION
Contact & Support
LITERATURE AND REFERENCE MATERIALS
Conversion Tables
Directives and Regulations
Fitting Threads
- LF3600 FDA Chemical Nickel-Plated Brass Push-In Fittings datasheet
Make Your Product Choice!
Our Services Contribute to Your Performance
Parker Legris SuccessStory LifeSciences2 UK 092016
Part Number Identification
Pneumatic Technical Guidelines
Principle and Advantages of Our Coupling Systems
Principle and Avantages of the Push-in Fitting
Quality and Safety, the Basis of Our Commitment
Sustainable Development
Your Applications Inspire Our Innovation
SELECTOR GUIDES
Conversion Tables

Parker Legris 派克樂可利LF3600銅鍍鎳接頭用于低腐蝕性環境或食品制造行業．銅鍍鎳的材質和FKM的密封圈都符合FDA標準。適用真空應用，工作壓力30bar，工作溫度從-20°C 到150°C間，可與所有塑料管類產品連接使用。

- 應用于工業和食品的銅鍍鎳材料
- 適用多種流體尤其是食物流體、清潔、冷熱水和蒸氣
- LF3600 所使用材料符合FDA食品標準，材質為鍍鎳及FKM （FPM）氟橡膠墊圈
- 適用腐蝕和磨損環境
- 優化密封，內部有BSPP密封氣墊
- 小巧、美觀
- 適用于塑料管件（尼龍，聚氨酯和氟化乙丙烯）
- 工作壓力: 0,5 to 20 bar; - 工作溫度: -20° to + 120°C

產品范圍：

3675 - MALE STUD, BSPT THREAD直接頭，外部連接用平扳手或套筒扳手擰緊，內部安裝用六角扳手擰緊
3601 - 直接頭外螺紋,BSPP直螺紋(即PF直螺紋),公制螺紋直接頭，內部安裝用平扳手或套筒扳手，外部安裝用六角扳手擰緊。
3681 - 直接頭外螺紋, 公制螺紋直接頭，外部用六角扳手擰緊，以便在極狹小的空間內安裝
3614 - 直接頭內螺紋, BSPP 直螺紋(即PF直螺紋) 及公制螺紋內螺紋直接頭
3621 - 帶尾管直接頭外螺紋,BSPT 錐螺紋(即PT錐螺紋)帶尾管直接頭，連接管對管接頭
3631 - 帶尾管直接頭外螺紋,BSPP 直螺紋(即PF直螺紋) 及公制螺紋帶尾管直接頭，連接管對管接頭
3609 - MALE STUD ELBOW, BSPT THREAD直角接頭，低高度
3629 - 加長形直角接頭,BSPP錐螺紋加長型直角接頭，高度大于3609
3699 - 直角接頭外螺紋, BSPP直螺紋(即PF直螺紋),公制螺紋直角接頭
3669 - 加長形直角接頭,BSPP 直螺紋(即PF直螺紋) 及公制螺紋加長型直角接頭，高度大于3699
3608 - 正T形外螺紋三通接頭, BSPT 錐螺紋(即PT錐螺紋) 及NPT美制錐螺紋正T型接頭
3603 - 直T形外螺紋三通接頭, BSPT 錐螺紋(即PT錐螺紋) 及NPT美制錐螺紋直T型接頭
3698 - 正T形三通接頭,BSPP直螺紋(即PF直螺紋),公制螺紋正T型接頭
3693 - 直T形三通接頭,BSPP直螺紋(即PF直螺紋),公制螺紋直T型接頭
3618 - 絞接式接頭外螺紋,BSPP直螺紋(即PF直螺紋),公制螺紋絞接式直角接頭，頂端用平扳手或套筒扳手擰緊，以方便在狹小空間內安裝�？尚D以配合管路方向
3606 - 等徑對接直接頭等徑管對管直接頭
3602 - 管對管直角接頭等徑管對管直角連接，可避免受氣管的彎曲半徑限制
3604 - 等徑三通接頭等徑管對管三通接頭
3616 - 穿板式等徑接頭管對管穿板直接頭
3636 - 穿板式接頭內螺紋, BSPP 直螺紋(即PF直螺紋)帶內螺紋穿板直接頭
3639 - 穿板式等徑直角接頭管對管穿板直角接頭
3666 - 大轉小轉帶尾管接頭大轉小接頭
3667 - 公制-英制轉換帶尾管接頭帶尾管直接頭，將英制管連接在公制快速接頭上
3668 - 小轉大接頭帶尾管接頭小轉大接頭
3622 - 尾管-寶塔式對接接頭帶尾管互換接頭，將管子和快速接頭連接在一起
3620 - 尾管對接接頭接頭連接桿，連接兩個快插接頭
3626 - 接頭用堵栓堵塞，將暫時不用的快插接頭堵塞上
3610 - COLOURED RELEASE BUTTON COVERS Help the identification of circuits and improve safety for use with metal
fittings.

3675 - MALE STUD, BSPT THREAD In line connection of tubing to a threaded port. External tightening with a
flat spanner or socket wrench, internal tightening with an Allen key.

3675 - MALE STUD, NPT THREAD In line connection of tubing to a threaded port. External tightening with a
flat spanner or socket wrench, internal tightening with an Allen key.

3609 - MALE STUD ELBOW, NPT THREAD Connection of tubing at a 90° angle to a threaded port with reduced height
dimensions.

3604 - EQUAL TEE Connection at a 90° angle of 3 tubes of equal diameter.

3606 - EQUAL TUBE-TO-TUBE CONNECTOR In line connection of 2 tubes of equal diameter.

- Legris LF3600 Chemical Nickel-Plated Brass Push-In Fittings

Part	Product Type	Shape	Body Material	O-Ring Material	Color	Connection 1 Thread Style	Connection 1 Thread Size (metric)
3601 04 10	Stud Fittings	Male stud fitting thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	BSPP	G1/8
3601 04 13	Stud Fittings	Male stud fitting thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	BSPP	G1/4
3601 04 19	Stud Fittings	Male stud fitting thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	Metric	M5x0,8
3601 04 20	Stud Fittings	Male stud fitting thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	UNF	10-32
3601 04 52	Stud Fittings	Male stud fitting thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	Metric	M6x1
3601 04 56	Stud Fittings	Male stud fitting thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	Metric	M8x1
3601 06 10	Stud Fittings	Male stud fitting thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	BSPP	G1/8
3601 06 13	Stud Fittings	Male stud fitting thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	BSPP	G1/4
3601 06 19	Stud Fittings	Male stud fitting thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	Metric	M5x0,8
3601 06 60	Stud Fittings	Male stud fitting thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	Metric	M10x1
3601 08 10	Stud Fittings	Male stud fitting thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	BSPP	G1/8
3601 08 13	Stud Fittings	Male stud fitting thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	BSPP	G1/4
3601 08 17	Stud Fittings	Male stud fitting thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	BSPP	G3/8
3601 10 13	Stud Fittings	Male stud fitting thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	BSPP	G1/4
3601 10 17	Stud Fittings	Male stud fitting thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	BSPP	G3/8
3601 10 21	Stud Fittings	Male stud fitting thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	BSPP	G1/2
3601 12 13	Stud Fittings	Male stud fitting thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	BSPP	G1/4
3601 12 17	Stud Fittings	Male stud fitting thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	BSPP	G3/8
3601 12 21	Stud Fittings	Male stud fitting thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	BSPP	G1/2
3601 14 17	Stud Fittings	Male stud fitting thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	BSPP	G3/8
3601 14 21	Stud Fittings	Male stud fitting thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	BSPP	G1/2
3601 56 20	Stud Fittings	Male stud fitting thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	UNF	10-32
3602 04 00	Tube-to-Tube Fittings	Elbow 90° tube / tube	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	na	na
3602 06 00	Tube-to-Tube Fittings	Elbow 90° tube / tube	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	na	na
3602 08 00	Tube-to-Tube Fittings	Elbow 90° tube / tube	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	na	na

Part	Product Type	Shape	Body Material	O-Ring Material	Color	Connection 1 Thread Style	Connection 1 Thread Size (metric)
3602 10 00	Tube-to-Tube Fittings	Elbow 90° tube / tube	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	na	na
3602 12 00	Tube-to-Tube Fittings	Elbow 90° tube / tube	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	na	na
3602 14 00	Tube-to-Tube Fittings	Elbow 90° tube / tube	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	na	na
3602 56 00	Tube-to-Tube Fittings	Elbow 90° tube / tube	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	na	na
3602 60 00	Tube-to-Tube Fittings	Elbow 90° tube / tube	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	na	na
3602 62 00	Tube-to-Tube Fittings	Elbow 90° tube / tube	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	na	na
3603 04 10	Stud Fittings	Male stud run tee adjustable thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	BSPT	R1/8
3603 04 11	Stud Fittings	Male stud run tee adjustable thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	NPT	NPT1/8
3603 06 10	Stud Fittings	Male stud run tee adjustable thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	BSPT	R1/8
3603 06 13	Stud Fittings	Male stud run tee adjustable thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	BSPT	R1/4
3603 08 10	Stud Fittings	Male stud run tee adjustable thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	BSPT	R1/8
3603 08 13	Stud Fittings	Male stud run tee adjustable thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	BSPT	R1/4
3603 10 13	Stud Fittings	Male stud run tee adjustable thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	BSPT	R1/4
3603 10 17	Stud Fittings	Male stud run tee adjustable thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	BSPT	R3/8
3603 12 17	Stud Fittings	Male stud run tee adjustable thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	BSPT	R3/8
3603 14 21	Stud Fittings	Male stud run tee adjustable thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	BSPT	R1/2
3603 56 14	Stud Fittings	Male stud run tee adjustable thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	NPT	NPT1/4
3603 60 22	Stud Fittings	Male stud run tee adjustable thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	NPT	NPT1/2
3603 62 18	Stud Fittings	Male stud run tee adjustable thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	NPT	NPT3/8
3603 62 22	Stud Fittings	Male stud run tee adjustable thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	NPT	NPT1/2
3604 04 00	Tube-to-Tube Fittings	Tee tube / tube	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	na	na
3604 06 00	Tube-to-Tube Fittings	Tee tube / tube	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	na	na
3604 08 00	Tube-to-Tube Fittings	Tee tube / tube	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	na	na
3604 10 00	Tube-to-Tube Fittings	Tee tube / tube	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	na	na
3604 12 00	Tube-to-Tube Fittings	Tee tube / tube	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	na	na

Part	Product Type	Shape	Body Material	O-Ring Material	Color	Connection 1 Thread Style	Connection 1 Thread Size (metric)
3604 14 00	Tube-to-Tube Fittings	Tee tube / tube	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	na	na
3606 04 00	Tube-to-Tube Fittings	Tube / tube connector	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	na	na
3606 06 00	Tube-to-Tube Fittings	Tube / tube connector	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	na	na
3606 08 00	Tube-to-Tube Fittings	Tube / tube connector	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	na	na
3606 10 00	Tube-to-Tube Fittings	Tube / tube connector	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	na	na
3606 12 00	Tube-to-Tube Fittings	Tube / tube connector	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	na	na
3606 14 00	Tube-to-Tube Fittings	Tube / tube connector	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	na	na
3608 04 10	Stud Fittings	Male stud branch tee adjustable thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	BSPT	R1/8
3608 04 11	Stud Fittings	Male stud branch tee adjustable thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	NPT	NPT1/8
3608 06 10	Stud Fittings	Male stud branch tee adjustable thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	BSPT	R1/8
3608 06 13	Stud Fittings	Male stud branch tee adjustable thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	BSPT	R1/4
3608 08 10	Stud Fittings	Male stud branch tee adjustable thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	BSPT	R1/8
3608 08 13	Stud Fittings	Male stud branch tee adjustable thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	BSPT	R1/4
3608 10 13	Stud Fittings	Male stud branch tee adjustable thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	BSPT	R1/4
3608 10 17	Stud Fittings	Male stud branch tee adjustable thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	BSPT	R3/8
3608 12 17	Stud Fittings	Male stud branch tee adjustable thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	BSPT	R3/8
3608 14 21	Stud Fittings	Male stud branch tee adjustable thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	BSPT	R1/2
3608 62 18	Stud Fittings	Male stud branch tee adjustable thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	NPT	NPT3/8
3609 04 10	Stud Fittings	Male stud elbow adjustable 90° thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	BSPT	R1/8
3609 04 11	Stud Fittings	Male stud elbow adjustable 90° thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	NPT	NPT1/8
3609 04 13	Stud Fittings	Male stud elbow adjustable 90° thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	BSPT	R1/4
3609 04 14	Stud Fittings	Male stud elbow adjustable 90° thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	NPT	NPT1/4
3609 06 10	Stud Fittings	Male stud elbow adjustable 90° thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	BSPT	R1/8
3609 06 13	Stud Fittings	Male stud elbow adjustable 90° thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	BSPT	R1/4
3609 08 10	Stud Fittings	Male stud elbow adjustable 90° thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	BSPT	R1/8

Part	Product Type	Shape	Body Material	O-Ring Material	Color	Connection 1 Thread Style	Connection 1 Thread Size (metric)
3609 08 13	Stud Fittings	Male stud elbow adjustable 90° thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	BSPT	R1/4
3609 08 17	Stud Fittings	Male stud elbow adjustable 90° thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	BSPT	R3/8
3609 10 13	Stud Fittings	Male stud elbow adjustable 90° thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	BSPT	R1/4
3609 10 17	Stud Fittings	Male stud elbow adjustable 90° thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	BSPT	R3/8
3609 12 13	Stud Fittings	Male stud elbow adjustable 90° thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	BSPT	R1/4
3609 12 17	Stud Fittings	Male stud elbow adjustable 90° thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	BSPT	R3/8
3609 12 21	Stud Fittings	Male stud elbow adjustable 90° thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	BSPT	R1/2
3609 14 17	Stud Fittings	Male stud elbow adjustable 90° thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	BSPT	R3/8
3609 14 21	Stud Fittings	Male stud elbow adjustable 90° thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	BSPT	R1/2
3609 56 11	Stud Fittings	Male stud elbow adjustable 90° thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	NPT	NPT1/8
3609 56 14	Stud Fittings	Male stud elbow adjustable 90° thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	NPT	NPT1/4
3609 56 18	Stud Fittings	Male stud elbow adjustable 90° thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	NPT	NPT3/8
3609 60 14	Stud Fittings	Male stud elbow adjustable 90° thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	NPT	NPT1/4
3609 60 18	Stud Fittings	Male stud elbow adjustable 90° thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	NPT	NPT3/8
3609 60 22	Stud Fittings	Male stud elbow adjustable 90° thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	NPT	NPT1/2
3609 62 18	Stud Fittings	Male stud elbow adjustable 90° thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	NPT	NPT3/8
3609 62 22	Stud Fittings	Male stud elbow adjustable 90° thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	NPT	NPT1/2
3610 06 00	Accessories	Release button covers	ANODIZED ALUMINIUM	na	NATURAL	na	na
3610 06 04	Accessories	Release button covers	ANODIZED ALUMINIUM	na	BLUE	na	na
3610 08 00	Accessories	Release button covers	ANODIZED ALUMINIUM	na	NATURAL	na	na
3610 08 04	Accessories	Release button covers	ANODIZED ALUMINIUM	na	BLUE	na	na
3610 10 04	Accessories	Release button covers	ANODIZED ALUMINIUM	na	BLUE	na	na
3610 12 00	Accessories	Release button covers	ANODIZED ALUMINIUM	na	NATURAL	na	na
3610 12 04	Accessories	Release button covers	ANODIZED ALUMINIUM	na	BLUE	na	na
3610 14 00	Accessories	Release button covers	ANODIZED ALUMINIUM	na	NATURAL	na	na

Part	Product Type	Shape	Body Material	O-Ring Material	Color	Connection 1 Thread Style	Connection 1 Thread Size (metric)
3610 14 04	Accessories	Release button covers	ANODIZED ALUMINIUM	na	BLUE	na	na
3614 04 10	Stud Fittings	Female stud fitting thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	BSPP	G1/8
3614 04 13	Stud Fittings	Female stud fitting thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	BSPP	G1/4
3614 04 19	Stud Fittings	Female stud fitting thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	Metric	M5x0,8
3614 06 10	Stud Fittings	Female stud fitting thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	BSPP	G1/8
3614 06 13	Stud Fittings	Female stud fitting thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	BSPP	G1/4
3614 08 10	Stud Fittings	Female stud fitting thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	BSPP	G1/8
3614 08 13	Stud Fittings	Female stud fitting thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	BSPP	G1/4
3614 10 17	Stud Fittings	Female stud fitting thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	BSPP	G3/8
3614 12 17	Stud Fittings	Female stud fitting thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	BSPP	G3/8
3614 12 21	Stud Fittings	Female stud fitting thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	BSPP	G1/2
3616 04 00	Bulkhead Connector Fittings	Bulkhead connector tube / tube	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	na	na
3616 06 00	Bulkhead Connector Fittings	Bulkhead connector tube / tube	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	na	na
3616 08 00	Bulkhead Connector Fittings	Bulkhead connector tube / tube	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	na	na
3616 10 00	Bulkhead Connector Fittings	Bulkhead connector tube / tube	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	na	na
3616 12 00	Bulkhead Connector Fittings	Bulkhead connector tube / tube	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	na	na
3616 14 00	Bulkhead Connector Fittings	Bulkhead connector tube / tube	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	na	na
3616 56 00	Bulkhead Connector Fittings	Bulkhead connector tube / tube	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	na	na
3616 60 00	Bulkhead Connector Fittings	Bulkhead connector tube / tube	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	na	na
3616 62 00	Bulkhead Connector Fittings	Bulkhead connector tube / tube	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	na	na
3618 04 10	Stud Fittings	Male stud single banjo thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	BSPP	G1/8
3618 04 19	Stud Fittings	Male stud single banjo thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	Metric	M5x0,8
3618 06 10	Stud Fittings	Male stud single banjo thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	BSPP	G1/8
3618 06 13	Stud Fittings	Male stud single banjo thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	BSPP	G1/4
3618 06 19	Stud Fittings	Male stud single banjo thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	Metric	M5x0,8

Part	Product Type	Shape	Body Material	O-Ring Material	Color	Connection 1 Thread Style	Connection 1 Thread Size (metric)
3618 08 10	Stud Fittings	Male stud single banjo thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	BSPP	G1/8
3618 08 13	Stud Fittings	Male stud single banjo thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	BSPP	G1/4
3618 10 17	Stud Fittings	Male stud single banjo thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	BSPP	G3/8
3620 04 00	Plug-In Accessories	Double male stem connector	FDA CHEMICAL NICKEL PLATED BRASS	na	na	na	na
3620 06 00	Plug-In Accessories	Double male stem connector	FDA CHEMICAL NICKEL PLATED BRASS	na	na	na	na
3620 08 00	Plug-In Accessories	Double male stem connector	FDA CHEMICAL NICKEL PLATED BRASS	na	na	na	na
3620 10 00	Plug-In Accessories	Double male stem connector	FDA CHEMICAL NICKEL PLATED BRASS	na	na	na	na
3620 12 00	Plug-In Accessories	Double male stem connector	FDA CHEMICAL NICKEL PLATED BRASS	na	na	na	na
3620 14 00	Plug-In Accessories	Double male stem connector	FDA CHEMICAL NICKEL PLATED BRASS	na	na	na	na
3621 04 10	Stud Fittings	Male standpipe stud fitting thread	FDA CHEMICAL NICKEL PLATED BRASS	na	na	BSPT	R1/8
3621 06 10	Stud Fittings	Male standpipe stud fitting thread	FDA CHEMICAL NICKEL PLATED BRASS	na	na	BSPT	R1/8
3621 06 13	Stud Fittings	Male standpipe stud fitting thread	FDA CHEMICAL NICKEL PLATED BRASS	na	na	BSPT	R1/4
3621 08 10	Stud Fittings	Male standpipe stud fitting thread	FDA CHEMICAL NICKEL PLATED BRASS	na	na	BSPT	R1/8
3621 08 13	Stud Fittings	Male standpipe stud fitting thread	FDA CHEMICAL NICKEL PLATED BRASS	na	na	BSPT	R1/4
3621 10 13	Stud Fittings	Male standpipe stud fitting thread	FDA CHEMICAL NICKEL PLATED BRASS	na	na	BSPT	R1/4
3621 10 17	Stud Fittings	Male standpipe stud fitting thread	FDA CHEMICAL NICKEL PLATED BRASS	na	na	BSPT	R3/8
3621 12 17	Stud Fittings	Male standpipe stud fitting thread	FDA CHEMICAL NICKEL PLATED BRASS	na	na	BSPT	R3/8
3621 12 21	Stud Fittings	Male standpipe stud fitting thread	FDA CHEMICAL NICKEL PLATED BRASS	na	na	BSPT	R1/2
3621 14 21	Stud Fittings	Male standpipe stud fitting thread	FDA CHEMICAL NICKEL PLATED BRASS	na	na	BSPT	R1/2
3622 04 05	Plug-In Accessories	Barbed connector with tailpiece	FDA CHEMICAL NICKEL PLATED BRASS	na	na	na	na
3622 04 53	Plug-In Accessories	Barbed connector with tailpiece	FDA CHEMICAL NICKEL PLATED BRASS	na	na	na	na
3622 06 05	Plug-In Accessories	Barbed connector with tailpiece	FDA CHEMICAL NICKEL PLATED BRASS	na	na	na	na
3622 08 08	Plug-In Accessories	Barbed connector with tailpiece	FDA CHEMICAL NICKEL PLATED BRASS	na	na	na	na
3622 08 56	Plug-In Accessories	Barbed connector with tailpiece	FDA CHEMICAL NICKEL PLATED BRASS	na	na	na	na
3622 10 08	Plug-In Accessories	Barbed connector with tailpiece	FDA CHEMICAL NICKEL PLATED BRASS	na	na	na	na

Part	Product Type	Shape	Body Material	O-Ring Material	Color	Connection 1 Thread Style	Connection 1 Thread Size (metric)
3622 10 56	Plug-In Accessories	Barbed connector with tailpiece	FDA CHEMICAL NICKEL PLATED BRASS	na	na	na	na
3622 12 08	Plug-In Accessories	Barbed connector with tailpiece	FDA CHEMICAL NICKEL PLATED BRASS	na	na	na	na
3622 12 10	Plug-In Accessories	Barbed connector with tailpiece	FDA CHEMICAL NICKEL PLATED BRASS	na	na	na	na
3622 12 62	Plug-In Accessories	Barbed connector with tailpiece	FDA CHEMICAL NICKEL PLATED BRASS	na	na	na	na
3622 14 14	Plug-In Accessories	Barbed connector with tailpiece	FDA CHEMICAL NICKEL PLATED BRASS	na	na	na	na
3622 14 62	Plug-In Accessories	Barbed connector with tailpiece	FDA CHEMICAL NICKEL PLATED BRASS	na	na	na	na
3626 04 00	Accessories	Blanking plug with tailpiece	FDA CHEMICAL NICKEL PLATED BRASS	na	na	na	na
3626 06 00	Accessories	Blanking plug with tailpiece	FDA CHEMICAL NICKEL PLATED BRASS	na	na	na	na
3626 08 00	Accessories	Blanking plug with tailpiece	FDA CHEMICAL NICKEL PLATED BRASS	na	na	na	na
3626 10 00	Accessories	Blanking plug with tailpiece	FDA CHEMICAL NICKEL PLATED BRASS	na	na	na	na
3626 12 00	Accessories	Blanking plug with tailpiece	FDA CHEMICAL NICKEL PLATED BRASS	na	na	na	na
3626 14 00	Accessories	Blanking plug with tailpiece	FDA CHEMICAL NICKEL PLATED BRASS	na	na	na	na
3629 04 10	Stud Fittings	Male stud extented elbow adjustable 90° thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	BSPT	R1/8
3629 06 10	Stud Fittings	Male stud extented elbow adjustable 90° thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	BSPT	R1/8
3629 06 13	Stud Fittings	Male stud extented elbow adjustable 90° thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	BSPT	R1/4
3629 08 10	Stud Fittings	Male stud extented elbow adjustable 90° thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	BSPT	R1/8
3629 08 13	Stud Fittings	Male stud extented elbow adjustable 90° thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	BSPT	R1/4
3629 10 13	Stud Fittings	Male stud extented elbow adjustable 90° thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	BSPT	R1/4
3631 04 10	Stud Fittings	Male standpipe stud fitting thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	BSPP	G1/8
3631 04 13	Stud Fittings	Male standpipe stud fitting thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	BSPP	G1/4
3631 04 19	Stud Fittings	Male standpipe stud fitting thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	Metric	M5x0,8
3631 06 10	Stud Fittings	Male standpipe stud fitting thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	BSPP	G1/8
3631 06 13	Stud Fittings	Male standpipe stud fitting thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	BSPP	G1/4
3631 08 10	Stud Fittings	Male standpipe stud fitting thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	BSPP	G1/8
3631 08 13	Stud Fittings	Male standpipe stud fitting thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	BSPP	G1/4

Part	Product Type	Shape	Body Material	O-Ring Material	Color	Connection 1 Thread Style	Connection 1 Thread Size (metric)
3631 08 17	Stud Fittings	Male standpipe stud fitting thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	BSPP	G3/8
3631 10 13	Stud Fittings	Male standpipe stud fitting thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	BSPP	G1/4
3631 10 17	Stud Fittings	Male standpipe stud fitting thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	BSPP	G3/8
3631 10 21	Stud Fittings	Male standpipe stud fitting thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	BSPP	G1/2
3631 12 17	Stud Fittings	Male standpipe stud fitting thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	BSPP	G3/8
3631 12 21	Stud Fittings	Male standpipe stud fitting thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	BSPP	G1/2
3631 14 21	Stud Fittings	Male standpipe stud fitting thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	BSPP	G1/2
3636 04 10	Bulkhead Connector Fittings	Bulkhead connector female	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	BSPP	G1/8
3636 06 10	Bulkhead Connector Fittings	Bulkhead connector female	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	BSPP	G1/8
3636 06 13	Bulkhead Connector Fittings	Bulkhead connector female	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	BSPP	G1/4
3636 08 10	Bulkhead Connector Fittings	Bulkhead connector female	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	BSPP	G1/8
3636 08 13	Bulkhead Connector Fittings	Bulkhead connector female	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	BSPP	G1/4
3636 10 17	Bulkhead Connector Fittings	Bulkhead connector female	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	BSPP	G3/8
3636 12 17	Bulkhead Connector Fittings	Bulkhead connector female	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	BSPP	G3/8
3636 12 21	Bulkhead Connector Fittings	Bulkhead connector female	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	BSPP	G1/2
3639 04 00	Bulkhead Connector Fittings	Bulkhead elbow 90° tube / tube	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	na	na
3639 06 00	Bulkhead Connector Fittings	Bulkhead elbow 90° tube / tube	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	na	na
3639 08 00	Bulkhead Connector Fittings	Bulkhead elbow 90° tube / tube	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	na	na
3639 10 00	Bulkhead Connector Fittings	Bulkhead elbow 90° tube / tube	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	na	na
3639 12 00	Bulkhead Connector Fittings	Bulkhead elbow 90° tube / tube	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	na	na
3639 14 00	Bulkhead Connector Fittings	Bulkhead elbow 90° tube / tube	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	na	na
3666 04 06	Plug-In Accessories	Reducer with tailpiece	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	na	na
3666 04 08	Plug-In Accessories	Reducer with tailpiece	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	na	na
3666 06 08	Plug-In Accessories	Reducer with tailpiece	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	na	na
3666 06 10	Plug-In Accessories	Reducer with tailpiece	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	na	na

Part	Product Type	Shape	Body Material	O-Ring Material	Color	Connection 1 Thread Style	Connection 1 Thread Size (metric)
3666 08 10	Plug-In Accessories	Reducer with tailpiece	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	na	na
3666 08 12	Plug-In Accessories	Reducer with tailpiece	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	na	na
3666 10 12	Plug-In Accessories	Reducer with tailpiece	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	na	na
3666 12 14	Plug-In Accessories	Reducer with tailpiece	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	na	na
3667 06 56	Plug-In Accessories	Adaptor metric / imperial with tailpiece	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	na	na
3667 10 60	Plug-In Accessories	Adaptor metric / imperial with tailpiece	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	na	na
3667 12 62	Plug-In Accessories	Adaptor metric / imperial with tailpiece	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	na	na
3668 06 04	Plug-In Accessories	Increase with tailpiece	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	na	na
3669 04 10	Stud Fittings	Male stud extented elbow adjustable 90° thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	BSPP	G1/8
3669 04 19	Stud Fittings	Male stud extented elbow adjustable 90° thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	Metric	M5x0,8
3669 06 10	Stud Fittings	Male stud extented elbow adjustable 90° thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	BSPP	G1/8
3669 06 13	Stud Fittings	Male stud extented elbow adjustable 90° thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	BSPP	G1/4
3669 08 10	Stud Fittings	Male stud extented elbow adjustable 90° thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	BSPP	G1/8
3669 08 13	Stud Fittings	Male stud extented elbow adjustable 90° thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	BSPP	G1/4
3669 10 13	Stud Fittings	Male stud extented elbow adjustable 90° thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	BSPP	G1/4
3669 10 17	Stud Fittings	Male stud extented elbow adjustable 90° thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	BSPP	G3/8
3669 12 13	Stud Fittings	Male stud extented elbow adjustable 90° thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	BSPP	G1/4
3669 12 17	Stud Fittings	Male stud extented elbow adjustable 90° thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	BSPP	G3/8
3669 14 21	Stud Fittings	Male stud extented elbow adjustable 90° thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	BSPP	G1/2
3675 04 10	Stud Fittings	Male stud fitting thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	BSPT	R1/8
3675 04 11	Stud Fittings	Male stud fitting thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	NPT	NPT1/8
3675 04 13	Stud Fittings	Male stud fitting thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	BSPT	R1/4
3675 04 14	Stud Fittings	Male stud fitting thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	NPT	NPT1/4
3675 06 10	Stud Fittings	Male stud fitting thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	BSPT	R1/8
3675 06 13	Stud Fittings	Male stud fitting thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	BSPT	R1/4

Part	Product Type	Shape	Body Material	O-Ring Material	Color	Connection 1 Thread Style	Connection 1 Thread Size (metric)
3675 08 10	Stud Fittings	Male stud fitting thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	BSPT	R1/8
3675 08 13	Stud Fittings	Male stud fitting thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	BSPT	R1/4
3675 08 17	Stud Fittings	Male stud fitting thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	BSPT	R3/8
3675 10 13	Stud Fittings	Male stud fitting thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	BSPT	R1/4
3675 10 17	Stud Fittings	Male stud fitting thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	BSPT	R3/8
3675 10 21	Stud Fittings	Male stud fitting thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	BSPT	R1/2
3675 12 13	Stud Fittings	Male stud fitting thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	BSPT	R1/4
3675 12 17	Stud Fittings	Male stud fitting thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	BSPT	R3/8
3675 12 21	Stud Fittings	Male stud fitting thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	BSPT	R1/2
3675 14 17	Stud Fittings	Male stud fitting thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	BSPT	R3/8
3675 14 21	Stud Fittings	Male stud fitting thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	BSPT	R1/2
3675 56 18	Stud Fittings	Male stud fitting thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	NPT	NPT3/8
3675 60 22	Stud Fittings	Male stud fitting thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	NPT	NPT1/2
3675 62 22	Stud Fittings	Male stud fitting thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	NPT	NPT1/2
3681 04 19	Stud Fittings	Male stud fitting thread with internal hexagon	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	Metric	M5x0,8
3693 04 10	Stud Fittings	Male stud run tee adjustable thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	BSPP	G1/8
3693 04 19	Stud Fittings	Male stud run tee adjustable thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	Metric	M5x0,8
3693 04 20	Stud Fittings	Male stud run tee adjustable thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	UNF	10-32
3693 06 10	Stud Fittings	Male stud run tee adjustable thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	BSPP	G1/8
3693 06 13	Stud Fittings	Male stud run tee adjustable thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	BSPP	G1/4
3693 08 10	Stud Fittings	Male stud run tee adjustable thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	BSPP	G1/8
3693 08 13	Stud Fittings	Male stud run tee adjustable thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	BSPP	G1/4
3693 10 13	Stud Fittings	Male stud run tee adjustable thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	BSPP	G1/4
3693 12 17	Stud Fittings	Male stud run tee adjustable thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	BSPP	G3/8
3693 14 21	Stud Fittings	Male stud run tee adjustable thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM

Part	Product Type	Shape	Body Material	O-Ring Material	Color	Connection 1 Thread Style	Connection 1 Thread Size (metric)
3698 04 10	Stud Fittings	Male stud branch tee adjustable thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	BSPP	G1/8
3698 04 19	Stud Fittings	Male stud branch tee adjustable thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	Metric	M5x0,8
3698 06 10	Stud Fittings	Male stud branch tee adjustable thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	BSPP	G1/8
3698 06 13	Stud Fittings	Male stud branch tee adjustable thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	BSPP	G1/4
3698 08 10	Stud Fittings	Male stud branch tee adjustable thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	BSPP	G1/8
3698 08 13	Stud Fittings	Male stud branch tee adjustable thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	BSPP	G1/4
3698 10 13	Stud Fittings	Male stud branch tee adjustable thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	BSPP	G1/4
3698 12 17	Stud Fittings	Male stud branch tee adjustable thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	BSPP	G3/8
3698 14 21	Stud Fittings	Male stud branch tee adjustable thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	BSPP	G1/2
3699 04 10	Stud Fittings	Male stud elbow adjustable 90° thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	BSPP	G1/8
3699 04 13	Stud Fittings	Male stud elbow adjustable 90° thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	BSPP	G1/4
3699 04 19	Stud Fittings	Male stud elbow adjustable 90° thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	Metric	M5x0,8
3699 04 20	Stud Fittings	Male stud elbow adjustable 90° thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	UNF	10-32
3699 04 52	Stud Fittings	Male stud elbow adjustable 90° thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	Metric	M6x1
3699 04 56	Stud Fittings	Male stud elbow adjustable 90° thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	Metric	M8x1
3699 06 10	Stud Fittings	Male stud elbow adjustable 90° thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	BSPP	G1/8
3699 06 13	Stud Fittings	Male stud elbow adjustable 90° thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	BSPP	G1/4
3699 06 60	Stud Fittings	Male stud elbow adjustable 90° thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	Metric	M10x1
3699 08 10	Stud Fittings	Male stud elbow adjustable 90° thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	BSPP	G1/8
3699 08 13	Stud Fittings	Male stud elbow adjustable 90° thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	BSPP	G1/4
3699 08 17	Stud Fittings	Male stud elbow adjustable 90° thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	BSPP	G3/8
3699 10 13	Stud Fittings	Male stud elbow adjustable 90° thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	BSPP	G1/4
3699 10 17	Stud Fittings	Male stud elbow adjustable 90° thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	BSPP	G3/8
3699 12 13	Stud Fittings	Male stud elbow adjustable 90° thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	BSPP	G1/4
3699 12 17	Stud Fittings	Male stud elbow adjustable 90° thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	BSPP	G3/8

Part	Product Type	Shape	Body Material	O-Ring Material	Color	Connection 1 Thread Style	Connection 1 Thread Size (metric)
3699 12 21	Stud Fittings	Male stud elbow adjustable 90° thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	BSPP	G1/2
3699 14 17	Stud Fittings	Male stud elbow adjustable 90° thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	BSPP	G3/8
3699 14 21	Stud Fittings	Male stud elbow adjustable 90° thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	BSPP	G1/2

美國DMK Engineering Solutions公司
信德邁科技(北京)有限公司 CNMEC Technology

E-mail：sales@cnmec.biz

fcg.cnmec@parkerdistribution.com.cn
地址：北京市朝陽區望京街10號望京SOHO塔1C座2115室
郵編：100102
電話：010-8428 2935, 8428 9077, 8428 3983
手機：139 101 22694
Http：//www.0591w.com
傳真：010-8428 8762

京ICP備08000876號-1
京公網安備 11010502019740
Since 2007 Strong Distribution & Powerful Partnerships




E-mail：sales@cnmec.biz fcg.cnmec@parkerdistribution.com.cn
