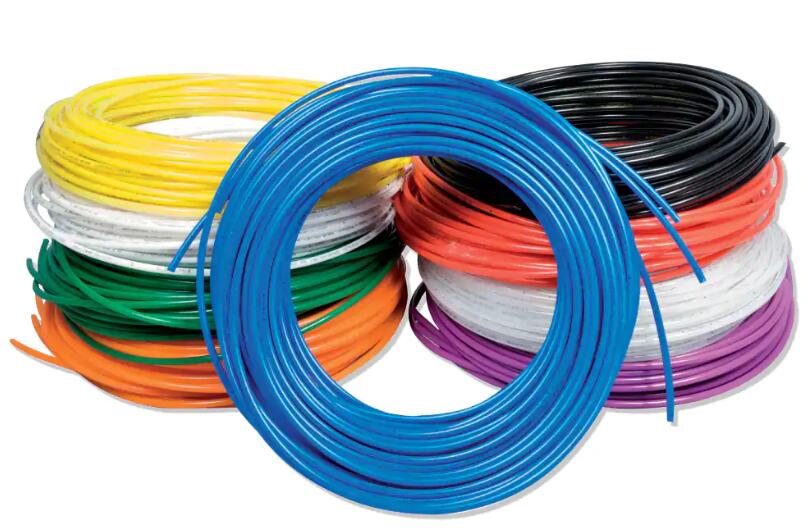

Parker Legris Polyethylene PE Tubing
聚乙烯管
Parker Legris提供兩種類型的聚乙烯管：50％網狀的“高級PE”和低密度PE。我們的“高級PE”系列專為苛刻的環境（尤其是水處理環境）而設計，而不會損害操作員的安全性。聚乙烯 PE 管應用：飲料，化工，石化，食品加工，水，水處理。聚乙烯 PE 管適用介質：高級PE：水，飲料和其他液體/低密度PE：工業液體。聚乙烯 PE 管符合規格： 高級PE管：FDA：21 CFR 177.1520，RG：1935/2004 / EC，DI：97/23 / EC（PED），DI：2002/95 / EC（RoHS），2011/65 / EC，NSF 42/58 （1/4“和3/8”批準用于10 bar，1/2“批準用于8 bar在室溫下），NSF 51、61 C-HOT，ACS（紫色co。Parker Legris offers two types of polyethylene tubing: "Advanced PE" 50% reticulated and Low Density PE.
Our range of "Advanced PE" is designed for demanding environments, especially that of water treatment, without compromising operator safety. Parker Legris offers two types of polyethylene tubing: "Advanced PE" 50% reticulated and Low Density PE. Our range of "Advanced PE" is designed for demanding environments, especially that of water treatment, without compromising operator safety.
Parker Legris提供兩種類型的聚乙烯管：50％網狀的“高級PE”和低密度PE。我們的“高級PE”系列專為苛刻的環境（尤其是水處理環境）而設計，而不會損害操作員的安全性。
特點與優勢：
- Advanced PE
- 50％的網狀材料
- 柔韌性和耐壓/耐溫性之間達到最佳平衡
- 耐多種侵蝕性化學物質
- 獲準與食品和飲料接觸
- 不含硅
-低密度PE
- 優異的抗腐蝕性和腐蝕性
- 良好的技術折衷
- 食品級材料
- 不含硅
市場：
- 食品和飲料
- 工業化學加工
- 石油和天然氣
- 水
應用范圍：
- 腐蝕性液體的輸送
- 需進行強力清潔的應用
技術：
- PE管
- 聚乙烯管
- 高級PE
- 工業管
技術特點：
流體：
- 高級PE：水，飲料和其他流體
- 低密度PE：工業流體
材料：
- 高級PE：優質聚乙烯：50％網狀PE，50％低密度PE（44肖氏D）
- 低密度PE：低密度聚乙烯（44肖氏D）
壓力：
- 高級PE：真空至16 bar
- 低密度PE：真空至20 bar
溫度：
- 高級PE：-40°C至+ 95°C
- 低密度PE：-40°C到+ 60°C
規定：
高級PE管
- FDA：21 CFR 177.1520
- RG：1935/2004 / EC
- DI： 97/23 / EC（PED）
- DI：
2002/95 / EC（RoHS），2011/65 / EC - NSF 42/58 （1/4“和3/8”批準用于10 bar，1/2“批準用于8 bar在室溫下）
- NSF 51、61 C-HOT
- ACS（紫色除外）
- WRAS
- RG：1907 / 2006（REACH）
低密度PE管
- FDA：21 CFR 177.1520
- DI：2002/95 / EC（RoHS），2011/65 / EC
- DI：97/23 / EC（PED）
| Color: |
Clear, Black, Green, Red, Blue, Yellow, White |
| Specifications Met: |
Advanced PE Tubing [ FDA: 21 CFR 177.1520, RG: 1935/2004/EC, DI: 97/23/EC (PED), DI: 2002/95/EC (RoHS), 2011/65/EC NSF42/58 (1/4" and 3/8" approved for 10 bar and 1/2" approved for 8 bar at room temperature), NSF51, 61 C-HOT, ACS (except for purple colour), WRAS, RG: 1907/2006 (REACH)], Low Density PE Tubing [FDA: 21 CFR 177.1520, DI: 2002/95/EC (RoHS), 2011/65/EC, DI: 97/23/EC (PED)] |
| Maximum Operating Pressure: |
16 to 20 bar |
| Maximum Operating Temperature: |
140 to 203 °F, 60 to 95 °C |
| Minimum Bend Radius: |
95 mm |
| Minimum Operating Temperature: |
-40 °C, -40 °F |
| Tube Inside Diameter: |
4,369 to 13 mm |
| Tube Outside Diameter: |
6,35 to 16 mm |
| Tube Material: |
High quality polyethylene (PE) (50% reticulated PE, 50% low density PE), Low density polyethylene (44 shore D) |
| Vacuum Pressure Rating: |
755 mm-Hg |
|
| Weight: |
1,760 to 5,9 kg/package |
| Bend Radius: |
16, 32, 40, 55, 55, na mm, na, 1,96, 0,78, 1,18 inch |
| Number of Tubes: |
1 |
| Application: |
Beverage, Chemical, Petrochemical, Food Process, Water, Water Treatment |
| Media: |
Advanced PE: Water, beverages and other fluids/Low Density PE: Industrial fluids |
Features/Benefits:
- Advanced PE
- 50% reticulated material
- Best balance between flexibility and pressure/temperature resistance
- Resistant to a wide range of aggressive chemicals
- Approved for contact with food and beverages
- Silicone-free
- Low Density PE
- Excellent resistance to aggressive and corrosive agents
- Good technical trade-off
- Food-grade material
- Silicone-free
Markets:
- Food and Beverage
- Industrial Chemical Processing
- Oil and Gas
- Water
Applications:
- Aggressive Fluids Conveying
- Applications Subjected to Intensive Cleaning
Technologies:
- PE Tubing
- Polyethylene Tubing
- Advanced PE
- Industrial Tubing
Technical Characteristics:
Fluids:
- Advanced PE: Water, beverages and other fluids
- Low Density PE: Industrial fluids
Materials:
- Advanced PE: High quality polyethylene: 50% reticulated PE, 50% low density PE (44 shore D)
- Low Density PE: Low Density Polyethylene (44 shore D)
Pressure:
- Advanced PE: Vacuum to 16 bar
- Low Density PE: Vacuum to 20 bar
Temperature:
- Advanced PE: -40°C to +95°C
- Low Density PE: -40°C to +60°C
Regulations:
Advanced PE Tubing
- FDA: 21 CFR 177.1520
- RG: 1935/2004/EC
- DI: 97/23/EC (PED)
- DI: 2002/95/EC (RoHS), 2011/65/EC
- NSF 42/58 (1/4" and 3/8" approved for 10 bar and 1/2" approved for 8 bar at room temperature)
- NSF 51, 61 C-HOT
- ACS (except for purple colour)
- WRAS
- RG: 1907/2006 (REACH)
Low Density PE Tubing
- FDA: 21 CFR 177.1520
- DI: 2002/95/EC (RoHS), 2011/65/EC
- DI: 97/23/EC (PED)
Literature and Reference Materials
Parker Legris SuccessStory LifeSciences UK 092016
Parker Legris SuccessStory Processing UK 072016
Technical tubing and hose brochure
Chemical Compatibility Chart
Connection Solutions for Railway Transportation
LPCE Poster : Parker Legris / Rectus Core Product Ranges - WC/0204
PE Tubing Datasheet
Packaging For Technical Tubing And Hose
Parker Legris--Connection Solutions up to 150°C for Coffee Machine
Principle and Advantages of Our Coupling Systems
Technical Tubing And Hose
Tubing Part Number Identification
Distributor Support
LPCE Poster : Parker Legris / Rectus Core Product Ranges - WC/0204
Contact & Support Information
Contact & Support
Selector Guides
Chemical Compatibility Chart
Compliance, Certifications, & Safety
Certificate of conformity - 2014 68 EU_connectic
Certificate of conformity - RoHS 3_connectic
Global Automotive Declarative Substances List
Product Demos & Tutorials
Parker Legris--LIQUIfit Range Presentation Animation
Part |
Tube O.D. (mm) |
Tube O.D. (inch) |
Tube I.D. (mm) |
Tube I.D. (inch) |
Color |
Length (m) |
Length (inch) |
1015Y06F00 |
6 |
na |
4 |
na |
NATURAL |
150 |
na |
1015Y06F01 |
6 |
na |
4 |
na |
BLACK |
150 |
na |
1015Y06F04 |
6 |
na |
4 |
na |
BLUE |
150 |
na |
1015Y06F10 |
6 |
na |
4 |
na |
WHITE |
150 |
na |
1015Y08F00 |
8 |
na |
5,75 |
na |
NATURAL |
150 |
na |
1015Y08F01 |
8 |
na |
5,75 |
na |
BLACK |
150 |
na |
1015Y08F02 |
8 |
na |
5,75 |
na |
GREEN |
150 |
na |
1015Y08F03 |
8 |
na |
5,75 |
na |
RED |
150 |
na |
1015Y08F04 |
8 |
na |
5,75 |
na |
BLUE |
150 |
na |
1015Y08F10 |
8 |
na |
5,75 |
na |
WHITE |
150 |
na |
1015Y10F00 |
10 |
na |
7 |
na |
NATURAL |
150 |
na |
1015Y10F01 |
10 |
na |
7 |
na |
BLACK |
150 |
na |
1015Y10F02 |
10 |
na |
7 |
na |
GREEN |
150 |
na |
1015Y10F03 |
10 |
na |
7 |
na |
RED |
150 |
na |
1015Y10F04 |
10 |
na |
7 |
na |
BLUE |
150 |
na |
1015Y10F05 |
10 |
na |
7 |
na |
YELLOW |
150 |
na |
1015Y10F10 |
10 |
na |
7 |
na |
WHITE |
150 |
na |
1025Y56 00 |
na |
1/4 |
na |
0,17 |
Clear |
25 |
na |
1025Y60 00 |
na |
3/8 |
na |
0,25 |
Clear |
25 |
na |
1025Y62 00 |
na |
1/2 |
na |
0,38 |
Clear |
25 |
na |
1030Y04F00 |
4 |
na |
2,5 |
na |
NATURAL |
300 |
na |
1030Y04F01 |
4 |
na |
2,5 |
na |
BLACK |
300 |
na |
1030Y04F04 |
4 |
na |
2,5 |
na |
BLUE |
300 |
na |
1030Y06F00 |
6 |
na |
4 |
na |
NATURAL |
300 |
na |
1030Y06F01 |
6 |
na |
4 |
na |
BLACK |
300 |
na |
1030Y06F02 |
6 |
na |
4 |
na |
GREEN |
300 |
na |
1030Y06F03 |
6 |
na |
4 |
na |
RED |
300 |
na |
1030Y06F04 |
6 |
na |
4 |
na |
BLUE |
300 |
na |
1030Y06F05 |
6 |
na |
4 |
na |
YELLOW |
300 |
na |
1030Y06F10 |
6 |
na |
4 |
na |
WHITE |
300 |
na |
1075Y12F00 |
12 |
na |
9 |
na |
NATURAL |
75 |
na |
1075Y12F01 |
12 |
na |
9 |
na |
BLACK |
75 |
na |
1075Y12F02 |
12 |
na |
9 |
na |
GREEN |
75 |
na |
1075Y12F03 |
12 |
na |
9 |
na |
RED |
75 |
na |
1075Y12F04 |
12 |
na |
9 |
na |
BLUE |
75 |
na |
1075Y12F10 |
12 |
na |
9 |
na |
WHITE |
75 |
na |
1075Y14F00 |
14 |
na |
11 |
na |
NATURAL |
75 |
na |
1075Y14F01 |
14 |
na |
11 |
na |
BLACK |
75 |
na |
1075Y14F02 |
14 |
na |
11 |
na |
GREEN |
75 |
na |
1075Y14F03 |
14 |
na |
11 |
na |
RED |
75 |
na |
1075Y14F04 |
14 |
na |
11 |
na |
BLUE |
75 |
na |
1075Y14F05 |
14 |
na |
11 |
na |
YELLOW |
75 |
na |
1075Y14F10 |
14 |
na |
11 |
na |
WHITE |
75 |
na |
1075Y16F00 |
16 |
na |
13 |
na |
NATURAL |
75 |
na |
1075Y16F01 |
16 |
na |
13 |
na |
BLACK |
75 |
na |
1075Y16F02 |
16 |
na |
13 |
na |
GREEN |
75 |
na |
1075Y16F03 |
16 |
na |
13 |
na |
RED |
75 |
na |
1075Y16F04 |
16 |
na |
13 |
na |
BLUE |
75 |
na |
1075Y16F05 |
16 |
na |
13 |
na |
YELLOW |
75 |
na |
1075Y16F10 |
16 |
na |
13 |
na |
WHITE |
75 |
na |
Part |
Tube O.D. (mm) |
Tube O.D. (inch) |
Tube I.D. (mm) |
Tube I.D. (inch) |
Color |
Length (m) |
Length (inch) |
1096Y62F00 |
na |
1/2 |
na |
0,375 |
NATURAL |
na |
250 |
1096Y62F01 |
na |
1/2 |
na |
0,375 |
BLACK |
na |
250 |
1096Y62F02 |
na |
1/2 |
na |
0,375 |
GREEN |
na |
250 |
1096Y62F03 |
na |
1/2 |
na |
0,375 |
RED |
na |
250 |
1096Y62F04 |
na |
1/2 |
na |
0,375 |
BLUE |
na |
250 |
1096Y62F05 |
na |
1/2 |
na |
0,375 |
YELLOW |
na |
250 |
1096Y62F10 |
na |
1/2 |
na |
0,375 |
WHITE |
na |
250 |
1098Y56F00 |
na |
1/4 |
na |
0,170 |
NATURAL |
na |
500 |
1098Y56F01 |
na |
1/4 |
na |
0,170 |
BLACK |
na |
500 |
1098Y56F02 |
na |
1/4 |
na |
0,170 |
GREEN |
na |
500 |
1098Y56F03 |
na |
1/4 |
na |
0,170 |
RED |
na |
500 |
1098Y56F04 |
na |
1/4 |
na |
0,170 |
BLUE |
na |
500 |
1098Y56F05 |
na |
1/4 |
na |
0,170 |
YELLOW |
na |
500 |
1098Y60F00 |
na |
3/8 |
na |
0,250 |
NATURAL |
na |
500 |
1098Y60F01 |
na |
3/8 |
na |
0,250 |
BLACK |
na |
500 |
1098Y60F02 |
na |
3/8 |
na |
0,250 |
GREEN |
na |
500 |
1098Y60F03 |
na |
3/8 |
na |
0,250 |
RED |
na |
500 |
1098Y60F04 |
na |
3/8 |
na |
0,250 |
BLUE |
na |
500 |
1098Y60F05 |
na |
3/8 |
na |
0,250 |
YELLOW |
na |
500 |
1099Y56F01 |
na |
1/4 |
na |
0,170 |
BLACK |
na |
1000 |
1099Y56F02 |
na |
1/4 |
na |
0,170 |
GREEN |
na |
1000 |
1100Y04 00 |
4 |
na |
2 |
na |
Clear |
100 |
na |
1100Y06 00 |
6 |
na |
4 |
na |
Clear |
100 |
na |
1100Y08 00 |
8 |
na |
6 |
na |
Clear |
100 |
na |
1100Y10 00 |
10 |
na |
8 |
na |
Clear |
100 |
na |
1100Y12 00 |
12 |
na |
9 |
na |
Clear |
100 |
na |
1100Y14 00 |
14 |
na |
11 |
na |
Clear |
100 |
na |
|
