Parker Legris LF3200 Push-In Fittings (3 mm)
LF3200 Pneumatic Miniature Push-In Fittings Datasheet

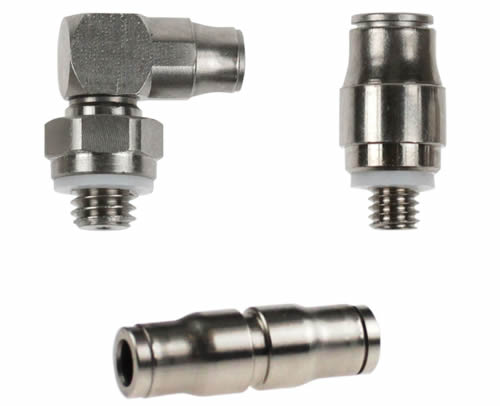

微型氣動回路是非常精確和敏感的系統，具有特殊的運行特點。因此，為了達到機械穩定性和緊湊性的要求，派克樂可利開發了符合人體工程學的微型銅鍍鎳快插式接頭系列。微型氣動回路是非常精確和敏感的系統，具有特殊的運行特點。因此，為了達到機械穩定性和緊湊性的要求，派克樂可利開發了符合人體工程學的微型銅鍍鎳快插式接頭系列。Miniature pneumatic installations are very precise and sensitive systems, having specific operating characteristics. Consequently, Parker Legris has developed this ergonomic range of brass push-in fittings for its mechanical robustness and compactness. The LF3200 fitting, connected with a 3 mm polyurethane or antistatic polyurethane tube, is the perfect solution for compact installations:
- which are highly stressed
- whose reliability is critical
Parker Legris LF3200 Push-In Fittings (3 mm)
LF3200 Pneumatic Miniature Push-In Fittings Datasheet
特點/優點：
- 結構緊湊
- 比市場上其他品牌同類接頭體積小25%，可滿足執行元件的尺寸要求
- 重量滿足高的效率
- 減少能耗并降低執行元件的負載
- 堅固耐用，性能穩定
- 所有銅質部件具有優秀的抗碰撞性能
- 帶卡爪的夾爪系統提高了連接的穩定性和使用壽命
- 優秀的耐高壓性能
- 性能可靠
- 100%防泄露檢測
- 質量保證和可追溯性的生產批次代碼
- 高敏感應用場合的選擇
- 具有耐腐蝕性能
市場：
- 工廠自動化
- 車輛裝配設施
- 食品和飲料
- 半導體
- 服裝
- 包裝機械
應用：
- 氣動機械設備
- 低壓壓縮空氣輸送
- 適用于真空應用
技術：
- 微型接頭
- 快插接頭
- 黃銅快插接頭
- 推入式連接接頭
- 氣動接頭
- 即時接頭
- 快速接頭
- 連接接頭
技術特點：
- 流體：壓縮空氣，非腐蝕性液體
- 材料：化學鍍鎳黃銅，NBR
- 壓力：真空至 20 bar
- 溫度：-15°C 至 +80°C
- ? 公制：3mm
法規：
- ISO 14743:氣動流體動力，用于熱塑管的快插接頭
- DI:94/9/EC (ATEX )
- DI:2002/95/EC (RoHS), 2011/65/EC
- RG:1907/2006 (REACH)
產品類型：
- 油口接頭
- 管對管接頭
- 管對管接頭附件
Part |
Product Type |
Shape |
Body Material |
Connection 1 Thread Size (metric) |
Connection 1 Thread Style |
Connection 2 Tube O.D. (mm) |
Connection 3 Tube O.D. (mm) |
3202 03 00 |
Tube-to-Tube Fittings and Accessories |
Elbow 90° tube / tube |
NICKEL PLATED BRASS |
na |
na |
3 |
na |
3204 03 00 |
Tube-to-Tube Fittings and Accessories |
Tee tube / tube |
NICKEL PLATED BRASS |
na |
na |
3 |
na |
3206 03 00 |
Tube-to-Tube Fittings and Accessories |
Tube / tube connector |
NICKEL PLATED BRASS |
na |
na |
3 |
na |
3218 03 09 |
Stud Fittings |
Male stud single banjo thread |
NICKEL PLATED BRASS |
M3x0,5 |
Metric |
3 |
na |
3218 03 19 |
Stud Fittings |
Male stud single banjo thread |
NICKEL PLATED BRASS |
M5x0,8 |
Metric |
3 |
na |
3226 03 00 |
Tube-to-Tube Fittings and Accessories |
Blanking plug with tailpiece |
NICKEL PLATED BRASS |
na |
na |
3 |
na |
3229 03 09 |
Stud Fittings |
Male stud extented elbow adjustable 90° thread |
NICKEL PLATED BRASS |
M3x0,5 |
Metric |
3 |
na |
3229 03 19 |
Stud Fittings |
Male stud extented elbow adjustable 90° thread |
NICKEL PLATED BRASS |
M5x0,8 |
Metric |
3 |
na |
3266 03 04 |
Tube-to-Tube Fittings and Accessories |
Reducer with tailpiece |
NICKEL PLATED BRASS |
na |
na |
3 |
4 |
3281 03 09 |
Stud Fittings |
Male stud fitting thread |
NICKEL PLATED BRASS |
M3x0,5 |
Metric |
3 |
na |
3281 03 19 |
Stud Fittings |
Male stud fitting thread |
NICKEL PLATED BRASS |
M5x0,8 |
Metric |
3 |
na |
3293 03 09 |
Stud Fittings |
Male stud run tee adjustable thread |
NICKEL PLATED BRASS |
M3x0,5 |
Metric |
3 |
na |
3293 03 19 |
Stud Fittings |
Male stud run tee adjustable thread |
NICKEL PLATED BRASS |
M5x0,8 |
Metric |
3 |
na |
3298 03 09 |
Stud Fittings |
Male stud branch tee adjustable thread |
NICKEL PLATED BRASS |
M3x0,5 |
Metric |
3 |
na |
3298 03 19 |
Stud Fittings |
Male stud branch tee adjustable thread |
NICKEL PLATED BRASS |
M5x0,8 |
Metric |
3 |
na |
3299 03 09 |
Stud Fittings |
Male stud elbow adjustable 90° thread |
NICKEL PLATED BRASS |
M3x0,5 |
Metric |
3 |
na |
3299 03 19 |
Stud Fittings |
Male stud elbow adjustable 90° thread |
NICKEL PLATED BRASS |
M5x0,8 |
Metric |
3 |
|
