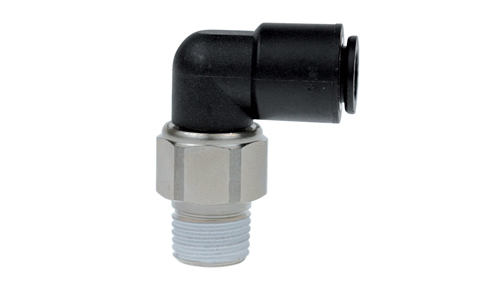

派克樂可利LF3000自密封接頭和旋轉接頭
Parker Legris LF3000 Self-Sealing and Oscillating Fittings Datasheet
派克樂可利開發了兩種創新的推入式接頭，以便集成各種功能，并允許在氣動回路上快速安裝。派克樂可利開發了兩種創新的快插式接頭，用于集成各種功能以及實現氣動回路的快速安裝。Parker Legris LF3000 Pneumatic Self-Sealing and Oscillating Fittings - has developed two innovative push-in fittings in order to integrate various functions and allow quick installation on pneumatic circuits.
派克樂可利LF3000自密封接頭和旋轉接頭
Parker Legris LF3000 Self-Sealing and Oscillating Fittings Datasheet
特點/優點：
- 自密封接頭
- 當沒有氣管插入時，無氣壓傳輸
- 當進行檢查和維護時，回路仍然可以保持壓力狀態
- 當氣管插入時，可恢復兩個方向的壓縮空氣傳輸
- 旋轉接頭
- 旋轉以配合氣缸拉桿的沖程
- 防止氣管過度彎曲造成的氣管磨損
- 優化的可靠性和耐久性
- 便于管路的安裝
市場：
- 工廠自動化
- 車輛裝配設施
- 食品和飲料
- 半導體
- 服裝
- 包裝機械
應用：
- 氣動機械設備
- 低壓壓縮空氣輸送
- 適用于真空應用
技術：
- 自密封接頭
- 旋轉接頭
- 快插接頭
- 推動式連接接頭
- 氣動接頭
- 即時接頭
- 快速接頭
- 連接接頭
技術特點：
- 流體：壓縮空氣，其他流體：請咨詢我們
- 材料：工程聚合物，鍍鎳黃銅，NBR
- 壓力：真空至20bar（10bar：自密封接頭）
- 溫度：-20°C to +80°C
- 公制：4mm to 12 mm
法規：
- ISO 14743:氣動流體動力，用于熱塑管的快插接頭
- DI:97/23/EC (PED)
- DI :2002/95/EC (RoHS), 2011/65/EC
- DI :1907/2006 (REACH)
產品類型：
- 自密封接頭
- 旋轉接頭
性能特點
主體材料 鎳鍍銅，工程聚合物
O 型圈材料 丁腈橡膠
夾持環 不銹鋼
螺紋密封劑 PTFE, na
壓力 (BARG) 10, 20
工作溫度(°C) 0, -20
工作溫度 (C) 70, 80
真空額定值 (HG MM) 755
箱數 10, 5
重量 (KG) 0,000至0,074
應用 機器人，汽車工藝，氣動，半導體，紡織，包裝
媒介 壓縮空氣，其他介質：請咨詢我們
證書 ISO 14743, DI: 97/23/EC (PED), DI : 2002/95/EC (RoHS), 2011/65/EC, DI : 1907/2006 (REACH)
產品類型 自密封和旋轉接頭
COMPLIANCE, CERTIFICATIONS, & SAFETY
產品技術資料下載
Quality and Safety, the Basis of Our Commitment
CONTACT & SUPPORT INFORMATION
Contact & Support
LITERATURE AND REFERENCE MATERIALS
Conversion Tables
Directives and Regulations
Fitting Threads
- LF 3000 Self-Sealing and Oscillating Fittings Datasheet
Make Your Product Choice!
Our Services Contribute to Your Performance
Part Number Identification
Pneumatic Technical Guidelines
Principle and Advantages of Our Coupling Systems
Principle and Avantages of the Push-in Fitting
Quality and Safety, the Basis of Our Commitment
Sustainable Development
Your Applications Inspire Our Innovation
SELECTOR GUIDES
Conversion Tables
- Parker Legris LF3000 Pneumatic Self-Sealing and Oscillating Fittings
Part |
Shape |
Connection 1 Thread Style |
Connection 1 Thread Size (inch) |
Connection 1 Thread Size (metric) |
Connection 1 Tube O.D. (inch) |
Connection 1 Tube O.D. (mm) |
Connection 2 Tube O.D. (inch) |
Connection 2 Tube O.D. (mm) |
3091 04 10 |
Self-sealing male stud thread |
BSPT |
R1/8 |
na |
na |
na |
5/32 |
4 |
3091 06 10 |
Self-sealing male stud thread |
BSPT |
R1/8 |
na |
na |
na |
na |
6 |
3091 08 10 |
Self-sealing male stud thread |
BSPT |
R1/8 |
na |
na |
na |
5/16 |
8 |
3091 08 13 |
Self-sealing male stud thread |
BSPT |
R1/4 |
na |
na |
na |
5/16 |
8 |
3159 04 10 |
Oscillating elbow 90° male stud thread |
BSPT |
R1/8 |
na |
na |
na |
na |
4 |
3159 06 10 |
Oscillating elbow 90° male stud thread |
BSPT |
R1/8 |
na |
na |
na |
na |
6 |
3159 06 13 |
Oscillating elbow 90° male stud thread |
BSPT |
R1/4 |
na |
na |
na |
na |
6 |
3159 08 10 |
Oscillating elbow 90° male stud thread |
BSPT |
R1/8 |
na |
na |
na |
na |
8 |
3159 08 13 |
Oscillating elbow 90° male stud thread |
BSPT |
R1/4 |
na |
na |
na |
na |
8 |
3159 08 17 |
Oscillating elbow 90° male stud thread |
BSPT |
R3/8 |
na |
na |
na |
na |
8 |
3159 10 13 |
Oscillating elbow 90° male stud thread |
BSPT |
R1/4 |
na |
na |
na |
na |
10 |
3159 10 17 |
Oscillating elbow 90° male stud thread |
BSPT |
R3/8 |
na |
na |
na |
na |
10 |
3159 12 13 |
Oscillating elbow 90° male stud thread |
BSPT |
R1/4 |
na |
na |
na |
na |
12 |
3159 12 17 |
Oscillating elbow 90° male stud thread |
BSPT |
R3/8 |
na |
na |
na |
na |
12 |
3160 04 00 |
Self-sealing male with tailpiece |
na |
na |
na |
5/32 |
4 |
na |
na |
3160 06 00 |
Self-sealing male with tailpiece |
na |
na |
na |
na |
6 |
na |
na |
3160 08 00 |
Self-sealing male with tailpiece |
na |
na |
na |
5/16 |
8 |
na |
na |
3189 04 10 |
Oscillating elbow 90° male stud thread |
BSPP |
G1/8 |
na |
na |
na |
na |
4 |
3189 04 19 |
Oscillating elbow 90° male stud thread |
Metric |
na |
M5x0,8 |
na |
na |
na |
4 |
3189 06 10 |
Oscillating elbow 90° male stud thread |
BSPP |
G1/8 |
na |
na |
na |
na |
6 |
3189 06 13 |
Oscillating elbow 90° male stud thread |
BSPP |
G1/4 |
na |
na |
na |
na |
6 |
3189 06 19 |
Oscillating elbow 90° male stud thread |
Metric |
na |
M5x0,8 |
na |
na |
na |
6 |
3189 08 10 |
Oscillating elbow 90° male stud thread |
BSPP |
G1/8 |
na |
na |
na |
na |
8 |
3189 08 13 |
Oscillating elbow 90° male stud thread |
BSPP |
G1/4 |
na |
na |
na |
na |
8 |
3189 08 17 |
Oscillating elbow 90° male stud thread |
BSPP |
G3/8 |
na |
na |
na |
na |
8 |
3189 10 13 |
Oscillating elbow 90° male stud thread |
BSPP |
G1/4 |
na |
na |
na |
na |
10 |
3189 10 17 |
Oscillating elbow 90° male stud thread |
BSPP |
G3/8 |
na |
na |
na |
na |
10 |
3189 12 13 |
Oscillating elbow 90° male stud thread |
BSPP |
G1/4 |
na |
na |
na |
na |
12 |
3189 12 17 |
Oscillating elbow 90° male stud thread |
BSPP |
G3/8 |
na |
na |
na |
na |
12 |
3391 04 10 |
Self-sealing male stud thread |
BSPP |
G1/8 |
na |
na |
na |
5/32 |
4 |
3391 06 10 |
Self-sealing male stud thread |
BSPP |
G1/8 |
na |
na |
na |
na |
6 |
3391 08 10 |
Self-sealing male stud thread |
BSPP |
G1/8 |
na |
na |
na |
5/16 |
8 |
3391 08 13 |
Self-sealing male stud thread |
BSPP |
G1/4 |
na |
na |
na |
5/16 |
8 |
3391 10 17 |
Self-sealing male stud thread |
BSPP |
G3/8 |
na |
na |
na |
na |
10 |
|
