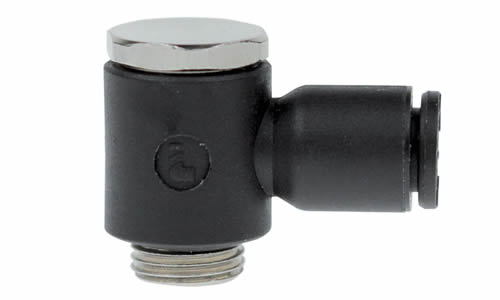

派克樂可利Parker Legris LF3000系列鉸接式接頭
Parker Legris LF3000 Banjo Fittings
當只能從上方安裝并且需要配合管路方向時，該系列Banjo Fittings鉸接式接頭之選。該系列模塊化接頭包括單一配置和復式配置，可滿足更加靈活的設計。This range of fittings is ideal when access is only possible from above and orientation of the tube is required. This range of modular fittings includes single and multiple configurations,allowing wide flexibility of design.Parker Legris LF3000 Pneumatic Banjo Fittings -This range of fittings is ideal when access is only possible from above and orientation of the tube is required. This range of modular fittings includes single and multiple configurations, allowing wide flexibility of design.
派克樂可利Parker Legris LF3000系列鉸接式接頭
Parker Legris LF3000 Banjo Fittings
Banjo Fittings特點/優點：
- 緊湊
- 緊湊的設計，保證接頭之間的安裝空間小
- 為實現大流量而設計的鉸接式螺栓
- 便于檢修，即使接頭之間非常緊密
- 易于組裝和自動密封：
錐螺紋涂層密封
直螺紋集成O型圈密封
- 操作安全：確保管路的方向
- 100%防泄漏檢測
- 保證質量和可追溯性的日期代碼
- 模塊化
- 可輕松堆疊鉸接式本體，構建2至6個出口
- 可定向(360?)，實現精確對準
- 模塊化：可實現不同管徑接頭的組合
市場：
- 工廠自動化
- 車輛裝配設施
- 食品和飲料
- 半導體
- 服裝
- 包裝機械
應用：
- 氣動機械設備
- 低壓壓縮空氣輸送
- 適用于真空應用
技術：
- 可調向接頭
- 萬向接頭
- 模塊化接頭
- 快插接頭
- 推動式連接接頭
- 氣動接頭
- 即時接頭
- 快速接頭
- 管連接接頭
技術特點：
- 流體：壓縮空氣，其他流體：請咨詢我們
- 材料：工程材料，鍍鎳黃銅，NBR
- 壓力：真空至20bar
- 溫度：-20°C to 80°C
- ? 公制：3mm to 12 mm
法規：
- ISO 14743:氣動流體動力，用于熱塑管的快插接頭
- DI:97/23/EC (PED)
- DI :2002/95/EC (RoHS), 2011/65/EC
- DI :1907/2006 (REACH)
產品類型：
- 鉸接接頭
- 模塊化鉸接接頭
性能特點
O 型圈材料 丁腈橡膠
夾持環 不銹鋼,na
螺紋密封劑 PTFE, na
壓力 (BARG) 20
工作溫度(°C) -20
工作溫度 (C) 80
真空額定值 (HG MM) 755, na
箱數 10
重量 (KG) 0,001至0,086
應用 機器人，汽車工藝，氣動，半導體，紡織，包裝
媒介 壓縮空氣，其他介質：請咨詢我們
證書 ISO 14743, DI: 97/23/EC (PED), DI : 2002/95/EC (RoHS), 2011/65/EC, DI : 1907/2006 (REACH)
