Parker Industrial Brass Ball Valves
PARKER派克工業黃銅球閥
PARKER的黃銅球閥設計為以經濟的價格提供多年的服務，并可在各種終端配置和選項。帕克的工業黃銅球閥設計為以經濟的價格提供多年的服務。這些閥門專為商業和一般工業應用而制造，比輕型一次性閥門具有更高的性能。這些球閥用于完全打開或關閉位置。閥門節流可能導致過早密封失效和/或無法轉動閥門手柄。Parker's brass ball valves are designed to provide years of service at an economical price and are available in various end configurations and options.Parker's industrial brass ball valves are designed to provide years of service at an economical price. Manufactured for commercial and general industrial applications these valves offer increased performance over lightweight throwaway valves. These ball valves are intended for use in the fully open or closed positions. Throttling of the valve may result in premature seal failure and/or inability to turn the valve handle.
工業黃銅球閥 派克的黃銅球閥旨在以經濟的價格提供多年的服務，并且具有各種最終配置和選件。派克的工業黃銅球閥旨在以經濟的價格提供多年的服務。這些閥門是為商業和一般工業應用而制造的，與輕型一次性閥門相比，性能更高。這些球閥旨在用于完全打開或關閉位置。閥門的節流可能導致密封件過早失效和/或無法轉動閥門手柄。

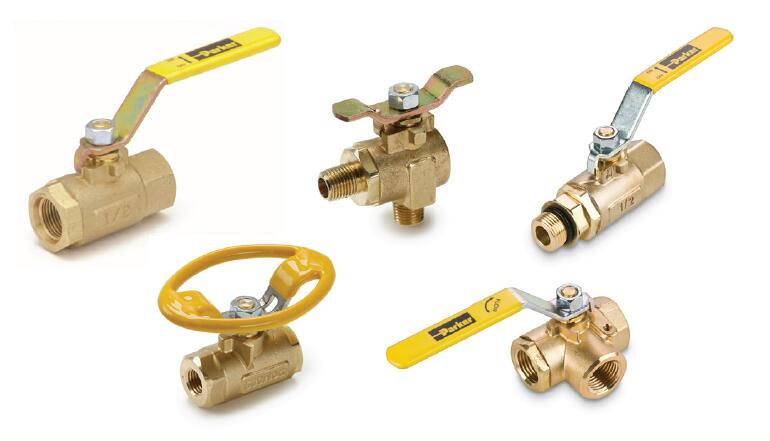

Parker's brass ball valves are available in a range of styles including:
- Female x Female
- Female x Male
- Panel Mount
- Female Straight Thread x Female Straight Thread
- Solder ends
- Female Straight Thread x Male Straight Thread
- 3 and 4 Way Diversion
- 90 Valves
- Beaded Hose Barb End
- 6 Port Valve
黃銅球閥的選件包括：
- 鍍鎳
- 通風
- 掛鎖手柄
- 不銹鋼球和閥桿
- 不銹鋼手柄和螺母
- 三通手柄
- 橢圓形手柄
- 淺黃色乙烯基手柄蓋
- 執行器套件
市場：
- 重型卡車
- 機動
- 農業
- 建筑
- 工業
特點/優點：
- 鍛造本體，以增強強度
- 鍍鉻黃銅球
- PTFE閥座和密封
- 多種樣式
- 四分之一轉手柄可提供正向停止功能，實現完全關閉
應用：
- 汽油和柴油設備的燃油管線切斷
- 航空服務管線
- 資本設備上的供水管線-
需要完全切斷能力的工廠設計管道
Options for the brass ball valves include:
- Nickel Plating
- Venting
- Padlocking Handles
- Stainless Steel Ball & Stem
- Stainless Steel Handle & Nut
- Tee Handle
- Oval Handle
- Plain Yellow Vinyl Handle Cover
- Actuator Kit
市場:
- Heavy Duty Truck
- Mobile
- Agriculture
- Construction
- Industrial
性能特點:
- Forged Body for Added Strength
- Chrome Plated Brass Ball
- PTFE Seats and Seals
- Wide Range of Styles
- Quarter Turn Handle Provides Positive Stop Action for Full Shutoff
應用:
- Fuel Line Shutoffs for Gasoline and Diesel Equipment
- Air Service lines
- Water Service Lines on Capital Equipment
- Plant Design Plumbing Requiring Total Shutoff Capability
Custom configurations and sizes are available upon request. Contact us for additional information.
規格參數：
Minimum Operating Temperature: -50 to 0 °F, -45 to -17 °C
Maximum Operating Temperature: 250 to 350 °F, 121 to 176 °C
Maximum Operating Pressure: 10 to 41 bar
Connection Type: NPT, Straight Thread, Solder
Body Material: Brass
Ball Material: Chrome Plated Brass
Seat Material: PTFE
Related Documents
Communities, Blogs, and Industry Links
Parker Ball Valves: Made to the Highest Standards
Literature and Reference Materials
Ball Valve QRG
Brass, Composite and Thermoplastic Fittings and Valves - CAT. 3501E
Parker Ball Valves: Made to the Highest Standards
Quick Reference Guide - 3500-QRG
RACE--Ball valves
RACE--PB Bi-Flow CO2 Valves_uk
Product Demos & Tutorials
Parker Ball Valves: Made to the Highest Standards
Compliance, Certifications, & Safety
Certificate of Registration for Albion, IN facility
Certificate of Registration for Lakeview, MI facility
Certificate of Registration for Otsego, MI facility
Conflict Minerals Statement Parker Fluid System Connectors Division
FSC REACH Product Declaration
Management System Certificate for Otsego, MI
RoHS Product Declaration
Brass Composition
Certificate of Insurance
Safe Drinking Water Act
Part |
Maximum Working Pressure (psi) |
Style |
Shape |
Connection 1 Thread Size (inch) |
Connection 1 Thread Style |
Connection 2 Thread Size (inch) |
Connection 2 Thread Style |
Connection 1 Solder O.D. (inch) |
Connection 2 Solder O.D. (inch) |
Handle |
Locking Mechanism |
Vented |
MV708-2 |
500 |
Male to Female |
In Line |
1/8 |
Male Pipe |
1/8 |
Female Pipe |
na |
na |
Chrome Plated Steel |
Non-Locking |
No |
MV708-4 |
500 |
Male to Female |
In Line |
1/4 |
Male Pipe |
1/4 |
Female Pipe |
na |
na |
Chrome Plated Steel |
Non-Locking |
No |
MV709-2 |
500 |
Female to Female |
In Line |
1/8 |
Female Pipe |
1/8 |
Female Pipe |
na |
na |
Chrome Plated Steel |
Non-Locking |
No |
MV709-4 |
500 |
Female to Female |
In Line |
1/4 |
Female Pipe |
1/4 |
Female Pipe |
na |
na |
Chrome Plated Steel |
Non-Locking |
No |
V500P-12 |
600 |
Female to Female |
In Line |
3/4 |
Female Pipe |
3/4 |
Female Pipe |
na |
na |
Steel Lever |
Non-Locking |
No |
V500P-12-04 |
600 |
Female to Female |
In Line |
3/4 |
Female Pipe |
3/4 |
Female Pipe |
na |
na |
Tee Handle |
Non-Locking |
No |
V500P-12-16HB |
150 |
Female to Hose Barb |
In Line |
1 |
Hose Barb |
3/4 |
Female Pipe |
na |
na |
Steel Lever |
Non-Locking |
No |
V500P-12-21 |
600 |
Female to Female |
In Line |
3/4 |
Female Pipe |
3/4 |
Female Pipe |
na |
na |
Steel Oval |
Non-Locking |
No |
V500P-16 |
600 |
Female to Female |
In Line |
1 |
Female Pipe |
1 |
Female Pipe |
na |
na |
Steel Lever |
Non-Locking |
No |
V500P-16-04 |
600 |
Female to Female |
In Line |
1 |
Female Pipe |
1 |
Female Pipe |
na |
na |
Tee Handle |
Non-Locking |
No |
V500P-20 |
600 |
Female to Female |
In Line |
1 1/4 |
Female Pipe |
1 1/4 |
Female Pipe |
na |
na |
Steel Lever |
Non-Locking |
No |
V500P-24 |
600 |
Female to Female |
In Line |
1 1/2 |
Female Pipe |
1 1/2 |
Female Pipe |
na |
na |
Steel Lever |
Non-Locking |
No |
V500P-32 |
600 |
Female to Female |
In Line |
2 |
Female Pipe |
2 |
Female Pipe |
na |
na |
Steel Lever |
Non-Locking |
No |
V500P-4 |
600 |
Female to Female |
In Line |
1/4 |
Female Pipe |
1/4 |
Female Pipe |
na |
na |
Steel Lever |
Non-Locking |
No |
V500P-4-04 |
600 |
Female to Female |
In Line |
1/4 |
Female Pipe |
1/4 |
Female Pipe |
na |
na |
Tee Handle |
Non-Locking |
No |
V500P-6 |
600 |
Female to Female |
In Line |
3/8 |
Female Pipe |
3/8 |
Female Pipe |
na |
na |
Steel Lever |
Non-Locking |
No |
V500P-6-04 |
600 |
Female to Female |
In Line |
3/8 |
Female Pipe |
3/8 |
Female Pipe |
na |
na |
Tee Handle |
Non-Locking |
No |
V500P-8 |
600 |
Female to Female |
In Line |
3/8 |
Female Pipe |
3/8 |
Female Pipe |
na |
na |
Steel Lever |
Non-Locking |
No |
V500P-8-02 |
600 |
Female to Female |
In Line |
1/2 |
Female Pipe |
1/2 |
Female Pipe |
na |
na |
Stainless Steel Handle |
Non-Locking |
No |
V500P-8-04 |
600 |
Female to Female |
In Line |
1/2 |
Female Pipe |
1/2 |
Female Pipe |
na |
na |
Tee Handle |
Non-Locking |
No |
V501P-12 |
600 |
Female to Male |
In Line |
3/4 |
Male Pipe |
3/4 |
Female Pipe |
na |
na |
Steel Lever |
Non-Locking |
No |
V501P-12-04 |
600 |
Female to Male |
In Line |
3/4 |
Male Pipe |
3/4 |
Female Pipe |
na |
na |
Steel Tee |
Non-Locking |
No |
V501P-12-21 |
600 |
Female to Male |
In Line |
3/4 |
Male Pipe |
3/4 |
Female Pipe |
na |
na |
Steel Oval |
Non-Locking |
No |
V501P-16 |
600 |
Female to Male |
In Line |
1 |
Male Pipe |
1 |
Female Pipe |
na |
na |
Steel Lever |
Non-Locking |
No |
V501P-16-04 |
600 |
Female to Male |
In Line |
1 |
Male Pipe |
1 |
Female Pipe |
na |
na |
Steel Tee |
Non-Locking |
No |
Part |
Maximum Working Pressure (psi) |
Style |
Shape |
Connection 1 Thread Size (inch) |
Connection 1 Thread Style |
Connection 2 Thread Size (inch) |
Connection 2 Thread Style |
Connection 1 Solder O.D. (inch) |
Connection 2 Solder O.D. (inch) |
Handle |
Locking Mechanism |
Vented |
V501P-16-21 |
600 |
Female to Male |
In Line |
1 |
Male Pipe |
1 |
Female Pipe |
na |
na |
Steel Oval |
Non-Locking |
No |
V501P-4 |
600 |
Female to Male |
In Line |
1/4 |
Male Pipe |
1/4 |
Female Pipe |
na |
na |
Steel Lever |
Non-Locking |
No |
V501P-4-04 |
600 |
Female to Male |
In Line |
1/4 |
Male Pipe |
1/4 |
Female Pipe |
na |
na |
Steel Tee |
Non-Locking |
No |
V501P-4-21 |
600 |
Female to Male |
In Line |
1/4 |
Male Pipe |
1/4 |
Female Pipe |
na |
na |
Steel Oval |
Non-Locking |
No |
V501P-6 |
600 |
Female to Male |
In Line |
3/8 |
Male Pipe |
3/8 |
Female Pipe |
na |
na |
Steel Lever |
Non-Locking |
No |
V501P-6-04 |
600 |
Female to Male |
In Line |
3/8 |
Male Pipe |
3/8 |
Female Pipe |
na |
na |
Steel Tee |
Non-Locking |
No |
V501P-6-21 |
600 |
Female to Male |
In Line |
3/8 |
Male Pipe |
3/8 |
Female Pipe |
na |
na |
Steel Oval |
Non-Locking |
No |
V501P-8 |
600 |
Female to Male |
In Line |
1/2 |
Male Pipe |
1/2 |
Female Pipe |
na |
na |
Steel Lever |
Non-Locking |
No |
V501P-8-04 |
600 |
Female to Male |
In Line |
1/2 |
Male Pipe |
1/2 |
Female Pipe |
na |
na |
Steel Tee |
Non-Locking |
No |
V501P-8-21 |
600 |
Female to Male |
In Line |
1/2 |
Male Pipe |
1/2 |
Female Pipe |
na |
na |
Steel Oval |
Non-Locking |
No |
V502P-12 |
600 |
Female to Female |
Panel Mount |
3/4 |
Female Pipe |
3/4 |
Female Pipe |
na |
na |
Steel Lever |
Non-Locking |
No |
V502P-12-04 |
600 |
Female to Female |
Panel Mount |
3/4 |
Female Pipe |
3/4 |
Female Pipe |
na |
na |
Steel Tee |
Non-Locking |
No |
V502P-12-21 |
600 |
Female to Female |
Panel Mount |
3/4 |
Female Pipe |
3/4 |
Female Pipe |
na |
na |
Steel Oval |
Non-Locking |
No |
V502P-12-ACT |
600 |
Female to Female |
Panel Mount |
3/4 |
Female Pipe |
3/4 |
Female Pipe |
na |
na |
na |
Non-Locking |
No |
V502P-12-SUB |
150 |
Female to Female |
Panel Mount Sub Assembly |
3/4 |
Female Pipe |
3/4 |
Female Pipe |
na |
na |
na |
Non-Locking |
No |
V502P-16 |
600 |
Female to Female |
Panel Mount |
1 |
Female Pipe |
1 |
Female Pipe |
na |
na |
Steel Lever |
Non-Locking |
No |
V502P-16-04 |
600 |
Female to Female |
Panel Mount |
1 |
Female Pipe |
1 |
Female Pipe |
na |
na |
Steel Tee |
Non-Locking |
No |
V502P-16-21 |
600 |
Female to Female |
Panel Mount |
1 |
Female Pipe |
1 |
Female Pipe |
na |
na |
Steel Oval |
Non-Locking |
No |
V502P-16-ACT |
600 |
Female to Female |
Panel Mount |
1 |
Female Pipe |
1 |
Female Pipe |
na |
na |
na |
Non-Locking |
No |
V502P-16-SUB |
150 |
Female to Female |
Panel Mount Sub Assembly |
1 |
Female Pipe |
1 |
Female Pipe |
na |
na |
na |
Non-Locking |
No |
V502P-4 |
600 |
Female to Female |
Panel Mount |
1/4 |
Female Pipe |
1/4 |
Female Pipe |
na |
na |
Steel Lever |
Non-Locking |
No |
V502P-4-04 |
600 |
Female to Female |
Panel Mount |
1/4 |
Female Pipe |
1/4 |
Female Pipe |
na |
na |
Steel Tee |
Non-Locking |
No |
V502P-4-21 |
600 |
Female to Female |
Panel Mount |
1/4 |
Female Pipe |
1/4 |
Female Pipe |
na |
na |
Steel Oval |
Non-Locking |
No |
V502P-4-ACT |
150 |
Female to Female |
Panel Mount |
1/4 |
Female Pipe |
1/4 |
Female Pipe |
na |
na |
na |
Non-Locking |
No |
V502P-4-SUB |
150 |
Female to Female |
Panel Mount Sub Assembly |
1/4 |
Female Pipe |
1/4 |
Female Pipe |
na |
na |
na |
Non-Locking |
No |
Part |
Maximum Working Pressure (psi) |
Style |
Shape |
Connection 1 Thread Size (inch) |
Connection 1 Thread Style |
Connection 2 Thread Size (inch) |
Connection 2 Thread Style |
Connection 1 Solder O.D. (inch) |
Connection 2 Solder O.D. (inch) |
Handle |
Locking Mechanism |
Vented |
V502P-6 |
600 |
Female to Female |
Panel Mount |
3/8 |
Female Pipe |
3/8 |
Female Pipe |
na |
na |
Steel Lever |
Non-Locking |
No |
V502P-6-04 |
600 |
Female to Female |
Panel Mount |
3/8 |
Female Pipe |
3/8 |
Female Pipe |
na |
na |
Steel Tee |
Non-Locking |
No |
V502P-6-21 |
600 |
Female to Female |
Panel Mount |
3/8 |
Female Pipe |
3/8 |
Female Pipe |
na |
na |
Steel Oval |
Non-Locking |
No |
V502P-6-ACT |
150 |
Female to Female |
Panel Mount |
3/8 |
Female Pipe |
3/8 |
Female Pipe |
na |
na |
na |
Non-Locking |
No |
V502P-6-SUB |
150 |
Female to Female |
Panel Mount Sub Assembly |
3/8 |
Female Pipe |
3/8 |
Female Pipe |
na |
na |
na |
Non-Locking |
No |
V502P-8 |
600 |
Female to Female |
Panel Mount |
1/2 |
Female Pipe |
1/2 |
Female Pipe |
na |
na |
Steel Lever |
Non-Locking |
No |
V502P-8-04 |
600 |
Female to Female |
Panel Mount |
1/2 |
Female Pipe |
1/2 |
Female Pipe |
na |
na |
Steel Tee |
Non-Locking |
No |
V502P-8-08 |
600 |
Female to Female |
In Line |
1/2 |
Female Pipe |
1/2 |
Female Pipe |
na |
na |
Unmarked Yellow Vinyl Handle Cover |
Non-Locking |
No |
V502P-8-21 |
600 |
Female to Female |
Panel Mount |
1/2 |
Female Pipe |
1/2 |
Female Pipe |
na |
na |
Steel Oval |
Non-Locking |
No |
V502P-8-ACT |
150 |
Female to Female |
Panel Mount |
1/2 |
Female Pipe |
1/2 |
Female Pipe |
na |
na |
na |
Non-Locking |
No |
V502P-8-SUB |
150 |
Female to Female |
Panel Mount Sub Assembly |
1/2 |
Female Pipe |
1/2 |
Female Pipe |
na |
na |
na |
Non-Locking |
No |
V506P-12 |
600 |
Female Straight Thread to Female Straight Thread |
In Line |
1 1/16-12 |
Female Straight Thread |
1 1/16-12 |
Female Straight Thread |
na |
na |
Steel Lever |
Non-Locking |
No |
V506P-16 |
600 |
Female Straight Thread to Female Straight Thread |
In Line |
1 5/16-12 |
Female Straight Thread |
1 5/16-12 |
Female Straight Thread |
na |
na |
Steel Lever |
Non-Locking |
No |
V506P-20 |
600 |
Female Straight Thread to Female Straight Thread |
In Line |
1 5/8-12 |
Female Straight Thread |
1 5/8-12 |
Female Straight Thread |
na |
na |
Steel Lever |
Non-Locking |
No |
V506P-24 |
600 |
Female Straight Thread to Female Straight Thread |
In Line |
1 7/8-12 |
Female Straight Thread |
1 7/8-12 |
Female Straight Thread |
na |
na |
Steel Lever |
Non-Locking |
No |
V506P-32 |
600 |
Female Straight Thread to Female Straight Thread |
In Line |
2 1/2-12 |
Female Straight Thread |
2 1/2-12 |
Female Straight Thread |
na |
na |
Steel Lever |
Non-Locking |
No |
V506P-4 |
600 |
Female Straight Thread to Female Straight Thread |
In Line |
7/16-20 |
Female Straight Thread |
7/16-20 |
Female Straight Thread |
na |
na |
Steel Lever |
Non-Locking |
No |
V506P-6 |
600 |
Female Straight Thread to Female Straight Thread |
In Line |
9/16-18 |
Female Straight Thread |
9/16-18 |
Female Straight Thread |
na |
na |
Steel Lever |
Non-Locking |
No |
V506P-6-04 |
600 |
Female to Female |
In Line |
9/16-18 |
Female Pipe |
9/16-18 |
Female Pipe |
na |
na |
Tee Handle |
Non-Locking |
No |
V506P-8 |
600 |
Female Straight Thread to Female Straight Thread |
In Line |
3/4-16 |
Female Straight Thread |
3/4-16 |
Female Straight Thread |
na |
na |
Steel Lever |
Non-Locking |
No |
V509P-12 |
600 |
Solder to Solder |
In Line |
na |
Solder |
na |
Solder |
3/4 |
3/4 |
Steel Lever |
Non-Locking |
No |
V509P-16 |
600 |
Solder to Solder |
In Line |
na |
Solder |
na |
Solder |
1 |
1 |
Steel Lever |
Non-Locking |
No |
V509P-20 |
600 |
Solder to Solder |
In Line |
na |
Solder |
na |
Solder |
1 1/4 |
1 1/4 |
Steel Lever |
Non-Locking |
No |
V509P-24 |
600 |
Solder to Solder |
In Line |
na |
Solder |
na |
Solder |
1 1/2 |
1 1/2 |
Steel Lever |
Non-Locking |
No |
V509P-32 |
600 |
Solder to Solder |
In Line |
na |
Solder |
na |
Solder |
2 |
2 |
Steel Lever |
Non-Locking |
No |
Part |
Maximum Working Pressure (psi) |
Style |
Shape |
Connection 1 Thread Size (inch) |
Connection 1 Thread Style |
Connection 2 Thread Size (inch) |
Connection 2 Thread Style |
Connection 1 Solder O.D. (inch) |
Connection 2 Solder O.D. (inch) |
Handle |
Locking Mechanism |
Vented |
V509P-8 |
600 |
Solder to Solder |
In Line |
na |
Solder |
na |
Solder |
1/2 |
1/2 |
Steel Lever |
Non-Locking |
No |
V510P-10 |
600 |
Female Straight Thread to Male Straight Thread |
In Line |
7/8-14 |
Female Straight thread |
7/8-14 |
Male Straight Thread |
na |
na |
Steel Lever |
Non-Locking |
No |
V510P-10-04 |
600 |
Female Straight Thread to Male Straight Thread |
In Line |
7/8-14 |
Female Straight thread |
7/8-14 |
Male Straight Thread |
na |
na |
Steel Tee |
Non-Locking |
No |
V510P-12 |
600 |
Female Straight Thread to Male Straight Thread |
In Line |
1 1/16-12 |
Female Straight thread |
1 1/16-12 |
Male Straight Thread |
na |
na |
Steel Lever |
Non-Locking |
No |
V510P-12-04 |
600 |
Female Straight Thread to Male Straight Thread |
In Line |
1 1/16-12 |
Female Straight thread |
1 1/16-12 |
Male Straight Thread |
na |
na |
Steel Tee |
Non-Locking |
No |
V510P-12-21 |
600 |
Female Straight Thread to Male Straight Thread |
In Line |
1 1/16-12 |
Female Straight thread |
1 1/16-12 |
Male Straight Thread |
na |
na |
Steel Oval |
Non-Locking |
No |
V510P-16 |
600 |
Female Straight Thread to Male Straight Thread |
In Line |
1 5/16-12 |
Female Straight thread |
1 5/16-12 |
Male Straight Thread |
na |
na |
Steel Lever |
Non-Locking |
No |
V510P-16-04 |
600 |
Female Straight Thread to Male Straight Thread |
In Line |
1 5/16-12 |
Female Straight thread |
1 5/16-12 |
Male Straight Thread |
na |
na |
Steel Tee |
Non-Locking |
No |
V510P-4 |
600 |
Female Straight Thread to Male Straight Thread |
In Line |
7/16-20 |
Female Straight thread |
7/16-20 |
Male Straight Thread |
na |
na |
Steel Lever |
Non-Locking |
No |
V510P-4-04 |
600 |
Female Straight Thread to Male Straight Thread |
In Line |
7/16-20 |
Female Straight thread |
7/16-20 |
Male Straight Thread |
na |
na |
Steel Tee |
Non-Locking |
No |
V510P-4-21 |
600 |
Female Straight Thread to Male Straight Thread |
In Line |
7/16-20 |
Female Straight thread |
7/16-20 |
Male Straight Thread |
na |
na |
Steel Oval |
Non-Locking |
No |
V510P-6 |
600 |
Female Straight Thread to Male Straight Thread |
In Line |
9/16-18 |
Female Straight thread |
9/16-18 |
Male Straight Thread |
na |
na |
Steel Lever |
Non-Locking |
No |
V510P-6-04 |
600 |
Female Straight Thread to Male Straight Thread |
In Line |
9/16-18 |
Female Straight thread |
9/16-18 |
Male Straight Thread |
na |
na |
Steel Tee |
Non-Locking |
No |
V510P-6-21 |
600 |
Female Straight Thread to Male Straight Thread |
In Line |
9/16-18 |
Female Straight thread |
9/16-18 |
Male Straight Thread |
na |
na |
Steel Oval |
Non-Locking |
No |
V510P-8 |
600 |
Female Straight Thread to Male Straight Thread |
In Line |
3/4-16 |
Female Straight thread |
3/4-16 |
Male Straight Thread |
na |
na |
Steel Lever |
Non-Locking |
No |
V510P-8-04 |
600 |
Female Straight Thread to Male Straight Thread |
In Line |
3/4-16 |
Female Straight thread |
3/4-16 |
Male Straight Thread |
na |
na |
Steel Tee |
Non-Locking |
No |
V510P-8-21 |
600 |
Female Straight Thread to Male Straight Thread |
In Line |
3/4-16 |
Female Straight thread |
3/4-16 |
Male Straight Thread |
na |
na |
Steel Oval |
Non-Locking |
No |
V520P-12 |
600 |
Female to Female Economy |
In Line |
3/4 |
Female Pipe |
3/4 |
Female Pipe |
na |
na |
Steel Lever |
Non-Locking |
No |
V520P-12-04 |
600 |
Female to Female Economy |
In Line |
3/4 |
Female Pipe |
3/4 |
Female Pipe |
na |
na |
Tee Handle |
Non-Locking |
No |
V520P-16 |
600 |
Female to Female Economy |
In Line |
1 |
Female Pipe |
1 |
Female Pipe |
na |
na |
Steel Lever |
Non-Locking |
No |
V520P-20 |
600 |
Female to Female Economy |
In Line |
1 1/4 |
Female Pipe |
1 1/4 |
Female Pipe |
na |
na |
Steel Lever |
Non-Locking |
No |
V520P-24 |
600 |
Female to Female Economy |
In Line |
1 1/2 |
Female Pipe |
1 1/2 |
Female Pipe |
na |
na |
Steel Lever |
Non-Locking |
No |
V520P-32 |
600 |
Female to Female Economy |
In Line |
2 |
Female Pipe |
2 |
Female Pipe |
na |
na |
Steel Lever |
Non-Locking |
No |
V520P-4 |
600 |
Female to Female Economy |
In Line |
1/4 |
Female Pipe |
1/4 |
Female Pipe |
na |
na |
Steel Lever |
Non-Locking |
No |
V520P-40 |
600 |
Female to Female Economy |
In Line |
2 1/2 |
Female Pipe |
2 1/2 |
Female Pipe |
na |
na |
Steel Lever |
Non-Locking |
No |
Part |
Maximum Working Pressure (psi) |
Style |
Shape |
Connection 1 Thread Size (inch) |
Connection 1 Thread Style |
Connection 2 Thread Size (inch) |
Connection 2 Thread Style |
Connection 1 Solder O.D. (inch) |
Connection 2 Solder O.D. (inch) |
Handle |
Locking Mechanism |
Vented |
V520P-48 |
600 |
Female to Female Economy |
In Line |
3 |
Female Pipe |
3 |
Female Pipe |
na |
na |
Steel Lever |
Non-Locking |
No |
V520P-6 |
600 |
Female to Female Economy |
In Line |
3/8 |
Female Pipe |
3/8 |
Female Pipe |
na |
na |
Steel Lever |
Non-Locking |
No |
V520P-8 |
600 |
Female to Female Economy |
In Line |
1/2 |
Female Pipe |
1/2 |
Female Pipe |
na |
na |
Steel Lever |
Non-Locking |
No |
V533P-12 |
400 |
Female to Female |
3-Way |
3/4 |
Female Pipe |
3/4 |
Female Pipe |
na |
na |
Steel Lever |
Non-Locking |
No |
V533P-16 |
400 |
Female to Female |
3-Way |
1 |
Female Pipe |
1 |
Female Pipe |
na |
na |
Steel Lever |
Non-Locking |
No |
V533P-4 |
400 |
Female to Female |
3-Way |
1/4 |
Female Pipe |
1/4 |
Female Pipe |
na |
na |
Steel Lever |
Non-Locking |
No |
V533P-4-04 |
600 |
Female to Female to Female |
3-way |
1/4 |
Female Pipe |
1/4 |
Female Pipe |
na |
na |
Tee Handle |
Non-Locking |
No |
V533P-6 |
400 |
Female to Female |
3-Way |
3/8 |
Female Pipe |
3/8 |
Female Pipe |
na |
na |
Steel Lever |
Non-Locking |
No |
V533P-8 |
400 |
Female to Female |
3-Way |
1/2 |
Female Pipe |
1/2 |
Female Pipe |
na |
na |
Steel Lever |
Non-Locking |
No |
V540P-4 |
400 |
Female to Female |
4-Way |
1/4 |
Female Pipe |
1/4 |
Female Pipe |
na |
na |
Steel Lever |
Non-Locking |
No |
V590P-16 |
250 |
Female to Male |
90 Valve |
1 |
Female Pipe |
1 |
Male Pipe |
na |
na |
Steel Tee |
Non-Locking |
No |
V590P-16-04 |
250 |
Female to Male |
90 Valve |
1 |
Female Pipe |
1 |
Male Pipe |
na |
na |
Steel Lever |
Non-Locking |
No |
V590P-4 |
250 |
Female to Male |
90 Valve |
1/4 |
Female Pipe |
1/4 |
Male Pipe |
na |
na |
Steel Tee |
Non-Locking |
No |
V590P-4-04 |
250 |
Female to Male |
90 Valve |
1/4 |
Female Pipe |
1/4 |
Male Pipe |
na |
na |
Steel Lever |
Non-Locking |
No |
V590P-6 |
250 |
Female to Male |
90 Valve |
3/8 |
Female Pipe |
3/8 |
Male Pipe |
na |
na |
Steel Tee |
Non-Locking |
No |
V590P-6-04 |
250 |
Female to Male |
90 Valve |
3/8 |
Female Pipe |
3/8 |
Male Pipe |
na |
na |
Steel Lever |
Non-Locking |
No |
V590P-8 |
250 |
Female to Male |
90 Valve |
1/2 |
Female Pipe |
1/2 |
Male Pipe |
na |
na |
Steel Tee |
Non-Locking |
No |
V590P-8-04 |
250 |
Female to Male |
90 Valve |
1/2 |
Female Pipe |
1/2 |
Male Pipe |
na |
na |
Steel Lever |
Non-Locking |
No |
V591P-4 |
250 |
Male to Male |
90 Valve |
1/4 |
Male Pipe |
1/4 |
Male Pipe |
na |
na |
Steel Tee |
Non-Locking |
No |
V591P-4-04 |
250 |
Male to Male |
90 Valve |
1/4 |
Male Pipe |
1/4 |
Male Pipe |
na |
na |
Steel Lever |
Non-Locking |
No |
V591P-6 |
250 |
Male to Male |
90 Valve |
3/8 |
Male Pipe |
3/8 |
Male Pipe |
na |
na |
Steel Tee |
Non-Locking |
No |
V591P-6-04 |
250 |
Male to Male |
90 Valve |
3/8 |
Male Pipe |
3/8 |
Male Pipe |
na |
na |
Steel Lever |
Non-Locking |
No |
V591P-8 |
250 |
Male to Male |
90 Valve |
1/2 |
Male Pipe |
1/2 |
Male Pipe |
na |
na |
Steel Tee |
Non-Locking |
No |
V591P-8-04 |
250 |
Male to Male |
90 Valve |
1/2 |
Male Pipe |
1/2 |
Male Pipe |
na |
na |
Steel Lever |
Non-Locking |
No |
V600P-8-6 |
150 |
Female to Female |
6 Port 3 position Handle |
1/2 |
Female Pipe |
3/8 |
Female Pipe |
na |
na |
Steel Lever |
Non-Locking |
No |
Part |
Maximum Working Pressure (psi) |
Style |
Shape |
Connection 1 Thread Size (inch) |
Connection 1 Thread Style |
Connection 2 Thread Size (inch) |
Connection 2 Thread Style |
Connection 1 Solder O.D. (inch) |
Connection 2 Solder O.D. (inch) |
Handle |
Locking Mechanism |
Vented |
V633P-8-6 |
150 |
Female to Female |
6 Port 2 position Handle |
1/2 |
Female Pipe |
3/8 |
Female Pipe |
na |
na |
Steel Lever |
Non-Locking |
No |
VP500P-12 |
600 |
Female to Female |
In Line |
3/4 |
Female Pipe |
3/4 |
Female Pipe |
na |
na |
Steel Lever |
Padlock |
No |
VP500P-16 |
600 |
Female to Female |
In Line |
1 |
Female Pipe |
1 |
Female Pipe |
na |
na |
Steel Lever |
Padlock |
No |
VP500P-20 |
600 |
Female to Female |
In Line |
1 1/4 |
Female Pipe |
1 1/4 |
Female Pipe |
na |
na |
Steel Lever |
Padlock |
No |
VP500P-24 |
600 |
Female to Female |
In Line |
1 1/2 |
Female Pipe |
1 1/2 |
Female Pipe |
na |
na |
Steel Lever |
Padlock |
No |
VP500P-32 |
600 |
Female to Female |
In Line |
2 |
Female Pipe |
2 |
Female Pipe |
na |
na |
Steel Lever |
Padlock |
No |
VP500P-4 |
600 |
Female to Female |
In Line |
1/4 |
Female Pipe |
1/4 |
Female Pipe |
na |
na |
Steel Lever |
Padlock |
No |
VP500P-6 |
600 |
Female to Female |
In Line |
3/8 |
Female Pipe |
3/8 |
Female Pipe |
na |
na |
Steel Lever |
Padlock |
No |
VP501P-12 |
600 |
Female to Male |
In Line |
3/4 |
Female Pipe |
3/4 |
Male Pipe |
na |
na |
Steel Lever |
Padlock |
No |
VP501P-16 |
600 |
Female to Male |
In Line |
1 |
Female Pipe |
1 |
Male Pipe |
na |
na |
Steel Lever |
Padlock |
No |
VP501P-4 |
600 |
Female to Male |
In Line |
1/4 |
Female Pipe |
1/4 |
Male Pipe |
na |
na |
Steel Lever |
Padlock |
No |
VP501P-6 |
600 |
Female to Male |
In Line |
3/8 |
Female Pipe |
3/8 |
Male Pipe |
na |
na |
Steel Lever |
Padlock |
No |
VP501P-8 |
600 |
Female to Male |
In Line |
1/2 |
Female Pipe |
1/2 |
Male Pipe |
na |
na |
Steel Lever |
Padlock |
No |
VP502P-12 |
600 |
Female to Female |
Panel Mount |
3/4 |
Female Pipe |
3/4 |
Female Pipe |
na |
na |
Steel Lever |
Padlock |
No |
VP502P-16 |
600 |
Female to Female |
Panel Mount |
1 |
Female Pipe |
1 |
Female Pipe |
na |
na |
Steel Lever |
Padlock |
No |
VP502P-4 |
600 |
Female to Female |
Panel Mount |
1/4 |
Female Pipe |
1/4 |
Female Pipe |
na |
na |
Steel Lever |
Padlock |
No |
VP502P-6 |
600 |
Female to Female |
Panel Mount |
3/8 |
Female Pipe |
3/8 |
Female Pipe |
na |
na |
Steel Lever |
Padlock |
No |
VP502P-8 |
600 |
Female to Female |
Panel Mount |
1/2 |
Female Pipe |
1/2 |
Female Pipe |
na |
na |
Steel Lever |
Padlock |
No |
VP510P-10 |
600 |
Female Straight Thread to Male Straight Thread |
In Line |
7/8-14 |
Female Straight thread |
7/8-14 |
Male Straight Thread |
na |
na |
Steel Lever |
Padlock |
No |
VP510P-12 |
600 |
Female Straight Thread to Male Straight Thread |
In Line |
1 1/16-12 |
Female Straight thread |
1 1/16-12 |
Male Straight Thread |
na |
na |
Steel Lever |
Padlock |
No |
VP510P-4 |
600 |
Female Straight Thread to Male Straight Thread |
In Line |
7/16-20 |
Female Straight thread |
7/16-20 |
Male Straight Thread |
na |
na |
Steel Lever |
Padlock |
No |
VP510P-6 |
600 |
Female Straight Thread to Male Straight Thread |
In Line |
9/16-18 |
Female Straight thread |
9/16-18 |
Male Straight Thread |
na |
na |
Steel Lever |
Padlock |
No |
VP510P-8 |
600 |
Female Straight Thread to Male Straight Thread |
In Line |
3/4-16 |
Female Straight thread |
3/4-16 |
Male Straight Thread |
na |
na |
Steel Lever |
Padlock |
No |
VV500P-12 |
250 |
Female to Female |
In Line |
3/4 |
Female Pipe |
3/4 |
Female Pipe |
na |
na |
Steel Lever |
Non-Locking |
Yes |
VV500P-16 |
250 |
Female to Female |
In Line |
1 |
Female Pipe |
1 |
Female Pipe |
na |
na |
Steel Lever |
Non-Locking |
Yes |
Part |
Maximum Working Pressure (psi) |
Style |
Shape |
Connection 1 Thread Size (inch) |
Connection 1 Thread Style |
Connection 2 Thread Size (inch) |
Connection 2 Thread Style |
Connection 1 Solder O.D. (inch) |
Connection 2 Solder O.D. (inch) |
Handle |
Locking Mechanism |
Vented |
VV500P-4 |
250 |
Female to Female |
In Line |
1/4 |
Female Pipe |
1/4 |
Female Pipe |
na |
na |
Steel Lever |
Non-Locking |
Yes |
VV500P-6 |
250 |
Female to Female |
In Line |
3/8 |
Female Pipe |
3/8 |
Female Pipe |
na |
na |
Steel Lever |
Non-Locking |
Yes |
VV500P-8 |
250 |
Female to Female |
In Line |
1/2 |
Female Pipe |
1/2 |
Female Pipe |
na |
na |
Steel Lever |
Non-Locking |
Yes |
VV501P-12 |
250 |
Female to Male |
In Line |
3/4 |
Male Pipe |
3/4 |
Female Pipe |
na |
na |
Steel Lever |
Non-Locking |
Yes |
VV501P-16 |
250 |
Female to Male |
In Line |
1 |
Male Pipe |
1 |
Female Pipe |
na |
na |
Steel Lever |
Non-Locking |
Yes |
VV501P-4 |
250 |
Female to Male |
In Line |
1/4 |
Male Pipe |
1/4 |
Female Pipe |
na |
na |
Steel Lever |
Non-Locking |
Yes |
VV501P-6 |
250 |
Female to Male |
In Line |
3/8 |
Male Pipe |
3/8 |
Female Pipe |
na |
na |
Steel Lever |
Non-Locking |
Yes |
VV501P-8 |
250 |
Female to Male |
In Line |
1/2 |
Male Pipe |
1/2 |
Female Pipe |
na |
na |
Steel Lever |
Non-Locking |
Yes |
VV502P-12 |
250 |
Female to Female |
Panel Mount |
3/4 |
Female Pipe |
3/4 |
Female Pipe |
na |
na |
Steel Lever |
Non-Locking |
Yes |
VV502P-16 |
250 |
Female to Female |
Panel Mount |
1 |
Female Pipe |
1 |
Female Pipe |
na |
na |
Steel Lever |
Non-Locking |
Yes |
VV502P-4 |
250 |
Female to Female |
Panel Mount |
1/4 |
Female Pipe |
1/4 |
Female Pipe |
na |
na |
Steel Lever |
Non-Locking |
Yes |
VV502P-6 |
250 |
Female to Female |
Panel Mount |
3/8 |
Female Pipe |
3/8 |
Female Pipe |
na |
na |
Steel Lever |
Non-Locking |
Yes |
VV502P-8 |
250 |
Female to Female |
Panel Mount |
1/2 |
Female Pipe |
1/2 |
Female Pipe |
na |
na |
Steel Lever |
Non-Locking |
Yes |
VVP500P-12 |
250 |
Female to Female |
In Line |
3/4 |
Female Pipe |
3/4 |
Female Pipe |
na |
na |
Steel Lever |
Padlock |
Yes |
VVP500P-16 |
250 |
Female to Female |
In Line |
1 |
Female Pipe |
1 |
Female Pipe |
na |
na |
Steel Lever |
Padlock |
Yes |
VVP500P-4 |
250 |
Female to Female |
In Line |
1/4 |
Female Pipe |
1/4 |
Female Pipe |
na |
na |
Steel Lever |
Padlock |
Yes |
VVP500P-6 |
250 |
Female to Female |
In Line |
3/8 |
Female Pipe |
3/8 |
Female Pipe |
na |
na |
Steel Lever |
Padlock |
Yes |
VVP500P-8 |
250 |
Female to Female |
In Line |
1/2 |
Female Pipe |
1/2 |
Female Pipe |
na |
na |
Steel Lever |
Padlock |
Yes |
VVP501P-12 |
250 |
Female to Male |
In Line |
3/4 |
Male Pipe |
3/4 |
Female Pipe |
na |
na |
Steel Lever |
Padlock |
Yes |
VVP501P-16 |
250 |
Female to Male |
In Line |
1 |
Male Pipe |
1 |
Female Pipe |
na |
na |
Steel Lever |
Padlock |
Yes |
VVP501P-4 |
250 |
Female to Male |
In Line |
1/4 |
Male Pipe |
1/4 |
Female Pipe |
na |
na |
Steel Lever |
Padlock |
Yes |
VVP501P-6 |
250 |
Female to Male |
In Line |
3/8 |
Male Pipe |
3/8 |
Female Pipe |
na |
na |
Steel Lever |
Padlock |
Yes |
VVP501P-8 |
250 |
Female to Male |
In Line |
1/2 |
Male Pipe |
1/2 |
Female Pipe |
na |
na |
Steel Lever |
Padlock |
Yes |
VVP502P-12 |
250 |
Female to Female |
Panel Mount |
3/4 |
Female Pipe |
3/4 |
Female Pipe |
na |
na |
Steel Lever |
Padlock |
Yes |
VVP502P-16 |
250 |
Female to Female |
Panel Mount |
1 |
Female Pipe |
1 |
Female Pipe |
na |
na |
Steel Lever |
Padlock |
Yes |
Part |
Maximum Working Pressure (psi) |
Style |
Shape |
Connection 1 Thread Size (inch) |
Connection 1 Thread Style |
Connection 2 Thread Size (inch) |
Connection 2 Thread Style |
Connection 1 Solder O.D. (inch) |
Connection 2 Solder O.D. (inch) |
Handle |
Locking Mechanism |
Vented |
VVP502P-4 |
250 |
Female to Female |
Panel Mount |
1/4 |
Female Pipe |
1/4 |
Female Pipe |
na |
na |
Steel Lever |
Padlock |
Yes |
VVP502P-6 |
250 |
Female to Female |
Panel Mount |
3/8 |
Female Pipe |
3/8 |
Female Pipe |
na |
na |
Steel Lever |
Padlock |
Yes |
VVP502P-8 |
250 |
Female to Female |
Panel Mount |
1/2 |
Female Pipe |
1/2 |
Female Pipe |
na |
na |
Steel Lever |
Padlock |
Yes |
XV501PCHP-4 |
2000 |
Female to Male |
In Line |
1/4 |
Male Pipe |
1/4 |
Female Pipe |
na |
na |
Steel Tee |
Non-Locking |
No |
|
fcg.cnmec@parkerdistribution.com.cn
