Parker Fittings接頭
Hose Fittings

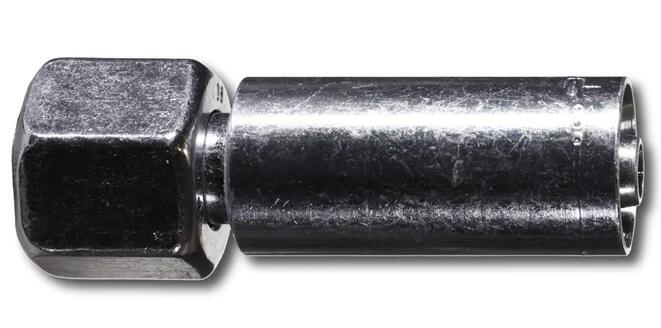

Crimped Thermoplastic Hydraulic Hose Fittings, YX Series

Parker YX Fittings are always designed to match the respective Parker hoses, assuring an ideal combination and hose assemblies serving our customers needs reliably and efficient. Suitable for PTFE hose types 2033T, 2040H and 2040N. Parker YX Fittings are designed to perfectly connect with the respective Parker hoses, ensuring an ideal combination. Our hose assemblies serve our customers needs reliably and efficiently.

Crimped Thermoplastic Hydraulic Hose Fittings, YX Series

Markets:
- Industrial
- Transportation
- Mobile Hydraulics
- Pneumatic

Feature/Benefits:
- The fitting series perfectly matches the respective thermoplastic hose types for optimal product functionality, reliability and service life.
- Made with high quality materials for corrosion resistance, and improved system availability due to less down times.
- Multiple sizes and connections are available for the right connection for your application.

Applications:
- Compressor discharge lines
- Coolant lines
- Fluid transfer and handling such as chemical transfer lines and steam lines, e.g. in the process industry
- Industrial hydraulics
- Pneumatics
- Medium pressure paint spray
- Suitable for PTFE hose types 2033T, 2040H and 2040N with working pressure from 25 up to 63 MPa (3625 up to 9140 psi)

Technical Specifications

Nominal Hose Inside Diameter:	5, 6, 8, 10, 12, 16, 20, 25 mm
Hose I.D. (size):	-3, -4, -5, -6, -8, -10, -12, -16
Hose Inside Diameter:	3/16, 1/4, 5/16, 3/8, 1/2, 5/8, 3/4, 1 inch
Connection Thread Size:	1/8 - 27, 1/4 - 18, 3/8 - 18, 1/2 - 14, 3/4 - 14, 1 - 11 1/2, 7/16 - 20, 1/2 - 20, 9/16 - 18, 3/4 - 16, 7/8 - 14, 1 1/16 - 12, 1 5/16 - 12, 1 5/8 - 12, NA, 1/8, 1/4, 3/8, 1/2, 3/4, 1, 1 1/4, 5/8 inch
Connection Type:	NPTF, UNF, NPSM, NA, BSP, Metric
Tube Outside Diameter:	NA, 6, 8, 10, 12, 15, 18, 22, 28, 14, 16, 20, 25, 30 mm, NA
Length:	1,9, 2, 2,1, 2,2, 2,4, 2,6, 2,8, 3, 3,1, 1,6, 1,7, 1,8, 2,3, 2,9, 2,7, 3,2, 3,8, 4,5, 4,4, 3,3, 3,9, 2,5, 3,4, 4,6, 4,7 inch
Shape:	Straight, 45° Elbow, 90° Elbow, 90° Compact Elbow
Fitting Type:	01, 03, 06, 07, 1D, 37, 39, 3B, 92, B1, B2, B4, C3, C9, CA, D0, D2, D9, U0
Materials of Construction:	Galvanised steel

Crimped Thermoplastic Hydraulic Hose Fittings, YX Series 型號

Part	Maximum Working Pressure (MPa)	Style	Hose I.D. (mm)	Connection Thread Size (mm)	Length (mm)
101YX-12-10	21	National Pipe Tapered (NPT) male	15.9	NA	66
101YX-12-12	21	National Pipe Tapered (NPT) male	19	NA	70
101YX-16-16	17	National Pipe Tapered (NPT) male	25.4	NA	78
101YX-2-03	34.5	National Pipe Tapered (NPT) male	4.8	NA	48
101YX-4-03	34.5	National Pipe Tapered (NPT) male	4.8	NA	52
101YX-4-04	34.5	National Pipe Tapered (NPT) male	6.4	NA	54
101YX-4-06	34.5	National Pipe Tapered (NPT) male	9.5	NA	55
101YX-6-04	27.5	National Pipe Tapered (NPT) male	6.4	NA	56
101YX-6-05	27.5	National Pipe Tapered (NPT) male	7.9	NA	57
101YX-6-06	27.5	National Pipe Tapered (NPT) male	9.5	NA	57
101YX-6-08	27.5	National Pipe Tapered (NPT) male	12.7	NA	61
101YX-8-08	24	National Pipe Tapered (NPT) male	12.7	NA	66
103YX-10-08	34.5	SAE (JIC) 37° male	127	NA	70
103YX-12-10	34.5	SAE (JIC) 37° male	159	NA	71
103YX-16-12	27.5	SAE (JIC) 37° male	190	NA	76
103YX-4-03	41	SAE (JIC) 37° male	48	NA	52
103YX-5-04	41	SAE (JIC) 37° male	64	NA	56
103YX-6-05	34.5	SAE (JIC) 37° male	79	NA	57
103YX-8-06	34.5	SAE (JIC) 37° male	95	NA	60
106YX-10-08	34.5	SAE (JIC) 37° female swivel	12.7	NA	49
106YX-12-10	34.5	SAE (JIC) 37° female swivel	15.9	NA	50
106YX-16-12	27.5	SAE (JIC) 37° female swivel	19	NA	56
106YX-20-16	20	SAE (JIC) 37° female swivel	25.4	NA	56
106YX-4-03	41	SAE (JIC) 37° female swivel	4.8	NA	40
106YX-5-04	41	SAE (JIC) 37° female swivel	6.4	NA	42
106YX-6-05	34.5	SAE (JIC) 37° female swivel	7.9	NA	45
106YX-8-06	34.5	SAE (JIC) 37° female swivel	9.5	NA	46
107YX-12-10	21	NPSM female swivel	15.9	NA	53
107YX-12-12	21	NPSM female swivel	19	NA	59
107YX-2-03	34.5	NPSM female swivel	4.8	NA	47
107YX-4-03	34.5	NPSM female swivel	4.8	NA	44
107YX-4-04	34.5	NPSM female swivel	6.4	NA	47
107YX-6-05	27.5	NPSM female swivel	7.9	NA	48
107YX-6-06	27.5	NPSM female swivel	9.5	NA	50
107YX-8-08	24	NPSM female swivel	12.7	NA	51
11DYX-10-05	25	Metric standpipe	7.9	NA	59
11DYX-12-06	25	Metric standpipe	9.5	NA	79
11DYX-15-08	25	Metric standpipe	12.7	NA	65
11DYX-28-16	10	Metric standpipe	25.4	NA	74
11DYX-6-03	25	Metric standpipe	4.8	NA	55
11DYX-8-04	25	Metric standpipe	6.4	NA	57
137YX-10-08	34.5	SAE (JIC) 37° female swivel	12.7	NA	81
137YX-12-10	34.5	SAE (JIC) 37° female swivel	15.9	NA	96
137YX-16-12	27.5	SAE (JIC) 37° female swivel	19	NA	114
137YX-20-16	20	SAE (JIC) 37° female swivel	25.4	NA	113
137YX-4-03	41	SAE (JIC) 37° female swivel	4.8	NA	57
137YX-5-04	41	SAE (JIC) 37° female swivel	6.4	NA	69
137YX-6-05	34.5	SAE (JIC) 37° female swivel	7.9	NA	67
137YX-8-06	34.5	SAE (JIC) 37° female swivel	9.5	NA	65
139YX-10-08	34.5	SAE (JIC) 37° female swivel	12.7	NA	74
139YX-12-10	34.5	SAE (JIC) 37° female swivel	15.9	NA	84
139YX-16-12	27.5	SAE (JIC) 37° female swivel	19	NA	100
139YX-20-16	20	SAE (JIC) 37° female swivel	25.4	NA	100
139YX-4-03	41	SAE (JIC) 37° female swivel	4.8	NA	48
139YX-5-04	41	SAE (JIC) 37° female swivel	6.4	NA	58
139YX-6-05	34.5	SAE (JIC) 37° female swivel	7.9	NA	59
139YX-8-06	34.5	SAE (JIC) 37° female swivel	9.5	NA	58
192YX-12-10	35	BSP female swivel 60° cone	15.9	NA	50
192YX-12-12	35	BSP female swivel 60° cone	19	NA	56
192YX-16-12	28	BSP female swivel 60° cone	19	NA	56
192YX-16-16	28	BSP female swivel 60° cone	25.4	NA	57
192YX-20-16	25	BSP female swivel 60° cone	25.4	NA	58
192YX-4-03	63	BSP female swivel 60° cone	4.8	NA	42
192YX-4-04	63	BSP female swivel 60° cone	6.3	NA	44
192YX-6-05	55	BSP female swivel 60° cone	7.9	NA	45
192YX-6-06	55	BSP female swivel 60° cone	9.5	NA	46
192YX-8-06	43	BSP female swivel 60° cone	9.5	NA	46
192YX-8-08	43	BSP female swivel 60° cone	12.7	NA	52
1B1YX-12-10	35	BSP female swivel 60° cone	15.9	NA	99
1B1YX-12-12	35	BSP female swivel 60° cone	19	NA	117
1B1YX-16-16	28	BSP female swivel 60° cone	25.4	NA	120
1B1YX-20-16	25	BSP female swivel 60° cone	25.4	NA	116
1B1YX-4-03	63	BSP female swivel 60° cone	4.8	NA	58
1B1YX-4-04	63	BSP female swivel 60° cone	6.4	NA	69
1B1YX-6-05	55	BSP female swivel 60° cone	7.9	NA	68
1B1YX-6-06	55	BSP female swivel 60° cone	9.5	NA	64
1B1YX-8-06	43	BSP female swivel 60° cone	9.5	NA	65
1B1YX-8-08	43	BSP female swivel 60° cone	12.7	NA	86
1B2YX-12-10	35	BSP female swivel 60° cone	15.9	NA	84
1B2YX-12-12	35	BSP female swivel 60° cone	19	NA	100
1B2YX-16-16	28	BSP female swivel 60° cone	25.4	NA	100
1B2YX-20-16	25	BSP female swivel 60° cone	25.4	NA	100
1B2YX-4-03	63	BSP female swivel 60° cone	4.8	NA	48
1B2YX-4-04	63	BSP female swivel 60° cone	6.4	NA	58
1B2YX-6-05	55	BSP female swivel 60° cone	7.9	NA	59
1B2YX-6-06	55	BSP female swivel 60° cone	9.5	NA	58
1B2YX-8-06	43	BSP female swivel 60° cone	9.5	NA	58
1B2YX-8-08	43	BSP female swivel 60° cone	12.7	NA	74
1B4YX-4-04	63	BSP female swivel 60° cone	6.3	NA	46
1B4YX-6-05	55	BSP female swivel 60° cone	7.9	NA	51
1B4YX-6-06	55	BSP female swivel 60° cone	9.5	NA	51
1B4YX-8-08	43	BSP female swivel 60° cone	12.7	NA	57
1C3YX-10-03	25	Metric female swivel 24°/60°	4.8	16x1.5	43
1C3YX-10-04	25	Metric female swivel 24°/60°	6.4	16x1.5	46
1C3YX-10-05	25	Metric female swivel 24°/60°	7.9	16x1.5	46
1C3YX-10-06	25	Metric female swivel 24°/60°	9.5	16x1.5	49
1C3YX-12-06	25	Metric female swivel 24°/60°	9.5	18x1.5	48
1C3YX-12-08	25	Metric female swivel 24°/60°	12.7	18x1.5	52
1C3YX-15-08	25	Metric female swivel 24°/60°	12.7	22x1.5	51
1C3YX-18-10	16	Metric female swivel 24°/60°	15.9	26x1.5	51
1C3YX-18-12	16	Metric female swivel 24°/60°	19	26x1.5	57
1C3YX-22-12	16	Metric female swivel 24°/60°	19	30x2	57
1C3YX-28-16	10	Metric female swivel 24°/60°	25.4	36x2	59
1C3YX-6-03	25	Metric female swivel 24°/60°	4.8	12x1.5	43
1C3YX-8-03	25	Metric female swivel 24°/60°	4.8	14x1.5	43
1C3YX-8-04	25	Metric female swivel 24°/60°	6.4	14x1.5	46
1C9YX-10-04	63	Metric female swivel 24° with O-ring	6.4	18x1.5	54
1C9YX-12-05	63	Metric female swivel 24° with O-ring	7.9	20x1.5	56
1C9YX-14-06	63	Metric female swivel 24° with O-ring	9.5	22x1.5	57
1C9YX-16-08	42	Metric female swivel 24° with O-ring	12.7	24x1.5	65
1C9YX-20-10	42	Metric female swivel 24° with O-ring	15.9	30x2	68
1C9YX-25-12	42	Metric female swivel 24° with O-ring	19	36x2	77
1C9YX-30-16	42	Metric female swivel 24° with O-ring	25.4	42x2	79
1C9YX-8-03	63	Metric female swivel 24° with O-ring	4.8	16x1.5	47
1C9YX-8-04	63	Metric female swivel 24° with O-ring	6.4	16x1.5	51
1CAYX-10-04	40	Metric female swivel 24° with O-ring	6.4	16x1.5	50
1CAYX-10-05	40	Metric female swivel 24° with O-ring	7.9	16x1.5	50
1CAYX-12-06	35	Metric female swivel 24° with O-ring	9.5	18x1.5	50
1CAYX-15-08	31.5	Metric female swivel 24° with O-ring	12.7	22x1.5	59
1CAYX-18-10	31.5	Metric female swivel 24° with O-ring	15.9	26x1.5	56
1CAYX-22-12	28	Metric female swivel 24° with O-ring	19	30x2	62
1CAYX-28-16	21	Metric female swivel 24° with O-ring	25.4	36x2	64
1CAYX-6-03	31.5	Metric female swivel 24° with O-ring	4.8	12x1.5	45
1CAYX-8-04	42.5	Metric female swivel 24° with O-ring	6.4	14x1.5	50
1D0YX-10-05	40	Metric male 24°	7.9	16x1.5	54
1D0YX-12-06	35	Metric male 24°	9.5	18x1.5	54
1D0YX-15-08	31	Metric male 24°	12.7	22x1.5	59
1D0YX-18-10	28	Metric male 24°	15.9	26x1.5	59
1D0YX-22-12	28	Metric male 24°	19	30x2	67
1D0YX-28-16	21	Metric male 24°	25.4	36x2	67
1D0YX-6-03	25	Metric male 24°	4.8	12x1.5	48
1D0YX-8-04	42.5	Metric male 24°	6.4	14x1.5	50
1D2YX-10-04	63	Metric male 24°	6.4	18x1.5	54
1D2YX-12-05	63	Metric male 24°	7.9	20x1.5	55
1D2YX-14-06	63	Metric male 24°	9.5	22x1.5	57
1D2YX-16-08	42	Metric male 24°	12.7	24x1.5	61
1D2YX-20-10	42	Metric male 24°	15.9	30x2	65
1D2YX-25-12	42	Metric male 24°	19	36x2	71
1D2YX-30-16	42	Metric male 24°	25.4	42x2	73
1D2YX-8-03	63	Metric male 24°	4.8	16x1.5	50
1D9YX-12-10	35	BSP male	15.9	NA	66
1D9YX-12-12	35	BSP male	19	NA	72
1D9YX-16-12	28	BSP male	19	NA	74
1D9YX-2-03	55	BSP male	4.8	NA	48
1D9YX-20-16	21	BSP male	25.4	NA	76
1D9YX-4-03	63	BSP male	4.8	NA	54
1D9YX-4-04	63	BSP male	6.4	NA	58
1D9YX-6-05	55	BSP male	7.9	NA	58
1D9YX-6-06	55	BSP male	9.5	NA	58
1D9YX-8-06	43	BSP male	9.5	NA	60
1D9YX-8-08	43	BSP male	12.7	NA	64
1U0YX-10-08	35	BSP female swivel (ballnose)	12.7	NA	51
1U0YX-12-10	35	BSP female swivel (ballnose)	15.9	NA	50
1U0YX-12-12	35	BSP female swivel (ballnose)	19	NA	56
1U0YX-16-12	28	BSP female swivel (ballnose)		NA	56
1U0YX-16-16	28	BSP female swivel (ballnose)	25.4	NA	57
1U0YX-2-03	41	BSP female swivel (ballnose)	4.8	NA	43
1U0YX-20-16	21	BSP female swivel (ballnose)	25.4	NA	58
1U0YX-4-03	63	BSP female swivel (ballnose)	4.8	NA	42
1U0YX-4-04	63	BSP female swivel (ballnose)	6.4	NA	45
1U0YX-6-03	55	BSP female swivel (ballnose)	4.8	NA	45
1U0YX-6-04	55	BSP female swivel (ballnose)	6.4	NA	45
1U0YX-6-05	55	BSP female swivel (ballnose)	7.9	NA	45
1U0YX-6-06	55	BSP female swivel (ballnose)	9.5	NA	48
1U0YX-8-06	43	BSP female swivel (ballnose)	9.5	NA	48
1U0YX-8-08	43	BSP female swivel (ballnose)	12.7	NA	53
