  Face Seal Fittings

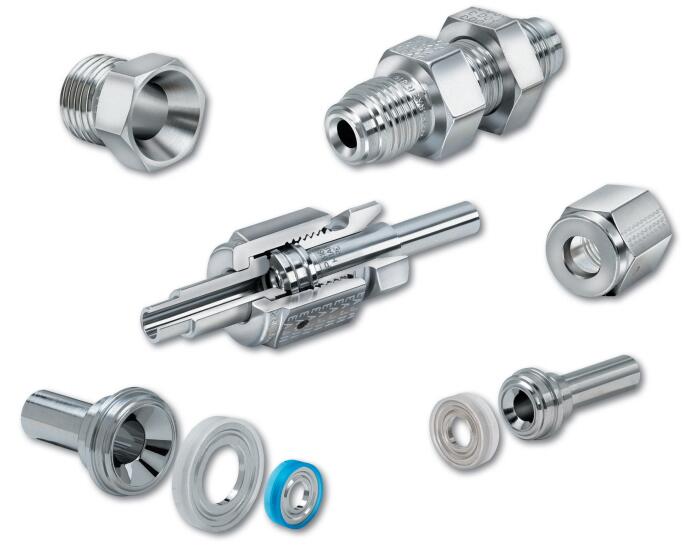

  UHP Metal Gasket Face Seal Fitting (sizes up to 1 inch) – VacuSeal


       Parker VacuSeal 面密封接頭設計用于超高純度氣體分配系統。這些配件具有出色的可靠性和泄漏完整性，是清潔度至關重要的半導體制造應用的理想選擇。VacuSeal 金屬墊片端面密封接頭具有極高的泄漏完整性，使其適用于需要超高純度條件的關鍵應用，例如半導體工具連接器，閥歧管盒（VMB）和氣體分配系統。配件具有配合墊圈和環形設計，可形成金屬對金屬的密封，并提供從9000 psig的真空無泄漏的服務。


      VacuSeal 接頭的尺寸從1/8到1英寸不等，并提供多種閥體和壓蓋配置。它們在Veriflo專有的Vericlean 低硫316L不銹鋼制成的100級無塵室中制造。標準的5 Ra電拋光潤濕表面光潔度可減少截留面積，同時具有出色的耐腐蝕性。壓蓋可用高純度鎳和HastelloyC-22 制成，以確保在腐蝕性極強的應用中的性能和可靠性。


      VacuSeal 配件設計用于與平面和Verfilo的TorqTite自對準端面密封墊片一起使用，該墊片無需安裝工具，并消除了因熱循環和振動而導致的零件松動。TorqTite 還可以確保密封，即使在損壞的環形表面上也是如此，并允許施加極高的扭矩而不會損壞密封表面。這與VacuSeal 配件的超高純度結構材料相結合，可最大程度地減少顆粒的產生，并確保在清潔度至關重要的晶圓制造過程中的泄漏完整性。




      UHP Metal Gasket Face Seal Fitting (sizes up to 1 inch) – VacuSeal

  Parker UHP金屬墊片面密封件（最大1英寸）– VacuSeal









      VacuSeal Face Seal Fittings are designed for ultra-high purity gas distribution systems. The fittings offer excellent reliability and leak integrity and are ideal for use in semiconductor manufacturing applications where cleanliness is critical. VacuSeal Metal Gasket Face Seal Fittings provide extremely high leak integrity, making them suitable for use in critical applications where ultra-high purity conditions are required, such as semiconductor tool hook-ups, valve manifold boxes (VMBs), and gas distribution systems. The fittings feature a mating gasket and toroid design, creating a metal-to-metal seal and affording leak-free service from vacuum up to 9000 psig.
    VacuSeal fittings range from 1/8 to 1 inch in size and come available in a variety of body and gland configurations. They are fabricated in a Class 100 cleanroom from Veriflo's proprietary Vericlean  low sulfur, 316L stainless steel. The standard 5 Ra, electropolished wetted surface finish reduces entrapment areas while offering exceptional corrosion resistance. Glands are available in high-purity nickel and Hastelloy C-22 to ensure performance and reliability in extremely corrosive applications.




  VacuSeal fittings are designed to work with flat and Verfilo's TorqTite  self-aligning face seal gaskets, which require no tools for installation and eliminate component loosening due to thermocycling and vibration. TorqTite  also ensures sealing, even on damaged toroids and allows for the application of extremely high torque without risk of damage to the sealing surface. This, coupled with the VacuSeal  fittings' ultra-high purity materials of construction, minimizes particle generation and ensures leak integrity in wafer manufacturing operations where cleanliness is of the utmost importance.



  All VacuSeal fittings are Helium leak tested to ensure performance and reliability in demanding UHP applications.



  Markets:

  - Semiconductor

  - Tool Fab

  - Analytical Laboratory

  - Pharmaceutical

  - BioPharm

  - Aerospace

  - Industrial



  Applications:

  - Corrosive and specialty gases

  - Semiconductor Fab Gas Distribution Systems

  - Semiconductor Tools

  - Tool Hook-ups

  - Gas Cabinets

  - Valve Manifold Boxes (VMB)



  Features/Benefits:

  - Two leak test ports for easy leak testing

  - Leak rate: ≤1 x 10-9 STD scc/sec He

  - 5 Ra internal electropolish surface finish

  - Female nuts are silver-plated with an enhanced plating process for aggressive chemical processes used in cleaning, electropolishing and passivation

  - Non-rotational female nut prevents transmission of torque during make-up and therefore minimizes twist of componentry, which causes stress concentration

  - Anti-galling female nut ensures consistent makeup without plating or lubrication.

  - Patented TorqTite  gasket initially contacts on the inner taper, radially forcing out any entrapped contaminants

  - Heat code on gland provides raw material traceability

  - No axial clearance is needed to remove components from a system

  - Smooth transition into the internal diameter minimizes entrapment areas





  Hastelloy C-22 is a registered trademark of Haynes International, Inc.





      Technical Specifications





              Product Type:
              Glands, Bodies, Welded Assembly, Welded Modules, Gaskets, Nuts, Caps, Plugs,




              Body Material:
              Glands, Bodies, Nuts: 316, 316L, 316L VAR, 316L VIM/VAR Stainless Steel Gaskets: Nickel, Stainless Steel, Kel-F , Teflon




              Connection Size:
              up to 1 in.; 6 to 18 mm




              Connection Type:
              Tube Buttweld, Automatic Tube Buttweld, Socket Weld, NPT, A-lok, straight thread




              Operating Temperature:
              up to 1000 °F / 537 °C




              Pressure Rating:
              up to 9,000 / 620 bar










      UHP Metal Gasket Face Seal Fitting (sizes up to 1 inch) –

          VacuSeal型號


      Part Product Type Configuration Body Material Connection Size (inch) Connection Style Connection 2 Size (inch) Connection 2 Size (mm) Connection 2 Style Connection 3 Size (inch) Connection 3 Style Connection 4 Size (inch) Connection 4 Style Overall Length Options

  1-1 V1W-SSR VacuSeal  Glands Socket Weld 316L VAR 1/16" VacuSeal  Metal Gasket 1/16" NA Socket Weld NA NA NA NA NA NA

  1-1 V1W-SSR-PE VacuSeal  Glands Socket Weld 316L VAR 1/16" VacuSeal  Metal Gasket 1/16" NA Socket Weld NA NA NA NA NA Electropolish

  1-1 V1W-SSV VacuSeal  Glands Socket Weld 316L VIM/VAR 1/16" VacuSeal  Metal Gasket 1/16" NA Socket Weld NA NA NA NA NA NA

  1-1 V1W-SSV-PE VacuSeal  Glands Socket Weld 316L VIM/VAR 1/16" VacuSeal  Metal Gasket 1/16" NA Socket Weld NA NA NA NA NA Electropolish

  12 BV-SS Metal Nuts, Caps and Plugs Female Nut 316 SS 3/4" NA NA NA NA NA NA NA NA NA NA

  12 BVI-SS Metal Nuts, Caps and Plugs Male Nut 316 SS 3/4" NA NA NA NA NA NA NA NA NA NA

  12 FNV-SS Metal Nuts, Caps and Plugs Cap 316 SS 3/4" NA NA NA NA NA NA NA NA NA NA

  12 KV-SS Metal Gasket Bodies Union Cross 316 SS 3/4" Male VacuSeal  (Metal Gasket) 3/4" NA Male VacuSeal  (Metal Gasket) 3/4" Male VacuSeal  (Metal Gasket) 3/4" Male VacuSeal  (Metal Gasket) 3.84" NA

  12 KV-SS-PE Metal Gasket Bodies Union Cross 316 SS 3/4" Male VacuSeal  (Metal Gasket) 3/4" NA Male VacuSeal  (Metal Gasket) 3/4" Male VacuSeal  (Metal Gasket) 3/4" Male VacuSeal  (Metal Gasket) 3.84" Electropolish

  12 PNV-SS Metal Nuts, Caps and Plugs Plug 316 SS 3/4" NA NA NA NA NA NA NA NA NA NA

  12 VG-K Metal Gaskets Non-Retained Flat Style Kel-F  3/4" NA NA NA NA NA NA NA NA NA Non-Retained Flat

  12 VG-K-BL Metal Gaskets Non-Retained Flat Style Kel-F  3/4" NA NA NA NA NA NA NA NA NA Non-Retained Flat, Blind (Undrilled)

  12 VG-N Metal Gaskets Non-Retained Flat Style NICKEL (ELECTROPOLISHED) 3/4" NA NA NA NA NA NA NA NA NA Non-Retained Flat

  12 VG-N-BL Metal Gaskets Non-Retained Flat Style NICKEL (ELECTROPOLISHED) 3/4" NA NA NA NA NA NA NA NA NA Non-Retained Flat, Blind (Undrilled)

  12 VG-SS Metal Gaskets Non-Retained Flat Style Stainless Steel (Silver Plated) 3/4" NA NA NA NA NA NA NA NA NA Non-Retained Flat

  12 VG-SS-BL Metal Gaskets Non-Retained Flat Style Stainless Steel (Silver Plated) 3/4" NA NA NA NA NA NA NA NA NA Non-Retained Flat, Blind (Undrilled)

  12 VG-T Metal Gaskets Non-Retained Flat Style Teflon  3/4" NA NA NA NA NA NA NA NA NA Non-Retained Flat

  12 VG-T-BL Metal Gaskets Non-Retained Flat Style Teflon  3/4" NA NA NA NA NA NA NA NA NA Non-Retained Flat, Blind (Undrilled)

  12 VHC-SS Metal Gasket Bodies Coupling 316 SS 3/4" Female VacuSeal  Thread 3/4" NA Female VacuSeal  Thread NA NA NA NA 1.68" NA

  12-12 EV-SS Metal Gasket Bodies Union Elbow 316 SS 3/4" Male VacuSeal  (Metal Gasket) 3/4" NA Male VacuSeal  (Metal Gasket) NA NA NA NA NA NA

  12-12 EV-SS-PE Metal Gasket Bodies Union Elbow 316 SS 3/4" Male VacuSeal  (Metal Gasket) 3/4" NA Male VacuSeal  (Metal Gasket) NA NA NA NA NA Electropolish

  12-12 FV-SS Metal Gasket Bodies Male NPT Connector 316 SS 3/4" Male VacuSeal  Metal Gasket 3/4" NA Male NPT NA NA NA NA 2.19" NA

  12-12 GV-SS Metal Gasket Bodies Female NPT Connector 316 SS 3/4" Male VacuSeal  Metal Gasket 3/4" NA Female NPT NA NA NA NA 2.36" NA

  12-12 HV-SS Metal Gasket Bodies Double Male Union 316 SS 3/4" Male VacuSeal  (Metal Gasket) 3/4" NA Male VacuSeal  (Metal Gasket) NA NA NA NA 2.44" NA

  12-12 V1T3-SSR 2.00 .109 VacuSeal  Glands Male Weld 316L VAR 3/4" VacuSeal  Metal Gasket 3/4" NA Tube Butt Weld NA NA NA NA NA NA

  12-12 V1T3-SSR 2.00 .109-PE VacuSeal  Glands Male Weld 316L VAR 3/4" VacuSeal  Metal Gasket 3/4" NA Tube Butt Weld NA NA NA NA NA Electropolish

  12-12 V1T3-SSR 2.03 VacuSeal  Glands Long Tube Butt Weld 316L VAR 3/4" VacuSeal  Metal Gasket 3/4" NA Long Tube Butt Weld NA NA NA NA 2.03" NA

  12-12 V1T3-SSR 2.03-PE VacuSeal  Glands Long Tube Butt Weld 316L VAR 3/4" VacuSeal  Metal Gasket 3/4" NA Long Tube Butt Weld NA NA NA NA 2.03" Electropolish

  12-12 V1T3-SSV 2.00 .109 VacuSeal  Glands Male Weld 316L VIM/VAR 3/4" VacuSeal  Metal Gasket 3/4" NA Tube Butt Weld NA NA NA NA NA NA

  12-12 V1T3-SSV 2.00 .109-PE VacuSeal  Glands Male Weld 316L VIM/VAR 3/4" VacuSeal  Metal Gasket 3/4" NA Tube Butt Weld NA NA NA NA NA Electropolish

  12-12 V1T3-SSV 2.03 VacuSeal  Glands Long Tube Butt Weld 316L VIM/VAR 3/4" VacuSeal  Metal Gasket 3/4" NA Long Tube Butt Weld NA NA NA NA 2.03" NA

  12-12 V1T3-SSV 2.03-PE VacuSeal  Glands Long Tube Butt Weld 316L VIM/VAR 3/4" VacuSeal  Metal Gasket 3/4" NA Long Tube Butt Weld NA NA NA NA 2.03" Electropolish

  12-12 V1W-SSR VacuSeal  Glands Socket Weld 316L VAR 3/4" VacuSeal  Metal Gasket 3/4" NA Socket Weld NA NA NA NA NA NA

  12-12 V1W-SSR-BL VacuSeal  Glands Blind Gland 316L VAR 3/4" VacuSeal  Metal Gasket 3/4" NA Blind Tube Butt Weld NA NA NA NA NA NA

  12-12 V1W-SSR-BL-PE VacuSeal  Glands Blind Gland 316L VAR 3/4" VacuSeal  Metal Gasket 3/4" NA Blind Tube Butt Weld NA NA NA NA NA Electropolish

  12-12 V1W-SSR-PE VacuSeal  Glands Socket Weld 316L VAR 3/4" VacuSeal  Metal Gasket 3/4" NA Socket Weld NA NA NA NA NA Electropolish

  12-12 V1W-SSV VacuSeal  Glands Socket Weld 316L VIM/VAR 3/4" VacuSeal  Metal Gasket 3/4" NA Socket Weld NA NA NA NA NA NA

  12-12 V1W-SSV-BL VacuSeal  Glands Blind Gland 316L VIM/VAR 3/4" VacuSeal  Metal Gasket 3/4" NA Blind Tube Butt Weld NA NA NA NA NA NA

  12-12 V1W-SSV-BL-PE VacuSeal  Glands Blind Gland 316L VIM/VAR 3/4" VacuSeal  Metal Gasket 3/4" NA Blind Tube Butt Weld NA NA NA NA NA Electropolish

  12-12 V1W-SSV-PE VacuSeal  Glands Socket Weld 316L VIM/VAR 3/4" VacuSeal  Metal Gasket 3/4" NA Socket Weld NA NA NA NA NA Electropolish

  12-12 V1Y3-SSR 2.07 VacuSeal  Glands Long Automatic Tube Butt Weld 316L VAR 3/4" VacuSeal  Metal Gasket 3/4" NA Long Automatic Tube Butt Weld NA NA NA NA NA NA

  12-12 V1Y3-SSR 2.07-PE VacuSeal  Glands Long Automatic Tube Butt Weld 316L VAR 3/4" VacuSeal  Metal Gasket 3/4" NA Long Automatic Tube Butt Weld NA NA NA NA NA Electropolish

  12-12 V1Y3-SSV 2.07 VacuSeal  Glands Long Automatic Tube Butt Weld 316L VIM/VAR 3/4" VacuSeal  Metal Gasket 3/4" NA Long Automatic Tube Butt Weld NA NA NA NA NA NA

  12-12 V1Y3-SSV 2.07-PE VacuSeal  Glands Long Automatic Tube Butt Weld 316L VIM/VAR 3/4" VacuSeal  Metal Gasket 3/4" NA Long Automatic Tube Butt Weld NA NA NA NA NA Electropolish

  12-12-12 JV-SS Metal Gasket Bodies Union Tee 316 SS 3/4" Male VacuSeal  (Metal Gasket) 3/4" NA Male VacuSeal  (Metal Gasket) 3/4" Male VacuSeal  (Metal Gasket) NA NA 3.84" NA

  12-12-12 JV-SS-PE Metal Gasket Bodies Union Tee 316 SS 3/4" Male VacuSeal  (Metal Gasket) 3/4" NA Male VacuSeal  (Metal Gasket) 3/4" Male VacuSeal  (Metal Gasket) NA NA 3.84" Electropolish

  12-18M V1T3-SSR 1.22 VacuSeal  Glands Short Tube Butt Weld 316L VAR 3/4" VacuSeal  Metal Gasket NA 18 Short Tube Butt Weld NA NA NA NA 1.22" NA

  12-18M V1T3-SSR 1.22-PE VacuSeal  Glands Short Tube Butt Weld 316L VAR 3/4" VacuSeal  Metal Gasket NA 18 Short Tube Butt Weld NA NA NA NA 1.22" Electropolish

  12-18M V1T3-SSR 2.03 VacuSeal  Glands Long Tube Butt Weld 316L VAR 3/4" VacuSeal  Metal Gasket NA 18 Long Tube Butt Weld NA NA NA NA 2.03" NA

  12-18M V1T3-SSR 2.03-PE VacuSeal  Glands Long Tube Butt Weld 316L VAR 3/4" VacuSeal  Metal Gasket NA 18 Long Tube Butt Weld NA NA NA NA 2.03" Electropolish

  12-18M V1T3-SSV 1.22 VacuSeal  Glands Short Tube Butt Weld 316L VIM/VAR 3/4" VacuSeal  Metal Gasket NA 18 Short Tube Butt Weld NA NA NA NA 1.22" NA

  12-18M V1T3-SSV 1.22-PE VacuSeal  Glands Short Tube Butt Weld 316L VIM/VAR 3/4" VacuSeal  Metal Gasket NA 18 Short Tube Butt Weld NA NA NA NA 1.22" Electropolish

  12-18M V1T3-SSV 2.03 VacuSeal  Glands Long Tube Butt Weld 316L VIM/VAR 3/4" VacuSeal  Metal Gasket NA 18 Long Tube Butt Weld NA NA NA NA 2.03" NA

  12-18M V1T3-SSV 2.03-PE VacuSeal  Glands Long Tube Butt Weld 316L VIM/VAR 3/4" VacuSeal  Metal Gasket NA 18 Long Tube Butt Weld NA NA NA NA 2.03" Electropolish

  12-18M V1Y3-SSR 2.07 VacuSeal  Glands Long Automatic Tube Butt Weld 316L VAR 3/4" VacuSeal  Metal Gasket NA 18 Long Automatic Tube Butt Weld NA NA NA NA NA NA

  12-18M V1Y3-SSR 2.07-PE VacuSeal  Glands Long Automatic Tube Butt Weld 316L VAR 3/4" VacuSeal  Metal Gasket NA 18 Long Automatic Tube Butt Weld NA NA NA NA NA Electropolish

  12-18M V1Y3-SSV 2.07 VacuSeal  Glands Long Automatic Tube Butt Weld 316L VIM/VAR 3/4" VacuSeal  Metal Gasket NA 18 Long Automatic Tube Butt Weld NA NA NA NA NA NA

  12-18M V1Y3-SSV 2.07-PE VacuSeal  Glands Long Automatic Tube Butt Weld 316L VIM/VAR 3/4" VacuSeal  Metal Gasket NA 18 Long Automatic Tube Butt Weld NA NA NA NA NA Electropolish

  16 BV-SS Metal Nuts, Caps and Plugs Female Nut 316 SS 1" NA NA NA NA NA NA NA NA NA NA

  16 BVI-SS Metal Nuts, Caps and Plugs Male Nut 316 SS 1" NA NA NA NA NA NA NA NA NA NA

  16 FNV-SS Metal Nuts, Caps and Plugs Cap 316 SS 1" NA NA NA NA NA NA NA NA NA NA

  16 KV-SS Metal Gasket Bodies Union Cross 316 SS 1" Male VacuSeal  (Metal Gasket) 1" NA Male VacuSeal  (Metal Gasket) 1" Male VacuSeal  (Metal Gasket) 1" Male VacuSeal  (Metal Gasket) 4.00" NA

  16 KV-SS-PE Metal Gasket Bodies Union Cross 316 SS 1" Male VacuSeal  (Metal Gasket) 1" NA Male VacuSeal  (Metal Gasket) 1" Male VacuSeal  (Metal Gasket) 1" Male VacuSeal  (Metal Gasket) 4.00" Electropolish

  16 PNV-SS Metal Nuts, Caps and Plugs Plug 316 SS 1" NA NA NA NA NA NA NA NA NA NA

  16 VG-K Metal Gaskets Non-Retained Flat Style Kel-F  1" NA NA NA NA NA NA NA NA NA Non-Retained Flat

  16 VG-K-BL Metal Gaskets Non-Retained Flat Style Kel-F  1" NA NA NA NA NA NA NA NA NA Non-Retained Flat, Blind (Undrilled)

  16 VG-N Metal Gaskets Non-Retained Flat Style NICKEL (ELECTROPOLISHED) 1" NA NA NA NA NA NA NA NA NA Non-Retained Flat

  16 VG-N-BL Metal Gaskets Non-Retained Flat Style NICKEL (ELECTROPOLISHED) 1" NA NA NA NA NA NA NA NA NA Non-Retained Flat, Blind (Undrilled)

  16 VG-SS Metal Gaskets Non-Retained Flat Style Stainless Steel (Silver Plated) 1" NA NA NA NA NA NA NA NA NA Non-Retained Flat

  16 VG-SS-BL Metal Gaskets Non-Retained Flat Style Stainless Steel (Silver Plated) 1" NA NA NA NA NA NA NA NA NA Non-Retained Flat, Blind (Undrilled)

  16 VG-T Metal Gaskets Non-Retained Flat Style Teflon  1" NA NA NA NA NA NA NA NA NA Non-Retained Flat

  16 VG-T-BL Metal Gaskets Non-Retained Flat Style Teflon  1" NA NA NA NA NA NA NA NA NA Non-Retained Flat, Blind (Undrilled)

  16 VHC-SS Metal Gasket Bodies Coupling 316 SS 1" Female VacuSeal  Thread 1" NA Female VacuSeal  Thread NA NA NA NA 2.04" NA

  16-16 EV-SS Metal Gasket Bodies Union Elbow 316 SS 1" Male VacuSeal  (Metal Gasket) 1" NA Male VacuSeal  (Metal Gasket) NA NA NA NA NA NA

  16-16 EV-SS-PE Metal Gasket Bodies Union Elbow 316 SS 1" Male VacuSeal  (Metal Gasket) 1" NA Male VacuSeal  (Metal Gasket) NA NA NA NA NA Electropolish

  16-16 FV-SS Metal Gasket Bodies Male NPT Connector 316 SS 1" Male VacuSeal  Metal Gasket 1" NA Male NPT NA NA NA NA 2.47" NA

  16-16 GV-SS Metal Gasket Bodies Female NPT Connector 316 SS 1" Male VacuSeal  Metal Gasket 1" NA Female NPT NA NA NA NA 2.51" NA

  16-16 HV-SS Metal Gasket Bodies Double Male Union 316 SS 1" Male VacuSeal  (Metal Gasket) 1" NA Male VacuSeal  (Metal Gasket) NA NA NA NA 2.59" NA

  16-16 V1T3-SSR 2.22 .120 VacuSeal  Glands Male Weld 316L VAR 1" VacuSeal  Metal Gasket 1" NA Tube Butt Weld NA NA NA NA NA NA

  16-16 V1T3-SSR 2.22 .120-PE VacuSeal  Glands Male Weld 316L VAR 1" VacuSeal  Metal Gasket 1" NA Tube Butt Weld NA NA NA NA NA Electropolish

  16-16 V1T3-SSR 2.32 VacuSeal  Glands Long Tube Butt Weld 316L VAR 1" VacuSeal  Metal Gasket 1" NA Long Tube Butt Weld NA NA NA NA 2.32" NA

  16-16 V1T3-SSR 2.32-PE VacuSeal  Glands Long Tube Butt Weld 316L VAR 1" VacuSeal  Metal Gasket 1" NA Long Tube Butt Weld NA NA NA NA 2.32" Electropolish

  16-16 V1T3-SSV 2.22 .120 VacuSeal  Glands Male Weld 316L VIM/VAR 1" VacuSeal  Metal Gasket 1" NA Tube Butt Weld NA NA NA NA NA NA

  16-16 V1T3-SSV 2.22 .120-PE VacuSeal  Glands Male Weld 316L VIM/VAR 1" VacuSeal  Metal Gasket 1" NA Tube Butt Weld NA NA NA NA NA Electropolish

  16-16 V1T3-SSV 2.32 VacuSeal  Glands Long Tube Butt Weld 316L VIM/VAR 1" VacuSeal  Metal Gasket 1" NA Long Tube Butt Weld NA NA NA NA 2.32" NA

  16-16 V1T3-SSV 2.32-PE VacuSeal  Glands Long Tube Butt Weld 316L VIM/VAR 1" VacuSeal  Metal Gasket 1" NA Long Tube Butt Weld NA NA NA NA 2.32" Electropolish

  16-16 V1W-SSR VacuSeal  Glands Socket Weld 316L VAR 1" VacuSeal  Metal Gasket 1" NA Socket Weld NA NA NA NA NA NA

  16-16 V1W-SSR-BL VacuSeal  Glands Blind Gland 316L VAR 1" VacuSeal  Metal Gasket 1" NA Blind Tube Butt Weld NA NA NA NA NA NA

  16-16 V1W-SSR-BL-PE VacuSeal  Glands Blind Gland 316L VAR 1" VacuSeal  Metal Gasket 1" NA Blind Tube Butt Weld NA NA NA NA NA Electropolish

  16-16 V1W-SSR-PE VacuSeal  Glands Socket Weld 316L VAR 1" VacuSeal  Metal Gasket 1" NA Socket Weld NA NA NA NA NA Electropolish

  16-16 V1W-SSV VacuSeal  Glands Socket Weld 316L VIM/VAR 1" VacuSeal  Metal Gasket 1" NA Socket Weld NA NA NA NA NA NA

  16-16 V1W-SSV-BL VacuSeal  Glands Blind Gland 316L VIM/VAR 1" VacuSeal  Metal Gasket 1" NA Blind Tube Butt Weld NA NA NA NA NA NA

  16-16 V1W-SSV-BL-PE VacuSeal  Glands Blind Gland 316L VIM/VAR 1" VacuSeal  Metal Gasket 1" NA Blind Tube Butt Weld NA NA NA NA NA Electropolish

  16-16 V1W-SSV-PE VacuSeal  Glands Socket Weld 316L VIM/VAR 1" VacuSeal  Metal Gasket 1" NA Socket Weld NA NA NA NA NA Electropolish

  16-16 V1Y3-SSR 2.57 VacuSeal  Glands Long Automatic Tube Butt Weld 316L VAR 1" VacuSeal  Metal Gasket 1" NA Long Automatic Tube Butt Weld NA NA NA NA NA NA

  16-16 V1Y3-SSR 2.57-PE VacuSeal  Glands Long Automatic Tube Butt Weld 316L VAR 1" VacuSeal  Metal Gasket 1" NA Long Automatic Tube Butt Weld NA NA NA NA NA Electropolish

  16-16 V1Y3-SSV 2.57 VacuSeal  Glands Long Automatic Tube Butt Weld 316L VIM/VAR 1" VacuSeal  Metal Gasket 1" NA Long Automatic Tube Butt Weld NA NA NA NA NA NA

  16-16 V1Y3-SSV 2.57-PE VacuSeal  Glands Long Automatic Tube Butt Weld 316L VIM/VAR 1" VacuSeal  Metal Gasket 1" NA Long Automatic Tube Butt Weld NA NA NA NA NA Electropolish

  16-16-16 JV-SS Metal Gasket Bodies Union Tee 316 SS 1" Male VacuSeal  (Metal Gasket) 1" NA Male VacuSeal  (Metal Gasket) 1" Male VacuSeal  (Metal Gasket) NA NA 4.00" NA

  16-16-16 JV-SS-PE Metal Gasket Bodies Union Tee 316 SS 1/8" Male VacuSeal  (Metal Gasket) 1/8" NA Male VacuSeal  (Metal Gasket) 1/8" Male VacuSeal  (Metal Gasket) NA NA 4.00" Electropolish

  2 BV-SS Metal Nuts, Caps and Plugs Female Nut 316 SS 1/8" NA NA NA NA NA NA NA NA NA NA

  2 BVI-SS Metal Nuts, Caps and Plugs Male Nut 316 SS 1/8" NA NA NA NA NA NA NA NA NA NA

  2 KV-SS Metal Gasket Bodies Union Cross 316 SS 1/8" Male VacuSeal  (Metal Gasket) 1/8" NA Male VacuSeal  (Metal Gasket) 1/8" Male VacuSeal  (Metal Gasket) 1/8" Male VacuSeal  (Metal Gasket) 1.78" NA

  2 KV-SS-PE Metal Gasket Bodies Union Cross 316 SS 1/8" Male VacuSeal  (Metal Gasket) 1/8" NA Male VacuSeal  (Metal Gasket) 1/8" Male VacuSeal  (Metal Gasket) 1/8" Male VacuSeal  (Metal Gasket) 1.78" Electropolish

  2 PNV-SS Metal Nuts, Caps and Plugs Plug 316 SS 1/8" NA NA NA NA NA NA NA NA NA NA

  2 VG-K Metal Gaskets Non-Retained Flat Style Kel-F  1/8" NA NA NA NA NA NA NA NA NA Non-Retained Flat

  2 VG-K-BL Metal Gaskets Non-Retained Flat Style Kel-F  1/8" NA NA NA NA NA NA NA NA NA Non-Retained Flat, Blind (Undrilled)

  2 VG-N Metal Gaskets Non-Retained Flat Style NICKEL (ELECTROPOLISHED) 1/8" NA NA NA NA NA NA NA NA NA Non-Retained Flat

  2 VG-N-BL Metal Gaskets Non-Retained Flat Style NICKEL (ELECTROPOLISHED) 1/8" NA NA NA NA NA NA NA NA NA Non-Retained Flat, Blind (Undrilled)

  2 VG-SS Metal Gaskets Non-Retained Flat Style Stainless Steel (Silver Plated) 1/8" NA NA NA NA NA NA NA NA NA Non-Retained Flat

  2 VG-SS-BL Metal Gaskets Non-Retained Flat Style Stainless Steel (Silver Plated) 1/8" NA NA NA NA NA NA NA NA NA Non-Retained Flat, Blind (Undrilled)

  2 VG-T Metal Gaskets Non-Retained Flat Style Teflon  1/8" NA NA NA NA NA NA NA NA NA Non-Retained Flat

  2 VG-T-BL Metal Gaskets Non-Retained Flat Style Teflon  1/8" NA NA NA NA NA NA NA NA NA Non-Retained Flat, Blind (Undrilled)

  2 VHC-SS Metal Gasket Bodies Coupling 316 SS 1/8" Female VacuSeal  Thread 1/8" NA Female VacuSeal  Thread NA NA NA NA 0.66" NA

  2-1 FV-SS Metal Gasket Bodies Male NPT Connector 316 SS 1/8" Male VacuSeal  Metal Gasket 1/16" NA Male NPT NA NA NA NA 1.07" NA

  2-2 Cv-SS Metal Gasket Bodies VacuSeal to Male NPT 316 SS 1/8" Male VacuSeal  (Metal Gasket) 1/8" NA Male NPT NA NA NA NA NA NA

  2-2 Cv-SS-PE Metal Gasket Bodies VacuSeal to Male NPT 316 SS 1/8" Male VacuSeal  (Metal Gasket) 1/8" NA Male NPT NA NA NA NA NA Electropolish

  2-2 EV-SS Metal Gasket Bodies Union Elbow 316 SS 1/8" Male VacuSeal  (Metal Gasket) 1/8" NA Male VacuSeal  (Metal Gasket) NA NA NA NA NA NA

  2-2 EV-SS-PE Metal Gasket Bodies Union Elbow 316 SS 1/8" Male VacuSeal  (Metal Gasket) 1/8" NA Male VacuSeal  (Metal Gasket) NA NA NA NA NA Electropolish

  2-2 FV-SS Metal Gasket Bodies Male NPT Connector 316 SS 1/8" Male VacuSeal  Metal Gasket 1/8" NA Male NPT NA NA NA NA 1.07" NA

  2-2 HV-SS Metal Gasket Bodies Double Male Union 316 SS 1/8" Male VacuSeal  (Metal Gasket) 1/8" NA Male VacuSeal  (Metal Gasket) NA NA NA NA 1.13" NA

  2-2 V1HBF-SS Welded Assembly Male NPT Connector 316 SS 1/8" VacuSeal  (Metal Gaskets) 1/8" NA Male NPT NA NA NA NA NA NA

  2-2 V1HBF-SS-PE Welded Assembly Male NPT Connector 316 SS 1/8" VacuSeal  (Metal Gaskets) 1/8" NA Male NPT NA NA NA NA NA Electropolish

  2-2 V1HBF-SSR Welded Assembly Male NPT Connector 316L VAR 1/8" VacuSeal  (Metal Gaskets) 1/8" NA Male NPT NA NA NA NA NA NA

  2-2 V1HBF-SSR-PE Welded Assembly Male NPT Connector 316L VAR 1/8" VacuSeal  (Metal Gaskets) 1/8" NA Male NPT NA NA NA NA NA Electropolish

  2-2 V1HBF-SSV Welded Assembly Male NPT Connector 316L VIM/VAR 1/8" VacuSeal  (Metal Gaskets) 1/8" NA Male NPT NA NA NA NA NA NA

  2-2 V1HBF-SSV-PE Welded Assembly Male NPT Connector 316L VIM/VAR 1/8" VacuSeal  (Metal Gaskets) 1/8" NA Male NPT NA NA NA NA NA Electropolish

  2-2 V1T3-SSR .70 0.35 VacuSeal  Glands Male Weld 316L VAR 1/8" VacuSeal  Metal Gasket 1/8" NA Tube Butt Weld NA NA NA NA NA NA

  2-2 V1T3-SSR .70 0.35 -PE VacuSeal  Glands Male Weld 316L VAR 1/8" VacuSeal  Metal Gasket 1/8" NA Tube Butt Weld NA NA NA NA NA Electropolish

  2-2 V1T3-SSR 1.08 VacuSeal  Glands Short Tube Butt Weld 316L VAR 1/8" VacuSeal  Metal Gasket 1/8" NA Short Tube Butt Weld NA NA NA NA 1.08" NA

  2-2 V1T3-SSR 1.08-PE VacuSeal  Glands Short Tube Butt Weld 316L VAR 1/8" VacuSeal  Metal Gasket 1/8" NA Short Tube Butt Weld NA NA NA NA 1.08" Electropolish

  2-2 V1T3-SSR 1.42 VacuSeal  Glands Long Tube Butt Weld 316L VAR 1/8" VacuSeal  Metal Gasket 1/8" NA Long Tube Butt Weld NA NA NA NA 1.42" NA

  2-2 V1T3-SSR 1.42-PE VacuSeal  Glands Long Tube Butt Weld 316L VAR 1/8" VacuSeal  Metal Gasket 1/8" NA Long Tube Butt Weld NA NA NA NA 1.42" Electropolish

  2-2 V1T3-SSV .70 0.35 VacuSeal  Glands Male Weld 316L VIM/VAR 1/8" VacuSeal  Metal Gasket 1/8" NA Tube Butt Weld NA NA NA NA NA NA

  2-2 V1T3-SSV .70 0.35 -PE VacuSeal  Glands Male Weld 316L VIM/VAR 1/8" VacuSeal  Metal Gasket 1/8" NA Tube Butt Weld NA NA NA NA NA Electropolish

  2-2 V1T3-SSV 1.08 VacuSeal  Glands Short Tube Butt Weld 316L VIM/VAR 1/8" VacuSeal  Metal Gasket 1/8" NA Short Tube Butt Weld NA NA NA NA 1.08" NA

  2-2 V1T3-SSV 1.08-PE VacuSeal  Glands Short Tube Butt Weld 316L VIM/VAR 1/8" VacuSeal  Metal Gasket 1/8" NA Short Tube Butt Weld NA NA NA NA 1.08" Electropolish

  2-2 V1T3-SSV 1.42 VacuSeal  Glands Long Tube Butt Weld 316L VIM/VAR 1/8" VacuSeal  Metal Gasket 1/8" NA Long Tube Butt Weld NA NA NA NA 1.42" NA

  2-2 V1T3-SSV 1.42-PE VacuSeal  Glands Long Tube Butt Weld 316L VIM/VAR 1/8" VacuSeal  Metal Gasket 1/8" NA Long Tube Butt Weld NA NA NA NA 1.42" Electropolish

  2-2 V1W-SSR .70 VacuSeal  Glands Socket Weld 316L VAR 1/8" VacuSeal  Metal Gasket 1/8" NA Socket Weld NA NA NA NA NA NA

  2-2 V1W-SSR .70-PE VacuSeal  Glands Socket Weld 316L VAR 1/8" VacuSeal  Metal Gasket 1/8" NA Socket Weld NA NA NA NA NA Electropolish

  2-2 V1W-SSR-BL VacuSeal  Glands Blind Gland 316L VAR 1/8" VacuSeal  Metal Gasket 1/8" NA Blind Tube Butt Weld NA NA NA NA NA NA

  2-2 V1W-SSR-BL-PE VacuSeal  Glands Blind Gland 316L VAR 1/8" VacuSeal  Metal Gasket 1/8" NA Blind Tube Butt Weld NA NA NA NA NA Electropolish

  2-2 V1W-SSV .70 VacuSeal  Glands Socket Weld 316L VIM/VAR 1/8" VacuSeal  Metal Gasket 1/8" NA Socket Weld NA NA NA NA NA NA

  2-2 V1W-SSV .70-PE VacuSeal  Glands Socket Weld 316L VIM/VAR 1/8" VacuSeal  Metal Gasket 1/8" NA Socket Weld NA NA NA NA NA Electropolish

  2-2 V1W-SSV-BL VacuSeal  Glands Blind Gland 316L VIM/VAR 1/8" VacuSeal  Metal Gasket 1/8" NA Blind Tube Butt Weld NA NA NA NA NA NA

  2-2 V1W-SSV-BL-PE VacuSeal  Glands Blind Gland 316L VIM/VAR 1/8" VacuSeal  Metal Gasket 1/8" NA Blind Tube Butt Weld NA NA NA NA NA Electropolish

  2-2 VHLZ-SS Metal Gasket Bodies Compression Tube Fitting Connector 316 SS 1/8" Male VacuSeal  (Metal Gasket) 1/8" NA A-Lok  Compression Tube Fitting NA NA NA NA 1.53" NA

  2-2-2 JV-SS Metal Gasket Bodies Union Tee 316 SS 1/8" Male VacuSeal  (Metal Gasket) 1/8" NA Male VacuSeal  (Metal Gasket) 1/8" Male VacuSeal  (Metal Gasket) NA NA 1.78" NA

  2-2-2 JV-SS-PE Metal Gasket Bodies Union Tee 316 SS 1/8" Male VacuSeal  (Metal Gasket) 1/8" NA Male VacuSeal  (Metal Gasket) 1/8" Male VacuSeal  (Metal Gasket) NA NA 1.78" Electropolish

  4 BV-SS Metal Nuts, Caps and Plugs Female Nut 316 SS 1/4" NA NA NA NA NA NA NA NA NA NA

  4 BVH-SS Metal Nuts, Caps and Plugs Female Nut (Hi-Flo) 316 SS 3/8" NA NA NA NA NA NA NA NA NA NA

  4 BVHI-SS Metal Nuts, Caps and Plugs Male Nut (Hi-Flo) 316 SS 3/8" NA NA NA NA NA NA NA NA NA NA

  4 BVI .54-SS Metal Nuts, Caps and Plugs Short Male Nut 316 SS 1/4" NA NA NA NA NA NA NA NA 0.54 NA

  4 BVI .65-SS Metal Nuts, Caps and Plugs Short Male Nut 316 SS 1/4" NA NA NA NA NA NA NA NA 0.65 NA

  4 BVI-SS Metal Nuts, Caps and Plugs Male Nut 316 SS 1/4" NA NA NA NA NA NA NA NA NA NA

  4 FNV-SS Metal Nuts, Caps and Plugs Cap 316 SS 1/4" NA NA NA NA NA NA NA NA NA NA

  4 FNV-SS-L Metal Nuts, Caps and Plugs Cap With Lanyard 316 SS 1/4" NA NA NA NA NA NA NA NA NA Lanyard

  4 GVG-K Metal Gaskets Non-Retained Grooved Style Kel-F  1/4" NA NA NA NA NA NA NA NA NA Non-Retained Grooved Style

  4 GVG-K-BL Metal Gaskets Non-Retained Grooved Style Kel-F  1/4" NA NA NA NA NA NA NA NA NA Non-Retained Grooved Style, Blind (Undrilled)

  4 GVG-N Metal Gaskets Non-Retained Grooved Style NICKEL (ELECTROPOLISHED) 1/4" NA NA NA NA NA NA NA NA NA Non-Retained Grooved Style

  4 GVG-N-BL Metal Gaskets Non-Retained Grooved Style NICKEL (ELECTROPOLISHED) 1/4" NA NA NA NA NA NA NA NA NA Non-Retained Grooved Style, Blind (Undrilled)

  4 GVG-SS Metal Gaskets Non-Retained Grooved Style Stainless Steel (Silver Plated) 1/4" NA NA NA NA NA NA NA NA NA Non-Retained Grooved Style

  4 GVG-SS-BL Metal Gaskets Non-Retained Grooved Style Stainless Steel (Silver Plated) 1/4" NA NA NA NA NA NA NA NA NA Non-Retained Grooved Style, Blind (Undrilled)

  4 GVG-T Metal Gaskets Non-Retained Grooved Style Teflon  1/4" NA NA NA NA NA NA NA NA NA Non-Retained Grooved Style

  4 GVG-T-BL Metal Gaskets Non-Retained Grooved Style Teflon  1/4" NA NA NA NA NA NA NA NA NA Non-Retained Grooved Style, Blind (Undrilled)

  4 GVGR-K Metal Gaskets Retained Grooved Style Kel-F  1/4" NA NA NA NA NA NA NA NA NA Retained Grooved Style

  4 GVGR-K-BL Metal Gaskets Retained Grooved Style Kel-F  1/4" NA NA NA NA NA NA NA NA NA Retained Grooved Style, Blind (Undrilled)

  4 GVGR-N Metal Gaskets Retained Grooved Style NICKEL (ELECTROPOLISHED) 1/4" NA NA NA NA NA NA NA NA NA Retained Grooved Style

  4 GVGR-N-BL Metal Gaskets Retained Grooved Style NICKEL (ELECTROPOLISHED) 1/4" NA NA NA NA NA NA NA NA NA Retained Grooved Style, Blind (Undrilled)

  4 GVGR-SS Metal Gaskets Retained Grooved Style Stainless Steel (Silver Plated) 1/4" NA NA NA NA NA NA NA NA NA Retained Grooved Style

  4 GVGR-SS-BL Metal Gaskets Retained Grooved Style Stainless Steel (Silver Plated) 1/4" NA NA NA NA NA NA NA NA NA Retained Grooved Style, Blind (Undrilled)

  4 GVGR-T Metal Gaskets Retained Grooved Style Teflon  1/4" NA NA NA NA NA NA NA NA NA Retained Grooved Style

  4 GVGR-T-BL Metal Gaskets Retained Grooved Style Teflon  1/4" NA NA NA NA NA NA NA NA NA Retained Grooved Style, Blind (Undrilled)

  4 KV-SS Metal Gasket Bodies Union Cross 316 SS 1/4" Male VacuSeal  (Metal Gasket) 1/4" NA Male VacuSeal  (Metal Gasket) 1/4" Male VacuSeal  (Metal Gasket) 1/4" Male VacuSeal  (Metal Gasket) 2.25" NA

  4 KV-SS-PE Metal Gasket Bodies Union Cross 316 SS 1/4" Male VacuSeal  (Metal Gasket) 1/4" NA Male VacuSeal  (Metal Gasket) 1/4" Male VacuSeal  (Metal Gasket) 1/4" Male VacuSeal  (Metal Gasket) 2.25" Electropolish

  4 PNV-SS Metal Nuts, Caps and Plugs Plug 316 SS 1/4" NA NA NA NA NA NA NA NA NA NA

  4 PNV-SS-L Metal Nuts, Caps and Plugs Plug With Lanyard 316 SS 1/4" NA NA NA NA NA NA NA NA NA Lanyard

  4 VG-K Metal Gaskets Non-Retained Flat Style Kel-F  1/4" NA NA NA NA NA NA NA NA NA Non-Retained Flat

  4 VG-K-BL Metal Gaskets Non-Retained Flat Style Kel-F  1/4" NA NA NA NA NA NA NA NA NA Non-Retained Flat, Blind (Undrilled)

  4 VG-N Metal Gaskets Non-Retained Flat Style NICKEL (ELECTROPOLISHED) 1/4" NA NA NA NA NA NA NA NA NA Non-Retained Flat

  4 VG-N-BL Metal Gaskets Non-Retained Flat Style NICKEL (ELECTROPOLISHED) 1/4" NA NA NA NA NA NA NA NA NA Non-Retained Flat, Blind (Undrilled)

  4 VG-SS Metal Gaskets Non-Retained Flat Style Stainless Steel (Silver Plated) 1/4" NA NA NA NA NA NA NA NA NA Non-Retained Flat

  4 VG-SS-BL Metal Gaskets Non-Retained Flat Style Stainless Steel (Silver Plated) 1/4" NA NA NA NA NA NA NA NA NA Non-Retained Flat, Blind (Undrilled)

  4 VG-T Metal Gaskets Non-Retained Flat Style Teflon  1/4" NA NA NA NA NA NA NA NA NA Non-Retained Flat

  4 VG-T-BL Metal Gaskets Non-Retained Flat Style Teflon  1/4" NA NA NA NA NA NA NA NA NA Non-Retained Flat, Blind (Undrilled)

  4 VGR-K Metal Gaskets Retained Flat Style Kel-F  1/4" NA NA NA NA NA NA NA NA NA Retained Flat Style

  4 VGR-K-BL Metal Gaskets Retained Flat Style Kel-F  1/4" NA NA NA NA NA NA NA NA NA Retained Flat Style, Blind (Undrilled)

  4 VGR-N Metal Gaskets Retained Flat Style NICKEL (ELECTROPOLISHED) 1/4" NA NA NA NA NA NA NA NA NA Retained Flat Style

  4 VGR-N-BL Metal Gaskets Retained Flat Style NICKEL (ELECTROPOLISHED) 1/4" NA NA NA NA NA NA NA NA NA Retained Flat Style, Blind (Undrilled)

  4 VGR-SS Metal Gaskets Retained Flat Style Stainless Steel (Silver Plated) 1/4" NA NA NA NA NA NA NA NA NA Retained Flat Style

  4 VGR-SS-BL Metal Gaskets Retained Flat Style Stainless Steel (Silver Plated) 1/4" NA NA NA NA NA NA NA NA NA Retained Flat Style, Blind (Undrilled)

  4 VGR-T Metal Gaskets Retained Flat Style Teflon  1/4" NA NA NA NA NA NA NA NA NA Retained Flat Style

  4 VGR-T-BL Metal Gaskets Retained Flat Style Teflon  1/4" NA NA NA NA NA NA NA NA NA Retained Flat Style, Blind (Undrilled)

  4 VHC-SS Metal Gasket Bodies Coupling 316 SS 1/4" Female VacuSeal  Thread 1/4" NA Female VacuSeal  Thread NA NA NA NA 1.19" NA

  4-2 FV-SS Metal Gasket Bodies Male NPT Connector 316 SS 1/4" Male VacuSeal  Metal Gasket 1/8" NA Male NPT NA NA NA NA 1.28" NA

  4-2 GV-SS Metal Gasket Bodies Female NPT Connector 316 SS 1/4" Male VacuSeal  Metal Gasket 1/8" NA Female NPT NA NA NA NA 1.41" NA

  4-2 HV-SS Metal Gasket Bodies Double Male Reducing Union 316 SS 1/4" Male VacuSeal  (Metal Gasket) 1/8" NA Male VacuSeal  (Metal Gasket) NA NA NA NA 1.37" NA

  4-2 HV7-SS Metal Gasket Bodies Double Female Reducing Union 316 SS 1/4" Female VacuSeal  (Metal Gasket) 1/8" NA Female VacuSeal  (Metal Gasket) NA NA NA NA 0.36" NA

  4-2 V1T3-SSR 1.31 .035 VacuSeal  Glands Male Weld 316L VAR 1/4" VacuSeal  Metal Gasket 1/8" NA Tube Butt Weld NA NA NA NA NA NA

  4-2 V1T3-SSR 1.31 .035-PE VacuSeal  Glands Male Weld 316L VAR 1/4" VacuSeal  Metal Gasket 1/8" NA Tube Butt Weld NA NA NA NA NA Electropolish

  4-2 V1T3-SSV 1.31 .035 VacuSeal  Glands Male Weld 316L VIM/VAR 1/4" VacuSeal  Metal Gasket 1/8" NA Tube Butt Weld NA NA NA NA NA NA

  4-2 V1T3-SSV 1.31 .035-PE VacuSeal  Glands Male Weld 316L VIM/VAR 1/4" VacuSeal  Metal Gasket 1/8" NA Tube Butt Weld NA NA NA NA NA Electropolish

  4-2 V1W-SSR 1.31 VacuSeal  Glands Reducing Socket Weld 316L VAR 1/4" VacuSeal  Metal Gasket 1/8" NA Reducing Socket Weld NA NA NA NA NA NA

  4-2 V1W-SSR 1.31-PE VacuSeal  Glands Reducing Socket Weld 316L VAR 1/4" VacuSeal  Metal Gasket 1/8" NA Reducing Socket Weld NA NA NA NA NA Electropolish

  4-2 V1W-SSV 1.31 VacuSeal  Glands Reducing Socket Weld 316L VIM/VAR 1/4" VacuSeal  Metal Gasket 1/8" NA Reducing Socket Weld NA NA NA NA NA NA

  4-2 V1W-SSV 1.31-PE VacuSeal  Glands Reducing Socket Weld 316L VIM/VAR 1/4" VacuSeal  Metal Gasket 1/8" NA Reducing Socket Weld NA NA NA NA NA Electropolish

  4-2 V7HV-SS Metal Gasket Bodies Reducing Adapter 316 SS 1/4" Female VacuSeal  (Metal Gasket) 1/8" NA Male VacuSeal  (Metal Gasket) NA NA NA NA 1.19" NA

  4-2 VHV7-SS Metal Gasket Bodies Reducing Bushing 316 SS 1/4" Male VacuSeal  (Metal Gasket) 1/8" NA Female VacuSeal  (Metal Gasket) NA NA NA NA 1.06" NA

  4-4 Cv-SS Metal Gasket Bodies VacuSeal to Male NPT 316 SS 1/4" Male VacuSeal  (Metal Gasket) 1/4" NA Male NPT NA NA NA NA NA NA

  4-4 Cv-SS-PE Metal Gasket Bodies VacuSeal to Male NPT 316 SS 1/4" Male VacuSeal  (Metal Gasket) 1/4" NA Male NPT NA NA NA NA NA Electropolish

  4-4 EV-SS Metal Gasket Bodies Union Elbow 316 SS 1/4" Male VacuSeal  (Metal Gasket) 1/4" NA Male VacuSeal  (Metal Gasket) NA NA NA NA NA NA

  4-4 EV-SS-PE Metal Gasket Bodies Union Elbow 316 SS 1/4" Male VacuSeal  (Metal Gasket) 1/4" NA Male VacuSeal  (Metal Gasket) NA NA NA NA NA Electropolish

  4-4 FV-SS Metal Gasket Bodies Male NPT Connector 316 SS 1/4" Male VacuSeal  Metal Gasket 1/4" NA Male NPT NA NA NA NA 1.49" NA

  4-4 GV-SS Metal Gasket Bodies Female NPT Connector 316 SS 1/4" Male VacuSeal  Metal Gasket 1/4" NA Female NPT NA NA NA NA 1.44" NA

  4-4 HV-SS Metal Gasket Bodies Double Male Union 316 SS 1/4" Male VacuSeal  (Metal Gasket) 1/4" NA Male VacuSeal  (Metal Gasket) NA NA NA NA 1.53" NA

  4-4 T3H2BV-SSR 1.95 Metal Gasket Bodies Tube Butt Weld Bulkhead Connector 316L VAR 1/4" Male VacuSeal  (Metal Gasket) 1/4" NA Tube Butt Weld NA NA NA NA 1.95" Non-Electropolished

  4-4 T3H2BV-SSR 1.95 - PE Metal Gasket Bodies Tube Butt Weld Bulkhead Connector 316L VAR 1/4" Male VacuSeal  (Metal Gasket) 1/4" NA Tube Butt Weld NA NA NA NA 1.95" Electropolished

  4-4 T3H2BV-SSR 2.36 Metal Gasket Bodies Tube Butt Weld Bulkhead Connector 316L VAR 1/4" Male VacuSeal  (Metal Gasket) 1/4" NA Tube Butt Weld NA NA NA NA 2.36" Non-Electropolished

  4-4 T3H2BV-SSR 2.36 - PE Metal Gasket Bodies Tube Butt Weld Bulkhead Connector 316L VAR 1/4" Male VacuSeal  (Metal Gasket) 1/4" NA Tube Butt Weld NA NA NA NA 2.36" Electropolished

  4-4 T3H2BV-SSV 1.95 Metal Gasket Bodies Tube Butt Weld Bulkhead Connector 316L VIM/VAR 1/4" Male VacuSeal  (Metal Gasket) 1/4" NA Tube Butt Weld NA NA NA NA 1.95" Non-Electropolished

  4-4 T3H2BV-SSV 1.95 - PE Metal Gasket Bodies Tube Butt Weld Bulkhead Connector 316L VIM/VAR 1/4" Male VacuSeal  (Metal Gasket) 1/4" NA Tube Butt Weld NA NA NA NA 1.95" Electropolished

  4-4 T3H2BV-SSV 2.36 Metal Gasket Bodies Tube Butt Weld Bulkhead Connector 316L VIM/VAR 1/4" Male VacuSeal  (Metal Gasket) 1/4" NA Tube Butt Weld NA NA NA NA 2.36" Non-Electropolished

  4-4 T3H2BV-SSV 2.36 - PE Metal Gasket Bodies Tube Butt Weld Bulkhead Connector 316L VIM/VAR 1/4" Male VacuSeal  (Metal Gasket) 1/4" NA Tube Butt Weld NA NA NA NA 2.36" Electropolished

  4-4 V1HBF-SS Welded Assembly Male NPT Connector 316 SS 1/4" VacuSeal  (Metal Gaskets) 1/4" NA Male NPT NA NA NA NA NA NA

  4-4 V1HBF-SS-PE Welded Assembly Male NPT Connector 316 SS 1/4" VacuSeal  (Metal Gaskets) 1/4" NA Male NPT NA NA NA NA NA Electropolish

  4-4 V1HBF-SSR Welded Assembly Male NPT Connector 316L VAR 1/4" VacuSeal  (Metal Gaskets) 1/4" NA Male NPT NA NA NA NA NA NA

  4-4 V1HBF-SSR-PE Welded Assembly Male NPT Connector 316L VAR 1/4" VacuSeal  (Metal Gaskets) 1/4" NA Male NPT NA NA NA NA NA Electropolish

  4-4 V1HBF-SSV Welded Assembly Male NPT Connector 316L VIM/VAR 1/4" VacuSeal  (Metal Gaskets) 1/4" NA Male NPT NA NA NA NA NA NA

  4-4 V1HBF-SSV-PE Welded Assembly Male NPT Connector 316L VIM/VAR 1/4" VacuSeal  (Metal Gaskets) 1/4" NA Male NPT NA NA NA NA NA Electropolish

  4-4 V1HBG-SS Welded Assembly Female NPT Connector 316 SS 1/4" VacuSeal  (Metal Gaskets) 1/4" NA Female NPT NA NA NA NA NA NA

  4-4 V1HBG-SS-PE Welded Assembly Female NPT Connector 316 SS 1/4" VacuSeal  (Metal Gaskets) 1/4" NA Female NPT NA NA NA NA NA Electropolish

  4-4 V1HBG-SSR Welded Assembly Female NPT Connector 316L VAR 1/4" VacuSeal  (Metal Gaskets) 1/4" NA Female NPT NA NA NA NA NA NA

  4-4 V1HBG-SSR-PE Welded Assembly Female NPT Connector 316L VAR 1/4" VacuSeal  (Metal Gaskets) 1/4" NA Female NPT NA NA NA NA NA Electropolish

  4-4 V1HBG-SSV Welded Assembly Female NPT Connector 316L VIM/VAR 1/4" VacuSeal  (Metal Gaskets) 1/4" NA Female NPT NA NA NA NA NA NA

  4-4 V1HBG-SSV-PE Welded Assembly Female NPT Connector 316L VIM/VAR 1/4" VacuSeal  (Metal Gaskets) 1/4" NA Female NPT NA NA NA NA NA Electropolish

  4-4 V1HBV1-SS Welded Assembly Rotating Female Union 316 SS 1/4" VacuSeal  (Metal Gaskets) 1/4" NA Female VacuSeal  (Metal Gasket) NA NA NA NA 1.35" NA

  4-4 V1HBV1-SS - PE Welded Assembly Rotating Female Union 316 SS 1/4" VacuSeal  (Metal Gaskets) 1/4" NA Female VacuSeal  (Metal Gasket) NA NA NA NA 1.35" Electropolish

  4-4 V1HBV1-SS 1.70 Welded Assembly Rotating Female Union 316 SS 1/4" VacuSeal  (Metal Gaskets) 1/4" NA Female VacuSeal  (Metal Gasket) NA NA NA NA 1.70" NA

  4-4 V1HBV1-SS 1.70 - PE Welded Assembly Rotating Female Union 316 SS 1/4" VacuSeal  (Metal Gaskets) 1/4" NA Female VacuSeal  (Metal Gasket) NA NA NA NA 1.70" Electropolish

  4-4 V1HBV1-SSR Welded Assembly Rotating Female Union 316L VAR 1/4" VacuSeal  (Metal Gaskets) 1/4" NA Female VacuSeal  (Metal Gasket) NA NA NA NA 1.35" NA

  4-4 V1HBV1-SSR 1.70 Welded Assembly Rotating Female Union 316L VAR 1/4" VacuSeal  (Metal Gaskets) 1/4" NA Female VacuSeal  (Metal Gasket) NA NA NA NA 1.70" NA

  4-4 V1HBV1-SSR 1.70-PE Welded Assembly Rotating Female Union 316L VAR 1/4" VacuSeal  (Metal Gaskets) 1/4" NA Female VacuSeal  (Metal Gasket) NA NA NA NA 1.70" Electropolish

  4-4 V1HBV1-SSR-PE Welded Assembly Rotating Female Union 316L VAR 1/4" VacuSeal  (Metal Gaskets) 1/4" NA Female VacuSeal  (Metal Gasket) NA NA NA NA 1.35" Electropolish

  4-4 V1HBV1-SSV Welded Assembly Rotating Female Union 316L VIM/VAR 1/4" VacuSeal  (Metal Gaskets) 1/4" NA Female VacuSeal  (Metal Gasket) NA NA NA NA 1.35" NA

  4-4 V1HBV1-SSV 1.70 Welded Assembly Rotating Female Union 316L VIM/VAR 1/4" VacuSeal  (Metal Gaskets) 1/4" NA Female VacuSeal  (Metal Gasket) NA NA NA NA 1.70" NA

  4-4 V1HBV1-SSV 1.70-PE Welded Assembly Rotating Female Union 316L VIM/VAR 1/4" VacuSeal  (Metal Gaskets) 1/4" NA Female VacuSeal  (Metal Gasket) NA NA NA NA 1.70" Electropolish

  4-4 V1HBV1-SSV-PE Welded Assembly Rotating Female Union 316L VIM/VAR 1/4" VacuSeal  (Metal Gaskets) 1/4" NA Female VacuSeal  (Metal Gasket) NA NA NA NA 1.35" Electropolish

  4-4 V1HLZ-SS Welded Assembly A-LOK Tube Fitting 316 SS 1/4" VacuSeal  (Metal Gaskets) 1/4" NA A-LOK  Tube Fitting NA NA NA NA NA NA

  4-4 V1HLZ-SS-PE Welded Assembly A-LOK Tube Fitting 316 SS 1/4" VacuSeal  (Metal Gaskets) 1/4" NA A-LOK  Tube Fitting NA NA NA NA NA Electropolish

  4-4 V1HLZ-SSR Welded Assembly A-LOK Tube Fitting 316L VAR 1/4" VacuSeal  (Metal Gaskets) 1/4" NA A-LOK  Tube Fitting NA NA NA NA NA NA

  4-4 V1HLZ-SSR-PE Welded Assembly A-LOK Tube Fitting 316L VAR 1/4" VacuSeal  (Metal Gaskets) 1/4" NA A-LOK  Tube Fitting NA NA NA NA NA Electropolish

  4-4 V1HLZ-SSV Welded Assembly A-LOK Tube Fitting 316L VIM/VAR 1/4" VacuSeal  (Metal Gaskets) 1/4" NA A-LOK  Tube Fitting NA NA NA NA NA NA

  4-4 V1HLZ-SSV-PE Welded Assembly A-LOK Tube Fitting 316L VIM/VAR 1/4" VacuSeal  (Metal Gaskets) 1/4" NA A-LOK  Tube Fitting NA NA NA NA NA Electropolish

  4-4 V1M-SSR .60 VacuSeal  Glands Short Tube Butt Weld 316L VAR 1/4" VacuSeal  Metal Gasket 1/4" NA Short Tube Butt Weld NA NA NA NA .60" NA

  4-4 V1M-SSR .60-PE VacuSeal  Glands Short Tube Butt Weld 316L VAR 1/4" VacuSeal  Metal Gasket 1/4" NA Short Tube Butt Weld NA NA NA NA .60" Electropolish

  4-4 V1M-SSR 1.20 VacuSeal  Glands Long Tube Butt Weld 316L VAR 1/4" VacuSeal  Metal Gasket 1/4" NA Long Tube Butt Weld NA NA NA NA 1.20" NA

  4-4 V1M-SSR 1.20-PE VacuSeal  Glands Long Tube Butt Weld 316L VAR 1/4" VacuSeal  Metal Gasket 1/4" NA Long Tube Butt Weld NA NA NA NA 1.20" Electropolish

  4-4 V1M-SSV .60 VacuSeal  Glands Short Tube Butt Weld 316L VIM/VAR 1/4" VacuSeal  Metal Gasket 1/4" NA Short Tube Butt Weld NA NA NA NA .60" NA

  4-4 V1M-SSV .60-PE VacuSeal  Glands Short Tube Butt Weld 316L VIM/VAR 1/4" VacuSeal  Metal Gasket 1/4" NA Short Tube Butt Weld NA NA NA NA .60" Electropolish

  4-4 V1M-SSV 1.20 VacuSeal  Glands Long Tube Butt Weld 316L VIM/VAR 1/4" VacuSeal  Metal Gasket 1/4" NA Long Tube Butt Weld NA NA NA NA 1.20" NA

  4-4 V1M-SSV 1.20-PE VacuSeal  Glands Long Tube Butt Weld 316L VIM/VAR 1/4" VacuSeal  Metal Gasket 1/4" NA Long Tube Butt Weld NA NA NA NA 1.20" Electropolish

  4-4 V1T3-SSR VacuSeal  Glands Long Tube Butt Weld 316L VAR 1/4" VacuSeal  Metal Gasket 1/4" NA Long Tube Butt Weld NA NA NA NA 1.31" NA

  4-4 V1T3-SSR 1.10 VacuSeal  Glands Short Tube Butt Weld 316L VAR 1/4" VacuSeal  Metal Gasket 1/4" NA Short Tube Butt Weld NA NA NA NA 1.10" NA

  4-4 V1T3-SSR 1.10-PE VacuSeal  Glands Short Tube Butt Weld 316L VAR 1/4" VacuSeal  Metal Gasket 1/4" NA Short Tube Butt Weld NA NA NA NA 1.10" Electropolish

  4-4 V1T3-SSR 1.31 .065 VacuSeal  Glands Male Weld 316L VAR 1/4" VacuSeal  Metal Gasket 1/4" NA Tube Butt Weld NA NA NA NA NA NA

  4-4 V1T3-SSR 1.31 .065-PE VacuSeal  Glands Male Weld 316L VAR 1/4" VacuSeal  Metal Gasket 1/4" NA Tube Butt Weld NA NA NA NA NA Electropolish

  4-4 V1T3-SSR 1.70 VacuSeal  Glands Long Tube Butt Weld 316L VAR 1/4" VacuSeal  Metal Gasket 1/4" NA Long Tube Butt Weld NA NA NA NA 1.70" NA

  4-4 V1T3-SSR 1.70-PE VacuSeal  Glands Long Tube Butt Weld 316L VAR 1/4" VacuSeal  Metal Gasket 1/4" NA Long Tube Butt Weld NA NA NA NA 1.70" Electropolish

  4-4 V1T3-SSR-PE VacuSeal  Glands Long Tube Butt Weld 316L VAR 1/4" VacuSeal  Metal Gasket 1/4" NA Long Tube Butt Weld NA NA NA NA 1.31" Electropolish

  4-4 V1T3-SSV VacuSeal  Glands Long Tube Butt Weld 316L VIM/VAR 1/4" VacuSeal  Metal Gasket 1/4" NA Long Tube Butt Weld NA NA NA NA 1.31" NA

  4-4 V1T3-SSV 1.10 VacuSeal  Glands Short Tube Butt Weld 316L VIM/VAR 1/4" VacuSeal  Metal Gasket 1/4" NA Short Tube Butt Weld NA NA NA NA 1.10" NA

  4-4 V1T3-SSV 1.10-PE VacuSeal  Glands Short Tube Butt Weld 316L VIM/VAR 1/4" VacuSeal  Metal Gasket 1/4" NA Short Tube Butt Weld NA NA NA NA 1.10" Electropolish

  4-4 V1T3-SSV 1.31 .065 VacuSeal  Glands Male Weld 316L VIM/VAR 1/4" VacuSeal  Metal Gasket 1/4" NA Tube Butt Weld NA NA NA NA NA NA

  4-4 V1T3-SSV 1.31 .065-PE VacuSeal  Glands Male Weld 316L VIM/VAR 1/4" VacuSeal  Metal Gasket 1/4" NA Tube Butt Weld NA NA NA NA NA Electropolish

  4-4 V1T3-SSV 1.70 VacuSeal  Glands Long Tube Butt Weld 316L VIM/VAR 1/4" VacuSeal  Metal Gasket 1/4" NA Long Tube Butt Weld NA NA NA NA 1.70" NA

  4-4 V1T3-SSV 1.70-PE VacuSeal  Glands Long Tube Butt Weld 316L VIM/VAR 1/4" VacuSeal  Metal Gasket 1/4" NA Long Tube Butt Weld NA NA NA NA 1.70" Electropolish

  4-4 V1T3-SSV-PE VacuSeal  Glands Long Tube Butt Weld 316L VIM/VAR 1/4" VacuSeal  Metal Gasket 1/4" NA Long Tube Butt Weld NA NA NA NA 1.31" Electropolish

  4-4 V1TU-SS VacuSeal  Glands Tube Adapter 316 SS 1/4" VacuSeal  Metal Gasket 1/4" NA A-Lok  Tube Adapter NA NA NA NA NA NA

  4-4 V1TU-SS-PE VacuSeal  Glands Tube Adapter 316 SS 1/4" VacuSeal  Metal Gasket 1/4" NA A-Lok  Tube Adapter NA NA NA NA NA Electropolish

  4-4 V1TU-SSR VacuSeal  Glands Tube Adapter 316L VAR 1/4" VacuSeal  Metal Gasket 1/4" NA A-Lok  Tube Adapter NA NA NA NA NA NA

  4-4 V1TU-SSR-PE VacuSeal  Glands Tube Adapter 316L VAR 1/4" VacuSeal  Metal Gasket 1/4" NA A-Lok  Tube Adapter NA NA NA NA NA Electropolish

  4-4 V1TU-SSV VacuSeal  Glands Tube Adapter 316L VIM/VAR 1/4" VacuSeal  Metal Gasket 1/4" NA A-Lok  Tube Adapter NA NA NA NA NA NA

  4-4 V1TU-SSV-PE VacuSeal  Glands Tube Adapter 316L VIM/VAR 1/4" VacuSeal  Metal Gasket 1/4" NA A-Lok  Tube Adapter NA NA NA NA NA Electropolish

  4-4 V1TW-SSR .72 VacuSeal  Glands Short Tube Butt Weld 316L VAR 1/4" VacuSeal  Metal Gasket 1/4" NA Short Tube Butt Weld NA NA NA NA .72" NA

  4-4 V1TW-SSR .72-PE VacuSeal  Glands Short Tube Butt Weld 316L VAR 1/4" VacuSeal  Metal Gasket 1/4" NA Short Tube Butt Weld NA NA NA NA .72" Electropolish

  4-4 V1TW-SSR 1.32 VacuSeal  Glands Long Tube Butt Weld 316L VAR 1/4" VacuSeal  Metal Gasket 1/4" NA Long Tube Butt Weld NA NA NA NA 1.32" NA

  4-4 V1TW-SSR 1.32-PE VacuSeal  Glands Long Tube Butt Weld 316L VAR 1/4" VacuSeal  Metal Gasket 1/4" NA Long Tube Butt Weld NA NA NA NA 1.32" Electropolish

  4-4 V1TW-SSV .72 VacuSeal  Glands Short Tube Butt Weld 316L VIM/VAR 1/4" VacuSeal  Metal Gasket 1/4" NA Short Tube Butt Weld NA NA NA NA .72" NA

  4-4 V1TW-SSV .72-PE VacuSeal  Glands Short Tube Butt Weld 316L VIM/VAR 1/4" VacuSeal  Metal Gasket 1/4" NA Short Tube Butt Weld NA NA NA NA .72" Electropolish

  4-4 V1TW-SSV 1.32 VacuSeal  Glands Long Tube Butt Weld 316L VIM/VAR 1/4" VacuSeal  Metal Gasket 1/4" NA Long Tube Butt Weld NA NA NA NA 1.32" NA

  4-4 V1TW-SSV 1.32-PE VacuSeal  Glands Long Tube Butt Weld 316L VIM/VAR 1/4" VacuSeal  Metal Gasket 1/4" NA Long Tube Butt Weld NA NA NA NA 1.32" Electropolish

  4-4 V1W-SSR VacuSeal  Glands Socket Weld 316L VAR 1/4" VacuSeal  Metal Gasket 1/4" NA Socket Weld NA NA NA NA NA NA

  4-4 V1W-SSR .50 VacuSeal  Glands Short Socket Weld 316L VAR 1/4" VacuSeal  Metal Gasket 1/4" NA Short Socket Weld NA NA NA NA .50" NA

  4-4 V1W-SSR .50-PE VacuSeal  Glands Short Socket Weld 316L VAR 1/4" VacuSeal  Metal Gasket 1/4" NA Short Socket Weld NA NA NA NA .50" Electropolish

  4-4 V1W-SSR .75 VacuSeal  Glands Short Socket Weld 316L VAR 1/4" VacuSeal  Metal Gasket 1/4" NA Short Socket Weld NA NA NA NA .75" NA

  4-4 V1W-SSR .75-PE VacuSeal  Glands Short Socket Weld 316L VAR 1/4" VacuSeal  Metal Gasket 1/4" NA Short Socket Weld NA NA NA NA .75" Electropolish

  4-4 V1W-SSR-BL VacuSeal  Glands Blind Gland 316L VAR 1/4" VacuSeal  Metal Gasket 1/4" NA Blind Tube Butt Weld NA NA NA NA NA NA

  4-4 V1W-SSR-BL-PE VacuSeal  Glands Blind Gland 316L VAR 1/4" VacuSeal  Metal Gasket 1/4" NA Blind Tube Butt Weld NA NA NA NA NA Electropolish

  4-4 V1W-SSR-PE VacuSeal  Glands Socket Weld 316L VAR 1/4" VacuSeal  Metal Gasket 1/4" NA Socket Weld NA NA NA NA NA Electropolish

  4-4 V1W-SSV VacuSeal  Glands Socket Weld 316L VIM/VAR 1/4" VacuSeal  Metal Gasket 1/4" NA Socket Weld NA NA NA NA NA NA

  4-4 V1W-SSV .50 VacuSeal  Glands Short Socket Weld 316L VIM/VAR 1/4" VacuSeal  Metal Gasket 1/4" NA Short Socket Weld NA NA NA NA .50" NA

  4-4 V1W-SSV .50-PE VacuSeal  Glands Short Socket Weld 316L VIM/VAR 1/4" VacuSeal  Metal Gasket 1/4" NA Short Socket Weld NA NA NA NA .50" Electropolish

  4-4 V1W-SSV .75 VacuSeal  Glands Short Socket Weld 316L VIM/VAR 1/4" VacuSeal  Metal Gasket 1/4" NA Short Socket Weld NA NA NA NA .75" NA

  4-4 V1W-SSV .75-PE VacuSeal  Glands Short Socket Weld 316L VIM/VAR 1/4" VacuSeal  Metal Gasket 1/4" NA Short Socket Weld NA NA NA NA .75" Electropolish

  4-4 V1W-SSV-BL VacuSeal  Glands Blind Gland 316L VIM/VAR 1/4" VacuSeal  Metal Gasket 1/4" NA Blind Tube Butt Weld NA NA NA NA NA NA

  4-4 V1W-SSV-BL-PE VacuSeal  Glands Blind Gland 316L VIM/VAR 1/4" VacuSeal  Metal Gasket 1/4" NA Blind Tube Butt Weld NA NA NA NA NA Electropolish

  4-4 V1W-SSV-PE VacuSeal  Glands Socket Weld 316L VIM/VAR 1/4" VacuSeal  Metal Gasket 1/4" NA Socket Weld NA NA NA NA NA Electropolish

  4-4 V1Y3-SSR 1.12 VacuSeal  Glands Short Automatic Tube Butt Weld 316L VAR 1/4" VacuSeal  Metal Gasket 1/4" NA Short Automatic Tube Butt Weld NA NA NA NA NA NA

  4-4 V1Y3-SSR 1.12-PE VacuSeal  Glands Short Automatic Tube Butt Weld 316L VAR 1/4" VacuSeal  Metal Gasket 1/4" NA Short Automatic Tube Butt Weld NA NA NA NA NA Electropolish

  4-4 V1Y3-SSR 1.72 VacuSeal  Glands Long Automatic Tube Butt Weld 316L VAR 1/4" VacuSeal  Metal Gasket 1/4" NA Long Automatic Tube Butt Weld NA NA NA NA NA NA

  4-4 V1Y3-SSR 1.72-PE VacuSeal  Glands Long Automatic Tube Butt Weld 316L VAR 1/4" VacuSeal  Metal Gasket 1/4" NA Long Automatic Tube Butt Weld NA NA NA NA NA Electropolish

  4-4 V1Y3-SSV 1.12 VacuSeal  Glands Short Automatic Tube Butt Weld 316L VIM/VAR 1/4" VacuSeal  Metal Gasket 1/4" NA Short Automatic Tube Butt Weld NA NA NA NA NA NA

  4-4 V1Y3-SSV 1.12-PE VacuSeal  Glands Short Automatic Tube Butt Weld 316L VIM/VAR 1/4" VacuSeal  Metal Gasket 1/4" NA Short Automatic Tube Butt Weld NA NA NA NA NA Electropolish

  4-4 V1Y3-SSV 1.72 VacuSeal  Glands Long Automatic Tube Butt Weld 316L VIM/VAR 1/4" VacuSeal  Metal Gasket 1/4" NA Long Automatic Tube Butt Weld NA NA NA NA NA NA

  4-4 V1Y3-SSV 1.72-PE VacuSeal  Glands Long Automatic Tube Butt Weld 316L VIM/VAR 1/4" VacuSeal  Metal Gasket 1/4" NA Long Automatic Tube Butt Weld NA NA NA NA NA Electropolish

  4-4 VH2BF-SS Metal Gasket Bodies Male NPT Bulkhead Connector 316 SS 1/4" Male VacuSeal  Metal Gasket 1/4" NA Male NPT Bulkhead NA NA NA NA 2.21" NA

  4-4 VH2LZ-SS Metal Gasket Bodies Compression Tube Fitting Bulkhead Connector 316 SS 1/4" Male VacuSeal  (Metal Gasket) 1/4" NA A-Lok  Compression Tube Fitting Bulkhead NA NA NA NA 2.25" NA

  4-4 VH2LZ-SS 1.88 Metal Gasket Bodies Compression Tube Fitting Bulkhead Connector 316 SS 1/4" Male VacuSeal  (Metal Gasket) 1/4" NA A-Lok  Compression Tube Fitting Bulkhead NA NA NA NA 1.88" NA

  4-4 WBV-SS 1.82 Metal Gasket Bodies Bulkhead Union 316 SS 1/4" Male VacuSeal  (Metal Gasket) 1/4" NA Male VacuSeal  (Metal Gasket) Bulkhead NA NA NA NA 1.82" NA

  4-4 WBV-SS 2.23 Metal Gasket Bodies Bulkhead Union 316 SS 1/4" Male VacuSeal  (Metal Gasket) 1/4" NA Male VacuSeal  (Metal Gasket) Bulkhead NA NA NA NA 2.23" NA

  4-4-4 JV-SS Metal Gasket Bodies Union Tee 316 SS 1/4" Male VacuSeal  (Metal Gasket) 1/4" NA Male VacuSeal  (Metal Gasket) 1/4" Male VacuSeal  (Metal Gasket) NA NA 2.25" NA

  4-4-4 JV-SS-PE Metal Gasket Bodies Union Tee 316 SS 1/4" Male VacuSeal  (Metal Gasket) 1/4" NA Male VacuSeal  (Metal Gasket) 1/4" Male VacuSeal  (Metal Gasket) NA NA 2.25" Electropolish

  4-4VHLZ-SS Metal Gasket Bodies Compression Tube Fitting Connector 316 SS 1/4" Male VacuSeal  Metal Gasket 1/4" NA A-Lok  Compression Tube Fitting NA NA NA NA 1.62" NA

  4-6 V1HLZ-SS Welded Assembly A-LOK Tube Fitting 316 SS 1/4" VacuSeal  (Metal Gaskets) 3/8" NA A-LOK  Tube Fitting NA NA NA NA NA NA

  4-6 V1HLZ-SS-PE Welded Assembly A-LOK Tube Fitting 316 SS 1/4" VacuSeal  (Metal Gaskets) 3/8" NA A-LOK  Tube Fitting NA NA NA NA NA Electropolish

  4-6 V1HLZ-SSR Welded Assembly A-LOK Tube Fitting 316L VAR 1/4" VacuSeal  (Metal Gaskets) 3/8" NA A-LOK  Tube Fitting NA NA NA NA NA NA

  4-6 V1HLZ-SSR-PE Welded Assembly A-LOK Tube Fitting 316L VAR 1/4" VacuSeal  (Metal Gaskets) 3/8" NA A-LOK  Tube Fitting NA NA NA NA NA Electropolish

  4-6 V1HLZ-SSV Welded Assembly A-LOK Tube Fitting 316L VIM/VAR 1/4" VacuSeal  (Metal Gaskets) 3/8" NA A-LOK  Tube Fitting NA NA NA NA NA NA

  4-6 V1HLZ-SSV-PE Welded Assembly A-LOK Tube Fitting 316L VIM/VAR 1/4" VacuSeal  (Metal Gaskets) 3/8" NA A-LOK  Tube Fitting NA NA NA NA NA Electropolish

  4-6 VH1T3-SSR VacuSeal  Glands Hi-Flo Products 316L VAR 1/4" Hi-Flo VacuSeal  Metal Gasket 3/8" NA Tube Butt Weld NA NA NA NA 1.19" NA

  4-6 VH1T3-SSR .60 VacuSeal  Glands Hi-Flo Products 316L VAR 1/4" Hi-Flo VacuSeal  Metal Gasket 3/8" NA Tube Butt Weld NA NA NA NA .60" NA

  4-6 VH1T3-SSR .60-PE VacuSeal  Glands Hi-Flo Products 316L VAR 1/4" Hi-Flo VacuSeal  Metal Gasket 3/8" NA Tube Butt Weld NA NA NA NA .60" Electropolish

  4-6 VH1T3-SSR 1.31 VacuSeal  Glands Hi-Flo Products 316L VAR 1/4" Hi-Flo VacuSeal  Metal Gasket 3/8" NA Tube Butt Weld NA NA NA NA 1.31" NA

  4-6 VH1T3-SSR 1.31-PE VacuSeal  Glands Hi-Flo Products 316L VAR 1/4" Hi-Flo VacuSeal  Metal Gasket 3/8" NA Tube Butt Weld NA NA NA NA 1.31" Electropolish

  4-6 VH1T3-SSR-PE VacuSeal  Glands Hi-Flo Products 316L VAR 1/4" Hi-Flo VacuSeal  Metal Gasket 3/8" NA Tube Butt Weld NA NA NA NA 1.19" Electropolish

  4-6 VH1T3-SSV VacuSeal  Glands Hi-Flo Products 316L VIM/VAR 1/4" Hi-Flo VacuSeal  Metal Gasket 3/8" NA Tube Butt Weld NA NA NA NA 1.19" NA

  4-6 VH1T3-SSV .60 VacuSeal  Glands Hi-Flo Products 316L VIM/VAR 1/4" Hi-Flo VacuSeal  Metal Gasket 3/8" NA Tube Butt Weld NA NA NA NA .60" NA

  4-6 VH1T3-SSV .60-PE VacuSeal  Glands Hi-Flo Products 316L VIM/VAR 1/4" Hi-Flo VacuSeal  Metal Gasket 3/8" NA Tube Butt Weld NA NA NA NA .60" Electropolish

  4-6 VH1T3-SSV 1.31 VacuSeal  Glands Hi-Flo Products 316L VIM/VAR 1/4" Hi-Flo VacuSeal  Metal Gasket 3/8" NA Tube Butt Weld NA NA NA NA 1.31" NA

  4-6 VH1T3-SSV 1.31-PE VacuSeal  Glands Hi-Flo Products 316L VIM/VAR 1/4" Hi-Flo VacuSeal  Metal Gasket 3/8" NA Tube Butt Weld NA NA NA NA 1.31" Electropolish

  4-6 VH1T3-SSV-PE VacuSeal  Glands Hi-Flo Products 316L VIM/VAR 1/4" Hi-Flo VacuSeal  Metal Gasket 3/8" NA Tube Butt Weld NA NA NA NA 1.19" Electropolish

  4-6 VHOA-SS Metal Gasket Bodies Straight Thread O-ring 316 SS 1/4" Male VacuSeal  Metal Gasket 9/16-18 NA Male O-ring SAE/MS Straight Thread NA NA NA NA 1.33" NA

  4-6 VHT3-SSR 1.68 Metal Gasket Hi-Flo Bodies Tube Butt Weld 316L VAR 1/4" Male Hi-Flo VacuSeal  Metal Gasket 3/8" NA Tube Butt Weld NA NA NA NA NA NA

  4-6 VHT3-SSR 1.68 - EP Metal Gasket Hi-Flo Bodies Tube Butt Weld 316L VAR 1/4" Male Hi-Flo VacuSeal  Metal Gasket 3/8" NA Tube Butt Weld NA NA NA NA NA Electropolish

  4-6 VHT3-SSV 1.68 Metal Gasket Hi-Flo Bodies Tube Butt Weld 316L VIM/VAR 1/4" Male Hi-Flo VacuSeal  Metal Gasket 3/8" NA Tube Butt Weld NA NA NA NA NA NA

  4-6 VHT3-SSV 1.68 - EP Metal Gasket Hi-Flo Bodies Tube Butt Weld 316L VIM/VAR 1/4" Male Hi-Flo VacuSeal  Metal Gasket 3/8" NA Tube Butt Weld NA NA NA NA NA Electropolish

  4-6 VHY3-SSR 1.71 Metal Gasket Hi-Flo Bodies Automatic Tube Weld 316L VAR 1/4" Male Hi-Flo VacuSeal  Metal Gasket 3/8" NA Automatic Tube Butt Weld NA NA NA NA NA NA

  4-6 VHY3-SSR 1.71 - EP Metal Gasket Hi-Flo Bodies Automatic Tube Weld 316L VAR 1/4" Male Hi-Flo VacuSeal  Metal Gasket 3/8" NA Automatic Tube Butt Weld NA NA NA NA NA Electropolish

  4-6 VHY3-SSV 1.71 Metal Gasket Hi-Flo Bodies Automatic Tube Weld 316L VIM/VAR 1/4" Male Hi-Flo VacuSeal  Metal Gasket 3/8" NA Automatic Tube Butt Weld NA NA NA NA NA NA

  4-6 VHY3-SSV 1.71 - EP Metal Gasket Hi-Flo Bodies Automatic Tube Weld 316L VIM/VAR 1/4" Male Hi-Flo VacuSeal  Metal Gasket 3/8" NA Automatic Tube Butt Weld NA NA NA NA NA Electropolish

  4-6M V1T3-SSR 1.16 VacuSeal  Glands Short Tube Butt Weld 316L VAR 1/4" VacuSeal  Metal Gasket NA 6 Short Tube Butt Weld NA NA NA NA 1.16" NA

  4-6M V1T3-SSR 1.16-PE VacuSeal  Glands Short Tube Butt Weld 316L VAR 1/4" VacuSeal  Metal Gasket NA 6 Short Tube Butt Weld NA NA NA NA 1.16" Electropolish

  4-6M V1T3-SSR 1.70 VacuSeal  Glands Long Tube Butt Weld 316L VAR 1/4" VacuSeal  Metal Gasket NA 6 Long Tube Butt Weld NA NA NA NA 1.70" NA

  4-6M V1T3-SSR 1.70-PE VacuSeal  Glands Long Tube Butt Weld 316L VAR 1/4" VacuSeal  Metal Gasket NA 6 Long Tube Butt Weld NA NA NA NA 1.70" Electropolish

  4-6M V1T3-SSV 1.16 VacuSeal  Glands Short Tube Butt Weld 316L VIM/VAR 1/4" VacuSeal  Metal Gasket NA 6 Short Tube Butt Weld NA NA NA NA 1.16" NA

  4-6M V1T3-SSV 1.16-PE VacuSeal  Glands Short Tube Butt Weld 316L VIM/VAR 1/4" VacuSeal  Metal Gasket NA 6 Short Tube Butt Weld NA NA NA NA 1.16" Electropolish

  4-6M V1T3-SSV 1.70 VacuSeal  Glands Long Tube Butt Weld 316L VIM/VAR 1/4" VacuSeal  Metal Gasket NA 6 Long Tube Butt Weld NA NA NA NA 1.70" NA

  4-6M V1T3-SSV 1.70-PE VacuSeal  Glands Long Tube Butt Weld 316L VIM/VAR 1/4" VacuSeal  Metal Gasket NA 6 Long Tube Butt Weld NA NA NA NA 1.70" Electropolish

  4-6M V1Y3-SSR 1.18 VacuSeal  Glands Short Automatic Tube Butt Weld 316L VAR 1/4" VacuSeal  Metal Gasket NA 6 Short Automatic Tube Butt Weld NA NA NA NA NA NA

  4-6M V1Y3-SSR 1.18-PE VacuSeal  Glands Short Automatic Tube Butt Weld 316L VAR 1/4" VacuSeal  Metal Gasket NA 6 Short Automatic Tube Butt Weld NA NA NA NA NA Electropolish

  4-6M V1Y3-SSR 1.72 VacuSeal  Glands Long Automatic Tube Butt Weld 316L VAR 1/4" VacuSeal  Metal Gasket NA 6 Long Automatic Tube Butt Weld NA NA NA NA NA NA

  4-6M V1Y3-SSR 1.72-PE VacuSeal  Glands Long Automatic Tube Butt Weld 316L VAR 1/4" VacuSeal  Metal Gasket NA 6 Long Automatic Tube Butt Weld NA NA NA NA NA Electropolish

  4-6M V1Y3-SSV 1.18 VacuSeal  Glands Short Automatic Tube Butt Weld 316L VIM/VAR 1/4" VacuSeal  Metal Gasket NA 6 Short Automatic Tube Butt Weld NA NA NA NA NA NA

  4-6M V1Y3-SSV 1.18-PE VacuSeal  Glands Short Automatic Tube Butt Weld 316L VIM/VAR 1/4" VacuSeal  Metal Gasket NA 6 Short Automatic Tube Butt Weld NA NA NA NA NA Electropolish

  4-6M V1Y3-SSV 1.72 VacuSeal  Glands Long Automatic Tube Butt Weld 316L VIM/VAR 1/4" VacuSeal  Metal Gasket NA 6 Long Automatic Tube Butt Weld NA NA NA NA NA NA

  4-6M V1Y3-SSV 1.72-PE VacuSeal  Glands Long Automatic Tube Butt Weld 316L VIM/VAR 1/4" VacuSeal  Metal Gasket NA 6 Long Automatic Tube Butt Weld NA NA NA NA NA Electropolish

  4-8M V1T3-SSR 1.16 VacuSeal  Glands Short Tube Butt Weld 316L VAR 1/4" VacuSeal  Metal Gasket NA 8 Short Tube Butt Weld NA NA NA NA 1.16" NA

  4-8M V1T3-SSR 1.16-PE VacuSeal  Glands Short Tube Butt Weld 316L VAR 1/4" VacuSeal  Metal Gasket NA 8 Short Tube Butt Weld NA NA NA NA 1.16" Electropolish

  4-8M V1T3-SSR 1.70 VacuSeal  Glands Long Tube Butt Weld 316L VAR 1/4" VacuSeal  Metal Gasket NA 8 Long Tube Butt Weld NA NA NA NA 1.70" NA

  4-8M V1T3-SSR 1.70-PE VacuSeal  Glands Long Tube Butt Weld 316L VAR 1/4" VacuSeal  Metal Gasket NA 8 Long Tube Butt Weld NA NA NA NA 1.70" Electropolish

  4-8M V1T3-SSV 1.16 VacuSeal  Glands Short Tube Butt Weld 316L VIM/VAR 1/4" VacuSeal  Metal Gasket NA 8 Short Tube Butt Weld NA NA NA NA 1.16" NA

  4-8M V1T3-SSV 1.16-PE VacuSeal  Glands Short Tube Butt Weld 316L VIM/VAR 1/4" VacuSeal  Metal Gasket NA 8 Short Tube Butt Weld NA NA NA NA 1.16" Electropolish

  4-8M V1T3-SSV 1.70 VacuSeal  Glands Long Tube Butt Weld 316L VIM/VAR 1/4" VacuSeal  Metal Gasket NA 8 Long Tube Butt Weld NA NA NA NA 1.70" NA

  4-8M V1T3-SSV 1.70-PE VacuSeal  Glands Long Tube Butt Weld 316L VIM/VAR 1/4" VacuSeal  Metal Gasket NA 8 Long Tube Butt Weld NA NA NA NA 1.70" Electropolish

  4-8M V1Y3-SSR 1.19 VacuSeal  Glands Short Automatic Tube Butt Weld 316L VAR 1/4" VacuSeal  Metal Gasket NA 8 Short Automatic Tube Butt Weld NA NA NA NA NA NA

  4-8M V1Y3-SSR 1.19-PE VacuSeal  Glands Short Automatic Tube Butt Weld 316L VAR 1/4" VacuSeal  Metal Gasket NA 8 Short Automatic Tube Butt Weld NA NA NA NA NA Electropolish

  4-8M V1Y3-SSV 1.19 VacuSeal  Glands Short Automatic Tube Butt Weld 316L VIM/VAR 1/4" VacuSeal  Metal Gasket NA 8 Short Automatic Tube Butt Weld NA NA NA NA NA NA

  4-8M V1Y3-SSV 1.19-PE VacuSeal  Glands Short Automatic Tube Butt Weld 316L VIM/VAR 1/4" VacuSeal  Metal Gasket NA 8 Short Automatic Tube Butt Weld NA NA NA NA NA Electropolish

  6-4 T3H2BV-SSR 2.36 Metal Gasket Hi-Flo Bodies Bulkhead Connector 316L VAR 1/4" Male Hi-Flo VacuSeal  Bulkhead (Metal Gasket) 3/8" NA Tube Butt Weld NA NA NA NA NA NA

  6-4 T3H2BV-SSR 2.36 - EP Metal Gasket Hi-Flo Bodies Bulkhead Connector 316L VAR 1/4" Male Hi-Flo VacuSeal  Bulkhead (Metal Gasket) 3/8" NA Tube Butt Weld NA NA NA NA NA Electropolish

  6-4 T3H2BV-SSV 2.36 Metal Gasket Hi-Flo Bodies Bulkhead Connector 316L VIM/VAR 1/4" Male Hi-Flo VacuSeal  Bulkhead (Metal Gasket) 3/8" NA Tube Butt Weld NA NA NA NA NA NA

  6-4 T3H2BV-SSV 2.36 - EP Metal Gasket Hi-Flo Bodies Bulkhead Connector 316L VIM/VAR 1/4" Male Hi-Flo VacuSeal  Bulkhead (Metal Gasket) 3/8" NA Tube Butt Weld NA NA NA NA NA Electropolish

  8 BV-SS Metal Nuts, Caps and Plugs Female Nut 316 SS 1/2" NA NA NA NA NA NA NA NA NA NA

  8 BVI-SS Metal Nuts, Caps and Plugs Male Nut 316 SS 1/2" NA NA NA NA NA NA NA NA NA NA

  8 FNV-SS Metal Nuts, Caps and Plugs Cap 316 SS 1/2" NA NA NA NA NA NA NA NA NA NA

  8 FNV-SS-L Metal Nuts, Caps and Plugs Cap With Lanyard 316 SS 1/2" NA NA NA NA NA NA NA NA NA Lanyard

  8 GVG-K Metal Gaskets Non-Retained Grooved Style Kel-F  1/2" NA NA NA NA NA NA NA NA NA Non-Retained Grooved Style

  8 GVG-K-BL Metal Gaskets Non-Retained Grooved Style Kel-F  1/2" NA NA NA NA NA NA NA NA NA Non-Retained Grooved Style, Blind (Undrilled)

  8 GVG-N Metal Gaskets Non-Retained Grooved Style NICKEL (ELECTROPOLISHED) 1/2" NA NA NA NA NA NA NA NA NA Non-Retained Grooved Style

  8 GVG-N-BL Metal Gaskets Non-Retained Grooved Style NICKEL (ELECTROPOLISHED) 1/2" NA NA NA NA NA NA NA NA NA Non-Retained Grooved Style, Blind (Undrilled)

  8 GVG-SS Metal Gaskets Non-Retained Grooved Style Stainless Steel (Silver Plated) 1/2" NA NA NA NA NA NA NA NA NA Non-Retained Grooved Style

  8 GVG-SS-BL Metal Gaskets Non-Retained Grooved Style Stainless Steel (Silver Plated) 1/2" NA NA NA NA NA NA NA NA NA Non-Retained Grooved Style, Blind (Undrilled)

  8 GVG-T Metal Gaskets Non-Retained Grooved Style Teflon  1/2" NA NA NA NA NA NA NA NA NA Non-Retained Grooved Style

  8 GVG-T-BL Metal Gaskets Non-Retained Grooved Style Teflon  1/2" NA NA NA NA NA NA NA NA NA Non-Retained Grooved Style, Blind (Undrilled)

  8 GVGR-K Metal Gaskets Retained Grooved Style Kel-F  1/2" NA NA NA NA NA NA NA NA NA Retained Grooved Style

  8 GVGR-K-BL Metal Gaskets Retained Grooved Style Kel-F  1/2" NA NA NA NA NA NA NA NA NA Retained Grooved Style, Blind (Undrilled)

  8 GVGR-N Metal Gaskets Retained Grooved Style NICKEL (ELECTROPOLISHED) 1/2" NA NA NA NA NA NA NA NA NA Retained Grooved Style

  8 GVGR-N-BL Metal Gaskets Retained Grooved Style NICKEL (ELECTROPOLISHED) 1/2" NA NA NA NA NA NA NA NA NA Retained Grooved Style, Blind (Undrilled)

  8 GVGR-SS Metal Gaskets Retained Grooved Style Stainless Steel (Silver Plated) 1/2" NA NA NA NA NA NA NA NA NA Retained Grooved Style

  8 GVGR-SS-BL Metal Gaskets Retained Grooved Style Stainless Steel (Silver Plated) 1/2" NA NA NA NA NA NA NA NA NA Retained Grooved Style, Blind (Undrilled)

  8 GVGR-T Metal Gaskets Retained Grooved Style Teflon  1/2" NA NA NA NA NA NA NA NA NA Retained Grooved Style

  8 GVGR-T-BL Metal Gaskets Retained Grooved Style Teflon  1/2" NA NA NA NA NA NA NA NA NA Retained Grooved Style, Blind (Undrilled)

  8 PNV-SS Metal Nuts, Caps and Plugs Plug 316 SS 1/2" NA NA NA NA NA NA NA NA NA NA

  8 PNV-SS-L Metal Nuts, Caps and Plugs Plug With Lanyard 316 SS 1/2" NA NA NA NA NA NA NA NA NA Lanyard

  8 VG-K Metal Gaskets Non-Retained Flat Style Kel-F  1/2" NA NA NA NA NA NA NA NA NA Non-Retained Flat

  8 VG-K-BL Metal Gaskets Non-Retained Flat Style Kel-F  1/2" NA NA NA NA NA NA NA NA NA Non-Retained Flat, Blind (Undrilled)

  8 VG-N Metal Gaskets Non-Retained Flat Style NICKEL (ELECTROPOLISHED) 1/2" NA NA NA NA NA NA NA NA NA Non-Retained Flat

  8 VG-N-BL Metal Gaskets Non-Retained Flat Style NICKEL (ELECTROPOLISHED) 1/2" NA NA NA NA NA NA NA NA NA Non-Retained Flat, Blind (Undrilled)

  8 VG-SS Metal Gaskets Non-Retained Flat Style Stainless Steel (Silver Plated) 1/2" NA NA NA NA NA NA NA NA NA Non-Retained Flat

  8 VG-SS-BL Metal Gaskets Non-Retained Flat Style Stainless Steel (Silver Plated) 1/2" NA NA NA NA NA NA NA NA NA Non-Retained Flat, Blind (Undrilled)

  8 VG-T Metal Gaskets Non-Retained Flat Style Teflon  1/2" NA NA NA NA NA NA NA NA NA Non-Retained Flat

  8 VG-T-BL Metal Gaskets Non-Retained Flat Style Teflon  1/2" NA NA NA NA NA NA NA NA NA Non-Retained Flat, Blind (Undrilled)

  8 VGR-K Metal Gaskets Retained Flat Style Kel-F  1/2" NA NA NA NA NA NA NA NA NA Retained Flat Style

  8 VGR-K-BL Metal Gaskets Retained Flat Style Kel-F  1/2" NA NA NA NA NA NA NA NA NA Retained Flat Style, Blind (Undrilled)

  8 VGR-N Metal Gaskets Retained Flat Style NICKEL (ELECTROPOLISHED) 1/2" NA NA NA NA NA NA NA NA NA Retained Flat Style

  8 VGR-N-BL Metal Gaskets Retained Flat Style NICKEL (ELECTROPOLISHED) 1/2" NA NA NA NA NA NA NA NA NA Retained Flat Style, Blind (Undrilled)

  8 VGR-SS Metal Gaskets Retained Flat Style Stainless Steel (Silver Plated) 1/2" NA NA NA NA NA NA NA NA NA Retained Flat Style

  8 VGR-SS-BL Metal Gaskets Retained Flat Style Stainless Steel (Silver Plated) 1/2" NA NA NA NA NA NA NA NA NA Retained Flat Style, Blind (Undrilled)

  8 VGR-T Metal Gaskets Retained Flat Style Teflon  1/2" NA NA NA NA NA NA NA NA NA Retained Flat Style

  8 VGR-T-BL Metal Gaskets Retained Flat Style Teflon  1/2" NA NA NA NA NA NA NA NA NA Retained Flat Style, Blind (Undrilled)

  8 VHC-SS Metal Gasket Bodies Coupling 316 SS 1/2" Female VacuSeal  Thread 1/2" NA Female VacuSeal  Thread NA NA NA NA 1.31" NA

  8-10 VHOA-SS Metal Gasket Bodies Straight Thread O-ring 316 SS 1/2" Male VacuSeal  Metal Gasket 7/8-14 NA Male O-ring SAE/MS Straight Thread NA NA NA NA 1.66" NA

  8-10M V1T3-SSR 1.16 VacuSeal  Glands Short Tube Butt Weld 316L VAR 1/2" VacuSeal  Metal Gasket NA 10 Short Tube Butt Weld NA NA NA NA 1.16" NA

  8-10M V1T3-SSR 1.16-PE VacuSeal  Glands Short Tube Butt Weld 316L VAR 1/2" VacuSeal  Metal Gasket NA 10 Short Tube Butt Weld NA NA NA NA 1.16" Electropolish

  8-10M V1T3-SSR 1.79 VacuSeal  Glands Long Tube Butt Weld 316L VAR 1/2" VacuSeal  Metal Gasket NA 10 Long Tube Butt Weld NA NA NA NA 1.79" NA

  8-10M V1T3-SSR 1.79-PE VacuSeal  Glands Long Tube Butt Weld 316L VAR 1/2" VacuSeal  Metal Gasket NA 10 Long Tube Butt Weld NA NA NA NA 1.79" Electropolish

  8-10M V1T3-SSV 1.16 VacuSeal  Glands Short Tube Butt Weld 316L VIM/VAR 1/2" VacuSeal  Metal Gasket NA 10 Short Tube Butt Weld NA NA NA NA 1.16" NA

  8-10M V1T3-SSV 1.16-PE VacuSeal  Glands Short Tube Butt Weld 316L VIM/VAR 1/2" VacuSeal  Metal Gasket NA 10 Short Tube Butt Weld NA NA NA NA 1.16" Electropolish

  8-10M V1T3-SSV 1.79 VacuSeal  Glands Long Tube Butt Weld 316L VIM/VAR 1/2" VacuSeal  Metal Gasket NA 10 Long Tube Butt Weld NA NA NA NA 1.79" NA

  8-10M V1T3-SSV 1.79-PE VacuSeal  Glands Long Tube Butt Weld 316L VIM/VAR 1/2" VacuSeal  Metal Gasket NA 10 Long Tube Butt Weld NA NA NA NA 1.79" Electropolish

  8-10M V1Y3-SSR 1.22 VacuSeal  Glands Short Automatic Tube Butt Weld 316L VAR 1/2" VacuSeal  Metal Gasket NA 10 Short Automatic Tube Butt Weld NA NA NA NA NA NA

  8-10M V1Y3-SSR 1.22-PE VacuSeal  Glands Short Automatic Tube Butt Weld 316L VAR 1/2" VacuSeal  Metal Gasket NA 10 Short Automatic Tube Butt Weld NA NA NA NA NA Electropolish

  8-10M V1Y3-SSV 1.22 VacuSeal  Glands Short Automatic Tube Butt Weld 316L VIM/VAR 1/2" VacuSeal  Metal Gasket NA 10 Short Automatic Tube Butt Weld NA NA NA NA NA NA

  8-10M V1Y3-SSV 1.22-PE VacuSeal  Glands Short Automatic Tube Butt Weld 316L VIM/VAR 1/2" VacuSeal  Metal Gasket NA 10 Short Automatic Tube Butt Weld NA NA NA NA NA Electropolish

  8-12M V1T3-SSR 1.16 VacuSeal  Glands Short Tube Butt Weld 316L VAR 1/2" VacuSeal  Metal Gasket NA 12 Short Tube Butt Weld NA NA NA NA 1.16" NA

  8-12M V1T3-SSR 1.16-PE VacuSeal  Glands Short Tube Butt Weld 316L VAR 1/2" VacuSeal  Metal Gasket NA 12 Short Tube Butt Weld NA NA NA NA 1.16" Electropolish

  8-12M V1T3-SSR 1.79 VacuSeal  Glands Long Tube Butt Weld 316L VAR 1/2" VacuSeal  Metal Gasket NA 12 Long Tube Butt Weld NA NA NA NA 1.79" NA

  8-12M V1T3-SSR 1.79-PE VacuSeal  Glands Long Tube Butt Weld 316L VAR 1/2" VacuSeal  Metal Gasket NA 12 Long Tube Butt Weld NA NA NA NA 1.79" Electropolish

  8-12M V1T3-SSV 1.16 VacuSeal  Glands Short Tube Butt Weld 316L VIM/VAR 1/2" VacuSeal  Metal Gasket NA 12 Short Tube Butt Weld NA NA NA NA 1.16" NA

  8-12M V1T3-SSV 1.16-PE VacuSeal  Glands Short Tube Butt Weld 316L VIM/VAR 1/2" VacuSeal  Metal Gasket NA 12 Short Tube Butt Weld NA NA NA NA 1.16" Electropolish

  8-12M V1T3-SSV 1.79 VacuSeal  Glands Long Tube Butt Weld 316L VIM/VAR 1/2" VacuSeal  Metal Gasket NA 12 Long Tube Butt Weld NA NA NA NA 1.79" NA

  8-12M V1T3-SSV 1.79-PE VacuSeal  Glands Long Tube Butt Weld 316L VIM/VAR 1/2" VacuSeal  Metal Gasket NA 12 Long Tube Butt Weld NA NA NA NA 1.79" Electropolish

  8-12M V1Y3-SSR 1.20 VacuSeal  Glands Short Automatic Tube Butt Weld 316L VAR 1/2" VacuSeal  Metal Gasket NA 12 Short Automatic Tube Butt Weld NA NA NA NA NA NA

  8-12M V1Y3-SSR 1.20-PE VacuSeal  Glands Short Automatic Tube Butt Weld 316L VAR 1/2" VacuSeal  Metal Gasket NA 12 Short Automatic Tube Butt Weld NA NA NA NA NA Electropolish

  8-12M V1Y3-SSR 1.83 VacuSeal  Glands Long Automatic Tube Butt Weld 316L VAR 1/2" VacuSeal  Metal Gasket NA 12 Long Automatic Tube Butt Weld NA NA NA NA NA NA

  8-12M V1Y3-SSR 1.83-PE VacuSeal  Glands Long Automatic Tube Butt Weld 316L VAR 1/2" VacuSeal  Metal Gasket NA 12 Long Automatic Tube Butt Weld NA NA NA NA NA Electropolish

  8-12M V1Y3-SSV 1.20 VacuSeal  Glands Short Automatic Tube Butt Weld 316L VIM/VAR 1/2" VacuSeal  Metal Gasket NA 12 Short Automatic Tube Butt Weld NA NA NA NA NA NA

  8-12M V1Y3-SSV 1.20-PE VacuSeal  Glands Short Automatic Tube Butt Weld 316L VIM/VAR 1/2" VacuSeal  Metal Gasket NA 12 Short Automatic Tube Butt Weld NA NA NA NA NA Electropolish

  8-12M V1Y3-SSV 1.83 VacuSeal  Glands Long Automatic Tube Butt Weld 316L VIM/VAR 1/2" VacuSeal  Metal Gasket NA 12 Long Automatic Tube Butt Weld NA NA NA NA NA NA

  8-12M V1Y3-SSV 1.83-PE VacuSeal  Glands Long Automatic Tube Butt Weld 316L VIM/VAR 1/2" VacuSeal  Metal Gasket NA 12 Long Automatic Tube Butt Weld NA NA NA NA NA Electropolish

  8-4 HV-SS Metal Gasket Bodies Double Male Reducing Union 316 SS 1/2" Male VacuSeal  (Metal Gasket) 1/4" NA Male VacuSeal  (Metal Gasket) NA NA NA NA 1.71" NA

  8-4 HV7-SS Metal Gasket Bodies Double Female Reducing Union 316 SS 1/2" Female VacuSeal  (Metal Gasket) 1/4" NA Female VacuSeal  (Metal Gasket) NA NA NA NA 0.35" NA

  8-4 V1T3-SSR 1.12 VacuSeal  Glands Short Tube Butt Weld 316L VAR 1/2" VacuSeal  Metal Gasket 1/4" NA Short Tube Butt Weld NA NA NA NA 1.12" NA

  8-4 V1T3-SSR 1.12-PE VacuSeal  Glands Short Tube Butt Weld 316L VAR 1/2" VacuSeal  Metal Gasket 1/4" NA Short Tube Butt Weld NA NA NA NA 1.12" Electropolish

  8-4 V1T3-SSR 1.79 VacuSeal  Glands Long Tube Butt Weld 316L VAR 1/2" VacuSeal  Metal Gasket 1/4" NA Long Tube Butt Weld NA NA NA NA 1.79" NA

  8-4 V1T3-SSR 1.79-PE VacuSeal  Glands Long Tube Butt Weld 316L VAR 1/2" VacuSeal  Metal Gasket 1/4" NA Long Tube Butt Weld NA NA NA NA 1.79" Electropolish

  8-4 V1T3-SSR D970351 VacuSeal  Glands Male Weld 316L VAR 1/2" VacuSeal  Metal Gasket 1/4" NA Tube Butt Weld NA NA NA NA NA NA

  8-4 V1T3-SSR D970351-PE VacuSeal  Glands Male Weld 316L VAR 1/2" VacuSeal  Metal Gasket 1/4" NA Tube Butt Weld NA NA NA NA NA Electropolish

  8-4 V1T3-SSV 1.12 VacuSeal  Glands Short Tube Butt Weld 316L VIM/VAR 1/2" VacuSeal  Metal Gasket 1/4" NA Short Tube Butt Weld NA NA NA NA 1.12" NA

  8-4 V1T3-SSV 1.12-PE VacuSeal  Glands Short Tube Butt Weld 316L VIM/VAR 1/2" VacuSeal  Metal Gasket 1/4" NA Short Tube Butt Weld NA NA NA NA 1.12" Electropolish

  8-4 V1T3-SSV 1.79 VacuSeal  Glands Long Tube Butt Weld 316L VIM/VAR 1/2" VacuSeal  Metal Gasket 1/4" NA Long Tube Butt Weld NA NA NA NA 1.79" NA

  8-4 V1T3-SSV 1.79-PE VacuSeal  Glands Long Tube Butt Weld 316L VIM/VAR 1/2" VacuSeal  Metal Gasket 1/4" NA Long Tube Butt Weld NA NA NA NA 1.79" Electropolish

  8-4 V1T3-SSV D970351 VacuSeal  Glands Male Weld 316L VIM/VAR 1/2" VacuSeal  Metal Gasket 1/4" NA Tube Butt Weld NA NA NA NA NA NA

  8-4 V1T3-SSV D970351-PE VacuSeal  Glands Male Weld 316L VIM/VAR 1/2" VacuSeal  Metal Gasket 1/4" NA Tube Butt Weld NA NA NA NA NA Electropolish

  8-4 V1W-SSR VacuSeal  Glands Reducing Socket Weld 316L VAR 1/2" VacuSeal  Metal Gasket 1/4" NA Reducing Socket Weld NA NA NA NA NA NA

  8-4 V1W-SSR-PE VacuSeal  Glands Reducing Socket Weld 316L VAR 1/2" VacuSeal  Metal Gasket 1/4" NA Reducing Socket Weld NA NA NA NA NA Electropolish

  8-4 V1W-SSV VacuSeal  Glands Reducing Socket Weld 316L VIM/VAR 1/2" VacuSeal  Metal Gasket 1/4" NA Reducing Socket Weld NA NA NA NA NA NA

  8-4 V1W-SSV-PE VacuSeal  Glands Reducing Socket Weld 316L VIM/VAR 1/2" VacuSeal  Metal Gasket 1/4" NA Reducing Socket Weld NA NA NA NA NA Electropolish

  8-4 V1Y3-SSR 1.82 VacuSeal  Glands Long Automatic Tube Butt Weld 316L VAR 1/2" VacuSeal  Metal Gasket 1/4" NA Long Automatic Tube Butt Weld NA NA NA NA NA NA

  8-4 V1Y3-SSR 1.82-PE VacuSeal  Glands Long Automatic Tube Butt Weld 316L VAR 1/2" VacuSeal  Metal Gasket 1/4" NA Long Automatic Tube Butt Weld NA NA NA NA NA Electropolish

  8-4 V1Y3-SSV 1.82 VacuSeal  Glands Long Automatic Tube Butt Weld 316L VIM/VAR 1/2" VacuSeal  Metal Gasket 1/4" NA Long Automatic Tube Butt Weld NA NA NA NA NA NA

  8-4 V1Y3-SSV 1.82-PE VacuSeal  Glands Long Automatic Tube Butt Weld 316L VIM/VAR 1/2" VacuSeal  Metal Gasket 1/4" NA Long Automatic Tube Butt Weld NA NA NA NA NA Electropolish

  8-4 V7HV-SS Metal Gasket Bodies Reducing Adapter 316 SS 1/2" Female VacuSeal  (Metal Gasket) 1/4" NA Male VacuSeal  (Metal Gasket) NA NA NA NA 1.41" NA

  8-4 VH2BF-SS Metal Gasket Bodies Male NPT Bulkhead Connector 316 SS 1/2" Male VacuSeal  Metal Gasket 1/4" NA Male NPT Bulkhead NA NA NA NA 2.34" NA

  8-4 VHV7-SS Metal Gasket Bodies Reducing Bushing 316 SS 1/2" Male VacuSeal  (Metal Gasket) 1/4" NA Female VacuSeal  (Metal Gasket) NA NA NA NA 1.41" NA

  8-6 Cv-SS Metal Gasket Bodies VacuSeal to Male NPT 316 SS 1/2" Male VacuSeal  (Metal Gasket) 3/8" NA Male NPT NA NA NA NA NA NA

  8-6 Cv-SS-PE Metal Gasket Bodies VacuSeal to Male NPT 316 SS 1/2" Male VacuSeal  (Metal Gasket) 3/8" NA Male NPT NA NA NA NA NA Electropolish

  8-6 FV-SS Metal Gasket Bodies Male NPT Connector 316 SS 1/2" Male VacuSeal  Metal Gasket 3/8" NA Male NPT NA NA NA NA 1.62" NA

  8-6 GV-SS Metal Gasket Bodies Female NPT Connector 316 SS 1/2" Male VacuSeal  Metal Gasket 3/8" NA Female NPT NA NA NA NA 1.62" NA

  8-6 V1HBF-SS Welded Assembly Male NPT Connector 316 SS 1/2" VacuSeal  (Metal Gaskets) 3/8" NA Male NPT NA NA NA NA NA NA

  8-6 V1HBF-SS-PE Welded Assembly Male NPT Connector 316 SS 1/2" VacuSeal  (Metal Gaskets) 3/8" NA Male NPT NA NA NA NA NA Electropolish

  8-6 V1HBF-SSR Welded Assembly Male NPT Connector 316L VAR 1/2" VacuSeal  (Metal Gaskets) 3/8" NA Male NPT NA NA NA NA NA NA

  8-6 V1HBF-SSR-PE Welded Assembly Male NPT Connector 316L VAR 1/2" VacuSeal  (Metal Gaskets) 3/8" NA Male NPT NA NA NA NA NA Electropolish

  8-6 V1HBF-SSV Welded Assembly Male NPT Connector 316L VIM/VAR 1/2" VacuSeal  (Metal Gaskets) 3/8" NA Male NPT NA NA NA NA NA NA

  8-6 V1HBF-SSV-PE Welded Assembly Male NPT Connector 316L VIM/VAR 1/2" VacuSeal  (Metal Gaskets) 3/8" NA Male NPT NA NA NA NA NA Electropolish

  8-6 V1HBG-SS Welded Assembly Female NPT Connector 316 SS 1/2" VacuSeal  (Metal Gaskets) 3/8" NA Female NPT NA NA NA NA NA NA

  8-6 V1HBG-SS-PE Welded Assembly Female NPT Connector 316 SS 1/2" VacuSeal  (Metal Gaskets) 3/8" NA Female NPT NA NA NA NA NA Electropolish

  8-6 V1HBG-SSR Welded Assembly Female NPT Connector 316L VAR 1/2" VacuSeal  (Metal Gaskets) 3/8" NA Female NPT NA NA NA NA NA NA

  8-6 V1HBG-SSR-PE Welded Assembly Female NPT Connector 316L VAR 1/2" VacuSeal  (Metal Gaskets) 3/8" NA Female NPT NA NA NA NA NA Electropolish

  8-6 V1HBG-SSV Welded Assembly Female NPT Connector 316L VIM/VAR 1/2" VacuSeal  (Metal Gaskets) 3/8" NA Female NPT NA NA NA NA NA NA

  8-6 V1HBG-SSV-PE Welded Assembly Female NPT Connector 316L VIM/VAR 1/2" VacuSeal  (Metal Gaskets) 3/8" NA Female NPT NA NA NA NA NA Electropolish

  8-6 V1M-SSR .62 VacuSeal  Glands Short Tube Butt Weld 316L VAR 1/2" VacuSeal  Metal Gasket 3/8" NA Short Tube Butt Weld NA NA NA NA .62" NA

  8-6 V1M-SSR .62-PE VacuSeal  Glands Short Tube Butt Weld 316L VAR 1/2" VacuSeal  Metal Gasket 3/8" NA Short Tube Butt Weld NA NA NA NA .62" Electropolish

  8-6 V1M-SSR 1.29 VacuSeal  Glands Long Tube Butt Weld 316L VAR 1/2" VacuSeal  Metal Gasket 3/8" NA Long Tube Butt Weld NA NA NA NA 1.29" NA

  8-6 V1M-SSR 1.29-PE VacuSeal  Glands Long Tube Butt Weld 316L VAR 1/2" VacuSeal  Metal Gasket 3/8" NA Long Tube Butt Weld NA NA NA NA 1.29" Electropolish

  8-6 V1M-SSV .62 VacuSeal  Glands Short Tube Butt Weld 316L VIM/VAR 1/2" VacuSeal  Metal Gasket 3/8" NA Short Tube Butt Weld NA NA NA NA .62" NA

  8-6 V1M-SSV .62-PE VacuSeal  Glands Short Tube Butt Weld 316L VIM/VAR 1/2" VacuSeal  Metal Gasket 3/8" NA Short Tube Butt Weld NA NA NA NA .62" Electropolish

  8-6 V1M-SSV 1.29 VacuSeal  Glands Long Tube Butt Weld 316L VIM/VAR 1/2" VacuSeal  Metal Gasket 3/8" NA Long Tube Butt Weld NA NA NA NA 1.29" NA

  8-6 V1M-SSV 1.29-PE VacuSeal  Glands Long Tube Butt Weld 316L VIM/VAR 1/2" VacuSeal  Metal Gasket 3/8" NA Long Tube Butt Weld NA NA NA NA 1.29" Electropolish

  8-6 V1T3-SSR 1.12 VacuSeal  Glands Short Tube Butt Weld 316L VAR 1/2" VacuSeal  Metal Gasket 3/8" NA Short Tube Butt Weld NA NA NA NA 1.12" NA

  8-6 V1T3-SSR 1.12-PE VacuSeal  Glands Short Tube Butt Weld 316L VAR 1/2" VacuSeal  Metal Gasket 3/8" NA Short Tube Butt Weld NA NA NA NA 1.12" Electropolish

  8-6 V1T3-SSR 1.50 .049 VacuSeal  Glands Male Weld 316L VAR 1/2" VacuSeal  Metal Gasket 3/8" NA Tube Butt Weld NA NA NA NA NA NA

  8-6 V1T3-SSR 1.50 .049-PE VacuSeal  Glands Male Weld 316L VAR 1/2" VacuSeal  Metal Gasket 3/8" NA Tube Butt Weld NA NA NA NA NA Electropolish

  8-6 V1T3-SSR 1.79 VacuSeal  Glands Long Tube Butt Weld 316L VAR 1/2" VacuSeal  Metal Gasket 3/8" NA Long Tube Butt Weld NA NA NA NA 1.79" NA

  8-6 V1T3-SSR 1.79-PE VacuSeal  Glands Long Tube Butt Weld 316L VAR 1/2" VacuSeal  Metal Gasket 3/8" NA Long Tube Butt Weld NA NA NA NA 1.79" Electropolish

  8-6 V1T3-SSV 1.12 VacuSeal  Glands Short Tube Butt Weld 316L VIM/VAR 1/2" VacuSeal  Metal Gasket 3/8" NA Short Tube Butt Weld NA NA NA NA 1.12" NA

  8-6 V1T3-SSV 1.12-PE VacuSeal  Glands Short Tube Butt Weld 316L VIM/VAR 1/2" VacuSeal  Metal Gasket 3/8" NA Short Tube Butt Weld NA NA NA NA 1.12" Electropolish

  8-6 V1T3-SSV 1.50 .049 VacuSeal  Glands Male Weld 316L VIM/VAR 1/2" VacuSeal  Metal Gasket 3/8" NA Tube Butt Weld NA NA NA NA NA NA

  8-6 V1T3-SSV 1.50 .049-PE VacuSeal  Glands Male Weld 316L VIM/VAR 1/2" VacuSeal  Metal Gasket 3/8" NA Tube Butt Weld NA NA NA NA NA Electropolish

  8-6 V1T3-SSV 1.79 VacuSeal  Glands Long Tube Butt Weld 316L VIM/VAR 1/2" VacuSeal  Metal Gasket 3/8" NA Long Tube Butt Weld NA NA NA NA 1.79" NA

  8-6 V1T3-SSV 1.79-PE VacuSeal  Glands Long Tube Butt Weld 316L VIM/VAR 1/2" VacuSeal  Metal Gasket 3/8" NA Long Tube Butt Weld NA NA NA NA 1.79" Electropolish

  8-6 V1TU-SS VacuSeal  Glands Tube Adapter 316 SS 1/2" VacuSeal  Metal Gasket 3/8" NA A-Lok  Tube Adapter NA NA NA NA NA NA

  8-6 V1TU-SS-PE VacuSeal  Glands Tube Adapter 316 SS 1/2" VacuSeal  Metal Gasket 3/8" NA A-Lok  Tube Adapter NA NA NA NA NA Electropolish

  8-6 V1TU-SSR VacuSeal  Glands Tube Adapter 316L VAR 1/2" VacuSeal  Metal Gasket 3/8" NA A-Lok  Tube Adapter NA NA NA NA NA NA

  8-6 V1TU-SSR-PE VacuSeal  Glands Tube Adapter 316L VAR 1/2" VacuSeal  Metal Gasket 3/8" NA A-Lok  Tube Adapter NA NA NA NA NA Electropolish

  8-6 V1TU-SSV VacuSeal  Glands Tube Adapter 316L VIM/VAR 1/2" VacuSeal  Metal Gasket 3/8" NA A-Lok  Tube Adapter NA NA NA NA NA NA

  8-6 V1TU-SSV-PE VacuSeal  Glands Tube Adapter 316L VIM/VAR 1/2" VacuSeal  Metal Gasket 3/8" NA A-Lok  Tube Adapter NA NA NA NA NA Electropolish

  8-6 V1W-SSR VacuSeal  Glands Socket Weld 316L VAR 1/2" VacuSeal  Metal Gasket 3/8" NA Socket Weld NA NA NA NA NA NA

  8-6 V1W-SSR-PE VacuSeal  Glands Socket Weld 316L VAR 1/2" VacuSeal  Metal Gasket 3/8" NA Socket Weld NA NA NA NA NA Electropolish

  8-6 V1W-SSV VacuSeal  Glands Socket Weld 316L VIM/VAR 1/2" VacuSeal  Metal Gasket 3/8" NA Socket Weld NA NA NA NA NA NA

  8-6 V1W-SSV-PE VacuSeal  Glands Socket Weld 316L VIM/VAR 1/2" VacuSeal  Metal Gasket 3/8" NA Socket Weld NA NA NA NA NA Electropolish

  8-6 V1Y3-SSR 1.15 VacuSeal  Glands Short Automatic Tube Butt Weld 316L VAR 3/8" VacuSeal  Metal Gasket 3/8" NA Short Automatic Tube Butt Weld NA NA NA NA NA NA

  8-6 V1Y3-SSR 1.15-PE VacuSeal  Glands Short Automatic Tube Butt Weld 316L VAR 3/8" VacuSeal  Metal Gasket 3/8" NA Short Automatic Tube Butt Weld NA NA NA NA NA Electropolish

  8-6 V1Y3-SSR 1.82 VacuSeal  Glands Long Automatic Tube Butt Weld 316L VAR 1/2" VacuSeal  Metal Gasket 3/8" NA Long Automatic Tube Butt Weld NA NA NA NA NA NA

  8-6 V1Y3-SSR 1.82-PE VacuSeal  Glands Long Automatic Tube Butt Weld 316L VAR 1/2" VacuSeal  Metal Gasket 3/8" NA Long Automatic Tube Butt Weld NA NA NA NA NA Electropolish

  8-6 V1Y3-SSV 1.15 VacuSeal  Glands Short Automatic Tube Butt Weld 316L VIM/VAR 3/8" VacuSeal  Metal Gasket 3/8" NA Short Automatic Tube Butt Weld NA NA NA NA NA NA

  8-6 V1Y3-SSV 1.15-PE VacuSeal  Glands Short Automatic Tube Butt Weld 316L VIM/VAR 3/8" VacuSeal  Metal Gasket 3/8" NA Short Automatic Tube Butt Weld NA NA NA NA NA Electropolish

  8-6 V1Y3-SSV 1.82 VacuSeal  Glands Long Automatic Tube Butt Weld 316L VIM/VAR 1/2" VacuSeal  Metal Gasket 3/8" NA Long Automatic Tube Butt Weld NA NA NA NA NA NA

  8-6 V1Y3-SSV 1.82-PE VacuSeal  Glands Long Automatic Tube Butt Weld 316L VIM/VAR 1/2" VacuSeal  Metal Gasket 3/8" NA Long Automatic Tube Butt Weld NA NA NA NA NA Electropolish

  8-6 VH2LZ-SS Metal Gasket Bodies Compression Tube Fitting Bulkhead Connector 316 SS 1/2" Male VacuSeal  (Metal Gasket) 3/8" NA A-Lok  Compression Tube Fitting Bulkhead NA NA NA NA 2.54" NA

  8-6 VHLZ-SS Metal Gasket Bodies Compression Tube Fitting Connector 316 SS 1/2" Male VacuSeal  Metal Gasket 3/8" NA A-Lok  Compression Tube Fitting NA NA NA NA 1.84" NA

  8-6 VHOA-SS Metal Gasket Bodies Straight Thread O-ring 316 SS 1/2" Male VacuSeal  Metal Gasket 9/16-18 NA Male O-ring SAE/MS Straight Thread NA NA NA NA 1.48" NA

  8-8 Cv-SS Metal Gasket Bodies VacuSeal to Male NPT 316 SS 1/2" Male VacuSeal  (Metal Gasket) 1/2" NA Male NPT NA NA NA NA NA NA

  8-8 Cv-SS-PE Metal Gasket Bodies VacuSeal to Male NPT 316 SS 1/2" Male VacuSeal  (Metal Gasket) 1/2" NA Male NPT NA NA NA NA NA Electropolish

  8-8 EV-SS Metal Gasket Bodies Union Elbow 316 SS 1/2" Male VacuSeal  (Metal Gasket) 1/2" NA Male VacuSeal  (Metal Gasket) NA NA NA NA NA NA

  8-8 EV-SS-PE Metal Gasket Bodies Union Elbow 316 SS 1/2" Male VacuSeal  (Metal Gasket) 1/2" NA Male VacuSeal  (Metal Gasket) NA NA NA NA NA Electropolish

  8-8 FV-SS Metal Gasket Bodies Male NPT Connector 316 SS 1/2" Male VacuSeal  Metal Gasket 1/2" NA Male NPT NA NA NA NA 1.81" NA

  8-8 GV-SS Metal Gasket Bodies Female NPT Connector 316 SS 1/2" Male VacuSeal  Metal Gasket 1/2" NA Female NPT NA NA NA NA 1.91" NA

  8-8 HV-SS Metal Gasket Bodies Double Male Union 316 SS 1/2" Male VacuSeal  (Metal Gasket) 1/2" NA Male VacuSeal  (Metal Gasket) NA NA NA NA 1.84" NA

  8-8 V1HBF-SS Welded Assembly Male NPT Connector 316 SS 1/2" VacuSeal  (Metal Gaskets) 1/2" NA Male NPT NA NA NA NA NA NA

  8-8 V1HBF-SS-PE Welded Assembly Male NPT Connector 316 SS 1/2" VacuSeal  (Metal Gaskets) 1/2" NA Male NPT NA NA NA NA NA Electropolish

  8-8 V1HBF-SSR Welded Assembly Male NPT Connector 316L VAR 1/2" VacuSeal  (Metal Gaskets) 1/2" NA Male NPT NA NA NA NA NA NA

  8-8 V1HBF-SSR-PE Welded Assembly Male NPT Connector 316L VAR 1/2" VacuSeal  (Metal Gaskets) 1/2" NA Male NPT NA NA NA NA NA Electropolish

  8-8 V1HBF-SSV Welded Assembly Male NPT Connector 316L VIM/VAR 1/2" VacuSeal  (Metal Gaskets) 1/2" NA Male NPT NA NA NA NA NA NA

  8-8 V1HBF-SSV-PE Welded Assembly Male NPT Connector 316L VIM/VAR 1/2" VacuSeal  (Metal Gaskets) 1/2" NA Male NPT NA NA NA NA NA Electropolish

  8-8 V1HBG-SS Welded Assembly Female NPT Connector 316 SS 1/2" VacuSeal  (Metal Gaskets) 1/2" NA Female NPT NA NA NA NA NA NA

  8-8 V1HBG-SS-PE Welded Assembly Female NPT Connector 316 SS 1/2" VacuSeal  (Metal Gaskets) 1/2" NA Female NPT NA NA NA NA NA Electropolish

  8-8 V1HBG-SSR Welded Assembly Female NPT Connector 316L VAR 1/2" VacuSeal  (Metal Gaskets) 1/2" NA Female NPT NA NA NA NA NA NA

  8-8 V1HBG-SSR-PE Welded Assembly Female NPT Connector 316L VAR 1/2" VacuSeal  (Metal Gaskets) 1/2" NA Female NPT NA NA NA NA NA Electropolish

  8-8 V1HBG-SSV Welded Assembly Female NPT Connector 316L VIM/VAR 1/2" VacuSeal  (Metal Gaskets) 1/2" NA Female NPT NA NA NA NA NA NA

  8-8 V1HBG-SSV-PE Welded Assembly Female NPT Connector 316L VIM/VAR 1/2" VacuSeal  (Metal Gaskets) 1/2" NA Female NPT NA NA NA NA NA Electropolish

  8-8 V1HBV1-SS Welded Assembly Rotating Female Union 316 SS 1/2" VacuSeal  (Metal Gaskets) 1/2" NA Female VacuSeal  (Metal Gasket) NA NA NA NA 1.25" NA

  8-8 V1HBV1-SS -PE Welded Assembly Rotating Female Union 316 SS 1/2" VacuSeal  (Metal Gaskets) 1/2" NA Female VacuSeal  (Metal Gasket) NA NA NA NA 1.25" Electropolish

  8-8 V1HBV1-SS 1.84 Welded Assembly Rotating Female Union 316 SS 1/2" VacuSeal  (Metal Gaskets) 1/2" NA Female VacuSeal  (Metal Gasket) NA NA NA NA 1.84" NA

  8-8 V1HBV1-SS 1.84 - PE Welded Assembly Rotating Female Union 316 SS 1/2" VacuSeal  (Metal Gaskets) 1/2" NA Female VacuSeal  (Metal Gasket) NA NA NA NA 1.84" Electropolish

  8-8 V1HBV1-SSR Welded Assembly Rotating Female Union 316L VAR 1/2" VacuSeal  (Metal Gaskets) 1/2" NA Female VacuSeal  (Metal Gasket) NA NA NA NA 1.25" NA

  8-8 V1HBV1-SSR 1.84 Welded Assembly Rotating Female Union 316L VAR 1/2" VacuSeal  (Metal Gaskets) 1/2" NA Female VacuSeal  (Metal Gasket) NA NA NA NA 1.84" NA

  8-8 V1HBV1-SSR 1.84-PE Welded Assembly Rotating Female Union 316L VAR 1/2" VacuSeal  (Metal Gaskets) 1/2" NA Female VacuSeal  (Metal Gasket) NA NA NA NA 1.84" Electropolish

  8-8 V1HBV1-SSR-PE Welded Assembly Rotating Female Union 316L VAR 1/2" VacuSeal  (Metal Gaskets) 1/2" NA Female VacuSeal  (Metal Gasket) NA NA NA NA 1.25" Electropolish

  8-8 V1HBV1-SSV Welded Assembly Rotating Female Union 316L VIM/VAR 1/2" VacuSeal  (Metal Gaskets) 1/2" NA Female VacuSeal  (Metal Gasket) NA NA NA NA 1.25" NA

  8-8 V1HBV1-SSV 1.84 Welded Assembly Rotating Female Union 316L VIM/VAR 1/2" VacuSeal  (Metal Gaskets) 1/2" NA Female VacuSeal  (Metal Gasket) NA NA NA NA 1.84" NA

  8-8 V1HBV1-SSV 1.84-PE Welded Assembly Rotating Female Union 316L VIM/VAR 1/2" VacuSeal  (Metal Gaskets) 1/2" NA Female VacuSeal  (Metal Gasket) NA NA NA NA 1.84" Electropolish

  8-8 V1HBV1-SSV-PE Welded Assembly Rotating Female Union 316L VIM/VAR 1/2" VacuSeal  (Metal Gaskets) 1/2" NA Female VacuSeal  (Metal Gasket) NA NA NA NA 1.25" Electropolish

  8-8 V1HLZ-SS Welded Assembly A-LOK Tube Fitting 316 SS 1/2" VacuSeal  (Metal Gaskets) 1/2" NA A-LOK  Tube Fitting NA NA NA NA NA NA

  8-8 V1HLZ-SS-PE Welded Assembly A-LOK Tube Fitting 316 SS 1/2" VacuSeal  (Metal Gaskets) 1/2" NA A-LOK  Tube Fitting NA NA NA NA NA Electropolish

  8-8 V1HLZ-SSR Welded Assembly A-LOK Tube Fitting 316L VAR 1/2" VacuSeal  (Metal Gaskets) 1/2" NA A-LOK  Tube Fitting NA NA NA NA NA NA

  8-8 V1HLZ-SSR-PE Welded Assembly A-LOK Tube Fitting 316L VAR 1/2" VacuSeal  (Metal Gaskets) 1/2" NA A-LOK  Tube Fitting NA NA NA NA NA Electropolish

  8-8 V1HLZ-SSV Welded Assembly A-LOK Tube Fitting 316L VIM/VAR 1/2" VacuSeal  (Metal Gaskets) 1/2" NA A-LOK  Tube Fitting NA NA NA NA NA NA

  8-8 V1HLZ-SSV-PE Welded Assembly A-LOK Tube Fitting 316L VIM/VAR 1/2" VacuSeal  (Metal Gaskets) 1/2" NA A-LOK  Tube Fitting NA NA NA NA NA Electropolish

  8-8 V1M-SSR .62 VacuSeal  Glands Short Tube Butt Weld 316L VAR 1/2" VacuSeal  Metal Gasket 1/2" NA Short Tube Butt Weld NA NA NA NA .62" NA

  8-8 V1M-SSR .62-PE VacuSeal  Glands Short Tube Butt Weld 316L VAR 1/2" VacuSeal  Metal Gasket 1/2" NA Short Tube Butt Weld NA NA NA NA .62" Electropolish

  8-8 V1M-SSR 1.29 VacuSeal  Glands Long Tube Butt Weld 316L VAR 1/2" VacuSeal  Metal Gasket 1/2" NA Long Tube Butt Weld NA NA NA NA 1.29" NA

  8-8 V1M-SSR 1.29-PE VacuSeal  Glands Long Tube Butt Weld 316L VAR 1/2" VacuSeal  Metal Gasket 1/2" NA Long Tube Butt Weld NA NA NA NA 1.29" Electropolish

  8-8 V1M-SSV .62 VacuSeal  Glands Short Tube Butt Weld 316L VIM/VAR 1/2" VacuSeal  Metal Gasket 1/2" NA Short Tube Butt Weld NA NA NA NA .62" NA

  8-8 V1M-SSV .62-PE VacuSeal  Glands Short Tube Butt Weld 316L VIM/VAR 1/2" VacuSeal  Metal Gasket 1/2" NA Short Tube Butt Weld NA NA NA NA .62" Electropolish

  8-8 V1M-SSV 1.29 VacuSeal  Glands Long Tube Butt Weld 316L VIM/VAR 1/2" VacuSeal  Metal Gasket 1/2" NA Long Tube Butt Weld NA NA NA NA 1.29" NA

  8-8 V1M-SSV 1.29-PE VacuSeal  Glands Long Tube Butt Weld 316L VIM/VAR 1/2" VacuSeal  Metal Gasket 1/2" NA Long Tube Butt Weld NA NA NA NA 1.29" Electropolish

  8-8 V1T3-SSR VacuSeal  Glands Male Weld 316L VAR 1/2" VacuSeal  Metal Gasket 1/2" NA Tube Butt Weld NA NA NA NA NA NA

  8-8 V1T3-SSR 1.12 VacuSeal  Glands Short Tube Butt Weld 316L VAR 1/2" VacuSeal  Metal Gasket 1/2" NA Short Tube Butt Weld NA NA NA NA 1.12" NA

  8-8 V1T3-SSR 1.12-PE VacuSeal  Glands Short Tube Butt Weld 316L VAR 1/2" VacuSeal  Metal Gasket 1/2" NA Short Tube Butt Weld NA NA NA NA 1.12" Electropolish

  8-8 V1T3-SSR 1.79 VacuSeal  Glands Long Tube Butt Weld 316L VAR 1/2" VacuSeal  Metal Gasket 1/2" NA Long Tube Butt Weld NA NA NA NA 1.79" NA

  8-8 V1T3-SSR 1.79-PE VacuSeal  Glands Long Tube Butt Weld 316L VAR 1/2" VacuSeal  Metal Gasket 1/2" NA Long Tube Butt Weld NA NA NA NA 1.79" Electropolish

  8-8 V1T3-SSR-PE VacuSeal  Glands Male Weld 316L VAR 1/2" VacuSeal  Metal Gasket 1/2" NA Tube Butt Weld NA NA NA NA NA Electropolish

  8-8 V1T3-SSV VacuSeal  Glands Male Weld 316L VIM/VAR 1/2" VacuSeal  Metal Gasket 1/2" NA Tube Butt Weld NA NA NA NA NA NA

  8-8 V1T3-SSV 1.12 VacuSeal  Glands Short Tube Butt Weld 316L VIM/VAR 1/2" VacuSeal  Metal Gasket 1/2" NA Short Tube Butt Weld NA NA NA NA 1.12" NA

  8-8 V1T3-SSV 1.12-PE VacuSeal  Glands Short Tube Butt Weld 316L VIM/VAR 1/2" VacuSeal  Metal Gasket 1/2" NA Short Tube Butt Weld NA NA NA NA 1.12" Electropolish

  8-8 V1T3-SSV 1.79 VacuSeal  Glands Long Tube Butt Weld 316L VIM/VAR 1/2" VacuSeal  Metal Gasket 1/2" NA Long Tube Butt Weld NA NA NA NA 1.79" NA

  8-8 V1T3-SSV 1.79-PE VacuSeal  Glands Long Tube Butt Weld 316L VIM/VAR 1/2" VacuSeal  Metal Gasket 1/2" NA Long Tube Butt Weld NA NA NA NA 1.79" Electropolish

  8-8 V1T3-SSV-PE VacuSeal  Glands Male Weld 316L VIM/VAR 1/2" VacuSeal  Metal Gasket 1/2" NA Tube Butt Weld NA NA NA NA NA Electropolish

  8-8 V1TU-SS VacuSeal  Glands Tube Adapter 316 SS 1/2" VacuSeal  Metal Gasket 1/2" NA A-Lok  Tube Adapter NA NA NA NA NA NA

  8-8 V1TU-SS-PE VacuSeal  Glands Tube Adapter 316 SS 1/2" VacuSeal  Metal Gasket 1/2" NA A-Lok  Tube Adapter NA NA NA NA NA Electropolish

  8-8 V1TU-SSR VacuSeal  Glands Tube Adapter 316L VAR 1/2" VacuSeal  Metal Gasket 1/2" NA A-Lok  Tube Adapter NA NA NA NA NA NA

  8-8 V1TU-SSR-PE VacuSeal  Glands Tube Adapter 316L VAR 1/2" VacuSeal  Metal Gasket 1/2" NA A-Lok  Tube Adapter NA NA NA NA NA Electropolish

  8-8 V1TU-SSV VacuSeal  Glands Tube Adapter 316L VIM/VAR 1/2" VacuSeal  Metal Gasket 1/2" NA A-Lok  Tube Adapter NA NA NA NA NA NA

  8-8 V1TU-SSV-PE VacuSeal  Glands Tube Adapter 316L VIM/VAR 1/2" VacuSeal  Metal Gasket 1/2" NA A-Lok  Tube Adapter NA NA NA NA NA Electropolish

  8-8 V1TW-SSR .74 VacuSeal  Glands Short Tube Butt Weld 316L VAR 1/2" VacuSeal  Metal Gasket 1/2" NA Short Tube Butt Weld NA NA NA NA .74" NA

  8-8 V1TW-SSR .74-PE VacuSeal  Glands Short Tube Butt Weld 316L VAR 1/2" VacuSeal  Metal Gasket 1/2" NA Short Tube Butt Weld NA NA NA NA .74" Electropolish

  8-8 V1TW-SSR 1.41 VacuSeal  Glands Long Tube Butt Weld 316L VAR 1/2" VacuSeal  Metal Gasket 1/2" NA Long Tube Butt Weld NA NA NA NA 1.41" NA

  8-8 V1TW-SSR 1.41-PE VacuSeal  Glands Long Tube Butt Weld 316L VAR 1/2" VacuSeal  Metal Gasket 1/2" NA Long Tube Butt Weld NA NA NA NA 1.41" Electropolish

  8-8 V1TW-SSV .74 VacuSeal  Glands Short Tube Butt Weld 316L VIM/VAR 1/2" VacuSeal  Metal Gasket 1/2" NA Short Tube Butt Weld NA NA NA NA .74" NA

  8-8 V1TW-SSV .74-PE VacuSeal  Glands Short Tube Butt Weld 316L VIM/VAR 1/2" VacuSeal  Metal Gasket 1/2" NA Short Tube Butt Weld NA NA NA NA .74" Electropolish

  8-8 V1TW-SSV 1.41 VacuSeal  Glands Long Tube Butt Weld 316L VIM/VAR 1/2" VacuSeal  Metal Gasket 1/2" NA Long Tube Butt Weld NA NA NA NA 1.41" NA

  8-8 V1TW-SSV 1.41-PE VacuSeal  Glands Long Tube Butt Weld 316L VIM/VAR 1/2" VacuSeal  Metal Gasket 1/2" NA Long Tube Butt Weld NA NA NA NA 1.41" Electropolish

  8-8 V1W-SSR VacuSeal  Glands Socket Weld 316L VAR 1/2" VacuSeal  Metal Gasket 1/2" NA Socket Weld NA NA NA NA NA NA

  8-8 V1W-SSR-BL VacuSeal  Glands Blind Gland 316L VAR 1/2" VacuSeal  Metal Gasket 1/2" NA Blind Tube Butt Weld NA NA NA NA NA NA

  8-8 V1W-SSR-BL-PE VacuSeal  Glands Blind Gland 316L VAR 1/2" VacuSeal  Metal Gasket 1/2" NA Blind Tube Butt Weld NA NA NA NA NA Electropolish

  8-8 V1W-SSR-PE VacuSeal  Glands Socket Weld 316L VAR 1/2" VacuSeal  Metal Gasket 1/2" NA Socket Weld NA NA NA NA NA Electropolish

  8-8 V1W-SSV VacuSeal  Glands Socket Weld 316L VIM/VAR 1/2" VacuSeal  Metal Gasket 1/2" NA Socket Weld NA NA NA NA NA NA

  8-8 V1W-SSV-BL VacuSeal  Glands Blind Gland 316L VIM/VAR 1/2" VacuSeal  Metal Gasket 1/2" NA Blind Tube Butt Weld NA NA NA NA NA NA

  8-8 V1W-SSV-BL-PE VacuSeal  Glands Blind Gland 316L VIM/VAR 1/2" VacuSeal  Metal Gasket 1/2" NA Blind Tube Butt Weld NA NA NA NA NA Electropolish

  8-8 V1W-SSV-PE VacuSeal  Glands Socket Weld 316L VIM/VAR 1/2" VacuSeal  Metal Gasket 1/2" NA Socket Weld NA NA NA NA NA Electropolish

  8-8 V1Y3-SSR 1.16 VacuSeal  Glands Short Automatic Tube Butt Weld 316L VAR 1/2" VacuSeal  Metal Gasket 1/2" NA Short Automatic Tube Butt Weld NA NA NA NA NA NA

  8-8 V1Y3-SSR 1.16-PE VacuSeal  Glands Short Automatic Tube Butt Weld 316L VAR 1/2" VacuSeal  Metal Gasket 1/2" NA Short Automatic Tube Butt Weld NA NA NA NA NA Electropolish

  8-8 V1Y3-SSR 1.83 VacuSeal  Glands Long Automatic Tube Butt Weld 316L VAR 1/2" VacuSeal  Metal Gasket 1/2" NA Long Automatic Tube Butt Weld NA NA NA NA NA NA

  8-8 V1Y3-SSR 1.83-PE VacuSeal  Glands Long Automatic Tube Butt Weld 316L VAR 1/2" VacuSeal  Metal Gasket 1/2" NA Long Automatic Tube Butt Weld NA NA NA NA NA Electropolish

  8-8 V1Y3-SSV 1.16 VacuSeal  Glands Short Automatic Tube Butt Weld 316L VIM/VAR 1/2" VacuSeal  Metal Gasket 1/2" NA Short Automatic Tube Butt Weld NA NA NA NA NA NA

  8-8 V1Y3-SSV 1.16-PE VacuSeal  Glands Short Automatic Tube Butt Weld 316L VIM/VAR 1/2" VacuSeal  Metal Gasket 1/2" NA Short Automatic Tube Butt Weld NA NA NA NA NA Electropolish

  8-8 V1Y3-SSV 1.83 VacuSeal  Glands Long Automatic Tube Butt Weld 316L VIM/VAR 1/2" VacuSeal  Metal Gasket 1/2" NA Long Automatic Tube Butt Weld NA NA NA NA NA NA

  8-8 V1Y3-SSV 1.83-PE VacuSeal  Glands Long Automatic Tube Butt Weld 316L VIM/VAR 1/2" VacuSeal  Metal Gasket 1/2" NA Long Automatic Tube Butt Weld NA NA NA NA NA Electropolish

  8-8 VH2LZ-SS Metal Gasket Bodies Compression Tube Fitting Bulkhead Connector 316 SS 1/2" Male VacuSeal  (Metal Gasket) 1/2" NA A-Lok  Compression Tube Fitting Bulkhead NA NA NA NA 2.74" NA

  8-8 VHLZ-SS Metal Gasket Bodies Compression Tube Fitting Connector 316 SS 1/2" Male VacuSeal  Metal Gasket 1/2" NA A-Lok  Compression Tube Fitting NA NA NA NA 1.95" NA

  8-8 WBV-SS 2.14 Metal Gasket Bodies Bulkhead Union 316 SS 1/2" Male VacuSeal  (Metal Gasket) 1/2" NA Male VacuSeal  (Metal Gasket) Bulkhead NA NA NA NA 2.14" NA

  8-8 WBV-SS 2.57 Metal Gasket Bodies Bulkhead Union 316 SS 1/2" Male VacuSeal  (Metal Gasket) 1/2" NA Male VacuSeal  (Metal Gasket) Bulkhead NA NA NA NA 2.57" NA

  8-8-8 JV-SS Metal Gasket Bodies Union Tee 316 SS 1/2" Male VacuSeal  (Metal Gasket) 1/2" NA Male VacuSeal  (Metal Gasket) 1/2" Male VacuSeal  (Metal Gasket) NA NA 2.62" NA

  8-8-8 JV-SS-PE Metal Gasket Bodies Union Tee 316 SS 1/2" Male VacuSeal  (Metal Gasket) 1/2" NA Male VacuSeal  (Metal Gasket) 1/2" Male VacuSeal  (Metal Gasket) NA NA 2.62" Electropolish

  8-KV-SS Metal Gasket Bodies Union Cross 316 SS 1/2" Male VacuSeal  (Metal Gasket) 1/2" NA Male VacuSeal  (Metal Gasket) 1/2" Male VacuSeal  (Metal Gasket) 1/2" Male VacuSeal  (Metal Gasket) 2.90" NA

  8-KV-SS-PE Metal Gasket Bodies Union Cross 316 SS 1/2" Male VacuSeal  (Metal Gasket) 1/2" NA Male VacuSeal  (Metal Gasket) 1/2" Male VacuSeal  (Metal Gasket) 1/2" Male VacuSeal  (Metal Gasket) 2.90" Electropolish

  MEM-442RVFVF Welded Modules Elbow Modules 316L VAR 1/4" VacuSeal  Female (Metal Gasket) 1/4" NA VacuSeal  Female (Metal Gasket) NA NA NA NA NA NA

  MEM-442RVFVF-PE Welded Modules Elbow Modules 316L VAR 1/4" VacuSeal  Female (Metal Gasket) 1/4" NA VacuSeal  Female (Metal Gasket) NA NA NA NA NA Electropolish

  MEM-442RVMSVF Welded Modules Elbow Modules 316L VAR 1/4" VacuSeal  Male Swivel (Metal Gasket) 1/4" NA VacuSeal  Female (Metal Gasket) NA NA NA NA NA NA

  MEM-442RVMSVF-PE Welded Modules Elbow Modules 316L VAR 1/4" VacuSeal  Male Swivel (Metal Gasket) 1/4" NA VacuSeal  Female (Metal Gasket) NA NA NA NA NA Electropolish

  MEM-442RVMSVMS Welded Modules Elbow Modules 316L VAR 1/4" VacuSeal  Male Swivel (Metal Gasket) 1/4" NA VacuSeal  Male (Metal Gasket) NA NA NA NA NA NA

  MEM-442RVMSVMS-PE Welded Modules Elbow Modules 316L VAR 1/4" VacuSeal  Male Swivel (Metal Gasket) 1/4" NA VacuSeal  Male (Metal Gasket) NA NA NA NA NA Electropolish

  MEM-882RVFVF Welded Modules Elbow Modules 316L VAR 1/2" VacuSeal  Female (Metal Gasket) 1/2" NA VacuSeal  Female (Metal Gasket) NA NA NA NA NA NA

  MEM-882RVFVF-PE Welded Modules Elbow Modules 316L VAR 1/2" VacuSeal  Female (Metal Gasket) 1/2" NA VacuSeal  Female (Metal Gasket) NA NA NA NA NA Electropolish

  MJM-4442VFVFVF Welded Modules Tee Modules 316L VAR 1/4" VacuSeal  Female (Metal Gasket) 1/4" NA VacuSeal  Female (Metal Gasket) 1/4" VacuSeal  Female (Metal Gasket) NA NA NA NA

  MJM-4442VFVFVF-PE Welded Modules Tee Modules 316L VAR 1/4" VacuSeal  Female (Metal Gasket) 1/4" NA VacuSeal  Female (Metal Gasket) 1/4" VacuSeal  Female (Metal Gasket) NA NA NA Electropolish

  MJM-4442VFVFVMS Welded Modules Tee Modules 316L VAR 1/4" VacuSeal  Female (Metal Gasket) 1/4" NA VacuSeal  Male Swivel (Metal Gasket) 1/4" VacuSeal  Female (Metal Gasket) NA NA NA NA

  MJM-4442VFVFVMS-PE Welded Modules Tee Modules 316L VAR 1/4" VacuSeal  Female (Metal Gasket) 1/4" NA VacuSeal  Male Swivel (Metal Gasket) 1/4" VacuSeal  Female (Metal Gasket) NA NA NA Electropolish

  MJM-4442VFVMSVMS Welded Modules Tee Modules 316L VAR 1/4" VacuSeal  Female (Metal Gasket) 1/4" NA VacuSeal  Male Swivel (Metal Gasket) 1/4" VacuSeal  Male Swivel (Metal Gasket) NA NA NA NA

  MJM-4442VFVMSVMS-PE Welded Modules Tee Modules 316L VAR 1/4" VacuSeal  Female (Metal Gasket) 1/4" NA VacuSeal  Male Swivel (Metal Gasket) 1/4" VacuSeal  Male Swivel (Metal Gasket) NA NA NA Electropolish

  MJM-4442VMSVMSVMS Welded Modules Tee Modules 316L VAR 1/4" VacuSeal  Male Swivel (Metal Gasket) 1/4" NA VacuSeal  Male Swivel (Metal Gasket) 1/4" VacuSeal  Male Swivel (Metal Gasket) NA NA NA NA

  MJM-4442VMSVMSVMS-PE Welded Modules Tee Modules 316L VAR 1/4" VacuSeal  Male Swivel (Metal Gasket) 1/4" NA VacuSeal  Male Swivel (Metal Gasket) 1/4" VacuSeal  Male Swivel (Metal Gasket) NA NA NA Electropolish

  MJM8842VFVMSVF Welded Modules Tee Modules 316L VAR 1/2" VacuSeal  Male Swivel (Metal Gasket) 1/2" NA VacuSeal  Female (Metal Gasket) 1/4" VacuSeal  Female (Metal Gasket) NA NA NA NA

  MJM8842VFVMSVF-PE Welded Modules Tee Modules 316L VAR 1/2" VacuSeal  Male Swivel (Metal Gasket) 1/2" NA VacuSeal  Female (Metal Gasket) 1/4" VacuSeal  Female (Metal Gasket) NA NA NA Electropolish

  MKM-44442VFVFVFVF Welded Modules Cross Modules 316L VAR 1/4" VacuSeal  Female (Metal Gasket) 1/4" NA VacuSeal  Female (Metal Gasket) 1/4" VacuSeal  Female (Metal Gasket) 1/4" VacuSeal  Female (Metal Gasket) NA NA

  MKM-44442VFVFVFVF-PE Welded Modules Cross Modules 316L VAR 1/4" VacuSeal  Female (Metal Gasket) 1/4" NA VacuSeal  Female (Metal Gasket) 1/4" VacuSeal  Female (Metal Gasket) 1/4" VacuSeal  Female (Metal Gasket) NA Electropolish

  MKM-44442VMSVFVFVF Welded Modules Cross Modules 316L VAR 1/4" VacuSeal  Male Swivel (Metal Gasket) 1/4" NA VacuSeal  Female (Metal Gasket) 1/4" VacuSeal  Female (Metal Gasket) 1/4" VacuSeal  Female (Metal Gasket) NA NA

  MKM-44442VMSVFVFVF-PE Welded Modules Cross Modules 316L VAR 1/4" VacuSeal  Male Swivel (Metal Gasket) 1/4" NA VacuSeal  Female (Metal Gasket) 1/4" VacuSeal  Female (Metal Gasket) 1/4" VacuSeal  Female (Metal Gasket) NA Electropolish


      - VacuSeal Face Seal Fittings  Parker UHP金屬墊片面密封件（最大1英寸）– VacuSeal ，VacuSeal  Face Seal Fittings are designed for ultra-high purity gas distribution systems








              1-1 V1W-SSR
              VacuSeal  Glands
              Socket Weld
              316L VAR
              1/16"
              VacuSeal  Metal Gasket
              1/16"
              NA
              Socket Weld




              1-1 V1W-SSR-PE
              VacuSeal  Glands
              Socket Weld
              316L VAR
              1/16"
              VacuSeal  Metal Gasket
              1/16"
              NA
              Socket Weld




              1-1 V1W-SSV
              VacuSeal  Glands
              Socket Weld
              316L VIM/VAR
              1/16"
              VacuSeal  Metal Gasket
              1/16"
              NA
              Socket Weld




              1-1 V1W-SSV-PE
              VacuSeal  Glands
              Socket Weld
              316L VIM/VAR
              1/16"
              VacuSeal  Metal Gasket
              1/16"
              NA
              Socket Weld




              12 BV-SS
              Metal Nuts, Caps and Plugs
              Female Nut
              316 SS
              3/4"
              NA
              NA
              NA
              NA




              12 BVI-SS
              Metal Nuts, Caps and Plugs
              Male Nut
              316 SS
              3/4"
              NA
              NA
              NA
              NA




              12 FNV-SS
              Metal Nuts, Caps and Plugs
              Cap
              316 SS
              3/4"
              NA
              NA
              NA
              NA




              12 KV-SS
              Metal Gasket Bodies
              Union Cross
              316 SS
              3/4"
              Male VacuSeal  (Metal Gasket)
              3/4"
              NA
              Male VacuSeal  (Metal Gasket)




              12 KV-SS-PE
              Metal Gasket Bodies
              Union Cross
              316 SS
              3/4"
              Male VacuSeal  (Metal Gasket)
              3/4"
              NA
              Male VacuSeal  (Metal Gasket)




              12 PNV-SS
              Metal Nuts, Caps and Plugs
              Plug
              316 SS
              3/4"
              NA
              NA
              NA
              NA




              12 VG-K
              Metal Gaskets
              Non-Retained Flat Style
              Kel-F
              3/4"
              NA
              NA
              NA
              NA




              12 VG-K-BL
              Metal Gaskets
              Non-Retained Flat Style
              Kel-F
              3/4"
              NA
              NA
              NA
              NA




              12 VG-N
              Metal Gaskets
              Non-Retained Flat Style
              NICKEL (ELECTROPOLISHED)
              3/4"
              NA
              NA
              NA
              NA




              12 VG-N-BL
              Metal Gaskets
              Non-Retained Flat Style
              NICKEL (ELECTROPOLISHED)
              3/4"
              NA
              NA
              NA
              NA




              12 VG-SS
              Metal Gaskets
              Non-Retained Flat Style
              Stainless Steel (Silver Plated)
              3/4"
              NA
              NA
              NA
              NA




              12 VG-SS-BL
              Metal Gaskets
              Non-Retained Flat Style
              Stainless Steel (Silver Plated)
              3/4"
              NA
              NA
              NA
              NA




              12 VG-T
              Metal Gaskets
              Non-Retained Flat Style
              Teflon
              3/4"
              NA
              NA
              NA
              NA




              12 VG-T-BL
              Metal Gaskets
              Non-Retained Flat Style
              Teflon
              3/4"
              NA
              NA
              NA
              NA




              12 VHC-SS
              Metal Gasket Bodies
              Coupling
              316 SS
              3/4"
              Female VacuSeal  Thread
              3/4"
              NA
              Female VacuSeal  Thread




              12-12 EV-SS
              Metal Gasket Bodies
              Union Elbow
              316 SS
              3/4"
              Male VacuSeal  (Metal Gasket)
              3/4"
              NA
              Male VacuSeal  (Metal Gasket)




              12-12 EV-SS-PE
              Metal Gasket Bodies
              Union Elbow
              316 SS
              3/4"
              Male VacuSeal  (Metal Gasket)
              3/4"
              NA
              Male VacuSeal  (Metal Gasket)




              12-12 FV-SS
              Metal Gasket Bodies
              Male NPT Connector
              316 SS
              3/4"
              Male VacuSeal  Metal Gasket
              3/4"
              NA
              Male NPT




              12-12 GV-SS
              Metal Gasket Bodies
              Female NPT Connector
              316 SS
              3/4"
              Male VacuSeal  Metal Gasket
              3/4"
              NA
              Female NPT




              12-12 HV-SS
              Metal Gasket Bodies
              Double Male Union
              316 SS
              3/4"
              Male VacuSeal  (Metal Gasket)
              3/4"
              NA
              Male VacuSeal  (Metal Gasket)




              12-12 V1T3-SSR 2.00 .109
              VacuSeal  Glands
              Male Weld
              316L VAR
              3/4"
              VacuSeal  Metal Gasket
              3/4"
              NA
              Tube Butt Weld




              12-12 V1T3-SSR 2.00 .109-PE
              VacuSeal  Glands
              Male Weld
              316L VAR
              3/4"
              VacuSeal  Metal Gasket
              3/4"
              NA
              Tube Butt Weld




              12-12 V1T3-SSR 2.03
              VacuSeal  Glands
              Long Tube Butt Weld
              316L VAR
              3/4"
              VacuSeal  Metal Gasket
              3/4"
              NA
              Long Tube Butt Weld




              12-12 V1T3-SSR 2.03-PE
              VacuSeal  Glands
              Long Tube Butt Weld
              316L VAR
              3/4"
              VacuSeal  Metal Gasket
              3/4"
              NA
              Long Tube Butt Weld




              12-12 V1T3-SSV 2.00 .109
              VacuSeal  Glands
              Male Weld
              316L VIM/VAR
              3/4"
              VacuSeal  Metal Gasket
              3/4"
              NA
              Tube Butt Weld




              12-12 V1T3-SSV 2.00 .109-PE
              VacuSeal  Glands
              Male Weld
              316L VIM/VAR
              3/4"
              VacuSeal  Metal Gasket
              3/4"
              NA
              Tube Butt Weld




              12-12 V1T3-SSV 2.03
              VacuSeal  Glands
              Long Tube Butt Weld
              316L VIM/VAR
              3/4"
              VacuSeal  Metal Gasket
              3/4"
              NA
              Long Tube Butt Weld




              12-12 V1T3-SSV 2.03-PE
              VacuSeal  Glands
              Long Tube Butt Weld
              316L VIM/VAR
              3/4"
              VacuSeal  Metal Gasket
              3/4"
              NA
              Long Tube Butt Weld




              12-12 V1W-SSR
              VacuSeal  Glands
              Socket Weld
              316L VAR
              3/4"
              VacuSeal  Metal Gasket
              3/4"
              NA
              Socket Weld




              12-12 V1W-SSR-BL
              VacuSeal  Glands
              Blind Gland
              316L VAR
              3/4"
              VacuSeal  Metal Gasket
              3/4"
              NA
              Blind Tube Butt Weld




              12-12 V1W-SSR-BL-PE
              VacuSeal  Glands
              Blind Gland
              316L VAR
              3/4"
              VacuSeal  Metal Gasket
              3/4"
              NA
              Blind Tube Butt Weld




              12-12 V1W-SSR-PE
              VacuSeal  Glands
              Socket Weld
              316L VAR
              3/4"
              VacuSeal  Metal Gasket
              3/4"
              NA
              Socket Weld




              12-12 V1W-SSV
              VacuSeal  Glands
              Socket Weld
              316L VIM/VAR
              3/4"
              VacuSeal  Metal Gasket
              3/4"
              NA
              Socket Weld




              12-12 V1W-SSV-BL
              VacuSeal  Glands
              Blind Gland
              316L VIM/VAR
              3/4"
              VacuSeal  Metal Gasket
              3/4"
              NA
              Blind Tube Butt Weld




              12-12 V1W-SSV-BL-PE
              VacuSeal  Glands
              Blind Gland
              316L VIM/VAR
              3/4"
              VacuSeal  Metal Gasket
              3/4"
              NA
              Blind Tube Butt Weld




              12-12 V1W-SSV-PE
              VacuSeal  Glands
              Socket Weld
              316L VIM/VAR
              3/4"
              VacuSeal  Metal Gasket
              3/4"
              NA
              Socket Weld




              12-12 V1Y3-SSR 2.07
              VacuSeal  Glands
              Long Automatic Tube Butt Weld
              316L VAR
              3/4"
              VacuSeal  Metal Gasket
              3/4"
              NA
              Long Automatic Tube Butt Weld




              12-12 V1Y3-SSR 2.07-PE
              VacuSeal  Glands
              Long Automatic Tube Butt Weld
              316L VAR
              3/4"
              VacuSeal  Metal Gasket
              3/4"
              NA
              Long Automatic Tube Butt Weld




              12-12 V1Y3-SSV 2.07
              VacuSeal  Glands
              Long Automatic Tube Butt Weld
              316L VIM/VAR
              3/4"
              VacuSeal  Metal Gasket
              3/4"
              NA
              Long Automatic Tube Butt Weld




              12-12 V1Y3-SSV 2.07-PE
              VacuSeal  Glands
              Long Automatic Tube Butt Weld
              316L VIM/VAR
              3/4"
              VacuSeal  Metal Gasket
              3/4"
              NA
              Long Automatic Tube Butt Weld




              12-12-12 JV-SS
              Metal Gasket Bodies
              Union Tee
              316 SS
              3/4"
              Male VacuSeal  (Metal Gasket)
              3/4"
              NA
              Male VacuSeal  (Metal Gasket)




              12-12-12 JV-SS-PE
              Metal Gasket Bodies
              Union Tee
              316 SS
              3/4"
              Male VacuSeal  (Metal Gasket)
              3/4"
              NA
              Male VacuSeal  (Metal Gasket)




              12-18M V1T3-SSR 1.22
              VacuSeal  Glands
              Short Tube Butt Weld
              316L VAR
              3/4"
              VacuSeal  Metal Gasket
              NA
              18
              Short Tube Butt Weld




              12-18M V1T3-SSR 1.22-PE
              VacuSeal  Glands
              Short Tube Butt Weld
              316L VAR
              3/4"
              VacuSeal  Metal Gasket
              NA
              18
              Short Tube Butt Weld




              12-18M V1T3-SSR 2.03
              VacuSeal  Glands
              Long Tube Butt Weld
              316L VAR
              3/4"
              VacuSeal  Metal Gasket
              NA
              18
              Long Tube Butt Weld





      12-18M V1T3-SSR 2.03-PE




















        Since 2007








        美國DMK Engineering Solutions公司

信德邁科技(北京)有限公司 CNMEC Technology



E-mail：sales@cnmec.biz   fcg.cnmec@parkerdistribution.com.cn

地址：北京市朝陽區望京街10號望京SOHO塔1C座2115室

郵編：100102

電話：010-8428 2935, 8428 3983

手機：139 1096 2635

Http：//www.0591w.com


傳真：010-8428 8762








          京ICP備08000876號-1

          京公網安備 11010502019740

          Since 2007 Strong Distribution & Powerful Partnerships
