UHP焊接配件 Parker Fittings接頭 Tube Fittings

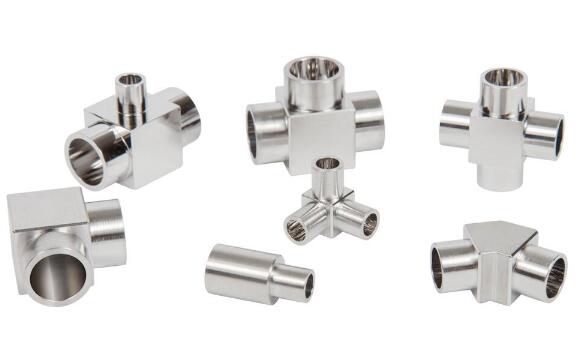

Parker 316L Stainless Steel Weld Fittings UHP Weld Fitttings

派克Veriflo的SEMI F20材料級UHP焊接配件系列提供了經濟高效的解決方案，并保證了派克的質量，可靠性和性能。 派克焊接配件專為需要超高純度應用的應用而設計，并提供緊湊的設計以用于軌道焊接設備。標準的精加工焊接配件的內表面平均粗糙度為10 μin。（0.25μm）Ra，而PE精加工的配件的平均內表面粗糙度為5 μin。（0.13μm）Ra。 UHP焊接配件產品線使Parker能夠以有競爭力的價格在fab應用中競爭，并補充了Parker當前的VacuSeal和Mini buttweld生產線，后者的堅固設計最適合半導體工具的關鍵應用。

Parker Veriflo's line of SEMI F20 material grade UHP weld fittings

UHP Weld Fitttings

Parker 316L Stainless Steel Weld Fittings are made for use in ultra high purity semiconductor applications. Optimized for orbital welding systems, they meet SEMI F20 requirements for cleanliness and corrosion resistance. Parker Veriflo's line of SEMI F20 material grade UHP weld fittings provide cost effective solutions and guarantee Parker's quality, reliability and performance. Parker Weld fittings are designed for applications where ultra high purity applications are required and provide compact designs for use with orbital weld equipment. Standard finish weld fittings have an internal surface roughness average of 10 μin. (0.25μm) Ra while PE finished fittings have an internal surface roughness average of 5 μin. (0.13μm) Ra. The UHP Weld Fittings line allows Parker to compete in fab applications at a competitive price point and complements Parker's current VacuSeal and Mini buttweld lines, whose robust design works best for critical applications at the semiconductor tool.

市場：
- 半導體制造

特性/優點：
- 緊湊的設計可實現系統的小型化和緊密的耦合間距
- 通過在每個接液部件上永久標記的熱代碼，可追溯材料
- 永久性的產品名稱在適用時可識別制造商，材料和內部表面
- 鋒利的方形管端可改善對準和焊接重復性
- 光滑，圓角的接合處可促進更好的流動過渡，減少湍流并減少可能的夾帶部位
- 受控的潤濕表面通過防止脫氣和抑制腐蝕滿足嚴格的超高純系統要求

應用：
- 工具連接
- 閥歧管盒子
- 煤氣柜

Market:
- Semiconductor Fabrication

Features/Benefits:
- Compact Design allows for system miniaturization and close coupled spacing
- Material traceability via permanently marked heat codes on each wetted component
- Permanent product designation identifies manufacturer, material and internal finish when applicable
- Sharp and square tube ends improves alignment and weld repeatability
- Smooth, radiused junctions promote better flow transition, reduces turbulent flow, and reduces possible entrapment sites
- Controlled wetted surfaces meet stringent ultra high purity system requirements by preventing outgassing and inhibiting corrosion

Applications:
- Tool Hook-Up
- Valve Manifold Boxes
- Gas Cabinets

Technical Specifications

UHP Weld Fitttings 型號
