Parker 派克 MPI Series Inverted Two ferrule Compression Tube Fitting
派克 Parker MPI雙卡套接頭 儀表接頭 Parker Fittings接頭
Compression Fittings
Tube Fitting, Inverted Two ferrule Compression - MPI Series
派克MPI接頭是反置雙卡套接頭. 它們的設計和制造為整個行業提供了安全、牢固、防泄漏的連接，包括海上石油和天然氣開發平臺、研究實驗室和其他工作壓力范圍在6,000 到 15,000 psi 的設施.MPI接頭非常適合處理流體、氣體或化學品，可用于多種管材，包括冷拔–1/8 硬（退火）不銹鋼管 , 退火2507 無縫鋼管或儀表級薄壁退火不銹鋼。每只 MPI? 接頭是可裝配的整體套件.Parker's MPI Series is an inverted two ferrule design engineered and manufactured to provide secure, tight, and leak resistant connections for small bore instrumentation applications up to 15,000 PSI. Parker MPI Fittings are an inverted two ferrule, compression design. They are engineered and manufactured to provide secure, tight, and leak-resistant connections throughout industry, including off-shore oil and gas exploration platforms, research labs, and other facilities that require operating pressures in the range of 6,000 to 15,000 psi.
MPI Fittings are ideally suited to handle liquids, gases, or chemicals and can be used on a wide variety of tubing materials including cold drawn – 1/8 hard (unannealed) stainless steel tubing, annealed 2507 seamless tubing or instrument grade thick-walled annealed stainless steel. Every Parker MPI? Fitting is supplied complete and ready to install.

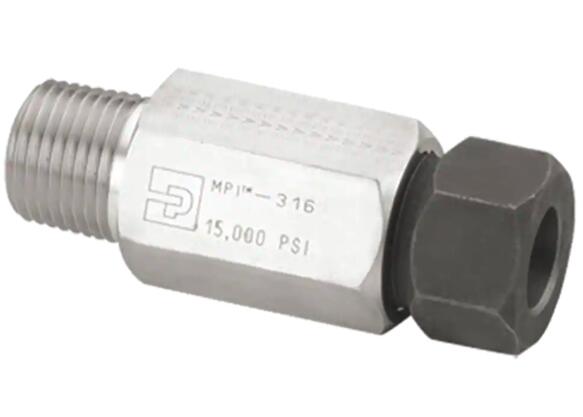

Parker 派克 MPI Series Inverted Two ferrule Compression Tube Fitting
Tube Fitting, Inverted Two ferrule Compression - MPI Series
市場:
- 海上
- 石油和天然氣
- 化工
- 石化
- 電力
- 科研院所
特點/優勢:
- 經過耐腐蝕派克Suparcase處理的前卡套，在管子、接頭體和卡套之間形成密封.它還在管上提供了一個機械保持.
- 經過耐腐蝕派克Suparcase 處理的后卡套在管上提供了強機械保持.
- 更長螺紋區域，改進的抗壓力和負荷的卡套.
- 二硫化鉬涂層反螺母，有助于減少磨損, 提供容易的裝配，允許重復使用.
- 長的管支撐區域，提高抗震性和管路負荷.
應用:
- 海上工藝盤
- 化學注射
- 井口控制盤
- 高壓罐
Markets:
- Offshore
- Oil and Gas
- Chemical
- Petrochemical
- Power
- Research
Features/Benefits:
- Front ferrule with corrosion-resistant Parker Suparcase? forms a seal between the tube, body and ferrule. It also provides a mechanical hold on the tube.
- Back ferrule with corrosion-resistant Parker Suparcase? provides a strong mechanical hold on the tube.
- Longer thread area for improved resistance to pressure and load on the ferrules.
- Molybdenum disulfide-coated inverted nut helps prevent galling, provides easier assembly, and permits multiple remakes.
- Long tube-support area improves resistance to vibration and line loads.
Applications:
- Offshore Process Panels
- Chemical Injection
- Well Head Control Panels
- High Pressure Tanks
Technical Specifications
技術規格：
- 連接3螺紋形式： MPI Compression
- 連接3螺紋尺寸（英寸）： 1/4"
- 連接4螺紋形式： MPI Compression
- 連接器1類型： MPI Compression
- 連接 1 尺寸： 1/4"
- 連接4螺紋尺寸（英寸）： 1/4"
- 連接 2 尺寸： 1/4"
- 連接器2類型： MPI Compression
- 最大工作壓力（psi)： 15, 000
- 主體樣式： Cross
- 閥體材料： 316 Stainless Steel
- 連接 1 尺寸： 1/4", MPI Compression
- 連接 2 尺寸： 1/4", MPI 卡套接頭
- 連接 3 螺紋尺寸： 1/4" inch
- 連接 4 螺紋尺寸： 1/4" inch
- 連接 3 類型： MPI 卡套接頭
- 連接 4 類型： MPI 卡套接頭
- 主體樣式： 四通
- 閥體材料： 316不銹鋼
- 最大運行壓力： 15,000 psi
| Fitting Type: |
Compression |
| Materials of Construction: |
Stainless Steel |
| Connection 1 Size: |
1/4" to 3/4" |
| Connection 2 Size: |
1/4" to 3/4", NPT M, NPT F, MPI Compression |
| Connection 3 Thread Size: |
1/4 to 3/4 inch |
| Connection 4 Thread Size: |
1/4 to 3/4 inch |
| Connection 3 Type: |
MPI Compression |
| Connection 4 Type: |
MPI Compression |
| Body Style: |
Male Connector, Female Connector, Union, Elbow, Tee, Cross |
| Maximum Operating Pressure: |
15,000, 10,000 psi |
Tube Fitting, Inverted Two ferrule Compression - MPI Series型號
MPI 雙卡套接頭(Catalog4234)
石油天然氣市場的創新產品—MPI 接頭－壓力等級：6000-15000psi
MPI接頭最初是為海上平臺井口控制盤研發設計，這些油井的鉆井深度在10000英尺以下，適合于振動環境。
采用獨特的嵌入式外螺紋螺母設計，有效加強對厚壁儀表管的抓緊力
加長螺紋提供更好的承載性能和抗振能力
螺母經二硫化鉬涂層處理，防止螺紋咬死，適用于高溫工況
節省50%安裝和重裝的時間
Suparcase抗腐前卡套形成理想的第二連接和密封;
Suparcase抗腐后卡套形成鋼管牢固的主連接;
加長螺紋提高了卡套的耐壓和負載能力;
二硫化鉬處理的螺母避免了不銹鋼的咬合，可重復裝配.
加長鋼管支撐,提高了抗震性能和負載能力.
|
