Parker派克6100系列快速接頭 在壓力下連接，六角/翼形螺母螺紋連接，低泄漏黃銅快速接頭，最高3000 psi
Parker 快速接頭和附件 Parker Quick Couplings and Accessories Parker Quick Couplings
Connect Under Pressure, Hex / Wing Nut Thread to Connect, Low Spill Brass Quick Couplings, up to 3000 psi - 6100 Series Couplers

派克的6100系列是螺紋連接的低泄漏快速接頭，可在壓力下進行連接。接頭和奶嘴主體均為耐腐蝕黃銅。快速接頭配有鋼制六角螺母或重型蝶形螺母套筒。奶嘴主體上的連接指示器凹槽以可視方式顯示何時完成連接且閥門完全打開。接頭和奶嘴有各種尺寸可供選擇。也可以提供由耦合器，接頭和安裝法蘭組成的快速接頭組。6100系列接頭（液壓）3000 psi與6100系列公頭連接。

Connect Under Pressure, Hex / Wing Nut Thread to Connect, Low Spill Brass Quick Couplings, up to 3000 psi - 6100 Series Couplers

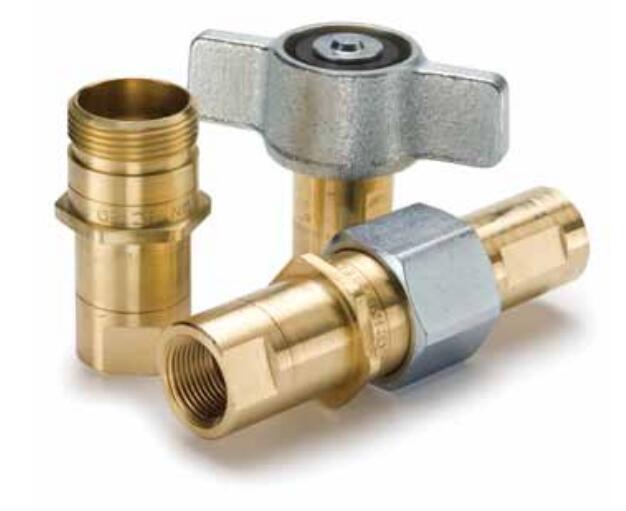

Parker's low spill thread to connect couplers and nipples, wing nut or hex nut style, are ideal for use in applications where a high flow flush valve and connect under pressure is needed. 6100 Series Couplers (hydraulic) 3000 psi connect with 6100 Series Nipples. Parker's 6100 Series is a thread to connect, low spill coupling that can be connected under pressure. Coupler and nipple bodies are corrosion resistant brass. Couplers are available with a steel hex nut or heavy duty wing nut sleeve. A connection indicator groove on the nipple body visually shows when the connection is complete and valves are fully open. Couplers and nipples are available in a range of sizes. Couplings sets consisting of a coupler, nipple, and mounting flanges are also available.

技術特性：
- 尺寸：3/4英寸至1-1 / 2英寸
- 材料：帶鋼套的黃銅
- 端口端：NPTF內螺紋
- 密封選項：丁腈，EPR，碳氟化合物，氯丁橡膠

市場：
- 油氣
- 結構
- 測試

功能/優點：
- 快速接頭配有鋼制六角形或重型蝶形螺母套
- 低溢水沖洗閥
- 膠合閥密封件在全壓力下可持久連接和斷開
- 奶嘴本體上的連接指示器凹槽直觀地指示連接何時完成
- 用于固定隔板或面板安裝的可選法蘭

應用：
- 潛水泵
- 油田設備
- 自卸車
- 發動機測試臺
- 散裝液體輸送
- CO2輸送（適用特殊零件號，請聯系我們）

Technical Characteristics:
- Sizes: 3/4” thru 1-1/2"
- Materials: Brass with steel sleeve
- Port Ends: Female NPTF
- Seal Options: Nitrile, EPR, Fluorocarbon, Neoprene

Markets:
- Oil and gas
- Construction
- Testing

Features/Benefits:
- Couplers are available with steel hex or heavy duty wing nut sleeve
- Low spill flush valves
- Bonded valve seal is durable under full pressure connect and disconnect
- Connection indicator groove on the nipple body visually indicates when the connection is complete
- Optional flange for secure bulkhead or panel mounting

Applications:
- Submersible pumps
- Oil field equipment
- Dump trailers
- Engine test stands
- Bulk liquid transfer
- CO2 transfer (special part numbers apply, contact us)

Technical Specifications

Connect Under Pressure, Hex / Wing Nut Thread to Connect, Low Spill Brass Quick Couplings

up to 3000 psi - 6100 Series Couplers 型號
