測試端口和診斷設備快速接頭 (SAE J1502 / ISO 15171-1)，測試點連接器 - PD 系列接頭

Parker 快速接頭和附件- Parker Quick Couplings and Accessories- Parker Quick Couplings

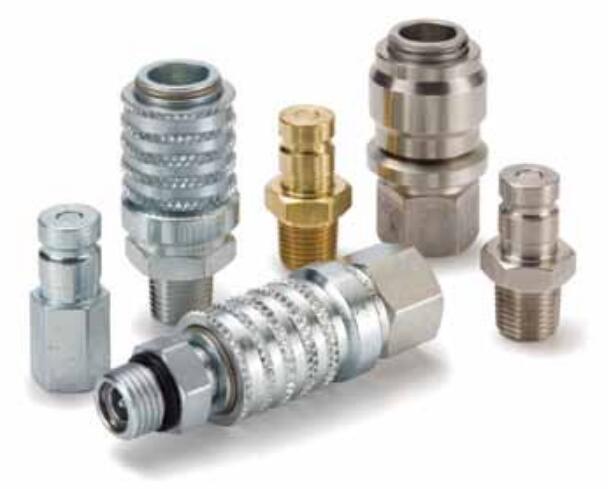

Test Port and Diagnostic Equipment Quick Couplings (SAE J1502 / ISO 15171-1), Push to Connect - PD Series Couplers

PD 系列快速接頭（診斷測試端口連接器）6,000 psi，與 PD 系列接頭連接。這些推動連接快速接頭為機械儀表或專用診斷設備（包括 SensoControl 儀表和附件）提供輕松連接。PD 快速接頭允許測試儀器、儀表、傳感器和流量傳感器快速輕松地連接到系統測試點。
測試端口接頭可以永久安裝在關鍵測試點位置的設備上。接頭和接頭有 1/8"" 尺寸，連接時額定壓力為 6,000 psi。PD 公頭符合或超過 SAE J1502 / ISO 15171-1 設計和性能規范。

Test Port and Diagnostic Equipment Quick Couplings (SAE J1502 / ISO 15171-1), Push to Connect - PD Series Couplers

技術特性：
- 尺寸：1/8""
- 材料：鋼、不銹鋼
- 端口端：內螺紋 NPTF、內螺紋 UNF、外螺紋 NPTF
- 密封選項：丁腈橡膠、乙烯丙烯、氟碳、氯丁橡膠

市場：
- 工業
- 建筑
- 成型
- 測試
- 維護和維修、MRO

特點/優點：
- 易于推動連接操作
-
平面閥可最大限度地減少空氣夾雜和溢出 - SAE J1502 / ISO 15171-1 符合性提供與其他相同規格制造的測試點接頭的全球互換性
- 與派克的 SensoControl 診斷設備兼容
- 適用于液壓或氣動系統

應用：
- 移動設備引擎
- 冷卻系統
- 工業液壓系統
- 流體或空氣系統維護和故障排除
- 系統性能優化
- 系統驗證

Parker's diagnostic quick couplers and test point nipples provide easy connections for mechanical gauges or specialized diagnostic equipment including Parker's SensoControl meters and accessories. PD Series Couplers (diagnostic test port connectors) 6,000 psi, connect with PD Series Nipples. These push to connect quick couplings provide easy connection for mechanical gauges or specialized diagnostic equipment including SensoControl meters and accessories. PD Couplers allow test instruments, gauges, transducers, and flow sensors to be quickly and easily connected to system test points.
Test port Nipples can be permanently mounted on equipment at critical test point locations. Couplers and nipples are available in 1/8"" size with a rated pressure of 6,000 psi when connected. PD Nipples meet or exceed SAE J1502 / ISO 15171-1 design and performance specifications.

Technical Characteristics:
- Size: 1/8""
- Materials: Steel, Stainless Steel
- Port Ends: Female NPTF, Female UNF, Male NPTF
- Seal Options: Nitrile, Ethylene Propylene, Fluorcarbon, Neoprene

Markets:
- Industrial
- Construction
- Molding
- Testing
- Maintenance and Repair, MRO

Features/Benefits:
- Easy push to connect operation
- Flush face valves minimize air inclusion and spillage
- SAE J1502 / ISO 15171-1 conformance provides global interchangeability with other test point couplings manufactured to the same specifications
- Compatible with Parker's SensoControl diagnostic equipment
- Suitable for use with hydraulic or pneumatic systems

Applications:
- Mobile equipment engines
- Cooling systems
- Industrial hydraulic systems
- Fluid or air system maintenance and troubleshooting
- System performance optimization
- System validation

Technical Specifications

Test Port and Diagnostic Equipment Quick Couplings (SAE J1502 / ISO 15171-1), Push to Connect - PD Series Couplers 型號
