Compression Fittings
Stainless Steel Fittings Reducers, Olives and Nuts
This innovative reducer system, using a full range of nuts and olives, enables different diameters of stainless steel, fluoropolymer or polymer tubes to be fitted onto a single Parker Legris compression fitting.
This innovative reducer system, using a full range of nuts and olives, enables different diameters of stainless steel, fluoropolymer or polymer tubes to be fitted onto a single Parker Legris compression fitting. The use of a single fitting for multiple tube materials and sizes allows for improved stock management and reduces inventory costs.
Stainless Steel Fittings Reducers, Olives and Nuts
Features/Benefits:
- Efficient Solution
- Reduces envelope dimensions
- Quick and easy to assemble, whatever the diameters and tube material
- Improved stock management
- Silicone-free
- Multiple Combinations
- A single connector for up to 3 different tube materials and sizes.
example:
Advanced PE tubing 6 mm O.D.
stainless steel tubing 8 mm O.D.
fluoropolymer tubing 12 mm O.D. or braided PVC hose 10 mm I.D.
- A full range of olives and nuts to optimise all assembly operations
Markets:
- Food and Beverage
- Vehicle Assembly Facilities
- Miscellaneous Manufacturing
- Oil and Gas
- Industrial Chemical Processing
Applications:
- Pneumatic Machinery Equipment at Medium and High Pressure
- Suitable for Corrosive Industrial Fluids
Technologies:
- Compression fittings
- Connects to stainless steel tube
- Connects to fluoropolymer tube
- Connects to polymer tube
- Stainless steel reducer
- Pneumatic fittings
Regulations:
- DI: 2002/95/EC (RoHS), 2011/65/EC
- DI: 97/23/EC (PED)
- RG: 1935/2004
- RG: 1907/2006 (REACH)
- DI: 94/09/EC (ATEX)
- FDA: 21 CFR 177.1550
- NACE MR0175: compatible materials
- ISO 15156-1/-2/-3: compatible materials

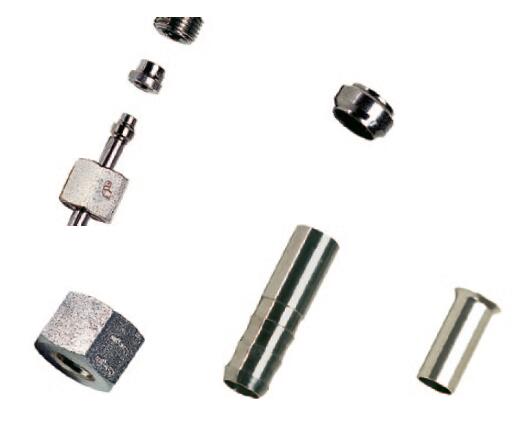

Product Types:
- 3-Piece Reducer
- Stainless Steel Olive
- Stainless Steel Nut
- Barb Adaptor for Hose
- Stainless Steel Tube Support
Technical Specifications
| Maximum Operating Temperature: |
250 °C, 482 °F |
| Application: |
Food & Beverage, Pneumatics, Automotive Process, Oilfield, Cooling, Chemical Transfert, Compressed Air/Inert Gas, Vaccum |
| Minimum Operating Temperature: |
-76 °F, -60 °C |
| Maximum Operating Pressure: |
40 MPa, 400 bar, 5802 psi |
| Tube Outside Diameter: |
6 to 16 mm |
| Materials of Construction: |
316 Stainless Steel |
| Connection Type: |
Compression, Hose Barb |
| Specifications Met: |
DI: 97/23/EC (PED) - RG: 1935/2004 - RG: 1907/2006 (REACH) - DI: 2002/95/EC (RoHs), 2011/65/EC - DI: 94/09/EC (ZATEX) - FDA: 21 CFR 177.1550 - NACE MR0175: compatible materials - ISO 15156-1/-2/-3: compatible materials, DI: 2002/95/EC (RoHS), 2011/65/EC, DI: 97/23/EC (PED), RG: 1935/2004, RG: 1907/2006 (REACH), DI: 94/09/EC (ATEX), FDA: 21 CFR 177.1550, NACE MR0175: compatible materials, ISO 15156-1/-2/-3: compatible materials |
| Shape: |
Straight |
| Quantity per Box: |
2 to 5 |
| Weight: |
0,001 to 0,065 kg |
| Media: |
Many fluids |
Stainless Steel Fittings Reducers, Olives and Nuts型號
| Part |
Product Type |
Shape |
Nut Material |
Sleeve Material |
Connection 1 Thread Style |
Connection 1 Thread Size (metric) |
Connection 2 Tube O.D. (mm) |
Connection 3 Tube O.D. (mm) |
Connection 4 Tube O.D. (mm) |
| 1810 06 00 |
Stainless Steel Compression Fittings |
Stainless steel nut |
na |
na |
Metric |
M10x1 |
6 |
na |
na |
| 1810 08 00 |
Stainless Steel Compression Fittings |
Stainless steel nut |
na |
na |
Metric |
M12x1 |
8 |
na |
na |
| 1810 10 00 |
Stainless Steel Compression Fittings |
Stainless steel nut |
na |
na |
Metric |
M16x1,5 |
10 |
na |
na |
| 1810 12 00 |
Stainless Steel Compression Fittings |
Stainless steel nut |
na |
na |
Metric |
M18x1,5 |
12 |
na |
na |
| 1810 16 00 |
Stainless Steel Compression Fittings |
Stainless steel nut |
na |
na |
Metric |
M22x1,5 |
16 |
na |
na |
| 1822 06 07 |
Stainless Steel Compression Fittings |
Barb connector for hose |
na |
na |
na |
na |
na |
6 |
7 |
| 1822 08 06 |
Stainless Steel Compression Fittings |
Barb connector for hose |
na |
na |
na |
na |
na |
8 |
6 |
| 1822 08 07 |
Stainless Steel Compression Fittings |
Barb connector for hose |
na |
na |
na |
na |
na |
8 |
7 |
| 1822 08 10 |
Stainless Steel Compression Fittings |
Barb connector for hose |
na |
na |
na |
na |
na |
8 |
10 |
| 1822 10 07 |
Stainless Steel Compression Fittings |
Barb connector for hose |
na |
na |
na |
na |
na |
10 |
7 |
| 1822 10 10 |
Stainless Steel Compression Fittings |
Barb connector for hose |
na |
na |
na |
na |
na |
10 |
10 |
| 1822 12 10 |
Stainless Steel Compression Fittings |
Barb connector for hose |
na |
na |
na |
na |
na |
12 |
10 |
| 1822 12 13 |
Stainless Steel Compression Fittings |
Barb connector for hose |
na |
na |
na |
na |
na |
12 |
13 |
| 1824 06 00 |
Stainless Steel Compression Fittings |
Stainless steel olive |
na |
na |
na |
na |
6 |
na |
na |
| 1824 08 00 |
Stainless Steel Compression Fittings |
Stainless steel olive |
na |
na |
na |
na |
8 |
na |
na |
| 1824 10 00 |
Stainless Steel Compression Fittings |
Stainless steel olive |
na |
na |
na |
na |
10 |
na |
na |
| 1824 12 00 |
Stainless Steel Compression Fittings |
Stainless steel olive |
na |
na |
na |
na |
12 |
na |
na |
| 1824 16 00 |
Stainless Steel Compression Fittings |
Stainless steel olive |
na |
na |
na |
na |
16 |
na |
na |
| 1827 06 00 |
Tube Supports |
Stainless steel tube support for polymer tubing |
na |
na |
na |
na |
na |
6 |
4 |
| 1827 08 00 |
Tube Supports |
Stainless steel tube support for polymer tubing |
na |
na |
na |
na |
na |
8 |
6 |
| 1827 10 00 |
Tube Supports |
Stainless steel tube support for polymer tubing |
na |
na |
na |
na |
na |
10 |
8 |
| 1827 12 00 |
Tube Supports |
Stainless steel tube support for polymer tubing |
na |
na |
na |
na |
na |
12 |
10 |
| 1827 12 09 |
Tube Supports |
Stainless steel tube support for polymer tubing |
na |
na |
na |
na |
na |
12 |
9 |
| 1827 16 00 |
Tube Supports |
Stainless steel tube support for polymer tubing |
na |
na |
na |
na |
na |
16 |
14 |
| 1866 06 08 |
Stainless Steel Compression Fittings |
3 pieces reducer |
STAINLESS STEEL 316L |
STAINLESS STEEL 316L |
na |
na |
na |
6 |
8 |
| 1866 06 10 |
Stainless Steel Compression Fittings |
3 pieces reducer |
STAINLESS STEEL 316L |
STAINLESS STEEL 316L |
na |
na |
na |
6 |
10 |
| 1866 08 10 |
Stainless Steel Compression Fittings |
3 pieces reducer |
STAINLESS STEEL 316L |
STAINLESS STEEL 316L |
na |
na |
na |
8 |
10 |
| 1866 12 16 |
Stainless Steel Compression Fittings |
3 pieces reducer |
STAINLESS STEEL 316L |
STAINLESS STEEL 316L |
na |
na |
na |
12 |
16 |
|
