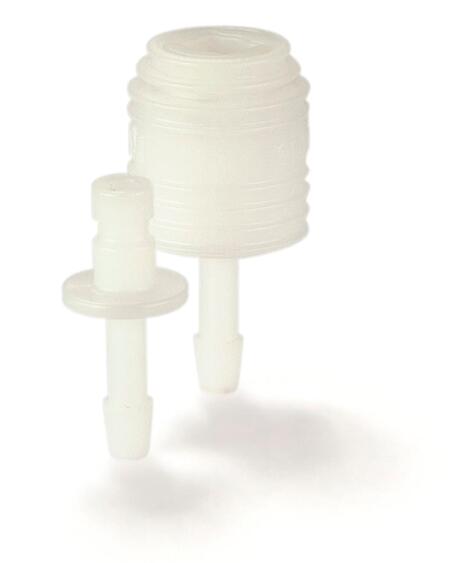

Mini Quick Coupling for Medical Technology, Series NP
Parker's Mini Quick Coupling Series NP especially developed for medical applications. Series NP stands out for low weight, small package size and numerous application options with various media. It's frequently used for non-invasive blood pressure measurement devices, medical device technology and chemistry/pharmacy. The main components are molded in a clean room from virgin
transparent USP Class VI acetal (POM).
The coupling system is developed for single-hand operation. An audible click indicates a secure connection of coupling and plug. The ergonomic sleeve ensures the easy operation with gloves. Quick coupling system with nominal diameter 2.7 for medical applications up to 4.5 bar. Coupling system with internationally used profile. Available made of thermoplastic (POM).
Mini Quick Coupling for Medical Technology, Series NP
Markets:
- Life Science
- Process
Features/Benefits:
- Audible click to indicate a secure connection
- Small package size and low weight
- Easy handling with gloves due to the ergonomic sleeve
Applications:
- NIBP
Technical Specifications
| Minimum Operating Temperature: |
-20 °C |
| Diameter: |
Nominal: 2,7 mm |
| Application: |
Medical Technology |
| Brand: |
Rectus |
| Fitting Connection Type: |
Hose Barb |
| Interchange Type: |
Rectus Profile |
| Maximum Operating Pressure: |
65.268 psi, 4,5 bar |
| Maximum Operating Temperature: |
176 °F, 80 °C |
| Media: |
Gases, Pneumatic Media |
| Valve Type: |
Poppet |
| Valve Included: |
No |
| Version: |
Straight-Through |
| Length: |
22,8 to 29,7 mm |
| Outside Diameter: |
14,8 mm |
| Materials of Construction: |
Acetal (POM), natural color, USP Class VI |
| Seal Material: |
EPDM USP Class VI |
| Flow Rate: |
20 L/min |
Mini Quick Coupling for Medical Technology, Series NP 型號
|
