High Pressure Quick Coupling with Parker Profile, Series HP

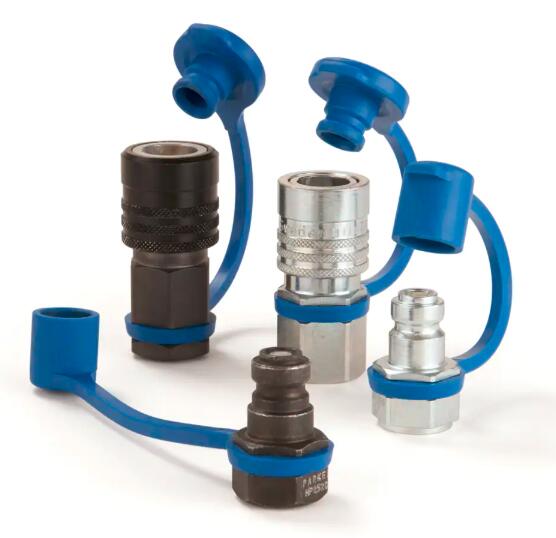

Parker HP Series High Pressure Quick Coupling

高壓，大流量，1英寸和1-1 / 2英寸尺寸的鋼制快速接頭（液壓）5000 psi-HP系列快速接頭
Parker HP Series High Pressure Quick Coupling

派克的HP系列是帶有手動套筒和提升閥的雙截止快速接頭。鋼制連接器套筒和公頭主體經過熱處理，可以承受壓力波動。端接頭配置包括母管和直螺紋ORB。派克的高壓快速接頭和公頭是液壓應用的理想選擇，在液壓應用中，流體管路需要快速，輕松地連接和斷開。HP系列接頭（液壓）5000 psi與HP系列接頭相連接。

Parker HP Series High Pressure Quick Coupling
High Pressure Quick Coupling with Parker Profile, Series HP

Parker HP Series High Pressure Quick Coupling were specially developed for use in industrial machinery, test equipment, rescue equipment, bolt tensioning, torque wrenches etc. The couplings of HP1000 and HP1500 can be supplied either with or without additional safety lock. Series HP is a dry break coupling system - no oil loss during disconnection and no inclusion of air during connection. High pressure quick coupling with body size 1/4" for high pressure applications up to 1500 bar. Coupling system with Parker profile.

技術特性：
- 尺寸：1”和1-1 / 2””
- 材料：鋼
- 端口端：NPSF母頭，ORB母頭，NPTF母頭
- 密封選項：丁腈，EPR，碳氟化合物，氯丁橡膠

市場：
- 工業
- 建筑
- 移動設備的

功能/優點：
- 鋼制連接器套筒和奶嘴主體經過熱處理，可以承受浪涌壓力
- 高流量，壓降最小

應用：
- 工業液壓管路
- 建筑移動設備

Markets:
- Rescue
- Industrial

Features/Benefits:
- High flow as a result of optimised valve design
- Dry break – no oil loss during disconnection and no inclusion of air during connection
- Plug can withstand static pressure disconnected up to full working pressure
- Parker Tema high pressure couplings are supplied with dust caps inclusive

Applications:
- High pressure tools
- Rescue equipment
- Torque wrenches
- Hydraulic high pressure pumps
- Bolt tensioning devices

Technical Specifications

High Pressure Quick Coupling with Parker Profile, Series HP 型號
