Parker 快速接頭和附件 Parker Quick Couplings and Accessories Parker Quick Couplings
Hydraulic Quick Coupling with Parker Profile, Series H

Parker H Series Hydraulic Quick Coupling

派克H系列型液壓快速接頭
派克的H系列液壓快速接頭是標準液壓接頭的進一步發展，它采用了一些新材料來承受惡劣的環境。快速接頭的主體由鋼制成，因此即使受到很大的側向力和高沖擊力，快速接頭也能可靠地發揮作用。H系列也可配備壓力消除器，即可以在高達工作壓力的靜態/殘余壓力下進行連接。附加的安全鎖環可防止意外斷開。快速連接系統，閥體尺寸為1/2“至1”，適用于壓力高達320 bar的中壓應用。帶有Parker Profile的連接系統。

適用于H系列的插頭可以在T系列下找到。

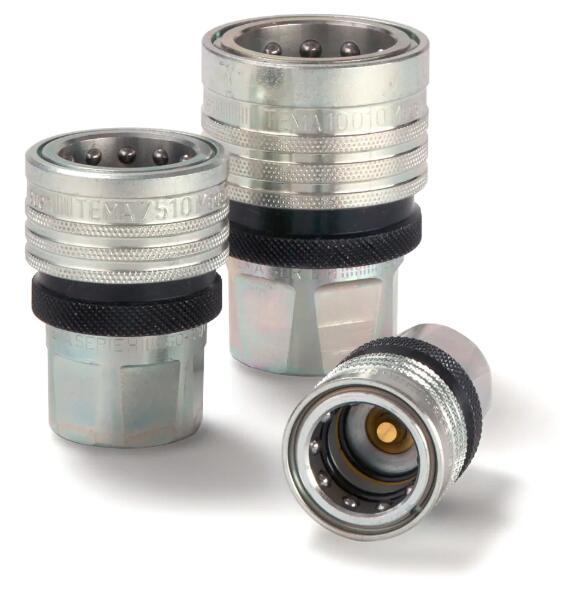

Parker H Series Hydraulic Quick Coupling
Hydraulic Quick Coupling with Parker Profile, Series H

Parker H Series Hydraulic Quick Coupling is a further development of the standard hydraulic coupling, with some new materials to stand up to heavy conditions. The body of the coupling is made of steel so that the coupling functions reliably even when subject to substantial lateral forces and high impulses. Series H is also available with pressure eliminator, i.e. connection is possible under static/residual pressure up to working pressure. An additional safety locking ring prevents unintentional disconnection. Quick coupling system with body sizes 1/2" up to 1" for medium pressure applications up to 320 bar. Coupling system with Parker Profile.

The right plug for series H can be found under series T.

市場：
-農業
-汽車
-石油和天然氣
-加工
-發電
-運輸
-職業與市政
-國防
-工業
-機床
-材料處理
-結構

特征/優點：
-完全由鋼制成，用于重載應用
-高流量-最小壓降
-通過塞子的雙重密封兩次安全
-防止意外斷開的安全鎖緊環
-最高的抗腐蝕保護
-也可提供除壓器

應用：
在移動和工業液壓系統中輕松連接/斷開
-拖拉機
-卡車
-輪式裝載機
-軍車
-壓力機
-成型機

Markets:
- Agriculture
- Automotive
- Oil & Gas
- Process
- Power Generation
- Transportation
- Vocational & Municipal
- Defense
- Industrial
- Machine Tooling
- Material Handling
- Construction

Features/Benefits:
- Completely made of steel for heavy duty applications
- High flow rate – minimum pressure drop
- Twice as safe through double sealing in the plug
- Safety locking ring to prevent unintentional disconnection
- Maximum protection against corrosion
- Also available with pressure eliminator

Applications:
Easy connectiong / disconnection in hydraulic systems, both mobile and industrial applications
- Tractors
- Trucks
- Wheel loaders
- Military vehicles
- Presses
- Molding machines

Technical Specifications

Hydraulic Quick Coupling with Parker Profile, Series H 型號
