Parker 快速接頭和附件 Parker Quick Couplings and Accessories Parker Quick Couplings

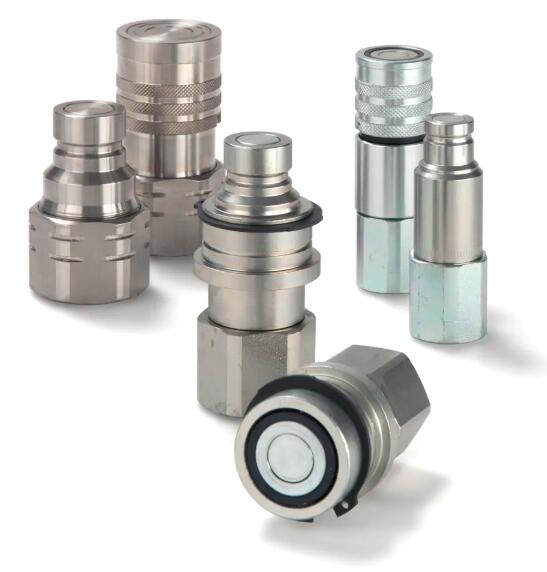

Hydraulic Flat Face Quick Coupling with ISO 16028 Profile, Series FEM / IF

液壓平面快速接頭，符合FEM / IF系列，ISO 16028輪廓| ＃FEC-1001-16FB
Hydraulic Flat Face Quick Coupling with ISO 16028 Profile, Series FEM / IF

派克的平面快速接頭FEM / IF系列是根據ISO 16028生產的，并且與符合同一標準的其他系列兼容。這些液壓平面快速接頭可在無接頭的情況下斷開連接，并且在液壓平面快速接頭斷開時油損失最小。由于閥的設計，液壓平面快速接頭的壓降最小，從而實現了最大的成本效益。FEM / IF系列的標準版本可用鋼或不銹鋼制成。Flat Face quick coupling system with body size 1/8" up to 1" for medium pressure applications up to 450 bar. Coupling system with ISO 16028 Profile.平面快速連接系統，閥體尺寸為1/8“至1”，適用于壓力高達450 bar的中壓應用。符合ISO 16028標準的快速連接系統。

Parker's Flat Face Quick Coupling FEM / IF series
Hydraulic Flat Face Quick Coupling with ISO 16028 Profile, Series FEM / IF

Parker's Flat Face Quick Coupling FEM / IF series is produced according to the ISO 16028 and is compatible with other series complying with the same standard. These couplings offer a leckage free disconnection with a minimal oil loss during uncoupling. Thanks to the valve design, the coupling has a minimum pressure drop, and thus achieves maximum cost-effectiveness. The standard version of series FEM / IF is available made of steel or stainless steel. Flat Face quick coupling system with body size 1/8" up to 1" for medium pressure applications up to 450 bar. Coupling system with ISO 16028 Profile.

市場：
-農業
-汽車
-石油和天然氣
-流程
-發電
-運輸
-職業與市政
-國防
-工業
-機床
-物料搬運
-建筑

特征/優點：
-標配安全鎖定功能，防止意外脫開
-帶壓力消除器的FEC可在靜態壓力（高達額定工作壓力）下輕松連接
-帶推拉功能的FEMP和FECP適用于多板或固定在應用上的聯軸器

應用范圍：
在移動和工業應用的液壓系統中易于干斷連接/斷開
-拖拉機
-卡車
-輪式裝載機
-軍車
-液壓工具
-壓力機
-成型機

Markets:
- Agriculture
- Automotive
- Oil & Gas
- Process
- Power Generation
- Transportation
- Vocational & Municipal
- Defense
- Industrial
- Machine Tooling
- Material Handling
- Construction

Features/Benefits:
- Safety locking feature as standard to prevent unintentional uncoupling
- FEC with the pressure eliminator enable effortless connection under static pressure (up to rated working pressure)
- FEMP and FECP with pushpull features is suitable for multi-plates or when coupling is fixed on an application

Applications:
Easy dry break connection / disconnection in hydraulic systems, both mobile and industrial applications
- Tractors
- Trucks
- Wheel loaders
- Military vehicles
- Hydraulic tools
- Presses
- Molding machines

Technical Specifications

Hydraulic Flat Face Quick Coupling with ISO 16028 Profile,
Series FEM / IF 型號
