Parker Quick Couplings

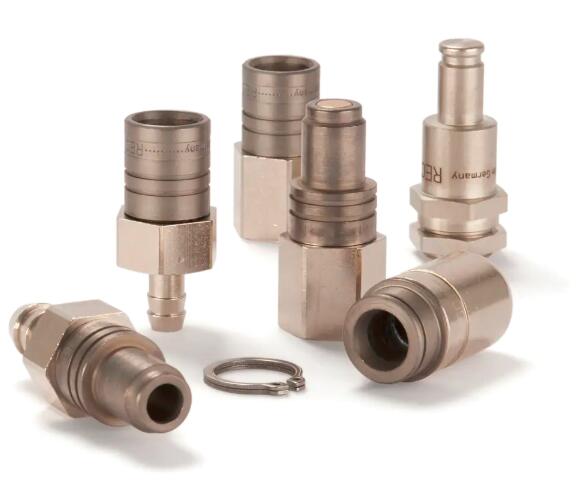

Quick Coupling with Parker own Profile, Series 93
Quick coupling system with nominal diameter 8.1 for pneumatic and fluid handling applications up to 15 bar. Coupling system with Parker own profile. Available made of brass/steel.
Parker's Series 93 is a modular integrated coupling and plug for installation in multi-coupling systems (series 08). Series 93 stands out for its high resilience, low coupling forces and great resistance to liquid media due to the special coating of the coupling body.
Quick Coupling with Parker own Profile, Series 93
Markets:
- Machinery Construction
Features/Benefits:
- High resilience
- Low coupling forces
- Great resistance to liquid media due to the special coating of the coupling body
Applications:
- Molding
- Water and Cooling Lines
Technical Specifications
| Minimum Operating Temperature: |
-15 °C |
| Diameter: |
Nominal: 8,1 mm |
| Application: |
Pneumatic & Fluid Handling |
| Brand: |
Rectus |
| Fitting Connection Type: |
Female Thread, Hose Barb |
| Interchange Type: |
Rectus Profile |
| Maximum Operating Pressure: |
210 psi, 15 bar |
| Maximum Operating Temperature: |
212 °F, 100 °C |
| Media: |
Chemical Fluids, Gases, Pneumatic Media, Steam, Water |
| Valve Type: |
Poppet |
| Valve Included: |
No, Yes |
| Length: |
48 to 68,5 mm |
| Hex Size: |
24 mm |
| Flow Rate: |
50 to 92 L/min |
| Materials of Construction: |
Steel |
| Seal Material: |
NBR |
Quick Coupling with Parker own Profile, Series 93 型號
| Part |
Type |
Version |
Connection Type |
Connection Thread Size (inch) |
Hose I.D. |
| 93KFIW21SVN |
Coupling |
Straight-Through |
Female Thread - parallel |
1/2 |
na |
| 93KFTF13SVN |
Coupling |
Straight-Through |
Hose Barb |
na |
13 |
| 93KLIW21SVN |
Coupling |
Flat-Sealing |
Female Thread - parallel |
1/2 |
na |
| 93KLTF09SVN |
Coupling |
Flat-Sealing |
Hose Barb |
na |
9 |
| 93KLTF13SVN |
Coupling |
Flat-Sealing |
Hose Barb |
na |
13 |
| 93SFIW21SXN |
Plug |
Straight-Through |
Female Thread - parallel |
1/2 |
na |
| 93SFTF13SXN |
Plug |
Straight-Through |
Hose Barb |
na |
13 |
| 93SLIW21SVN |
Plug |
Flat-Sealing |
Female Thread - parallel |
1/2 |
na |
| 93SLTF09SVN |
Plug |
Flat-Sealing |
Hose Barb |
na |
9 |
| 93SLTF13SVN |
Plug |
Flat-Sealing |
Hose Barb |
na |
13 |
|
