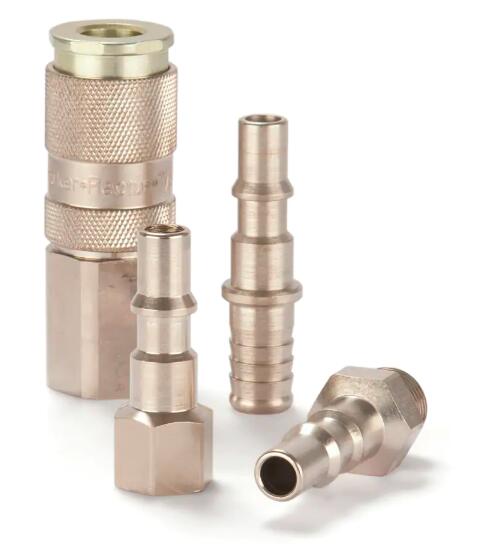

Quick Coupling with ISO 6150 C Profile, Series 84
Quick coupling system with nominal diameter 8 for pneumatic and fluid handling applications up to 35 bar. Coupling system with ISO 6150 C profile. Available made of brass/steel.
Parker's Series 84 is a coupling system according to ISO 6150 C. The coupling system is developed for single-hand operation. The UltraFlo valve guarantees optimum flow and low pressure drop. The high insertion depth is guaranteed by an optimized plug guide. Series 84 has an optimized locking of the plug due to 6-way ball valve.
Quick Coupling with ISO 6150 C Profile, Series 84
Markets:
- Machinery Construction
- Trade
- Automotive
Features/Benefits:
- UltraFlo valve for optimum flow and low pressure drop
- 6-way ball valve assure optimized locking of the plug
- Single-hand operation for easy and fast connection
Applications:
- Pneumatic Power Tools
- Assembly Lines
- Air compressors
Technical Specifications
| Minimum Operating Temperature: |
-20 °C |
| Diameter: |
Nominal: 8 mm |
| Application: |
Pneumatic & Fluid Handling |
| Brand: |
Rectus |
| Fitting Connection Type: |
Female Thread, Male Thread, Hose Barb |
| Specifications Met: |
ISO C |
| Interchange Type: |
ISO 6150 C |
| Maximum Operating Pressure: |
500 psi, 35 bar |
| Maximum Operating Temperature: |
212 °F, 100 °C |
| Media: |
Pneumatic Media |
| Valve Type: |
Poppet |
| Seal Material: |
NBR |
| Valve Included: |
Yes or No acc. to the version |
| Version: |
Single Shut-Off |
| Length: |
53 to 97 mm |
| Hex Size: |
17 to 27 mm |
| Outside Diameter: |
16 to 29 mm |
| Materials of Construction: |
Steel |
| Flow Rate: |
1960 L/min |
Quick Coupling with ISO 6150 C Profile, Series 84 型號
|
