Parker Quick Couplings

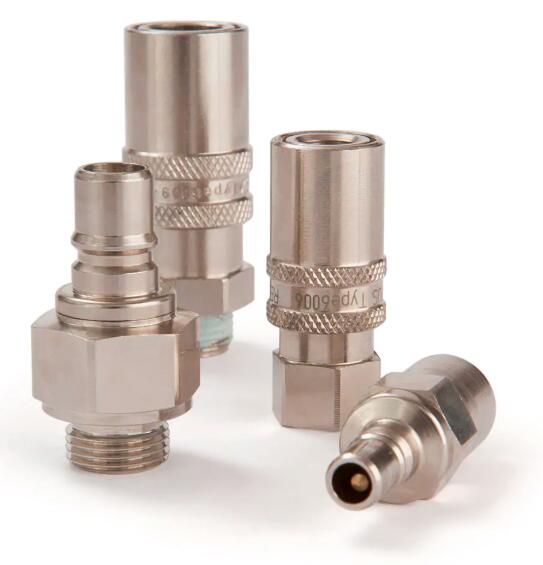

Quick Coupling with Frenchmatic I Profile, Series 6006/6009/6012/6016
Quick coupling system with nominal diameter 6/9/12/16 for tempering and cooling applications up to 20 bar. Coupling system with Frenchmatic I profile. Available made of brass/steel.
Parker's Quick Coupling Series 6006/6009/6012/6016 was constructed with valves as an alternative to the French profiles. All four nominal diameters in our Frenchmatic I range are available as single shut-off and double shut-off version.
The locking balls guarantee an optimum hold by the insert connection even with forces acting from the side. The Series 6006/6009/6012/6016 stands out for its optimum flow rate with absolute minimal flow resistance.
Quick Coupling with Frenchmatic I Profile, Series 6006/6009/6012/6016
Markets:
- Industrial
Features/Benefits:
- Optimum flow rate with absolute minimal flow resistance
Applications:
- Mold cooling
- Cooling and tempering lines
Technical Specifications
| Minimum Operating Temperature: |
-15 °C |
| Length: |
30 to 112,5 mm |
| Application: |
Mold |
| Brand: |
Rectus |
| Diameter: |
Nominal: 6 to 16 mm |
| Fitting Connection Type: |
Female Thread, Male Thread, Hose Barb |
| Interchange Type: |
French Profile |
| Maximum Operating Pressure: |
290.08 psi, 20 bar |
| Maximum Operating Temperature: |
392 °F, 200 °C |
| Media: |
Water |
| Valve Type: |
Poppet |
| Hex Size: |
8 to 34 mm |
| Outside Diameter: |
9,4 to 32 mm |
| Materials of Construction: |
Brass, Steel |
| Seal Material: |
FKM |
Quick Coupling with Frenchmatic I Profile, Series 6006/6009/6012/6016 型號
|
