Parker Quick Couplings

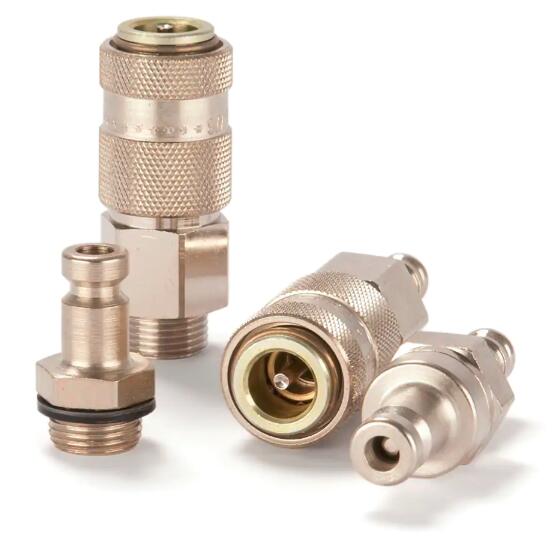

Premium Quick Coupling with German Profile, Series 52
Premium quick coupling system with nominal diameter 6 for pneumatic and fluid handling applications up to 50 bar. Coupling system with German industrial profile. Available made of brass/steel.
Parker's Premium Quick Coupling Series 52 is a coupling system with German industrial profile.
This coupling system is developed for single-hand operation. The UltraFlo valve guarantees optimum flow and low pressure drop. This robust coupling series in slim design mainly used for pneumatic applications. The steel sleeve counters oscillating forces and the high insertion depth is guaranteed by an optimized plug guide.
Premium Quick Coupling with German Profile, Series 52
Markets:
- Machinery Construction
- Automotive
- Aerospace
- Mobile Hydraulics
- Industrial
- Machine Tooling
Features/Benefits:
- UltraFlo valve for optimum flow and low pressure drop
- Steel sleeve counters oscillating forces
- Single-hand operation for easy and fast connection
Applications:
- Pneumatic Power Tools
- Assembly Lines
- Air compressors
- Fluid Transfer
Technical Specifications
| Minimum Operating Temperature: |
-20 °C |
| Diameter: |
Nominal: 6.0 mm |
| Application: |
Pneumatic & Fluid Handling |
| Brand: |
Rectus |
| Fitting Connection Type: |
Female Thread, Male Thread, Hose Barb |
| Interchange Type: |
Walther |
| Materials of Construction: |
Brass / Steel |
| Maximum Operating Pressure: |
725.2 psi, 50 bar |
| Maximum Operating Temperature: |
212 °F, 100 °C |
| Media: |
Gases, Pneumatic Media, Water |
| Valve Type: |
Poppet |
| Seal Material: |
NBR |
| Valve Included: |
Yes or No acc. to the version |
| Length: |
341 up to 80 mm |
| Hex Size: |
17 up to 24 mm |
| Outside Diameter: |
12 to 25 mm |
| Flow Rate: |
660 to 1100 L/min |
Premium Quick Coupling with German Profile, Series 52 型號
| Part |
Type |
Version |
Connection Type |
Connection Thread Size (inch) |
Hose I.D. |
Material |
| 52KBAW13SPN |
Coupling |
Double Shut-Off |
Male Thread - parallel |
1/4 |
na |
Steel nickel plated |
| 52KBAW17SPN |
Coupling |
Double Shut-Off |
Male Thread - parallel |
3/8 |
na |
Steel nickel plated |
| 52KBAW21SPN |
Coupling |
Double Shut-Off |
Male Thread - parallel |
1/2 |
na |
Steel nickel plated |
| 52KBIW13SPN |
Coupling |
Double Shut-Off |
Female Thread - parallel |
1/4 |
na |
Steel nickel plated |
| 52KBIW17SPN |
Coupling |
Double Shut-Off |
Female Thread - parallel |
3/8 |
na |
Steel nickel plated |
| 52KBIW21SPN |
Coupling |
Double Shut-Off |
Female Thread - parallel |
1/2 |
na |
Steel nickel plated |
| 52KBTF06SPN |
Coupling |
Double Shut-Off |
Hose Barb |
na |
6 |
Steel nickel plated |
| 52KBTF09SPN |
Coupling |
Double Shut-Off |
Hose Barb |
na |
9 |
Steel nickel plated |
| 52KBTF10SPN |
Coupling |
Double Shut-Off |
Hose Barb |
na |
10 |
Steel nickel plated |
| 52KBTF11SPN |
Coupling |
Double Shut-Off |
Hose Barb |
na |
11 |
Steel nickel plated |
| 52KBTF13SPN |
Coupling |
Double Shut-Off |
Hose Barb |
na |
13 |
Steel nickel plated |
| 52SBAW13SPN |
Plug |
Double Shut-Off |
Male Thread - parallel |
1/4 |
na |
Steel nickel plated |
| 52SBAW17SPN |
Plug |
Double Shut-Off |
Male Thread - parallel |
3/8 |
na |
Steel nickel plated |
| 52SBAW21SPN |
Plug |
Double Shut-Off |
Male Thread - parallel |
1/2 |
na |
Steel nickel plated |
| 52SBIW13SPN |
Plug |
Double Shut-Off |
Female Thread - parallel |
1/4 |
na |
Steel nickel plated |
| 52SBIW17SPN |
Plug |
Double Shut-Off |
Female Thread - parallel |
3/8 |
na |
Steel nickel plated |
| 52SBTF06SPN |
Plug |
Double Shut-Off |
Hose Barb |
na |
6 |
Steel nickel plated |
| 52SBTF08SPN |
Plug |
Double Shut-Off |
Hose Barb |
na |
8 |
Steel nickel plated |
| 52SBTF09SPN |
Plug |
Double Shut-Off |
Hose Barb |
na |
9 |
Steel nickel plated |
| 52SBTF10SPN |
Plug |
Double Shut-Off |
Hose Barb |
na |
10 |
Steel nickel plated |
| 52SBTF13SPN |
Plug |
Double Shut-Off |
Hose Barb |
na |
13 |
Steel nickel plated |
| 52SFAW10SXN |
Plug |
Single Shut-Off |
Male Thread - parallel |
1/8 |
na |
Steel nickel plated |
| 52SFAW13SXN |
Plug |
Single Shut-Off |
Male Thread - parallel |
1/4 |
na |
Steel nickel plated |
| 52SFAW17SXN |
Plug |
Single Shut-Off |
Male Thread - parallel |
3/8 |
na |
Steel nickel plated |
| 52SFAW21SXN |
Plug |
Single Shut-Off |
Male Thread - parallel |
1/2 |
na |
Steel nickel plated |
| 52SFIW10SXN |
Plug |
Single Shut-Off |
Female Thread - parallel |
1/8 |
na |
Steel nickel plated |
| 52SFIW13SXN |
Plug |
Single Shut-Off |
Female Thread - parallel |
1/4 |
na |
Steel nickel plated |
| 52SFIW17SXN |
Plug |
Single Shut-Off |
Female Thread - parallel |
3/8 |
na |
Steel nickel plated |
| 52SFIW21SXN |
Plug |
Single Shut-Off |
Female Thread - parallel |
1/2 |
na |
Steel nickel plated |
| 52SFTF06SXN |
Plug |
Single Shut-Off |
Hose Barb |
na |
6 |
Steel nickel plated |
| 52SFTF09SXN |
Plug |
Single Shut-Off |
Hose Barb |
na |
9 |
Steel nickel plated |
| 52SFTF11SXN |
Plug |
Single Shut-Off |
Hose Barb |
na |
11 |
Steel nickel plated |
| 52SFTF13SXN |
Plug |
Single Shut-Off |
Hose Barb |
na |
13 |
Steel nickel plated |
|
