Parker Quick Couplings

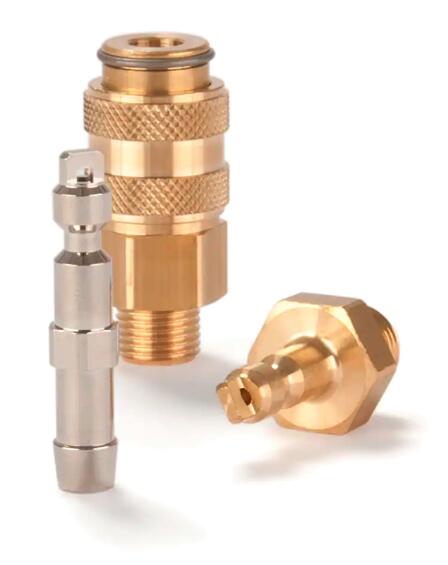

Premium Quick Coupling, Series 50
Premium quick coupling system with nominal diameter 2.5 for pneumatic and fluid handling applications up to 35 bar. Available made of brass.
Parker's Premium Quick Coupling Series 50 is a mini industrial quick coupling which can be used with various media.
The coupling system is developed for single-hand operation. This system is extremely easy to operate and stands out for its small installation dimensions.
Premium Quick Coupling, Series 50
Markets:
- Machinery Construction
Features/Benefits:
- Single-handed operation for easy and fast connection
- Small installation dimensions
Applications:
- Automation
Technical Specifications
| Minimum Operating Temperature: |
-20 °C |
| Diameter: |
Nominal: 2,5 mm |
| Application: |
Pneumatic & Fluid Handling |
| Brand: |
Rectus |
| Fitting Connection Type: |
Female Thread, Male Thread, Hose Barb |
| Interchange Type: |
Walther |
| Materials of Construction: |
Brass |
| Maximum Operating Pressure: |
500 psi, 35 bar |
| Maximum Operating Temperature: |
212 °F, 100 °C |
| Media: |
Gases, Pneumatic Media |
| Valve Type: |
Poppet |
| Seal Material: |
NBR |
| Valve Included: |
Yes or No acc. to the version |
| Version: |
Single Shut-Off |
| Length: |
7 to 35 mm |
| Hex Size: |
7 to 17 mm |
| Outside Diameter: |
16 mm |
| Flow Rate: |
160 L/min |
Premium Quick Coupling, Series 50 型號
| Part |
Type |
Connection Type |
Connection Thread Size (inch) |
Hose I.D. (mm) |
Material |
| 50KAAW10MPNS |
Coupling |
Male Thread - parallel |
1/8 |
na |
Brass nickel plated |
| 50KAAW10MPXS |
Coupling |
Male Thread - parallel |
1/8 |
na |
Brass |
| 50KAAW13MPNS |
Coupling |
Male Thread - parallel |
1/4 |
na |
Brass nickel plated |
| 50KAAW13MPXS |
Coupling |
Male Thread - parallel |
1/4 |
na |
Brass |
| 50KAIW10MPNS |
Coupling |
Female Thread - parallel |
1/8 |
na |
Brass nickel plated |
| 50KAIW10MPXS |
Coupling |
Female Thread - parallel |
1/8 |
na |
Brass |
| 50KAIW13MPNS |
Coupling |
Female Thread - parallel |
1/4 |
na |
Brass nickel plated |
| 50KAIW13MPXS |
Coupling |
Female Thread - parallel |
1/4 |
na |
Brass |
| 50KATF04MPNS |
Coupling |
Hose Barb |
na |
4 |
Brass nickel plated |
| 50KATF04MPXS |
Coupling |
Hose Barb |
na |
4 |
Brass |
| 50KATF06MPNS |
Coupling |
Hose Barb |
na |
6 |
Brass nickel plated |
| 50KATF06MPXS |
Coupling |
Hose Barb |
na |
6 |
Brass |
| 50SFAW10MXN |
Plug |
Male Thread - parallel |
1/8 |
na |
Brass nickel plated |
| 50SFAW10MXX |
Plug |
Male Thread - parallel |
1/8 |
na |
Brass |
| 50SFIW10MXN |
Plug |
Female Thread - parallel |
1/8 |
na |
Brass nickel plated |
| 50SFIW10MXX |
Plug |
Female Thread - parallel |
1/8 |
na |
Brass |
| 50SFTF04MXN |
Plug |
Hose Barb |
na |
4 |
Brass nickel plated |
| 50SFTF04MXX |
Plug |
Hose Barb |
na |
4 |
Brass |
| 50SFTF06MXN |
Plug |
Hose Barb |
na |
6 |
Brass nickel plated |
| 50SFTF06MXX |
Plug |
Hose Barb |
na |
6 |
Brass |
|
